LINK-MI LM-HT208 Manuale utente

LM-HT208

HDMI IR Extender

User Manual

Description

The LM-HT208 extender provides extension of HDMI signals long

distances over a single CAT6 cable, it supports high resolution up to 1080p and

IR signal transmission. The extender can use for a wide range of applications

requiring long distance transmission of high resolution with high quality by its

good stability and powerful security.

1. Features

1) Transmits HDMI video and audio signals up to 60m over a single CAT6

cable;

2) Support video resolution up to 1920*1080@60Hz, 3D signal;

3) Support reverse direction IR signal transmission;

4) Support copy EDID function, can auto-match many kind display device;

5) Compliance with HDMI 1.3 and HDCP 1.2 standard;

6) High compatibility, can auto-match source and display device;

7) Built-in automatic adjustment system, make the image smooth, clear

and stable;

8) Built-in ESD protection system;

9) Simple to install, plug and play;

2. Specifications

Parameter

Description

Video

Standards

HDMI 1.3; HDCP 1.2

Maximum pixel

clock

165MHz

Maximum data rate

6.75Gbps

Resolution

1920X1080@60Hz

Connector

HDMI-A

Impedance

100Ω

Interface

3.5mm Stereo Audio Jack

Signal direction

Reverse direction

Signal type

Digital

IR frequency

20k-60kHz

UTP

Interface

RJ45

Transmission

distance

CAT6-60m

Other

Power supply

The power adapter: DC 5V/1A

Power dissipation

MAX 3W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension

94.5*71*26mm

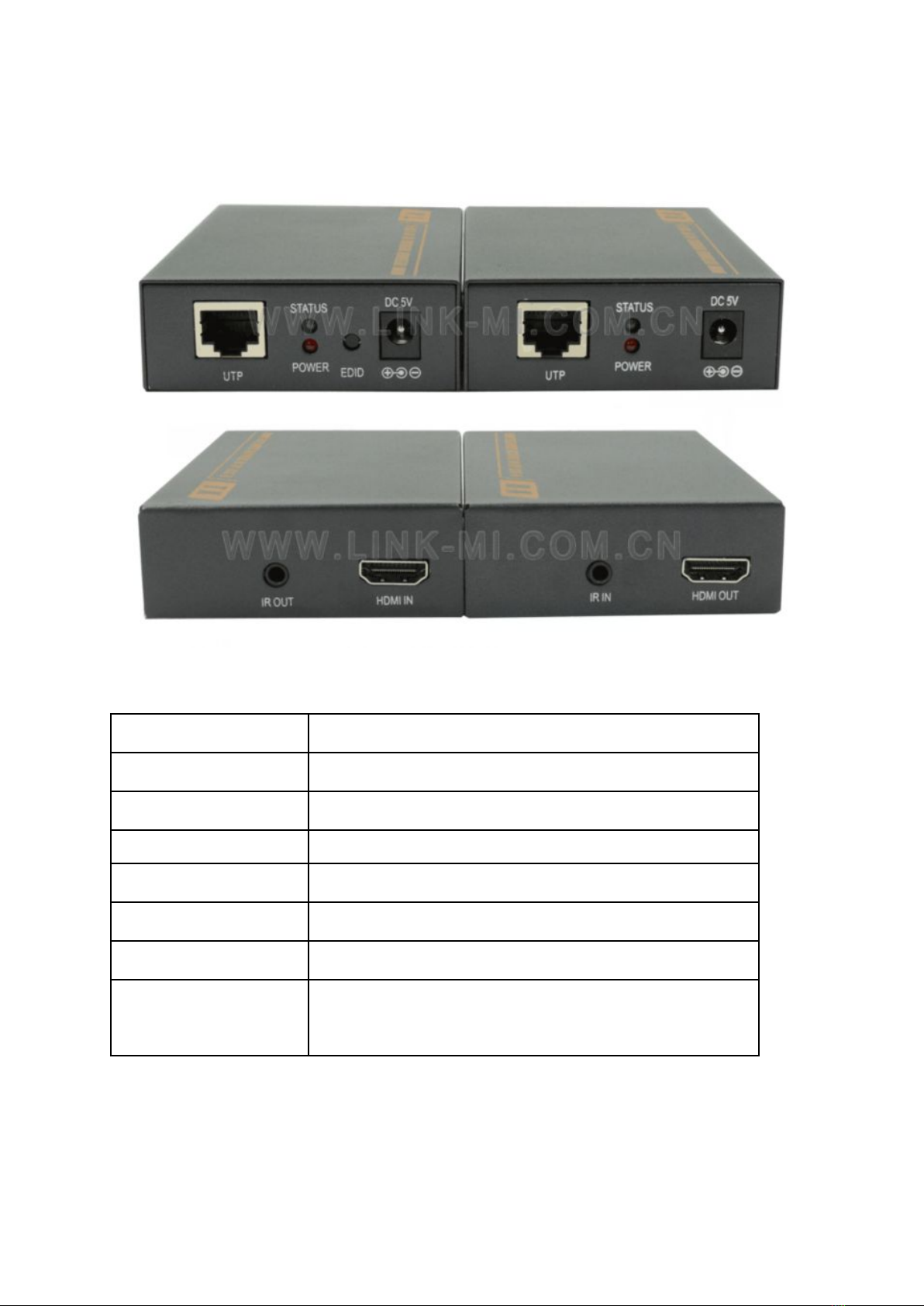

3. Panel

Transmitter Receiver

Port name

Description

HDMI IN/OUT

HDMI signal input/output

UTP

RJ45 port connect cat5e/6.

IR IN/OUT

IR signal input/output

DC IN

Power adapter socket

LED indicator

Description

PWR

System power indicator

STATUS

Video signal indicator.

Copy EDID indicator

4. Package list

HDMI transmitter ………………………. 1 pcs

HDMI receiver ……………………………. 1 pcs

Mini USB cable……………………………. 1 pcs

Power adapter …………………………….2 pcs

User manual ………………………………. 1 pcs

5. Installation

1. Connect the HDMI input source (such as HD-DVD, PS3, STB etc. ) to

transmitter.

2. Connect a CAT6 cable from UTP port of transmitter to UTP port

of receiver

3. Connect the HDMI sink(such as HD-LCD, HD-DLP）to receiver,

4. Connect the transmitter UTP port to the receiver UTP port using a single

CAT6 cable.

5. Connect the IR TX UNIT into transmitter IR TX; Connect the IR RX UNIT

into receiver IR RX.

6. Power on Transmitter and Receiver.

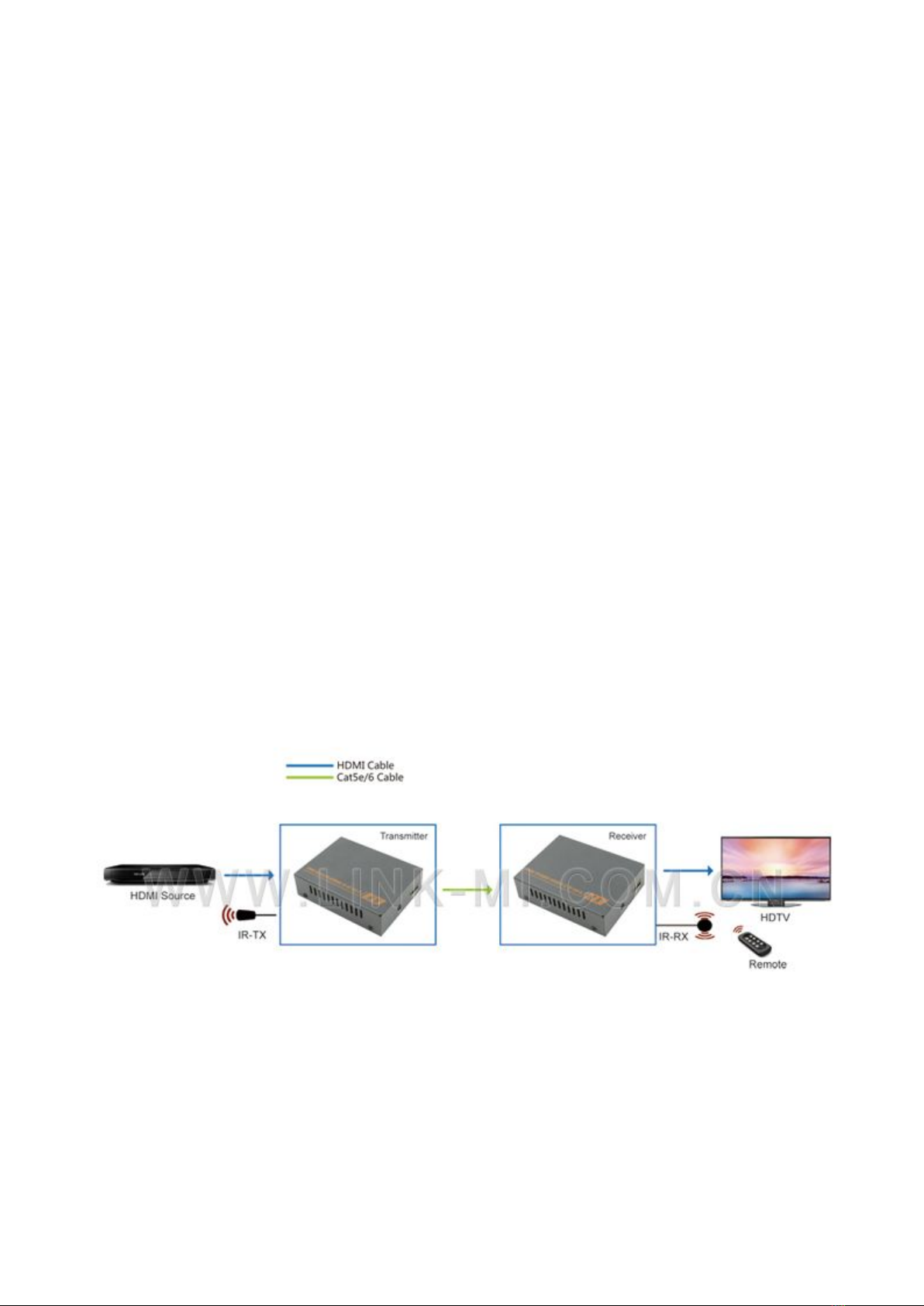

6. Diagram
