LINK-MI LM-THF109D Manuale utente

DVI-D Uncompressed Video Fiber Optic Transmission

Model: LM-THF109D

USER MANUAL

Introduction

LM-THF109D is a set of extender device of high-definition video transmission which

use fiber optic, just need a single fiber will be able to transmit 1080p signal over long

distances, it support audio transmission. This product is ideal for large-screen display,

conferencing systems and home entertainment and so on. The device has the ability

of anti-interference, to ensure the stability of the signal.

Features:

Compliance with DVI1.0 standard,

Support DVI signal input or output.

HDCP1.2

The Transmitter support the transmission of the DVI audio and the independent

stereo

The Receiver support the output of the DVI audio and the Independent stereo

Support 1080p 60H, single mode fiber transmission up to 10 KM

Real-time transmission of high-definition uncompressed digital DVI video signal,

the video is clear and stable

Built-in ESD protection circuitry, can effectively prevent electrostatic damage

Site installation: easy, plug and play, no need to set

Support serial unidirectional transmission, baud rate adaptive.

Package Contents:

DVI fiber Transmitter 1pcs

DVI fiber Receiver 1pcs

Power Adapter 5V/2A 2pcs

User Manual 1pcs

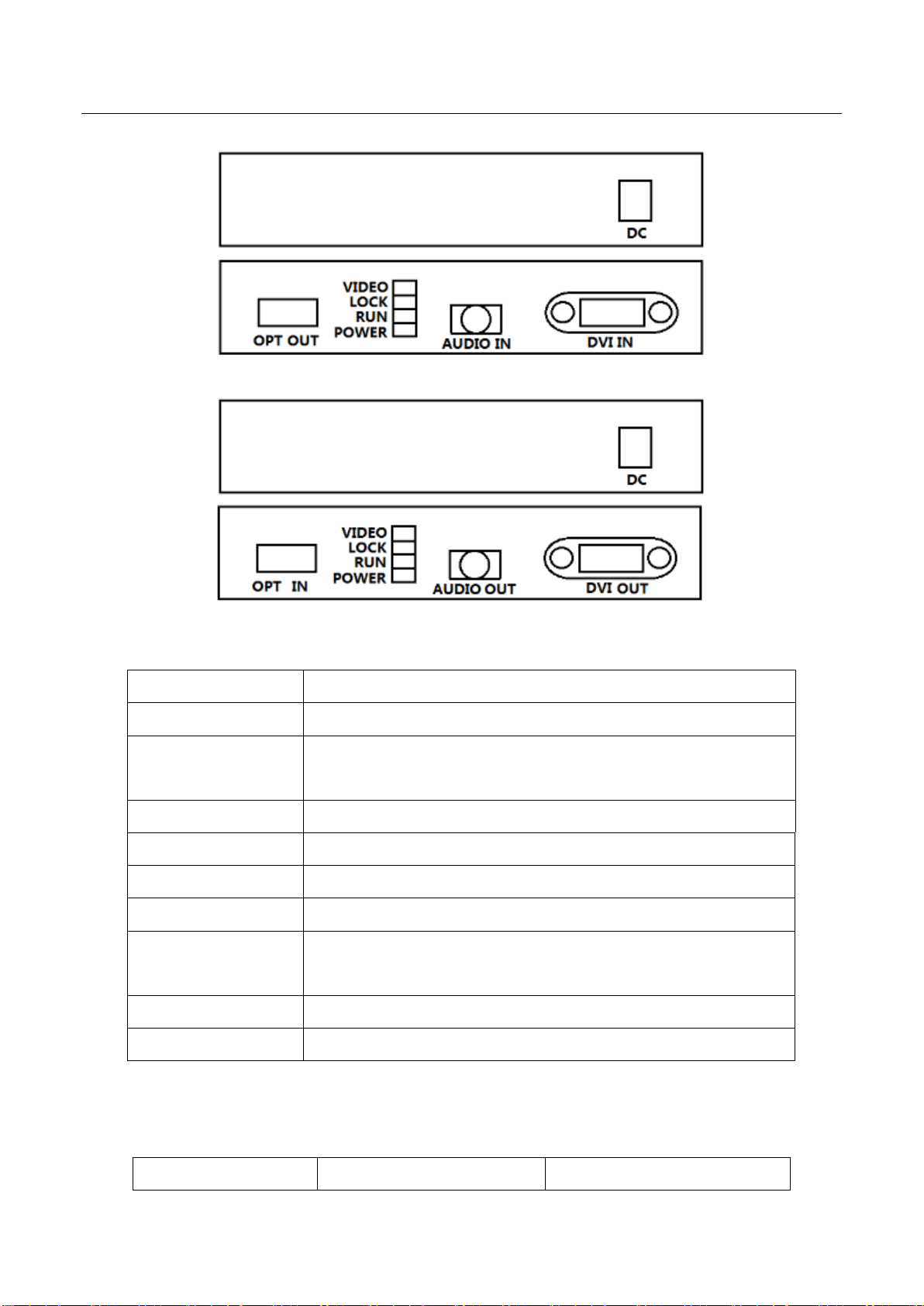

Panel Descriptions

Transmitter

Receiver

Port Description

Transmitter

Function Description

DVI IN

DVI-D Input(support HDMI input)

Audio IN

Stereo audio input, when accessed to audio, DVI

audio is not transmitted

DC/5V

Power input 5V2A

Fiber

Optical interface LC interface

Receiver

Function Description

OUTPUT

DVI Output(Support HDMI output)

Audio out

Stereo audio output, when inserted into the speakers,

DVI no audio output

DC/5V

Power input 5V2A

Fiber

Optical interface LC interface

LED Description

LED indicator

Transmitter

Receiver

VIDEO

ON：Have video signal OFF：no video signal.

LOCK

ON：lock video signal OFF：lock signal error.

RUN

ON：system ok OFF：system error

POWER

ON：power correct OFF：no power input

Specifications

Operating Temperature

Range

-5 to +35°C

Operating humidity range

5 to 90 % RH (no condensation)

Input video signal

0.5-1.0 volts p-p

Input DDC signal

5 volts p-p (TTL)

Support Video Format

1920*1080@60Hz 1920*1080@50Hz

1920*1080@30Hz 1920*1080@25Hz

1920*1080@24Hz

1080I@60Hz 1080I@50Hz

1280*720@60Hz 1280*720@50Hz

Audio output

Stereo

The maximum transmission

distance

single mode single fiber 10KM

Optical interface

LC fiber optic interface

Optical fiber wavelength

1310nm FP

Input Power

DC 5V / 2A

Power Consumption

Transmitter 5W

Receiver 5W

Dimensions H*W*D

136mm*130mm*30mm

Package Size

300*252*100mm

Weight

1.8kg

Installation

Connect the DVI signal source to the DVI fiber optic Transmitter.

Connect the stereo audio to the DVI fiber optic Transmitter.(If you have a need.)

Connect the output DVI signal of the Receiver to the displayer(Such as

high-definition TV, splicing screen, etc.).

Connect the output audio of the Receiver to the audio equipment.(If you have a

need.)

Use the LC single mode fiber connect the transmitter and the Receiver.

Power in the Transmitter and Receiver of the DVI fiber optic transmission.

Application Diagram
