Fire signal. Capable of receiving a signal from fire center, smoke sensor, gas
detector open the window automatically, send feedback signal to fire centre
Rain signal. After receiving the signal of rain sensor close the window
Temperature/humidity signal. Control the window by processing external
temperature/humidity sensor
Signal and Priority
Priority 1 2 3 4
Signal Manual Signal Fire Signal W/R Signal T/H Signal
Device
Panel buttons
Manual switch
Remote
Master controler
Smoke sensor
Gas detector
Wired
rain sensor
temperature sensor
humidity sensor
Reset and Shielding
After manual signal processed controler resets & receives input signal in real time
After processing the signal from fire centre, smoke sensor or gas detector, the
controler immediately shields all the input signals, the controler must be reset by
pressing K1 manually.
After wired rain sensor signal processed, the controler shields lower priority
signal, only receives the higher priority signal until reset or manual signal
processed
After T&H sensor signal processed，the controler is in the reset state
If the controler is not connected to a temperature and humidity sensor, the T/H
port must be shielded (put option switch option 3 to “Y” position), otherwise it
will affect the control of other input signal
Cascaded Control
Can be used as a master controler, a slave controler or play a dual role of master
& slave controler at the same time.
As a master controler, connects to the motors or slave controlers to drive them

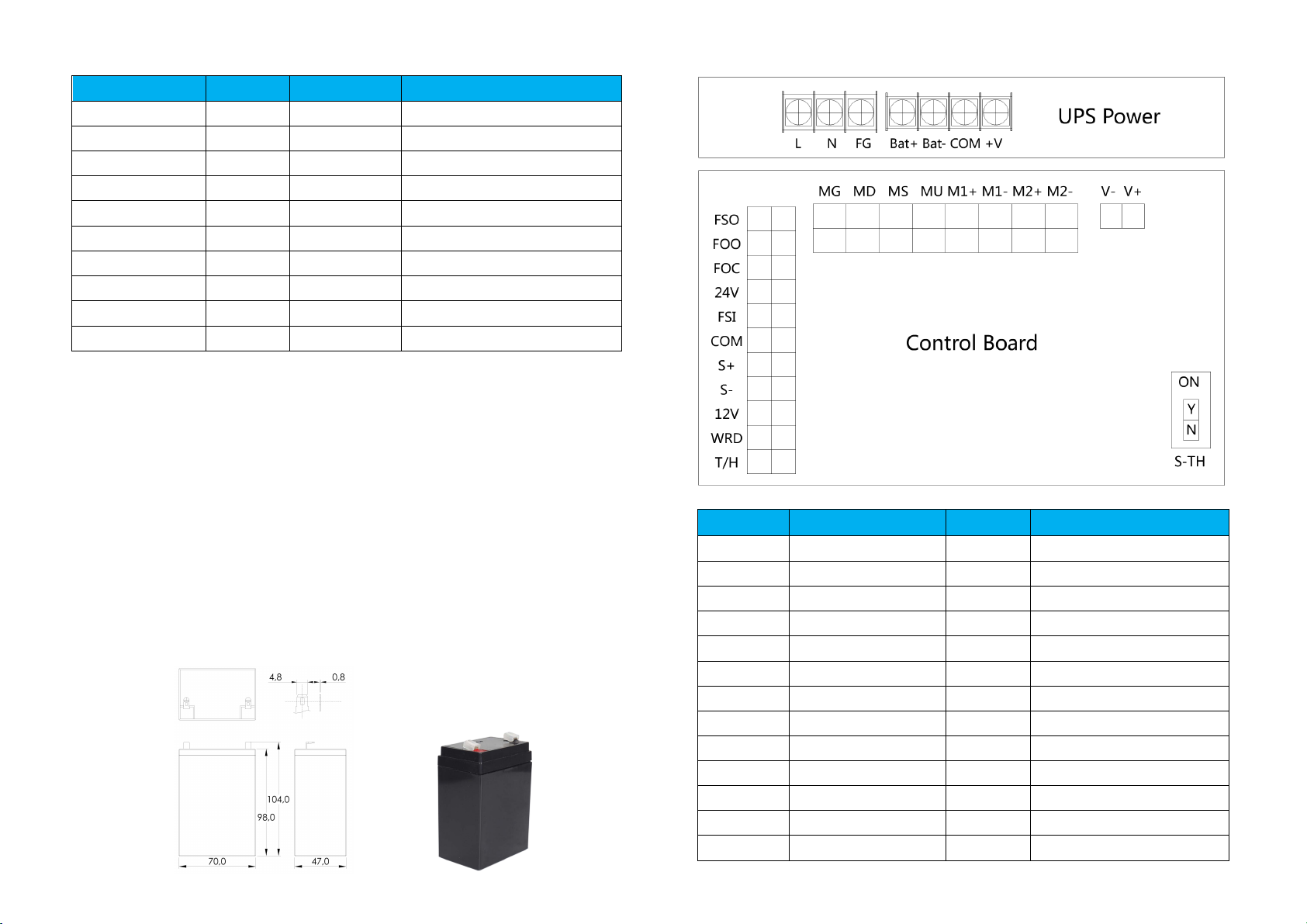

As a slave controler, input terminals S+ and S- are connected to the output
terminals M+ and M- of the master controler to receive the instructions to drive
motors, or drive the motors independently
Play a dual role of master & slave controler, not only controlled by higher-level
controler, but also drive motors or lower-level controlers independently
No matter master, slave or both, it can process all the external signals such as
manual switch, remote and sensors
Cascade use of the controler, if the master controler connected to an
external sensor (such as smoke sensor, wind and rain sensor, etc.), the
slave controler MUST NOT use inching mode, in case the master
controler received the smoke signal to open the window, the slave
controler will open the window for a very short moment and stop
Stroke Memory
The controler can set and memorize the opening stroke. Upon the stroke set, the
window opening signal is triggered once, the motor will run the memorized
stroke one time
The default memorized stroke runs for 5 minutes
Press the up and down keys on the controler for 3 seconds, LEDs flash 3 times
and off, successfully entered the stroke memory setting state
In the stroke memory setting state, the manual keys are forced to the
continued-run mode, the remote control keys are forced to the inching mode
Select the channel(S) to be set, the default is all selected, all the channel
indicators light. Press the channel selection key(S), the indicators light, press the
channel selection key(S) again the indicator is off, it is deselected. The setting is
invalid without operation in 15 seconds
After the channel selected, determine the stroke that needs to be memorized by
pressing the manual key or the remote control key by moving or jogging
The memorized stroke can be set to one channel or any combination of channel
After the memorized strokes determined, turn on all the channel indicators for
setting the memorized stroke. Press the up and down keys on the controler for 3
seconds, LEDs flash 5 times and off, the memorized strokes of all channels set
successfully and exit the stroke memory setting state, manual buttons and
remote control buttons restored to the original mode
In stroke memory setting state, no operation is performed within 15 seconds,
LEDs flash 3 times slowly and off, the stroke memory setting state is automatically
exited, and the last memorized stroke is retained
