Linkskey ioPower Manuale utente
Uniclass Product Specification ioPower
1
Uniclass's Remote Power Switch Solution
Remote Power Control Solution for Any Ac-powered devices, computers and servers
ioPower
for Remote Power Control [
Cascadable Unit
]
ioPower can be used in standalone/Cascaded configuration
The ioPower provides 8 AC power outlets and can be deployed alone with a host PC for remote
power control of any AC-powered devices. The ioPower proves to be a reliable and convenient
remote power control solution that offers cost-effective power control solution to enterprise-level
customers.
To control your AC-powered devices, you only need to tap them to any of ioPower’s 8 power output
outlets and then connect the ioPower to a host PC installed with the Power Management software.
To power on/off the connected AC-powered devices, you only need to press the front-panel button
(press and hold for 5 seconds); or you can use the power management software. The software is
installed on a host PC and provides a virtual front-panel that allows user to click to power on/off any
connected devices. It also provides timer function to preset the destined power on/off time or
power-up duration for each of your devices.
ioPower connected to a host PC
The ioPower is also capable of cascading with multiple downstream units into a daisy-chain
configuration to maximize the port capacity up to one hundred more. Thus you can easily control up
to hundred of AC-powered devices and/or servers.
Uniclass Product Specification ioPower
2
ioPower as Kripman Accessory for Remote Power Control
When your servers or network devices just locked up and stopped responding, it can only be
salvaged by cycling power off and on for a reboot. As simple as this reboot procedure can be, it
nevertheless requires the admin to attend the server room just to switch the power off and on again.
But what if the admin is worlds away from the server room and yet has to respond to this server
lock up immediately? Well, an IP-based KVM Switch such as Kripman, with a remote power control
module, such as
ioPower
, might be the right and the only reliable solution....
In this servers crisis management infrastructure, Kripman offers an anytime anywhere access and
control platform to your remote servers, and i
oPower
is the indispensable power control unit that
enables the forced power on/off and power cycling capability from authorized remote clients.
To enable the remote power management capability of your IP-based KVM Switch Solution,
ioPower
is your right choice for a remote power on/off control of your remote servers, networking devices or
other AC-powered devices via ASCII commands sent over serial connection.
ioPower
works seamlessly with Kripman's viewer interface to implement a total power control of
your server room anytime anywhere in the world. The server admin no longer has to call the server
room to help switch off and on the sever power ever again.

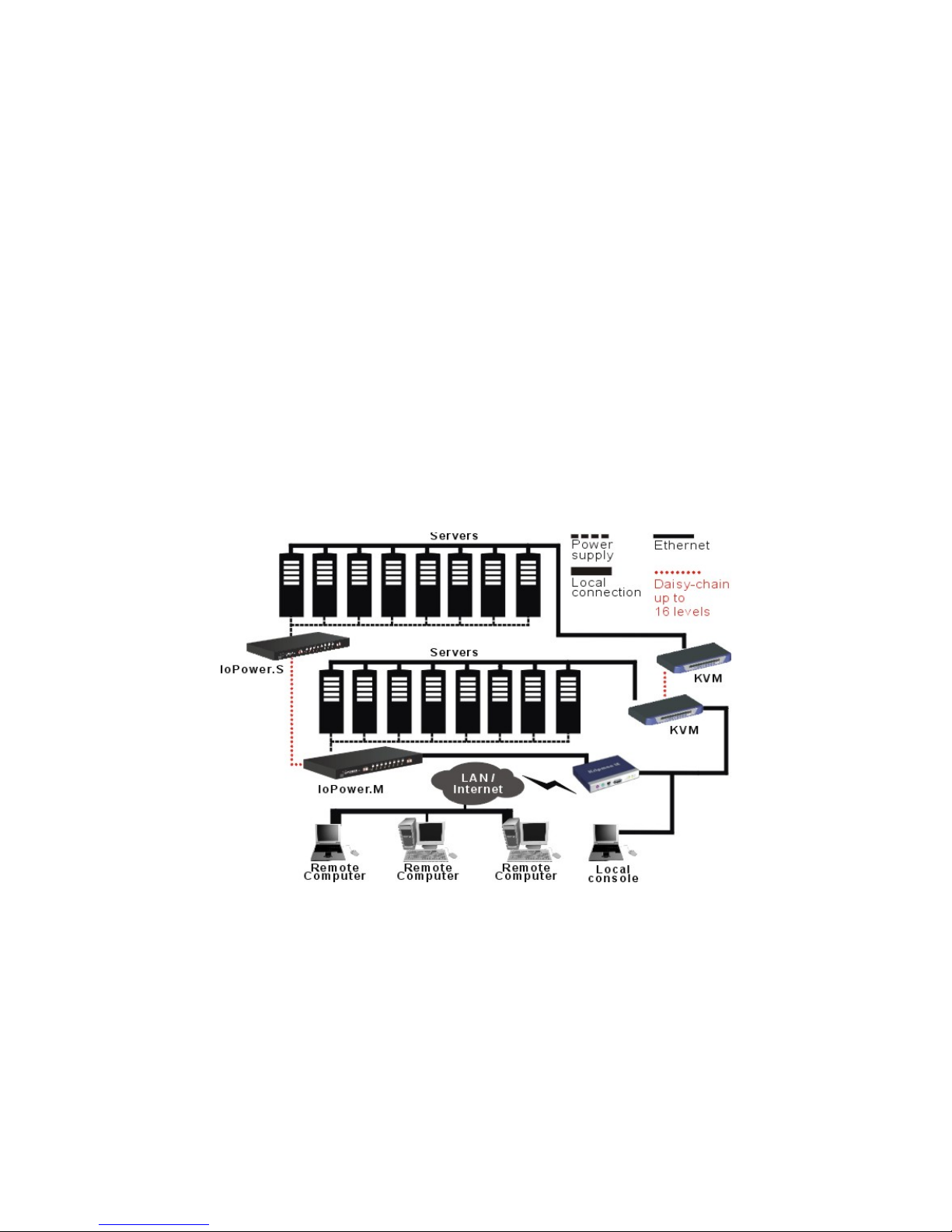

ioPower in cascaded configuration
(here used as Kripman accessory for Remote Power Control)
Uniclass Product Specification ioPower
3
Features
Hardware
▪Can be used alone or cascaded with multiple downstream units for power control of 8 to 100 more AC-powered
devices
▪Connected with a host PC via serial interface (RS-232)
▪Allows full control of 8 AC power outlets using ASCII commands over a serial interface
▪Cascadable up to 16 units [16 x ioPower] and control up to 128 AC power outlets, using UTP cables over RJ-45
interfaces
▪19" rack-mountable design with metal case
▪Numerical display to show power module bank number when in multiple cascaded application
▪Numerical display to monitor total current loads (showing 0.0 ~ 15A)
▪8 green (ON/OFF) LED indicators to show the ON/OFF status of each A/C power outlet
▪8 red (Alarm) LED indicators to show the state of failure of each AC power outlet
▪“One-Touch" power ON/Off control by front-panel buttons (with 5” time-delay for activation/deactivation)
▪Firmware upgradable for functionality enhancement in the future
ioPower Management Software (Only for use with ioPower)
▪Intuitive user interface with virtual front-panel, power buttons and LED indicators
▪Current loads (per port/total) and bank number displays
▪Auto-configuration of COM port
▪Power On/Off Timer function
▪Simultaneous Power on/off all ports of one/all banks
▪Power On/Off confirmation dialog prompt
▪Host PC scheduled shutdown
▪Remote power activation/deactivation based on duration/specific time point/daily-weekly recurrence
▪timer settings
▪
Specifications
Model Name ioPower
Input Voltage 100 ~ 240 VAC @ 50~60 Hz
Output Voltage 100 ~ 240 VAC @ 50~60 Hz
AC Output 8 total
Local control interface RS-232 / DB-9
Cascade port Cascade In – RJ-45
Cascade Out – RJ-45
Remote Control Interface ioPower Management Software
Kripman Viewer (as Kripman accessory)
Current Overload
Protection
15 amp max. overall
6 amp max. per port
Operating Temperature 0~45°C
Operating humidity 10~90% RH
Storage Temperature -20 ~ 70°C
Storage Humidity 0~90% RH
Dimensions (L x W x H) 410 x 165 x 44.5 mm
