Linksys SPA2102 Setup and VoIP Configuration Guide

Before You Begin, make sure you ave t e following:

• An active Internet connection

• An active Internet p one service account and its settings

• A cable/DSL modem

• One computer for configuration of t e P one Adapter

• An analog telep one or fax mac ine wit an RJ-11 p one cable.

I. Connect the Phone Adapter

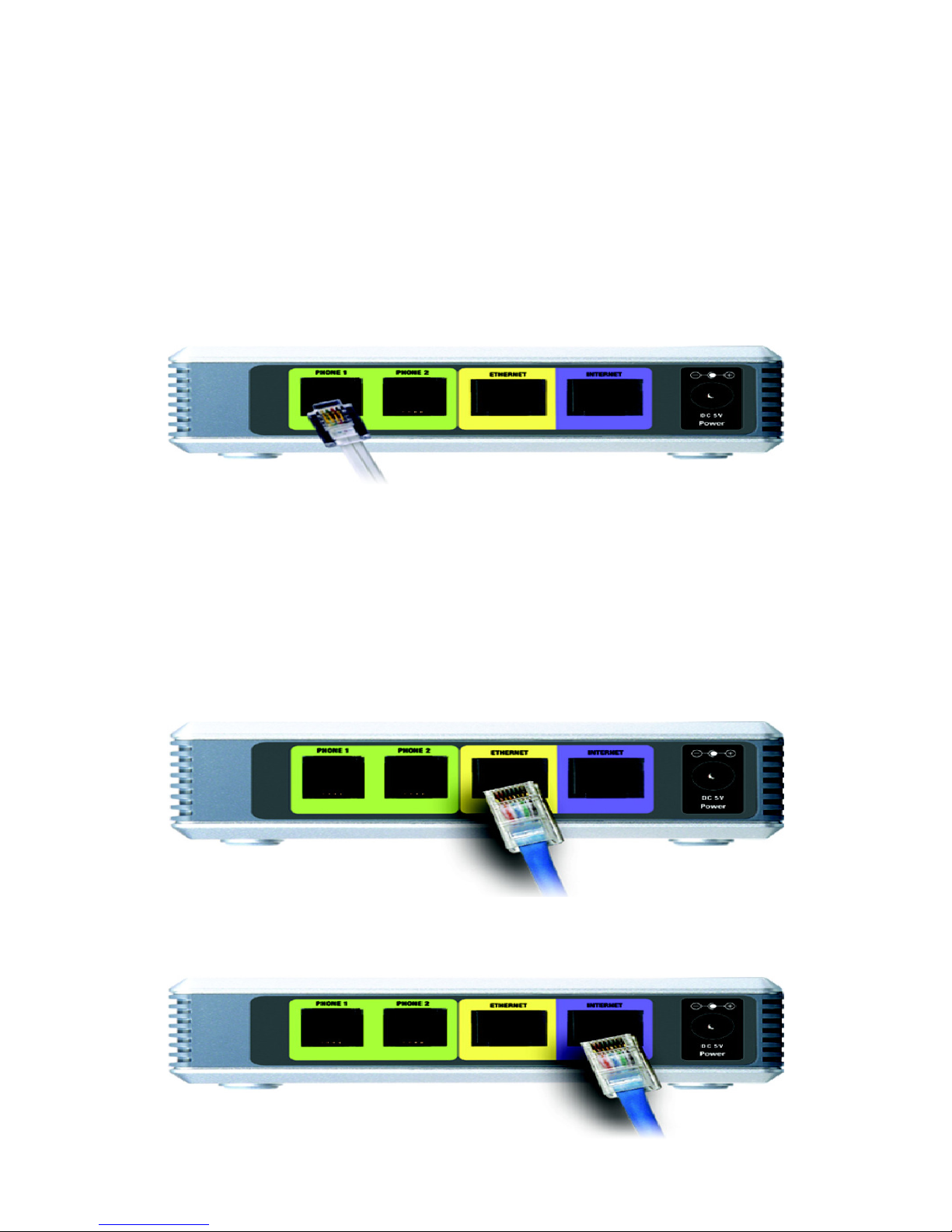

Figure 1

STEP 1 Power off your network devices, including your modem and PC.

STEP 2 Connect one end of an RJ-11 p one cable to t e P one Adapter’s PHONE 1 port. Connect

t e ot er end to your analog telep one or fax mac ine.

IMPORTANT: Do not connect the PHONE port to a telephone wall jack. Make sure you only connect a telephone or fax

machine to the PHONE port. Otherwise, the PhoneA apter or the telephone wiring in your home or office may be amage .

STEP 3 Repeat Step B wit t e PHONE 2 port if you ave an additional telep one or fax mac ine to

connect.

STEP 4 Connect one end of an Et ernet network cable (included) to t e ETHERNET port t e P one

Adapter as s own in Figure 2. Connect t e ot er end to t e Et ernet port of your PC.

Figure 2

STEP 5 Connect one end of a different Et ernet network cable to t e INTERNET port of t e P one

Adapter as s own in Figure 3. Connect t e ot er end to your cable/DSL modem.

Figure 3

STEP 6 Power on t e cable/DSL modem.

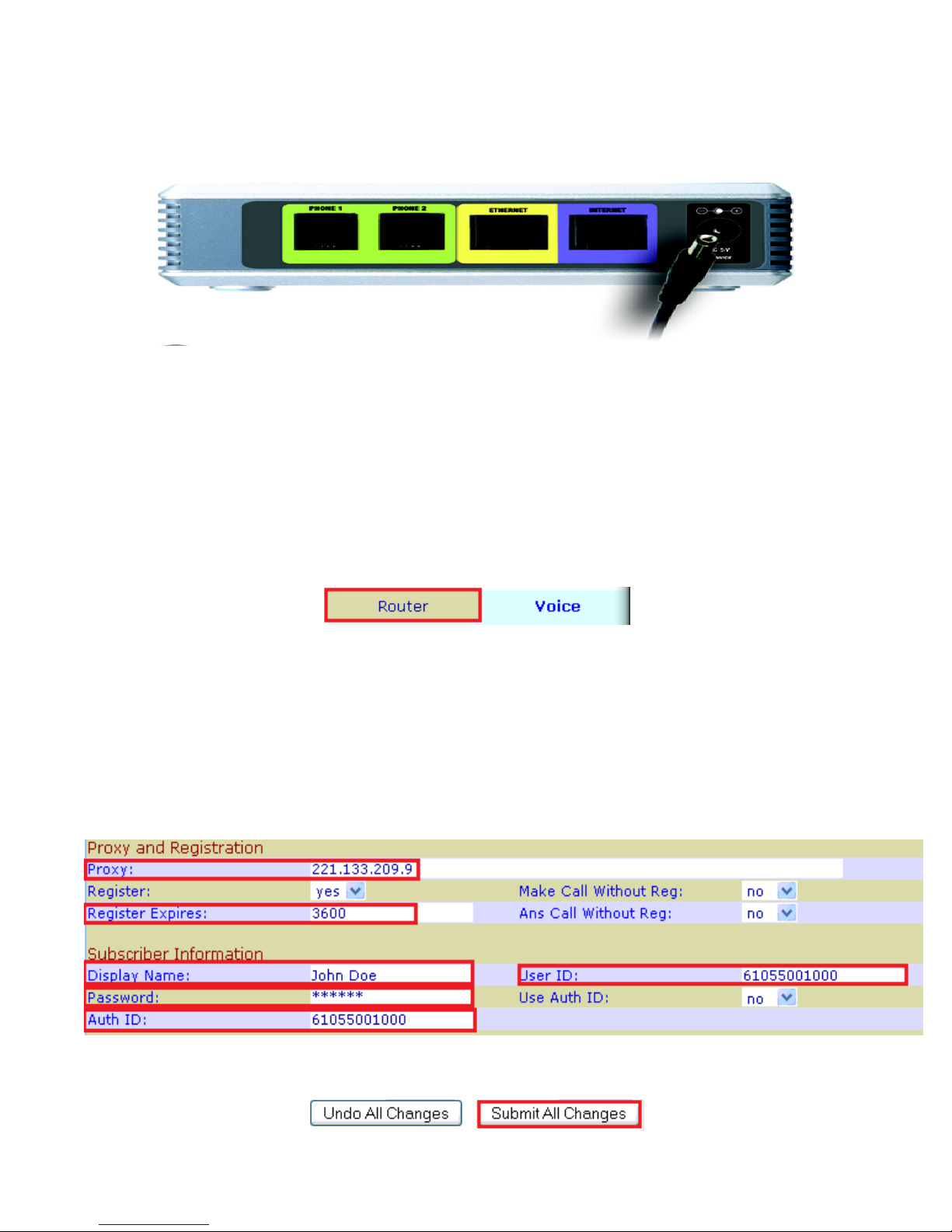

STEP 7 Connect t e included power adapter to t e P one Adapter’s power port as s own in Figure

4 and t en plug t e power adapter into an electrical outlet. T e power LED on t e front

panel will lig t up as soon as t e P one Adapter powers on.

Figure 4

NOTE: Make sure your PC’s Ethernet a apter is set to obtain an IP a ress automatically.

II. Configure the Phone Adapter

STEP 1 Launc t e web browser on t e PC.

STEP 2 Enter ttp://192.168.0.1/ advanced in t e Address field (192.168.0.1 is t e default local IP

address of t e P one Adapter). T en press t e Enter key.

STEP 3 Click on Admin Login and t e click on t e Router Tab. C oose t e Internet type in t e drop

down.

STEP 4 Next, c oose from t e main menu 'Voice' and t en Line1. Enter your Asiadigicall VOIP

number into t e User Id: field and Asiadigicall SIP password into t e Aut enticate Password: field.

Enter 221.133.209.9 into Registration/Proxy Server: field. Repeat Step 5 for line 2.

Example:

Proxy: 221.133.209.9

Display Name: Enter your full name, t is will s ow up as part of your callerid.

User ID: 61055001000

Password: 123456

Register Expires: 3600

STEP 5 Click on t e "Submit All C anges" button to save t e settings.

STEP 6 Make Calls!
