Linksys USBDSL1 Manuale utente

Instant Broadband

Series

ADSLUSB Modem

Use this guide to install the following:

Model No.: USBDSL1

User Guide

ADSL USB Modem

Getting to Know

the ADSLUSB Modem

Overview

Asymmetric Digital Subscriber Line (ADSL), the most popular residential

DSL technology, provides high-speed Internet access over regular, copper

phone lines by maximizing bandwidth use. In this way, ADSL Internet service

can coexist on the same line as your phone service, without disrupting calls.

ADSL is “asymmetric” because it downloads, or receives data, faster than

uploads it is transmitted. Asymmetric operation is ideal for home and small

office use where files and information are downloaded more frequently than

uploaded.

There are several standard types of ADSL modulation techniques, including

Discrete Multitone (DMT). Your ADSL USB Modem supports the following

DSL standards: ANSI T1.413 Issue 2, ITU G.992.1 (G.DMT) and ITU

G.992.2 (G.lite).

The USB Icon

The USB icon shown below marks a USB port on a PC or device.

To use this USB device, you must have Windows 98, 2000, or Millennium

installed on your PC. If you do not have Windows 98, 2000, or Millennium,

this device will not work.

Also, this device requires that a USB port is installed and enabled on your PC.

Some PCs have a disabled USB port. If your port doesn’t seem to be working,

there may be motherboard jumpers or a BIOS menu option that will enable the

USB port. See your PC’s user guide for details.

Some motherboards have USB interfaces, but no ports. You should be able to

install your own USB port and attach it to your PC’s motherboard using hard-

ware purchased at most computer stores.

Instant BroadbandTM Series

Package Contents

• Instant Broadband

ADSL USB Modem

• One USB Cable

• One Setup CD-ROM

• One User Guide and Registration Card

• One RJ-11 Telephone Wire (not shown)

System Requirements

• Windows 98, 2000, or Millennium

• 300+ mHz Pentium II CPU or compatible system

• ADSL Internet service

• CD-ROM drive

Note: The ADSL USB Modem will not run under

Windows 95 or Windows NT.

ADSL USB Modem

Connecting the ADSLUSB

Modem to Your PC

Installing the ADSL USB Modem

1. Plug the rectangular end of the USB cable into your PC’s USB port.

Connect the square end of the USB cable into the Modem’s USB port. A

green Power LED will light up, indicating that the modem has been succes-

fully connected to your PC and that its power is on.

2. Connect a standard phone cable from the DSL outlet to the DSL port on

the ADSL USB Modem.

Installing the Modem Driver for Windows 98

Windows 98 will automatically detect the ADSL USB Modem once it is con-

nected to the PC. Before the hardware can function properly with your PC, a

Windows 98 driver for the ADSL USB modem must be installed.

1. Insert the Setup CD into your CD-ROM drive.

2. When the “Add New Hardware Wizard” window appears, make sure that the

Setup CD is in the CD-ROM drive and click Next.

Your hardware installation is now complete.

Instant BroadbandTM Series

The ADSL USB Modem’s Rear Panel Ports

USB Port Use this port to connect the USB cable from your PC to your

modem.

ADSL Port This port connects your modem to your ADSL line.

The ADSL USB Modem’s Front Panel LEDs

ADSL This LED will

light up when an

ADSL connection

is made. It will

also flicker when

an ADSL connec-

tion is being

made.

Power The Power LED

will light up green

the modem has

successfully con-

nected to your PC

and the modem’s

power is on.

ADSL USB Modem

5. Windows will notify you that it is ready to install the driver. Click Next.

6. After Windows has completed installing this driver, click Finish.

Your Windows 98 driver installation for the

ADSL USB Modem is now complete.

Instant BroadbandTM Series

3. Select “Search for the best driver for your device” and click Next.

4. Select CD-ROM drive as the location where Windows will search for the

driver software and click Next.

Instant BroadbandTM Series

Installing the Modem Driver for Windows Millennium

1. Start up your PC in Windows Millennium. Windows will detect new hard-

ware connected to your PC.

2. When Windows asks you for the location of the best driver, select

“Automatic search for a better driver (Recommended)” and click Next.

ADSL USB Modem

3. Windows will notify you that it has found the driver to install for your

modem. Click Next to install the driver.

4. When Windows finishes installing the driver, click Finish.

ADSL USB Modem

Installing the Modem Driver for Windows 2000

Windows 2000 will automatically detect theADSL USB Modem once it is con-

nected to the PC. Before the modem can function properly with your PC, you

must first install a Windows 2000 driver for the modem.

1.Insert the Setup CD into the CD-ROM drive. Windows will notify you that

it has detected new hardware.

2. When the “Found New Hardware Wizard” screen appears to confirm that

the ADSL USB Modem has been connected to your PC, make sure the

Setup CD is in the CD-ROM drive and click Next.

Instant BroadbandTM Series

5. If Windows asks you for the location of Windows Millennium files, direct

your PC to the location of the files and click OK.

Your driver installation for Windows

Millennium is now complete.

ADSL USB Modem

5. Windows will notify you that it is ready to install the driver. Click Next.

6. When Windows has completed installing the first driver, click Finish.

1312

ADSL USB Modem

3. Select “Search for a suitable driver for my device” and click Next.

4. Windows will now search for the driver software. Select CD-ROM drives

and click Next.

ADSL USB Modem

Configuring Your ADSL USB Modem

Now that your installation is complete, you are ready to use your ADSL USB

Modem’s Configuration program. The configuration is modified through the

Linksys ADSL USB Adapter Properties screen. You may access this screen

one of two ways:

1. Right click on the Modem Icon in the system tray (the area next to the

clock) as pictured here.

After right clicking, choose the Properties option. The following screen will

appear.

When this screen appears, enter <Alt>+A. The following screen will appear.

Click on the Advanced Monitoring button and the Linksys ADSL USB

Adapter Properties screen will appear.

7. When Windows will ask you to search for a digital signature, click OK to

finish your installation.

Your Windows 2000 driver installation for

the ADSL USB Modem is now complete.

ADSL USB Modem

4. Press <Alt>+A to display the Properties window below. The “General” tab

on this screen displays information about your modem connection.

5. Click on the ATM Link Statistics tab to display the status of your ATM

connection.

Instant BroadbandTM Series

2. Or, the same screen may be accessed through the Control Panel by going

to Start, Settings, Control Panel, and click on the Linksys

ADSL USB Modem icon, shown below.

3. The Linksys ADSL USB Adapter Properties window will appear, displaying

your current data packet information and whether your DSL connection is up

or down. You

can click on

Clear to clear

the number of

bytes received

and transmit-

ted.

Click Help

for more

detailed help.

ADSL USB Modem

Instant BroadbandTM Series

6.Click on the AAL Link Statistics tab to display information about your

AAL Adaption Layer.

7. Click on the AutoLog tab to display logging activity. Click on Enable

AutoLog Tool to activate this feature.

8. Click on the Connection tab to display information about what features are

enabled when connecting to your provider.

9. Click on the ATM OAM Loopback tab to manage the OAM Loopback

functions of your modem.

Altri manuali per USBDSL1

Indice

Altri manuali Linksys Modem

Linksys

Linksys CM30XX Manuale utente

Linksys

Linksys ADSL2MUE Manuale utente

Linksys

Linksys ADSL2MUE Manuale operativo

Linksys

Linksys BEFCMU10 ver.2 Manuale utente

Linksys

Linksys AM200 Manuale utente

Linksys

Linksys CM3008 Manuale utente

Linksys

Linksys USBM128M Manuale utente

Linksys

Linksys USBDSL1 Manuale utente

Linksys

Linksys WCGP200 Manuale utente

Linksys

Linksys WCG200 - Wireless-G Cable Gateway Wireless... Manuale utente

Linksys

Linksys USBM128M Istruzioni operative originali

Linksys

Linksys ADSLME1 Manuale utente

Linksys

Linksys BEFCMU10 - Cable Modem With USB Manuale utente

Linksys

Linksys USBDSL1 Istruzioni operative originali

Linksys

Linksys CG7500 Manuale utente

Linksys

Linksys CM100 - Cable Modem With USB Manuale utente

Linksys

Linksys ADSL2MUE Manuale utente

Linksys

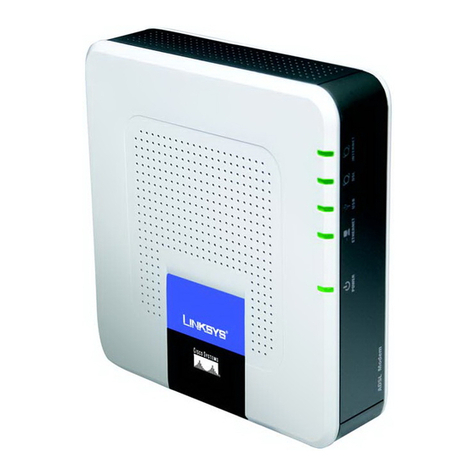

Linksys AM300 Manuale utente
