USER GUIDE

BUSINESS SERIES

8-Port 10/100 Ethernet

Switch with Webview

Model: SRW2008/SRW2008P/SRW2008MP (EU)

About This Guide

8-Port 10/100/1000 Gigabit Switch with Webview

About This Guide

Icon Descriptions

While reading through the User Guide you may see

various icons that call attention to specific items. Below is

a description of these icons:

NOTE: This check mark indicates that there is

a note of interest and is something that you

should pay special attention to while using the

product.

WARNING: This exclamation point indicates

that there is a caution or warning and it is

something that could damage your property or

product.

WEB: This globe icon indicates a noteworthy

website address or e-mail address.

Online Resources

Website addresses in this document are listed without

http:// in front of the address because most current web

browsers do not require it. If you use an older web browser,

you may have to add http:// in front of the web address.

Resource Website

Linksys Europe www.linksys.eu

Linksys International www.linksys.com/international

Linksys www.linksys.com

Glossary www.linksys.com/glossary

Network Security www.linksys.com/security

Linksys is a registered trademark or

trademark of Cisco Systems, Inc. and/

or its affiliates in the U.S. and certain

Other brands and product names are

trademarks or registered trademarks

of their respective holders.

Table of Contents

8-Port 10/100 Ethernet Switch with Webview

Chapter 1: Introduction 1

Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Chapter 2: Product Overview 2

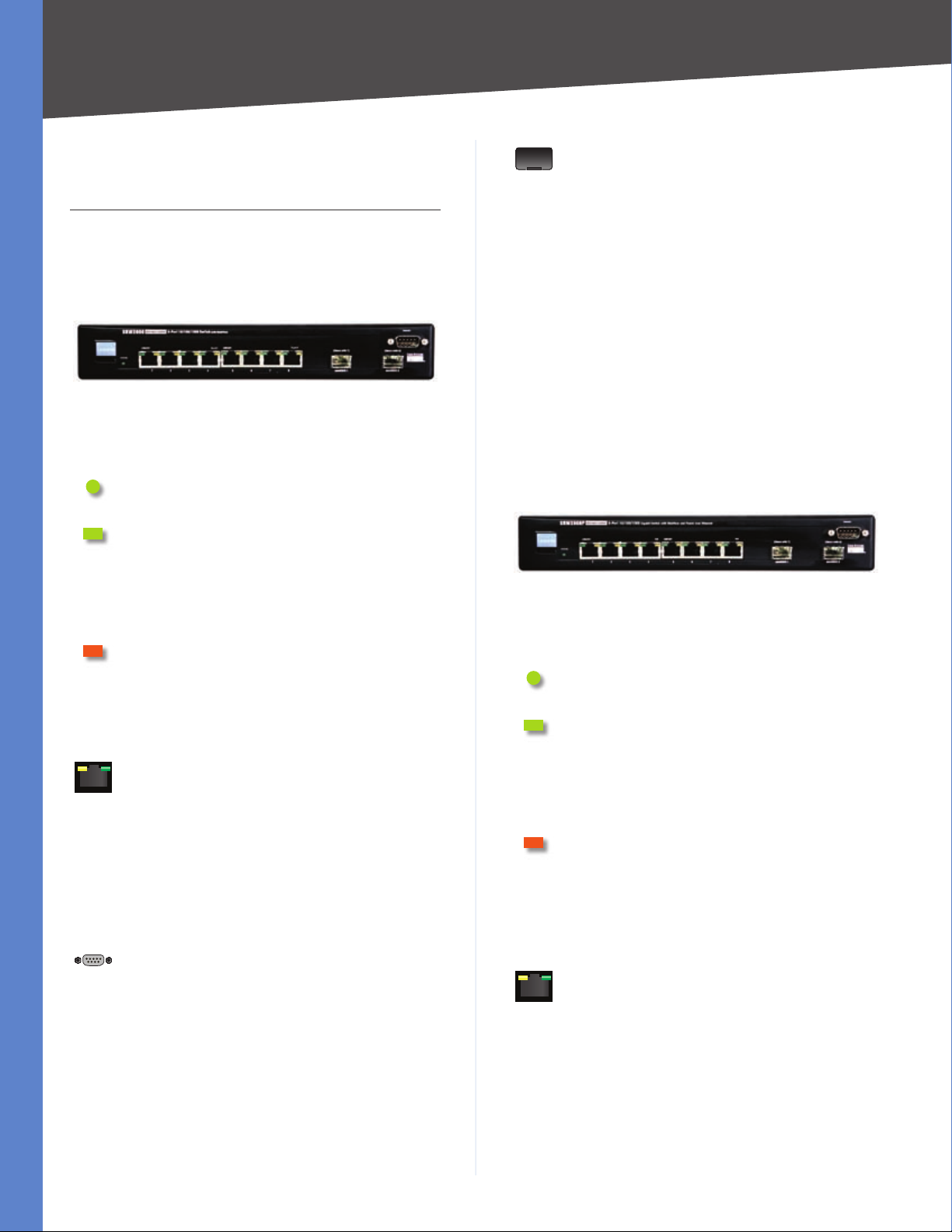

SRW2008 - Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

SRW2008P/SRW2008MP - Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

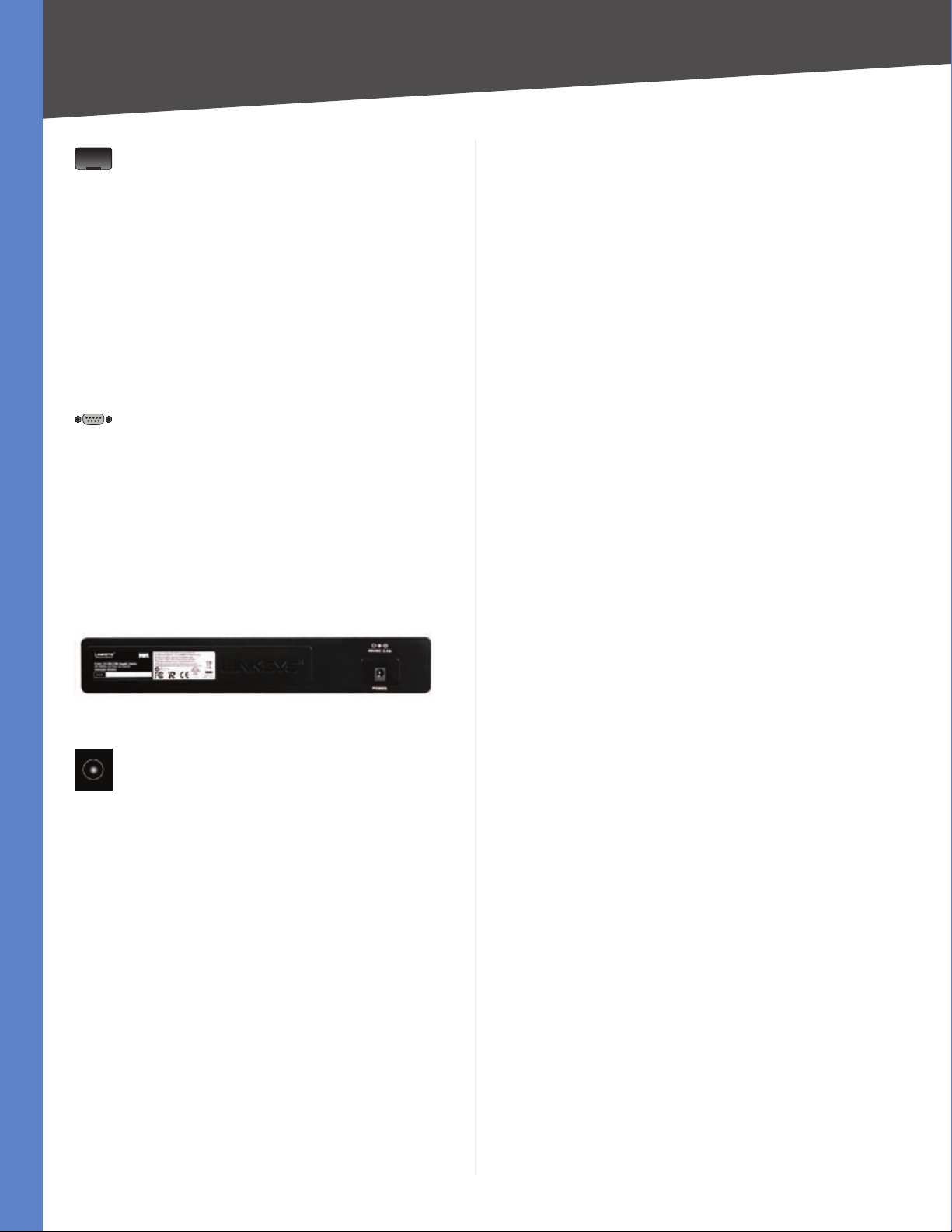

Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter 3: Installation 4

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Positioning the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Placement Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Desktop Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Rack-Mount Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Wall-Mount Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Chapter 4: Conguration Using the Console Interface 8

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Conﬁguring the HyperTerminal Application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Connecting to the Switch through a Telnet Session . . . . . . . . . . . . . . . . . . . . . . . . 8

Conﬁguring the Switch through the Console Interface. . . . . . . . . . . . . . . . . . . . . . 9

Switch Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

System Conﬁguration Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Port Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Port Conﬁguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Chapter 5: Advanced Conguration 17

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Accessing the Web-based Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Setup > Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Device Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

PoE Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Setup > Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Identiﬁcation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

IP Conﬁguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Setup > Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Set Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Local Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Daylight Saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

iii

Table of Contents

8-Port 10/100 Ethernet Switch with Webview

SNTP Servers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Port Management > Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Port Conﬁguration Detail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Port Management > Link Aggregation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Link Aggregation Detail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Port Management > LACP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Port Management > PoE Power Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

VLAN Management > Create VLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Single VLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

VLAN Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

VLAN Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

VLAN Management > Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

VLAN Management > Ports to VLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

VLAN Management > VLAN to Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Join VLAN Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

VLAN Management > GVRP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Statistics > RMON Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Statistics > RMON History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Log Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

RMON History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Statistics > RMON Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Statistics > RMON Events. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Add Event . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Statistics > Port Utilization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Statistics > 802.1x Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Statistics > GVRP Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

ACL > IP based ACL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

ACL > MAC based ACL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Security > ACL Binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Security > RADIUS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Security > TACACS+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Security > 802.1x Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Setting Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Security > Ports Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Security > Multiple Hosts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Security > Storm Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

QoS > CoS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

CoS Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

QoS > Queue Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

QoS > DSCP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

QoS > Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

QoS > Basic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Table of Contents

8-Port 10/100 Ethernet Switch with Webview

QoS > Advanced Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Out of Proﬁle DSCP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Policy Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

New Class Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

New Aggregate Policer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Spanning Tree. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Spanning Tree > STP Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Spanning Tree > Global STP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Global Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Bridge Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Spanning Tree > STP Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Spanning Tree > RSTP Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Spanning Tree > MSTP Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Spanning Tree > MSTP Instance Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Spanning Tree > MSTP Interface Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Multicast > IGMP Snooping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Multicast > Bridge Multicast. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Multicast > Bridge Multicast Forward All . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

SNMP > Global Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

SNMP > Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

SNMP > Group Proﬁle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

SNMP > Group Membership. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

SNMP > Communities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Base Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Advanced Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

SNMP > Notiﬁcation Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

SNMP > Notiﬁcation Recipient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Admin > User Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Admin > Static Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Query . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Admin > Dynamic Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Query . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Admin > Logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Admin > Port Mirroring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Admin > Cable Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Admin > Save Conﬁguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Via TFTP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Via HTTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Admin > Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Admin > Reboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Admin > Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Admin > Server Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Table of Contents

8-Port 10/100 Ethernet Switch with Webview

Admin > Memory Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Admin > Flash Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Appendix A: About Gigabit Ethernet and Fiber Optic Cabling 57

Gigabit Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Fiber Optic Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Appendix B: Introduction 58

Startup Menu Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Appendix C: Glossary 60

Appendix D: Specications 64

Appendix E: Warranty Information 69

Exclusions and Limitations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Obtaining Warranty Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Appendix E: Regulatory Information 71

FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Safety Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Industry Canada Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Avis d’Industrie Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

EC Declaration of Conformity (Europe) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste

Electric and Electronic Equipment (WEEE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Appendix I: Contact Information 76

Introduction

8-Port 10/100/1000 Gigabit Switch with Webview

Chapter 1

Chapter 1:

Introduction

Welcome

This guide covers three product models.

SRW2008•8-port 10/100/1000 Ethernet Switch with

WebView. Includes 8 10/100/1000 RJ-45 ports and 2

shared MiniGBIC slots.

SRW2008MP•8-port 10/100/1000 Ethernet Switch

with WebView and Maximum POE (Power over

Ethernet) Includes 8 10/100/1000 RJ-45 ports and 2

shared MiniGBIC slots.

SRW2008P•8-port 10/100/1000 Ethernet Switch with

WebView and POE (Power over Ethernet) Includes 8

10/100/1000 RJ-45 ports and 2 shared MiniGBIC slots.

For the purpose of this manual, whenever a feature applies

to all models, the model number will be referenced as

SRW2008x. If a specific model number is mentioned, then

the feature is specific to that model.

The Linksys WebView Managed switch allows you to

expand your network securely. Configuration of the Switch

is secured using SSL for web access. User control is secured

using 802.1x security using a RADIUS authentication

mechanism and can also be controlled using MAC-based

filtering.

Extensive QoS features makes the solution ideal for real-

time applications like Voice and Video. The 4 priority

queues together with the Weighted Round Robin and

Strict Priority scheduling techniques facilitate efficient

coexistence of real-time traffic with data traffic allowing

them each to meet their QoS needs. Individual users or

applications can be prioritized above others using various

Class of Service options - by port, layer 2 priority (802.1p),

and Layer 3 priority (TOS or DSCP). Intelligent Broadcast,

and Multicast storm control minimizes and contain the

effect of these types of traffic on regular traffic. IGMP

Snooping limits bandwidth-intensive video traffic to only

the requestors without flooding to all users. Incoming

traffic can be policed and outgoing traffic can be shaped

allowing you to control network access and traffic flow.

There are features that allow you to expand and grow your

network of switches. Link aggregation allows multiple

high-bandwidth trunks between switches to be setup.

This also provides a level of reliability in that the system

continues to operate if one of the links break. Spanning

Tree (STP), Fast Spanning Tree, and Rapid Spanning Tree

(RSTP) allow you to build a mesh of switches increasing

the availability of the system.

The rich management functionality of the WebView

switches includes SNMP, RMON, Telnet, and HTTP

Management options, allowing you to flexibly integrate

and manage these devices in your network.

The SRW2008P and SRW2008MP support Automatic Load

Sensing - Power control circuitry automatically detects

Power over Ethernet on access point before providing

power. Power feeding of Ethernet limited for fixed

10/100 Base-T/TX ports. The SRW2008MP can provide

maximum output power per PoE port up to 15.4W on 8

ports simultaneously. while the SRW2008P can provide

maximum output power on 4 ports simultaneously or 8

ports at half power.

Product Overview

8-Port 10/100/1000 Gigabit Switch with Webview

Chapter 2

Chapter 2:

Product Overview

SRW2008 - Front Panel

The LEDs and ports are located on the front panel of the

Switch.

Front Panel

LEDs

SYSTEM (Green) The system LED lights up to

indicate that the Switch is powered on.

LINK/ACT (Green) The LINK/ACT LED lights up

to indicate a functional network link through

the corresponding port (1 through 8) with an

attached device. It flashes to indicate that the

Switch is actively sending or receiving data over

that port.

Gigabit (Orange) The Gigabit LED lights

up to indicate a Gigabit connection on the

corresponding port (1 through 8).

Ports

1-8 The Switch is equipped with 8 auto-

sensing, Ethernet network ports, which use

RJ-45 connectors. The Fast Ethernet ports

support network speeds of 10Mbps, 100Mbps,

or 1000Mbps. They can operate in half and

full-duplex modes. Auto-sensing technology

enables each port to automatically detect the

speed of the device connected to it (10Mbps,

100Mbps, or 1000Mbps), and adjust its speed

and duplex accordingly.

Console The Console port is where you can

connect a serial cable to a PC’s serial port for

configuration using your PC’s HyperTerminal

program. Refer to Chapter 4: Using the

Console Interface for Configuration for more

information.

miniGBIC1/2 The mini-GBIC (gigabit interface

converter) port is a connection point for a

mini-GBIC expansion module, so the Switch

can be uplinked via fiber to another switch.

Each MiniGBIC port provides a link to a

high-speed network segment or individual

workstation at speeds of up to 1000Mbps.

Use the Linksys MGBT1, MGBSX1, or MGBLH1

mini-GBIC modules with the Switch. The

MGBSX1 and the MGBLH1 require fiber cabling

with LC connectors, while the MGBT1 requires

a Category 5e Ethernet cable with an RJ-45

connector.

SRW2008P/SRW2008MP - Front Panel

The LEDs and ports are located on the front panel of the

Switch.

Front Panel

LEDs

SYSTEM (Green) The system LED lights up to

indicate that the Switch is powered on.

LINK/ACT (1-8) (Green) The LINK/ACT LED

lights up to indicate a functional network link

through the corresponding port (1 through 8)

with an attached device. It flashes to indicate

that the Switch is actively sending or receiving

data over that port.

PoE (Orange) The PoE LED lights up to indicate

a device is connected utilizing Power over

Ethernet on the corresponding port (1 through

8).

Ports

1-8 The Switch is equipped with 8 auto-

sensing, Ethernet network ports, which use RJ-

45 connectors. The Fast Ethernet ports support

network speeds of 10Mbps or 100Mbps.

They can operate in half and full-duplex modes.

Auto-sensing technology enables each port to

automatically detect the speed of the device

connected to it (10Mbps or 100Mbps), and

adjust its speed and duplex accordingly.

Product Overview

8-Port 10/100/1000 Gigabit Switch with Webview

Chapter 2

miniGBIC1/2 The mini-GBIC (gigabit interface

converter) port is a connection point for a

mini-GBIC expansion module, so the Switch

can be uplinked via fiber to another switch.

Each MiniGBIC port provides a link to a

high-speed network segment or individual

workstation at speeds of up to 1000Mbps.

Use the Linksys MGBT1, MGBSX1, or MGBLH1

mini-GBIC modules with the Switch. The

MGBSX1 and the MGBLH1 require fiber cabling

with LC connectors, while the MGBT1 requires

a Category 5e Ethernet cable with an RJ-45

connector.

Console The Console port is where you can

connect a serial cable to a PC’s serial port for

configuration using your PC’s HyperTerminal

program. Refer to Chapter 4: Using the

Console Interface for Configuration for more

information.

Back Panel

The console and power ports are located on the back

panel of the Switch.

Back Panel

POWER The Power port is where you will

connect the AC power.

Installation

8-Port 10/100/1000 Gigabit Switch with Webview

Chapter 3

Chapter 3:

Installation

Overview

This chapter will explain how to connect network devices

to the Switch. The following diagram shows a typical

network configuration.

Internet

Cable/

DSL

Modem Router

Uplink

via Fiber

to Switch

Administrator’s

Notebook

Wireless

Access

Point

Desktop Notebook

Typical Network Configuration

When you connect your network devices, make sure you

don’t exceed the maximum cabling distance of 100 meters

(328 feet).

Positioning the Switch

Before you choose a location for the Switch, observe the

following guidelines:

Make sure that the Switch is accessible and that the•

cables can be connected easily.

Keep cabling away from sources of electrical noise,•

power lines, and fluorescent lighting fixtures.

Position the Switch away from water and moisture•

sources.

To ensure adequate air flow around the Switch, be•

sure to provide a minimum clearance of two inches

(50mm).

Do not stack free-standing Switches more than four•

units high.

Placement Options

There are three ways to physically install the Switch,

either set the Switch on its four rubber feet for desktop

placement, mount the switch in a standard-sized, 19-inch

1U high rack for rack-mount placement, or horizontally on

the wall.

Desktop Placement

Attach the rubber feet to the recessed areas on the1.

bottom of the Switch.

Place the Switch on a desktop near an AC power2.

source.

Keep enough ventilation space for the Switch and3.

check the environmental restrictions mentioned in

“Appendix D: Specifications” as you are placing the

Switch.

Connect the Switch to network devices according to4.

the Hardware Installation instructions below.
