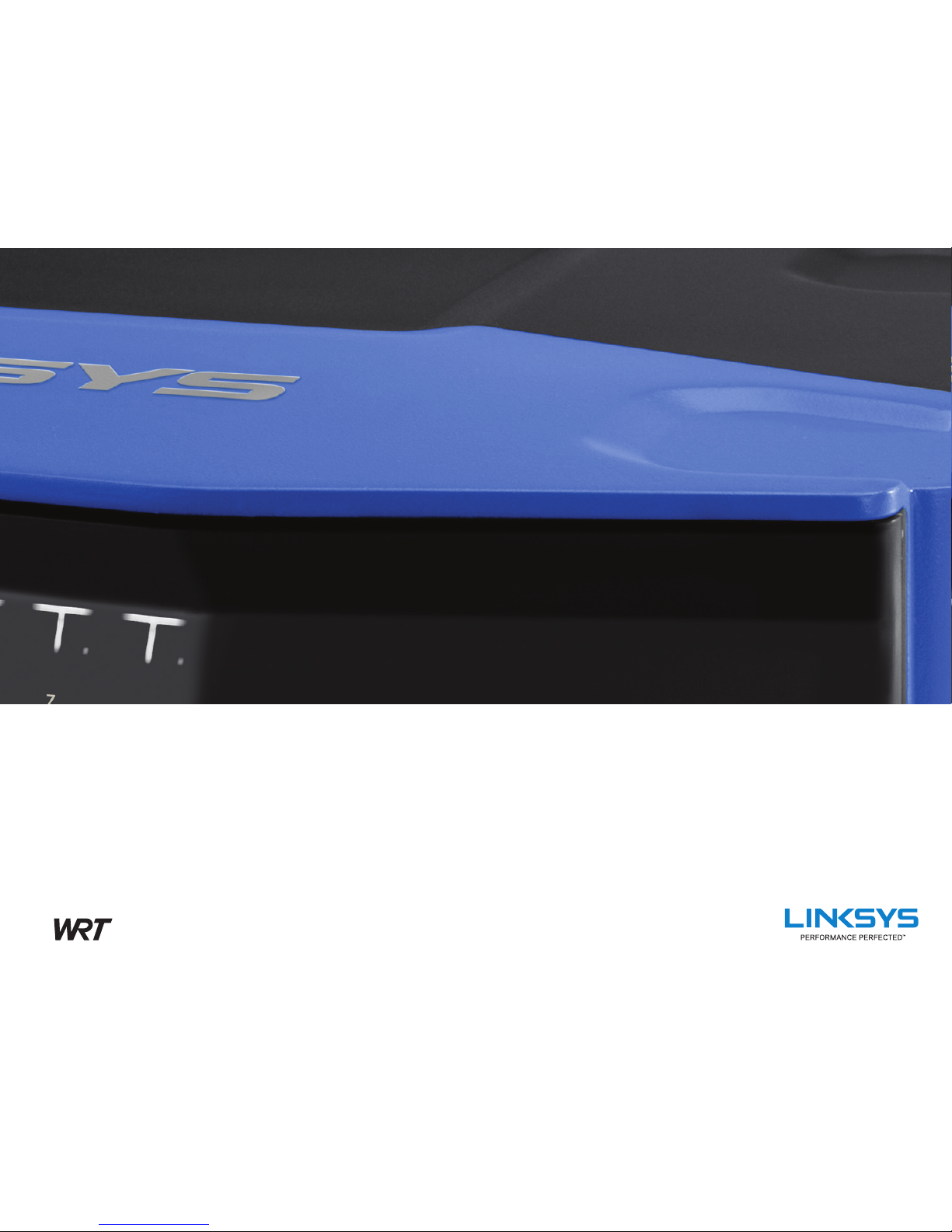

Linksys SE4008 Manuale utente

8-Port Gigabit

Switch

SE4008

USER GUIDE

WRT PORT GIGABIT SWITCH | Contents

Contents

Product Overview

SE4008 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Setting Up: Basics

Install Your Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Speciﬁcations

Linksys SE4008 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

WRT PORT GIGABIT SWITCH | Product Overview 1

LEDS

The system LED is solid when the switch is powered on.

Ethernet 1 thru 8 (Primary)

Numbered LEDs correspond to the numbered ports on the switch's

back panel. If the LED is solid, a device is connected to that port.

A flashing LED indicates network activity over that port.

Ethernet 1 thru 8 (Secondary)

If the LED is not on, a device is connected to that port at 10/100 Mbps.

A solid LED indicates that a device is successfully connected to that

port at 1000 Mbps (Gigabit Ethernet).

PORTS

Ethernet

Connect Ethernet cables to Gigabit 10/100/1000 ports to add wired

devices to your network.

Power

Connect the included AC power adapter.

BUTTONS

Power Switch (European model)

Toggle to power on/off the switch.

LED On/Off Button

Press to enable/disable the Ethernet primary and secondary LEDs.

SE

Front View

Back View

Product Overview

ETHERNET

Secondary Indiators

ETHERNET

Primary Indiators

LED Button

Power Port

Power Switch

Ethernet Ports

INSTALL YOUR SWITCH

1. Connect the power adapter to your switch and an electrical

outlet. Toggle the power switch to the | (On) position (Europe only).

2. Connect your router to any port on the switch with an Ethernet

cable.

3. Connect your wired devices to the switch with Ethernet cables.

You may use any of the remaining seven Ethernet ports.

Get help Internet: linksys.com/support or Twitter: @LinksysCares

WRT PORT GIGABIT SWITCH | Setting Up: Basics 2

Setting Up: Basics

4 3

2 1

Power

ETHERNET

REINIT

RESET

INTERNET USB2 USB1

4 3

2 1

Power

ETHERNET

REINIT

RESET

INTERNET US B2 US B1

WRT PORT GIGABIT SWITCH | Specifications 3

Linksys SE4008

Model Name Linksys SE4008

Description WRT 8-Port Gigabit Switch

Standards IEEE802.3, 802.3u, 802.3x, 802.3ab, 802.3az

Ports 8 RJ-45 10/100/1000 Mbps ports

Cabling Type Cat5 or better Ethernet cable

LEDs System LED: 1

Link/Activity LED: 8

Speed LED: 8

Dimensions 246 x 194 x 62 mm (WxDxH)

Unit Weight 602 g

Power 12V, 1A

Certiﬁcation FCC Class B, IC, CE

Operating Temperature 32 to 104ºF(0 to 40ºC)

Storage Temperature -4 to 158ºF(-20 to 70ºC)

Operating Humidity 10 to 90%, non-condensing

Storage Humidity 5 to 90%, non-condensing

Specifications

LNKPG-00158 Rev. A01

Visit linksys.com/support for award-winning

technical support

BELKIN, LINKSYS and many product names and logos are trademarks

of the Belkin group of companies. Third-party trademarks mentioned are
