Linksys WAP2000 Istruzioni operative originali

QUICK INSTALLATION

BUSINESS SERIES

Wireless-G

Access Point with

Power over Ethernet

Model: WAP2000

Package Contents

WAP2000 - Wireless-G Access Point

2 Antennas

Power Adapter

Ethernet Cable

Quick Installation Guide

User Guide on CD

Registration Card

•

Table of Contents

Placement..................................................2

Installation.................................................4

Conﬁguration...............................................5

Online Resources

Website addresses in this document are listed without http:// in front of the

address because most current web browsers do not require it. If you use an

older web browser, you may have to add http:// in front of the web address.

Resource Website

Linksys www.linksys.com

Glossary www.linksys.com/glossary

Network Security www.linksys.com/security

Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its

registered trademarks of their respective holders.

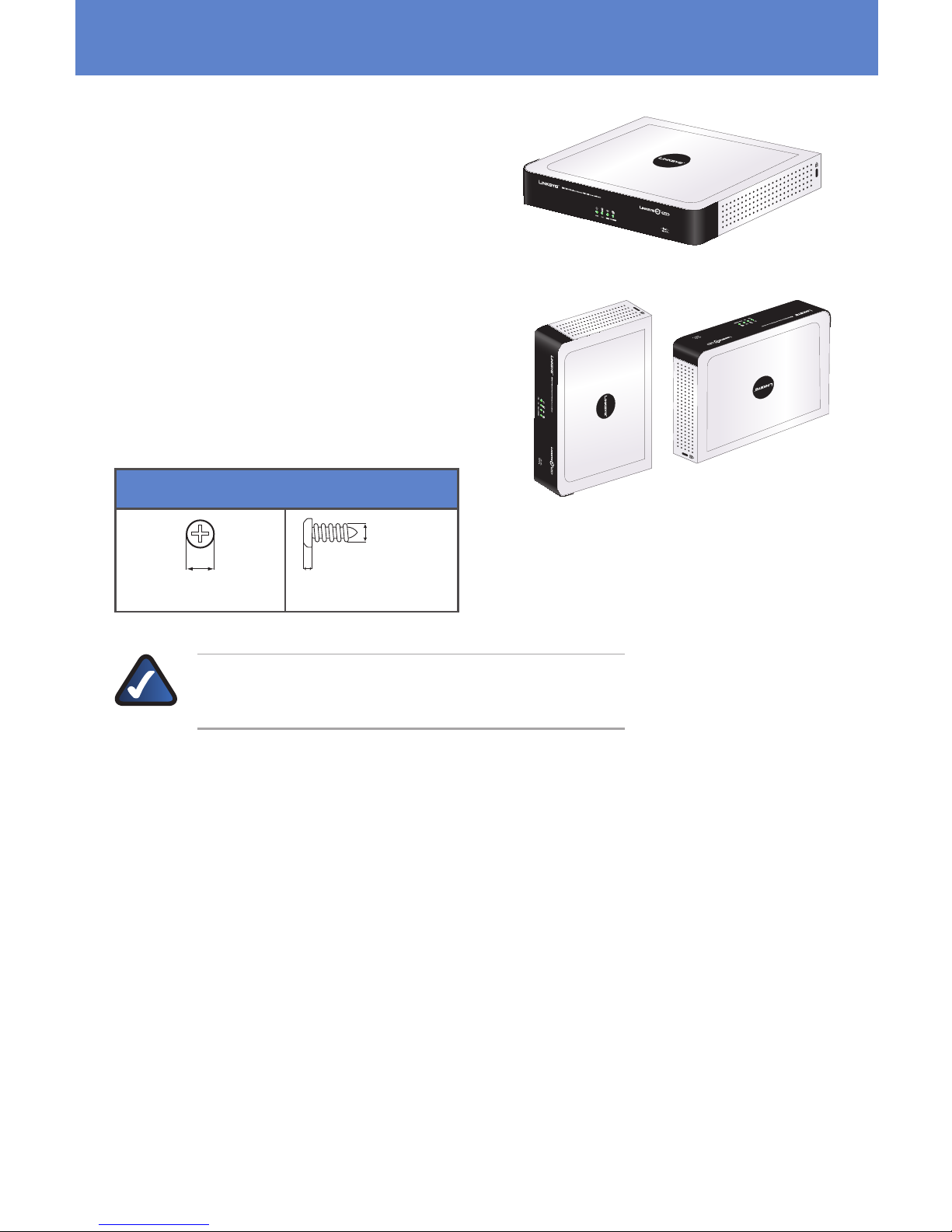

The Access Point can be placed

horizonally on a ﬂat surface such as

a desktop so it sits on its four rubber

feet or it can be mounted on a wall.

Wall-Mounting

The unit has two sets of wall-mount

slots so that it can be mounted

either vertically or horizontally.

You will need 2 suitable screws to

mount the Access Point.

Suggested Mounting Hardware

2.5-3 mm

4-5 mm 1-2 mm

NOTE: Linksys is not responsible for damages

incurred by insecure wall-mounting hardware.

Determine where you want to mount the Access Point. Ensure that the wall

you use is smooth, flat, dry and sturdy and make sure the location is within

reach of the power outlet.

Drill two holes into the wall for either vertical or horizontal placement. The

templates on the next page can be used for spacing between holes.

Insert a screw into each hole, and leave 3 mm of its head exposed.

Maneuver the Access Point so the wall-mount slots line up with the two

screws.

Place the wall-mount slots over the screws and slide the Access Point down

until the screws fit snugly into the wall-mount slots.

Congratulations! Wall-Mount installation of the Access Point is complete.

Desktop PlacementDesktop Placement

Vertical Mounting Horizontal MountingVertical Mounting Horizontal Mounting

Placement1�

Placement

Horizontal Mounting

Vertical Mounting

NOTE: The Access Point should be oriented as shown.

Vertical Mounting Template (4 ¼")

Horizontal Mounting Template (5 ⁷⁄₈")

Connect the antennas to the

antenna connectors on the Access

Point.

Adjust the two antennas so that

they form a 90 degree angle for

best performance.

Connect your Ethernet network

cable to your network router or

switch.

Connect the other end of the

network cable to the Access Point’s

Ethernet port.

If you are not using PoE (Power

over Ethernet), then connect the

included power adapter to the

Access Point’s Power port. Then

plug the power adapter into an

electrical outlet. The LEDs on the

front panel will light up as soon as

the Access Point powers on.

Congratulations! Access Point installation is complete. Change the settings

mentioned in the Configuration section to secure your wireless network.

LINK/ACT PoE LINK/ACT PoE LINK/ACT Gigabit LINK/ACT GigabitLINK/ACT PoE LINK/ACT PoE LINK/ACT Gigabit LINK/ACT Gigabit

Installation2�

Configuration3�

The Access Point has been designed to function right out of the box with the

default settings. The default SSID is linksys-g and the default wireless channel

is 6. The Access Point has DHCP enabled by default and should receive an IP

address automatically from the DHCP server on your network.

If you’d like to change any of the settings, the Access Point can be configured

through your web browser using the web-based utility.

Assigning a Static IP Address to the Access Point (Optional)

If your network doesn’t have a DHCP server, a static IP address (192.168.1.245)

can be assigned to the Access Point by performing the following steps:

Disconnect the power to the unit.

PoE users disconnect the Ethernet

cable.

Using a straightened paper clip or

similar object to hold down the

reset button on the back panel of

the Access Point.

Keep the reset button held down

and reconnect the power to the

unit. The reset button should be

held until the WLAN LED lights

up.

Accessing the Web-Based Utility

Open your web browser and enter

the IP address of your Access Point

into the Address field and press the

Enter key. The Password screen will

appear.

Enter admin (the default username)

in the User name ﬁeld and enter it

again in the Password ﬁeld. Click the

OK button.

Configuration

Navigating the Web-Based Utility

The ﬁrst screen that appears is the Setup screen. This allows you to change the

Access Point’s general settings. There are options on the left side of the screen:

Setup, Wireless, AP Mode, Administration, and Status. Each option contains

screens that will help you conﬁgure and manage the Access Point. Below are a

few options that may typically require modiﬁcation:

Setup

On the Setup > Setup screen, your

IP conﬁguration can be modiﬁed if

needed.

Wireless

Under the Wireless > Basic Wireless

Settings screen, change default SSID

Name.

On the Wireless > Wireless Security

screen, select the appropriate

security mode and complete the

options for the selected security

mode.

Configuration

Below is an overview of the available security modes:

Security Mode Description

WEP This security mode is defined in the original IEEE 802.11

specification. This mode is not recommended now due to its

weak security protection. Users are urged to migrate to WPA

or WPA2.

WPA-Personal WPA is short for Wi-Fi Protected Access and was designed to

address the shortcomings of WEP. WPA offers two different

encryption types, TKIP (Temporal Key Integrity Protocol) or

AES (Advanced Encryption Standard).

WPA2-Personal WPA2 offers a higher level of protection than WPA and uses

AES encryption.

WPA2-Personal Mixed This security mode supports the transition from WPA-

Personal to WPA2-Personal. You can have client devices that

use either WPA-Personal or WPA2-Personal. The Access Point

will automatically choose the encryption algorithm used by

each client device.

WPA-Enterprise This option features WPA used in coordination with a

RADIUS server for client authentication. (This should only be

used when the Access Point is connected to a network that

includes a RADIUS server.)

WPA2-Enterprise This option features WPA2 used in coordination with a

RADIUS server for client authentication. (This should only be

used when the Access Point is connected to a network that

includes a RADIUS server.)

WPA2-Enterprise Mixed This security mode supports the transition from WPA-

Enterprise to WPA2-Enterprise. You can have client devices

that use either WPA-Enterprise or WPA2-Enterprise. The

Access Point will automatically choose the encryption

algorithm used by each client device.

RADIUS This security mode is also known as Dynamic WEP with IEEE

802.1X. A RADIUS server is used for client authentication

and WEP is used for data encryption. The WEP key is

automatically generated by the RADIUS server. Manual WEP

key is no longer supported to ensure compatibility with

Microsoft’s Windows implementation.

Configuration

Management

On the Administration >

Management screen. The Access

Point’s default password is admin.

To secure the Access Point, change

the AP Password from its default.

Congratulations! Access Point quick installation and configuration is

complete. For advanced settings, refer to the User Guide located on the CD.

7081310NC-RR
