Linksys X1000 Manuale utente

User Guide

Linksys X1000 N300 Wireless Router with ADSL2+ Modem

Contents

Linksys X1000

Product Overview

X1000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Top 1

Back 1

Wall-mounting placement 2

Installation

Set up your modem-router automatically . . . . . . . . . . . . . . .3

Set up your modem-router manually . . . . . . . . . . . . . . . . . .4

Connect your modem-router 4

Set up your modem-router as only a router 5

How to use Cisco Connect

How to access Cisco Connect . . . . . . . . . . . . . . . . . . . . . . .6

Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Main Menu – Computers and Devices 7

Main Menu – Parental Controls 7

Main Menu – Guest Access 7

Main Menu – Router Settings 7

Advanced Conguration

How to access the browser-based utility . . . . . . . . . . . . . . . .8

How to use the browser-based utility. . . . . . . . . . . . . . . . . .9

Setup > Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

ADSL mode 9

Ethernet mode 10

Manual setup 12

Wi-Fi Protected Setup 13

Wireless > Wireless Security . . . . . . . . . . . . . . . . . . . . . . . 14

Personal Options 14

Oce Options 14

Wireless Security 14

Wireless > Guest Access . . . . . . . . . . . . . . . . . . . . . . . . . 17

Guest Access 18

Guest Instructions 18

Troubleshooting

X1000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Specications

X1000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Contents

Product Overview

Linksys X1000

X1000

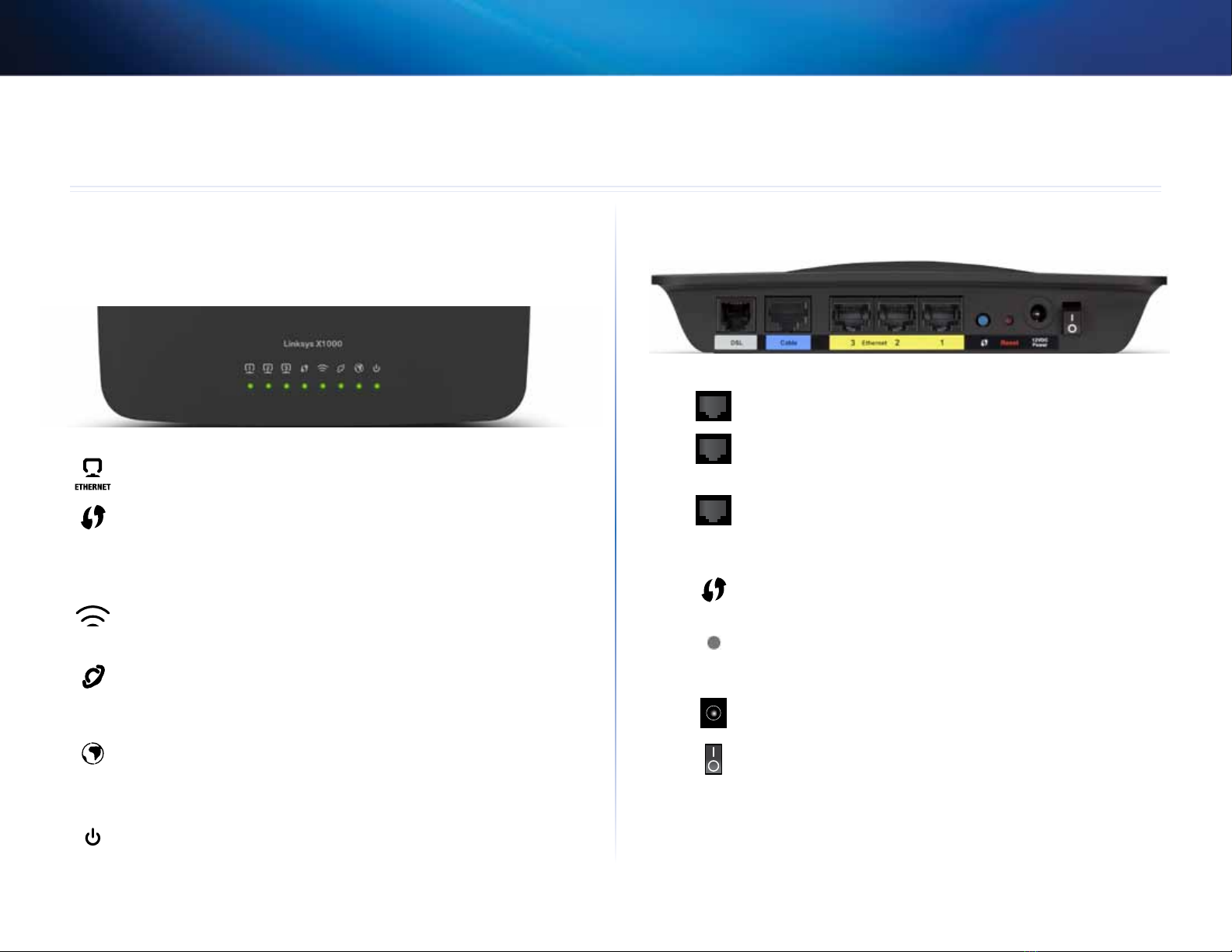

Top

Ethernet—If the LED is continuously lit, the modem router is

successfully connected to a device through that port.

Wi-Fi Protected Setup™—The LED is continuously lit when a Wi-Fi

Protected Setup™ connection is successfully established. The LED

blinks slowly while Wi-Fi Protected Setup™ is setting up a connection,

and blinks rapidly if an error occurs. The LED is off when Wi-Fi Protected

Setup™ is idle.

Wireless—Lights up when the wireless feature is enabled. It flashes

when the modem router is actively sending or receiving data over the

network.

WAN—Lights up green when the modem router is connected directly

to an ADSL line. Lights up blue when the modem router is set up as

a router only and is connected to the internet through a separate

modem.

Internet— Lights up green when the modem router has an Internet

connection. Flashes green while the modem router is establishing the

Internet connection. Lights up red when the modem router cannot

obtain an IP address.

Power—Lights up green when the modem router is powered on.

When the modem router goes through its self-diagnostic mode during

every boot-up, the LED flashes. When the diagnostic is complete, the

LED is continuously lit. Lights up red when an error occurs.

Back

DSL port—Connects to the ADSL line.

Cable port—To use the modem router as only a router, use

a network cable to connect this port to a separate modem’s

LAN/Ethernet port.

Ethernet port—Using Ethernet cables (also called network

cables), these Ethernet ports connect the modem router

to computers and other Ethernet network devices on your

wired network.

Wi-Fi Protected Setup™ button—Press this button to

have Wi-Fi Protected Setup™ search for your Wi-Fi Protected

Setup™-supported wireless device.

Reset button—This button allows you to reset the router

to its factory defaults. Press and hold the Reset button for

about five seconds.

Power port—The Power port connects to the included

power adapter.

Power button—Press | (on) to turn on the modem router.

Product Overview

Linksys X1000

Wall-mounting placement

The router has two wall-mount slots on its bottom panel. The distance between

the slots is 75.6 mm. Two screws are needed to mount the router.

Suggested Mounting Hardware

3-5 mm

7-8 mm 1.5-2 mm

NOTE

Cisco is not responsible for damages incurred by unsecured wall-

mounting hardware.

Follow these instructions:

1. Determine where you want to mount the router. Make sure that the wall

you use is smooth, flat, dry, and sturdy. Also make sure the location is

within reach of an electrical outlet.

2. Drill two holes into the wall. Make sure the holes are 75.6 mm apart.

3. Insert a screw into each hole and leave 3 mm of its head exposed.

4. Position the router so the wall-mount slots line up with the two screws.

5. Place the wall-mount slots over the screws and slide the router down

until the screws fit snugly into the wall-mount slots.

Wall-mounting template

Print this page at 100% size.

Cut along the dotted line, and place on the wall to drill precise spacing.

75,6 mm

Installation

Linksys X1000

Set up your modem-router automatically

Insert the CD into your CD or DVD drive.

Click Set up your Linksys Router.

DVD/CD-RW Drive (E:) Linksys

Router Setup

AutoPlay

Always do this for software and games:

Install or run program

General options

Set up your Linksys Router

Published by Cisco Consumer Products LLC

Set AutoPlay defaults in Control Panel

Open folder to view files

using Windows Explorer

Speed up my system

using Windows ReadyBoost

DVD/CD-RW Drive (E:) Linksys

Router Setup

AutoPlay

Always do this for software and games:

Install or run program

General options

Set up your Linksys Router

Published by Cisco Consumer Products LLC

Set AutoPlay defaults in Control Panel

Open folder to view files

using Windows Explorer

Speed up my system

using Windows ReadyBoost

If you do not see this:

•For Windows, click Start, Computer, then double-click the CD drive

and the Setup icon.

•For Mac, double-click the CD icon on your desktop, then double-click

the Setup icon.

Read the license terms, select the checkbox, then click Next.

At the How will you be using your X1000 screen, click Modem router or

Router only, then click Next.

•Modem router: Use the X1000 as both a DSL modem and a router. If

you have a DSL Internet service provider, this option provides Internet

access and networking connectivity to your home’s computers,

without the need for a separate modem and router.

•Router only: If you have a separate cable or DSL modem for Internet

access, this option provides networking connectivity to your home’s

computers.

The We are now setting up your Linksys X1000 screen opens. You are then

asked to connect your router’s cables.

If you chose Router only in Step 4:

Connect the power cable, then turn on the power switch.

Connect the blue cable to the Cable port on the back of your router

and to the modem.

Follow the on-screen instructions to finish the setup.

Or, if you chose Modem router in Step 4:

Connect the power cable. If your router has a power button, turn it

on.

Installation

Linksys X1000

Connect the gray cable to the modem-router’s DSL port and to a

telephone jack on your wall, then click Next.

You are asked to enter your ISP information.

Select your region, click Next, then select your ISP. If prompted, enter

your DSL account name and password.

Or, to skip the automatic detection of your region and manually

configure your Internet connection, select My region is not in this

list, then click Next. Use information available from your ISP to

complete the remaining screens for DSL settings, Internet type, and

account information.

Follow the on-screen instructions to finish the setup.

Set up your modem-router manually

NOTE

Run the Setup CD-ROM to install the modem-router. If you cannot

run the Setup CD-ROM, refer to the steps below.

NOTE

If you are setting up your modem-router in New Zealand, see

“NOTE FOR USERS IN NEW ZEALAND” on page 6.

Connect your modem-router

To connect your modem-router:

Power down all your network devices, including your computer(s) and

the modem-router. If you currently use a modem, disconnect it now—

the modem-router replaces your modem.

Connect one end of the provided Ethernet cable to your computer’s

Ethernet adapter and the other end to an Ethernet port on the back of

the modem-router.

Repeat step 2 for each additional computer or device that you want to

connect to the modem-router.

NOTE

If your computer’s Ethernet adapter is not set up, refer to the

Ethernet adapter’s documentation for more information.

Connect one end of the phone cable to the DSL port on the back.

Installation

Linksys X1000

Connect the other end of the phone cable to the wall jack with ADSL

service or microfilter.

NOTE

If you experience static on your phone line, you may need a

microfilter or splitter. (This is required for users in the UK; other

users should contact their ISPs to verify. ISDN users do not need

a microfilter.) If you require a microfilter, you must install one for

each phone or fax that you use. To install a microfilter, plug it into

a phone jack that has ADSL service, then connect one end of the

provided phone cable to the microfilter’s DSL port.

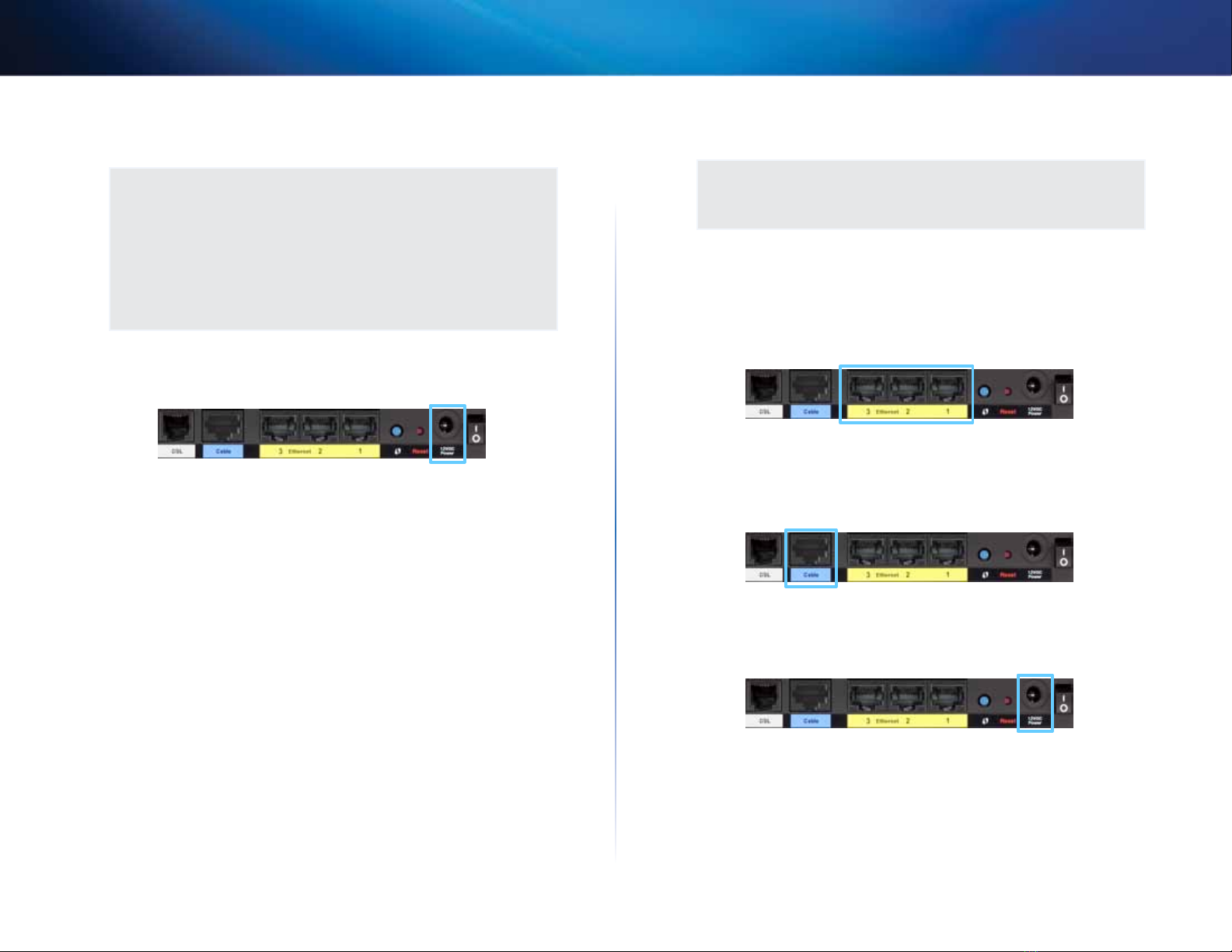

Connect one end of the power adapter cord to the Power port and the

other end to the electrical outlet.

Power on the computer that you will use to configure the modem-router.

The LEDs for Power, Wireless, and Ethernet (one for each connected

computer) should light up. If not, make sure the modem-router is

powered on and the cables are securely connected.

Set up your modem-router as only a router

NOTE

Run the Setup CD-ROM to install the modem-router. If you cannot

run the Setup CD-ROM, refer to the steps below.

To set up your modem-router as a router:

Connect one end of the provided Ethernet cable to your computer’s

Ethernet adapter and the other end to an Ethernet port on the back of

the modem-router.

Connect one end of an Ethernet cable to the Cable port on the back of

the modem-router, then connect the other end to an available Ethernet/

LAN port on your modem.

Connect one end of the power adapter cord to the Power port and the

other end to the electrical outlet.

Power on the computer that you will use to configure the modem-router.

The LEDs for Power, Wireless, and Ethernet (one for each connected

computer) should light up. If not, make sure the modem-router is

powered on and the cables are securely connected.

How to use Cisco Connect

Linksys X1000

NOTE FOR USERS IN NEW ZEALAND

To set up the device, follow these instructions:

Access the Setup > Basic Setup screen.

Select RFC 2364 PPPoA from the Encapsulation drop-down menu.

For the Virtual Circuit ID, enter 0 for the VPI and 100 for the VCI.

Select VC for Multiplexing.

Select Multimode from the DSL Modulation drop-down menu.

Enter your User Name and Password details from your ISP.

Click Save Settings.

How to use Cisco Connect

Cisco Connect provides an easy way to manage your router and network. You

can connect computers or devices to your router, give Internet access to guests

in your home, and change the router’s settings.

How to access Cisco Connect

Windows

Go to Start > All Programs > Cisco Connect.

Mac

Go to Go > Applications > Cisco Connect.

Main Menu

When Cisco Connect starts up, the main menu appears and offers four options:

Computers and Devices, Parental Controls, Guest Access, and Router Settings.

How to use Cisco Connect

Linksys X1000

Main Menu – Computers and Devices

Use this option to connect another computer or device to the router.

To connect another computer or device to the router, click Add device.

Then, follow the on-screen instructions.

Main Menu – Parental Controls

Parental controls restrict Internet access for up to five computers. For the

computers you select, you can block or limit Internet access to specific times.

You can also block specific websites.

To enable parental controls or change settings, click Change. Then,

follow the on-screen instructions.

Main Menu – Guest Access

Guest Access provides Internet access only; it does not provide access to the

local network and its resources. Guest Access helps minimize exposure of your

local network. To give Internet access to friends or family, provide the guest

network name and password displayed on this screen.

When a guest wants Internet access in your home, have the guest do the

following:

Connect to the wireless guest network, which is the name of your wireless

network followed by -guest.

Open a web browser.

On the login screen, enter the password of your guest network. Then

click Login.

To disable Guest Access or change settings, click Change. Then, follow

the on-screen instructions.

Main Menu – Router Settings

Use this option to personalize the router’s settings.

To change settings, click Change. The Router settings screen appears.

Personalize

Router name The name of the router is displayed (this is also the name of

your wireless network). To change the name, click Change. Then, follow the

on-screen instructions.

Password The password that protects access to the router’s settings is

displayed (this also protects wireless access to your local network). To change

the password, click Change. Then, follow the on-screen instructions.

CAUTION

When you change the router name or password, the name or

password of your wireless network also changes, and the router

is reset. ALL computers and devices connected to your router will

momentarily lose their Internet connection. Wired computers and

devices will reconnect automatically; however, you will need to

reconnect all wireless computers and devices using the wireless

network’s new name or password.

Port Lights

on/off To allow the lights on the router to turn on, keep the default, on.

Advanced Configuration

Linksys X1000

Easy Setup Key

Update or create key The Easy Setup Key is a USB flash drive that holds the

wireless settings for the router. If you want to create or update an Easy Setup

Key, click this option. Then, follow the on-screen instructions.

Internet Speed

Launch Test You can use the Internet speed test to determine your ISP’s

current download and upload speeds. Connection speed depends on many

factors, and may change throughout the day. To run the speed test, click this

option. Then, follow the on-screen instructions.

Other Options

special offers and updates from Cisco and Cisco partners, click this option.

Router details To view more information about the router, click this option.

The Router details screen appears, displaying the Model name, Model number,

Serial number, Firmware version, Operating system, Software version,

Connection type (WAN), IP address (LAN), IP address (WAN), and Computer IP

address. (WAN stands for Wide Area Network, such as the Internet. IP stands for

Internet Protocol. LAN stands for Local Area Network.)

Advanced settings To access settings for advanced users, click this option.

Then, follow the on-screen instructions.

Advanced Configuration

After setting up the router with the setup software (located on the CD-ROM),

the router will be ready for use. If you would like to change its advanced

settings, or if the software does not run, use the router’s browser-based utility.

You can access the utility via a web browser on a computer connected to the

router. For more help with the utility, click Help on the right side of the screen

or go to our website.

How to access the browser-based utility

To access the browser-based utility, launch the web browser on your

computer, and enter the router’s default Internet Protocol (IP) address,

192.168.1.1, in the Address field. Then press Enter.

NOTE

You can also access the browser-based utility on Windows

computers by entering the device name in the Address field.

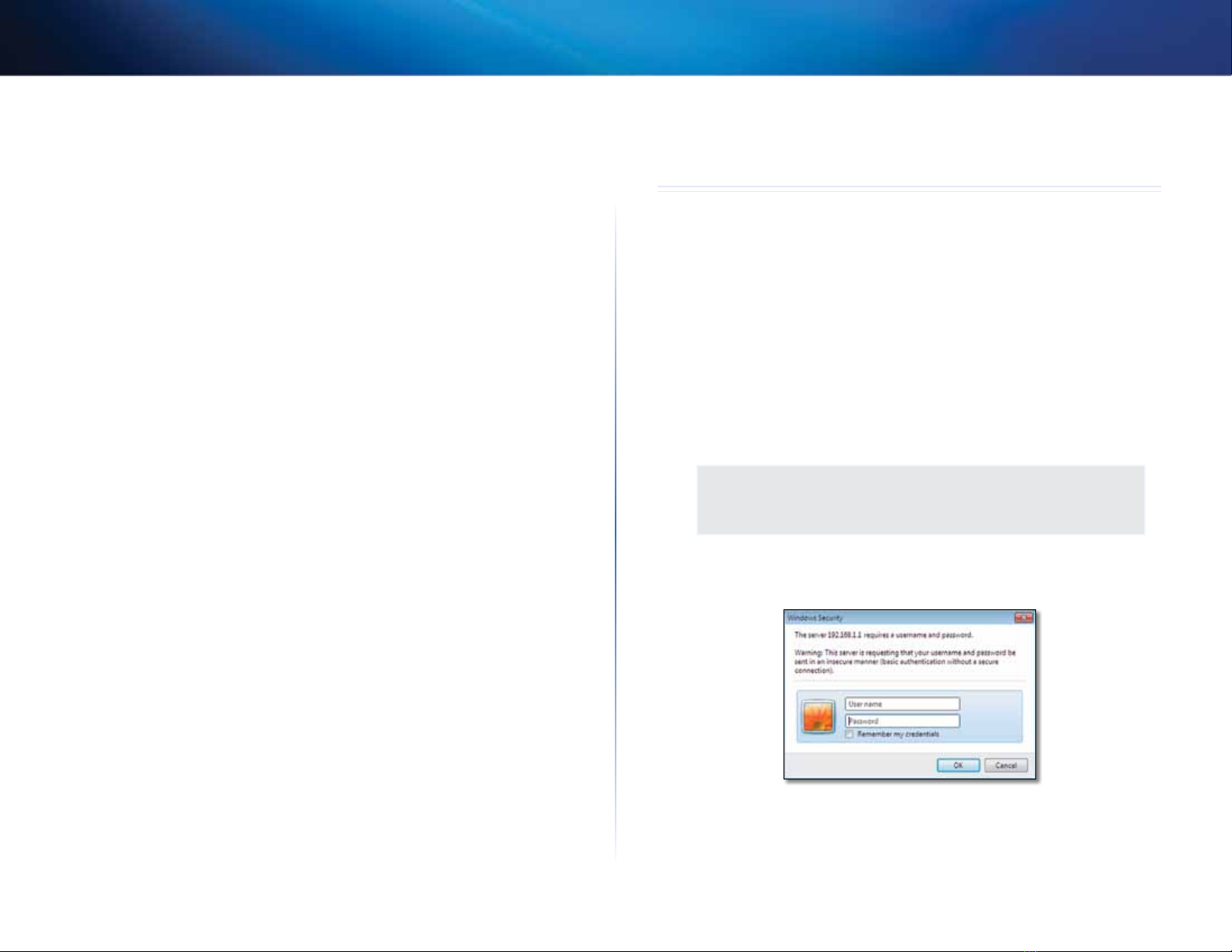

A login screen appears. (A similar screen appears for non-Windows 7

users.)

In the User name field, enter admin.

Indice

Altri manuali Linksys Router wireless

Linksys

Linksys WRT54G - Wireless-G Broadband Router... Manuale utente

Linksys

Linksys WRT320N - Wireless-N Gigabit Router Wireless Manuale utente

Linksys

Linksys WUSB54GS EU Manuale operativo

Linksys

Linksys WRT54G - Wireless-G Broadband Router... Manuale utente

Linksys

Linksys WRT120N - Wireless-N Home Router Wireless Manuale utente

Linksys

Linksys WRT54G3G - Wireless-G Router For Verizon Wireless... Manuale operativo

Linksys

Linksys WRT54G - Wireless-G Broadband Router... Manuale utente

Linksys

Linksys E3000 Manuale utente

Linksys

Linksys WRV54G - Wireless-G VPN Broadband Router... Manuale utente

Linksys

Linksys 5G WiFi 6 Manuale utente

Linksys

Linksys E2000 Manuale utente

Linksys

Linksys WTR54GS Manuale operativo

Linksys

Linksys WRT330N - Wireless-N Gigabit Gaming Router... Manuale utente

Linksys

Linksys WRT310N - Wireless-N Gigabit Router Wireless Manuale utente

Linksys

Linksys Vonage WRTP54G Manuale utente

Linksys

Linksys BEFVP41 - EtherFast Cable/DSL VPN Router Manuale utente

Linksys

Linksys WRT54GL - Wireless-G Broadband Router... Manuale utente

Linksys

Linksys MAX-STREAM MR6350 Manuale del proprietario

Linksys

Linksys WRT150N - Wireless-N Home Router Wireless Istruzioni operative originali

Linksys

Linksys WRT54GL - Wireless-G Broadband Router... Manuale utente

Linksys

Linksys WRT54G - Wireless-G Broadband Router... Manuale operativo

Linksys

Linksys Hydra Pro 6E Manuale utente

Linksys

Linksys SVR200 - One Wireless-G ADSL/EN Services Router... Manuale utente

Linksys

Linksys BEFSR41W Manuale utente

Manuali Router wireless popolari di altre marche

Milesight

Milesight UG67 Manuale utente

Airlogic

Airlogic AirSync Class 1 Manuale del proprietario

Samsung

Samsung WCH730B Manuale utente

TELEFONICA

TELEFONICA USB Adapter Manuale utente

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manuale utente

Askey

Askey RAC2V1K Manuale utente

Alloy

Alloy WLF2454AP-S Manuale utente

TP-Link

TP-Link TL-WR542G Manuale utente

NETGEAR

NETGEAR WNR2000v4 Manuale utente

Hama

Hama 53120 Manuale utente

Intellinet

Intellinet 524582 Manuale utente

Asus

Asus RT-N10P Manuale utente

D-Link

D-Link DIR-506L Manuale utente

Sapido

Sapido GR297n Manuale utente

Asus

Asus DSL-N55U Manuale utente

AMTC

AMTC WR7502 Manuale utente

Compaq

Compaq CP-2W - iPAQ Connection Point Manuale utente

SMC Networks

SMC Networks WBR14-N2 FICHE Manuale utente
