Linx GM Series Manuale utente
GM Series
Evaluation Module
User's Guide
Warning: Linx radio frequency (“RF”) products may be used to
control machinery or devices remotely, including machinery or devices
that can cause death, bodily injuries, and/or property damage if
improperly or inadvertently triggered, particularly in industrial settings or
other applications implicating life-safety concerns. No Linx Technologies
product is intended for use in any application without redundancies
where the safety of life or property is at risk.
The customers and users of devices and machinery controlled with
RF products must understand and must use all appropriate safety
procedures in connection with the devices, including without limitation,
using appropriate safety procedures to prevent inadvertent triggering by
the user of the device and using appropriate security codes to prevent
triggering of the remote controlled machine or device by users of other
remote controllers.
All RF products are susceptible to RF interference that can prevent
communication. Lack of good sight of the GPS satellites (open sky)
can affect the accuracy of a position fix or prevent a fix entirely.
Do not use any Linx product over the limits in this data guide.
Excessive voltage or extended operation at the maximum voltage could
cause product failure. Exceeding the reflow temperature profile could
cause product failure which is not immediately evident.
Do not make any physical or electrical modifications to any Linx
product. This will void the warranty and regulatory and UL certifications
and may cause product failure which is not immediately evident.
!Table of Contents
1 Introduction
2 Ordering Information
2 ElectricalSpecications
3 PinAssignments
3 PCB Layout
3 Schematic
––
1
Introduction
The GM Series GNSS receiver module is a self-contained
high-performance Global Satellite Navigation System receiver. Based on
the MediaTek chipset, it can simultaneously acquire and track multiple
satellite constellations. These include the United States GPS system,
Europe’s GALILEO, Russia’s GLONASS and Japan’s QZSS.
The module provides exceptional sensitivity, even in dense foliage and
urban canyons. It’s very low power consumption helps maximize runtimes
in battery powered applications. Hybrid ephemeris prediction can be used
to achieve cold start times of less than 15 seconds. The module outputs
standard NMEA data.
The evaluation module contains the surface mount GM Series GNSS
module, SMA connector and a ferrite bead (used to supply power to an
external active antenna, such as the Linx SH Series active GPS antenna)
on a single board with through-hole headers. This small board makes
prototyping with the GM Series module very easy.
GM Series Evaluation Module
User's Guide
Revised 9/24/13

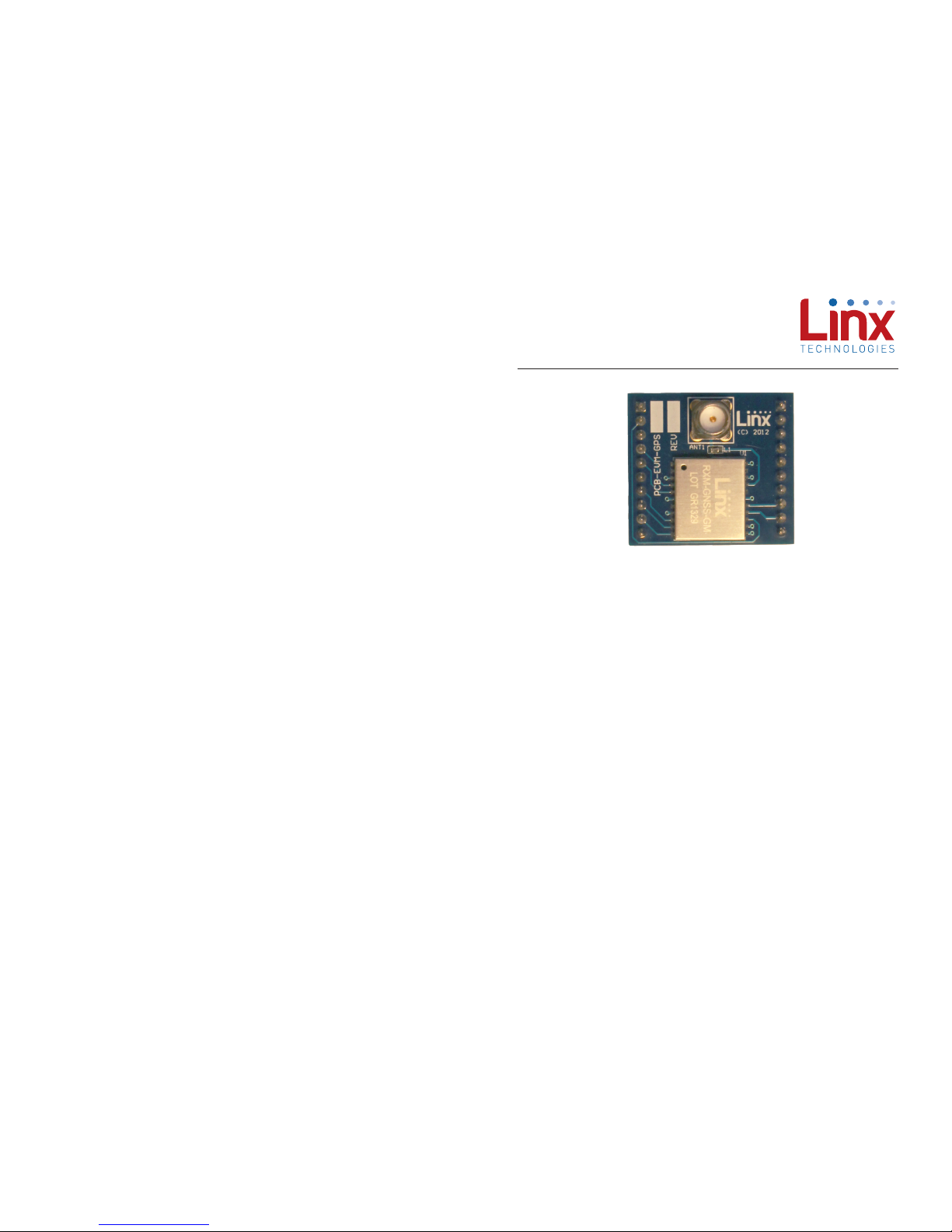

Figure 1: GM Series Evaluation Module
–– – –
2 3
Ordering Information
ElectricalSpecications
Warning: This product incorporates numerous static-sensitive
components. Always wear an ESD wrist strap and observe proper ESD
handling procedures when working with this device. Failure to observe
this precaution may result in module damage or failure.
Schematic
2-5
1
2
3
4
5
6
7
8
9
10
J2
GND
GND
VCC
VBACKUP
1
2
3
4
5
6
7
8
9
10
J1
GND
GND
TXD
RXD
1PPS
RESET
TXD
RXD
VCC
RF
1
GND
ANT1
CONSMA001
GND
GND
GND
GND GND
NC
1
NC
2
1PPS
3
TX
4
RX
5
NC
6
NC
7
RESET
8
NC
9
NC
10 VBACKUP 11
VCC 12
NC 13
NC 14
NC 15
NC 16
VOUT 17
GND 18
RFIN 19
GND 20
GND
21 GND 22
U1
RXM-GPS-GM
1PPS
VBACKUP
RESET
L1
300ohm BEAD
Ordering Information
Part Number Description
EVM-GNSS-GM GM Series Evaluation Module
RXM-GNSS-GM GM Series GNSS Receiver Module
MDEV-GNSS-GM GM Series GNSS Receiver Master Development System
Figure 2: Ordering Information
Figure 3: Electrical Specifications
1.20”
(47.24)
0.10”
(2.54)
0.10”
(2.54)
0.10”
(2.54)
1.10”
(27.94)
1.00”
(25.40)
Ø0.04” x 10
(1.02)
PCB Layout
GM Series GNSS Receiver Specifications
Parameter Symbol Min. Typ. Max. Units Notes
Power Supply
Operating Voltage VCC 3.0 3.3 4.3 VDC
Supply Current lCC
Peak 150 mA 1
Acquisition 24 mA 1
Tracking 16 mA 1
Standby 0.365 mA 1
Backup Battery Voltage VBAT 2.0 4.3 VDC
Backup Battery Current IBAT 7 µA 2
Antenna Port
RF Impedance RIN 50 Ω
Environmental
Operating Temperature
Range –40 +85 °C
Storage Temperature
Range –40 +85 °C
1. VCC = 3.3V, without active antenna, ephemeris prediction is off
2. VCC = 0V
PinAssignments
GND
NC
NC
VCC
NC
VBACKUP
NC
NC
NC
GND
GND
NC
NC
TXD
RXD
1PPS
RESET
NC
NC
GND
Figure 4: EVM-GNSS-GM Pin Assignments
Figure 5: EVM-GNSS-GM PCB Layout Dimensions
Figure 6: EVM-GNSS-GM Schematic
