Lippert Level-up Manuale utente
6/10/2022
1
WELCOME TO LIPPERT TECHNICAL TRAINING
TRAINING INTRODUCTION
RV PRODUCT LINES
1
2
6/10/2022
2

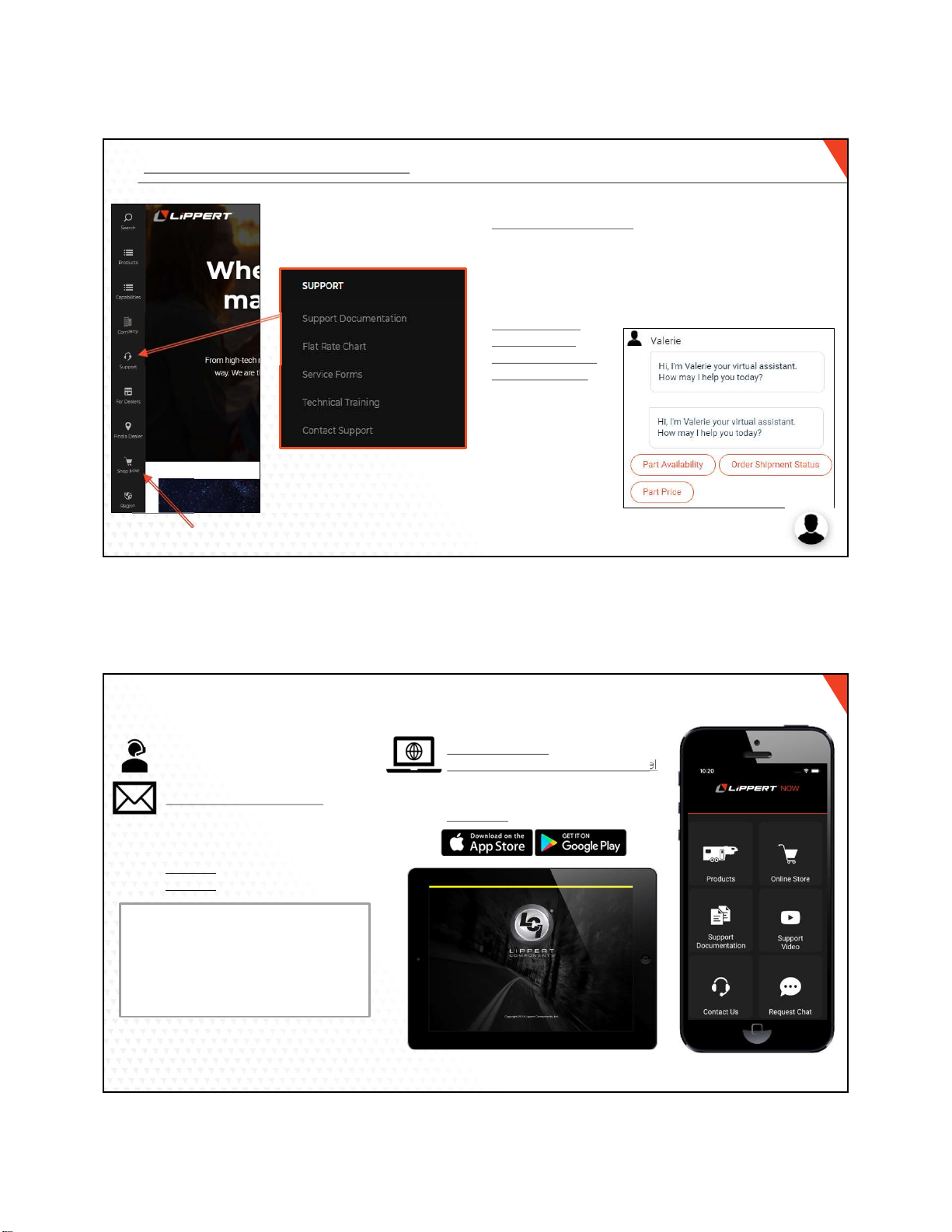

ONLINE RESOURCES
Support
1. Support Documentation
I. Assembly and Component Webpages
II. Install, Aftermarket, OEM and Owners Manuals
III. Quick Reference Documents
IV. Technical Information Documents
V. Videos
2. Flat Rate Chart
3. Service Forms
4. Technical Training
5. Contact Support
Valerie
Shop Now
Current 24/7 Offering
www.Lippert.com
Technical Institute Youtube Channel
•Technical Videos
•Owners and Aftermarket Videos
MyLCI App
CUSTOMER SUPPORT
Hours of Operation
Monday – Friday: 8AM – 7PM (ET)
Saturday: 9AM – 5:30PM (ET)
432-LIPPERT (432-547-7378)
customerser[email protected]
Emergency (After Hours) Contact
432-LIPPERT (432-547-7378)
Option 1: Voice Mail
Option 2: Emergency Technician
Technical Support Info to Have:
1. VIN (Vehicle Identification Number)
2. DOM (Date of Unit Manufacture)
3. DOP (Date of Unit Purchase)
4. Pictures
5. Part Number
3
4
6/10/2022
3
TECHNICAL INSTITUTE
Training Homepage Webinar Webpage
Complete the final exam to ensure credit for the
course. After passing, your certificate will become
available to you. There is also a survey for feedback.
View listings for service schools, regional and webinar
training. Contact information can also be found here.
LEVEL-UP
TOWABLE HYDRAULIC LEVELING
5
6
6/10/2022
4
14,000 LANDING GEAR JACKS8,000 JACKS
Original
Mounting
Holes
Original
Footpad
Current
Mounting
Holes
Current
Footpad
Current
Mounting
Holes
Current
Footpad
OPERATION
•Unhitching (Extend Landing Gear Jacks)
•Auto Level
•Reconnect (Left and Right/Auto Hitch/Hitch Height)
•Auto Retract (Auto Retract/Retract All)
LCD Touch Pad Auto Leveling
Control Touch Pad
OneControl Touch Panel
7
8
6/10/2022
5
SETTING THE ZERO POINT
LCD TO U C H PA D
•Manually run the jacks to level the unit. This is
best achieved by placing a level in the center
of the unit and leveling it both front to back
and side to side.
•Once the unit is level, turn off the touch pad.
•With the touch pad off, press and release the
“FRONT” button 5 times and then press and
release the “REAR” button 5 times.
•The touch pad will flash and beep and the
display will read “ZERO POINT CALIBRATION
ENTER to set, Power to Exit”.
•To set the current position as the zero point,
press “ENTER” button.
•LCD reads “Zero point stability check”.
•LCD display will read “Zero point set
successfully” once process is complete.
•The system will set this point as its level state
and the touch pad will turn off.
MANUAL OVERRIDE
¼” Hex Bit & Drill
Clockwise to RETRACT
Counterclockwise to EXTEND
Clockwise to OPEN
Counterclockwise to CLOSE
5/32 Hex
Wrench
9
10
6/10/2022
6
MAINTENANCE
•Battery must be maintained at full capacity
•Remove dirt and debris from jacks
•Silicone lubricant every 3 months or 4-6 weeks in
salty environment
•Clean and inspect all electrical connections
•Dexron III or Mercon V Class “A” ATF
SCHWINTEK
IN-WALL
SLIDE-OUT
11
12
6/10/2022
7
UPPER COLUMN ASSEMBLY
Gear Rack
Motor
Shoe
V-Roller
Gibs
Spur Gear
Upper
Bearing
Block
Coupler
Torque Shaft
Column
LOWER COLUMN ASSEMBLY
V-Roller
Gibs
Spur Gear
Shoe
Torque Shaft
Lower Bearing
Block
13
14
6/10/2022
8
Variant Code Sticker
Notch
Motor Retention
Screw Hole
H-Column
Wiper Seal
ERROR CODES
Flashes Name Description
2 Battery Drop Out Battery capacity low enough to drop below 6 volts while running or short in switch
wiring.
3 Low Battery Voltage below 8 volts at start of run.
4 High Battery Voltage greater than 18 volts.
5 Excessive Motor Current High amperage, also indicated by 1 side of slide continually stalling.
6 Motor Short Circuit Motor or wiring to motor has shorted out.
8 Wire Short Between Controller and Motor Encoder is not providing a signal. This is usually a wiring problem.
9 Hall Power Short to Ground Power to encoder has been shorted to ground. This is usually a wiring problem.
Electronic Manual override
•Mode Button: press 6x, hold on 7th
•Use switch to operate room
•To exit mode: press and hold mode
button
LED Error Codes
Mode
Button
Red
LED
Green
LED
15
16
6/10/2022
9
MANUAL OVERRIDE
Disconnect Motor Harness
•Locate controller.
•Unplug both harnesses
•Push or pull slide room in as desired
•Keep both sides of room relatively even.
•When room is completely in, plug both
motors back into the controller.
Disengage Motor
•Bend back wipe seal.
•Remove retention screw
•Pull the motor up until disengaged
•Repeat this process for both sides of the slide room.
•Push or pull room back
•*Travel Lock*
Unplug Both Motors
Motor Retention Screw
RE-SYNCHRONIZING
MOTORS
1. Fully extend the slide room using the switch. Keep
the switch engaged until the motors shut down on
their own.
2. Retract the room 1-2 inches.
3. Repeat steps 1 and 2 until both motors shut down
at the same time. In many cases, two or three
repetitions are necessary to re-sync the system.
4. Fully extend the slide-out and keep the switch
engaged until the motors shut down on their own.
Fully retract the slide-out, again keeping the switch
engaged until the motors shut down on their own. If
both motors shut down at the same time at full
extension and full retraction, the room is properly
synchronized. If they do not shut down at the same
time, repeat the process until they do.
17
18
6/10/2022
10
TECHNICAL SUPPORT
Question and Answer
If you have questions, please feel free to ask
us now. Otherwise, we are available and
happy to discuss anything presented with you.
