INSTALLATION MANUAL 16613

Tools Required

Torque wrench Socket, 3/4"

Wrench, 3/4" --

Product Photo

Parts List

Item Qty Description

1 1 Safety chain assembly

2 1 Hex bolt, 1/2"

3 1 Nylock nut, 1/2"

Product Registration

CURT Group stands behind our products

with industry-leading warranties. Provide

feedback and help us to improve our

products by registering your purchase at:

warranty.curtgroup.com/surveys

Level of Difﬁculty

Easy

WARNING

Do not modify this product in any way. Unauthorized modification may impair the

function and / or safety and could affect the life of the product and void the warranty.

Keep safety chains in place and in working order.

CAUTION

Check for damaged parts before each use. Carefully check that the product

will operate properly and perform its intended function. Replace damaged

or worn parts immediately. Never operate the product with a damaged part.

NOTICE

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

To help prevent damage to the product or vehicle, refer to the specified

torque specifications when securing hardware during the installation process.

Torque Speciﬁcations

1/2" bolt 65 ft-lbs.

Use above torque setting unless otherwise noted

Maintenance

Inspect the unit for proper operation, and

worn, damaged or missing parts. Replace

as required or when the unit's wear

exceeds 1/8" from the original surface.

Check the hardware torque speciﬁcation

after the ﬁrst 200 miles of towing

and every 400 miles after that.

CURTMFG.COM •PRODUCT SUPPORT: 877.287.8634 •16613-INS-RA •12/13/2022 •ECN10120 •PAGE 2

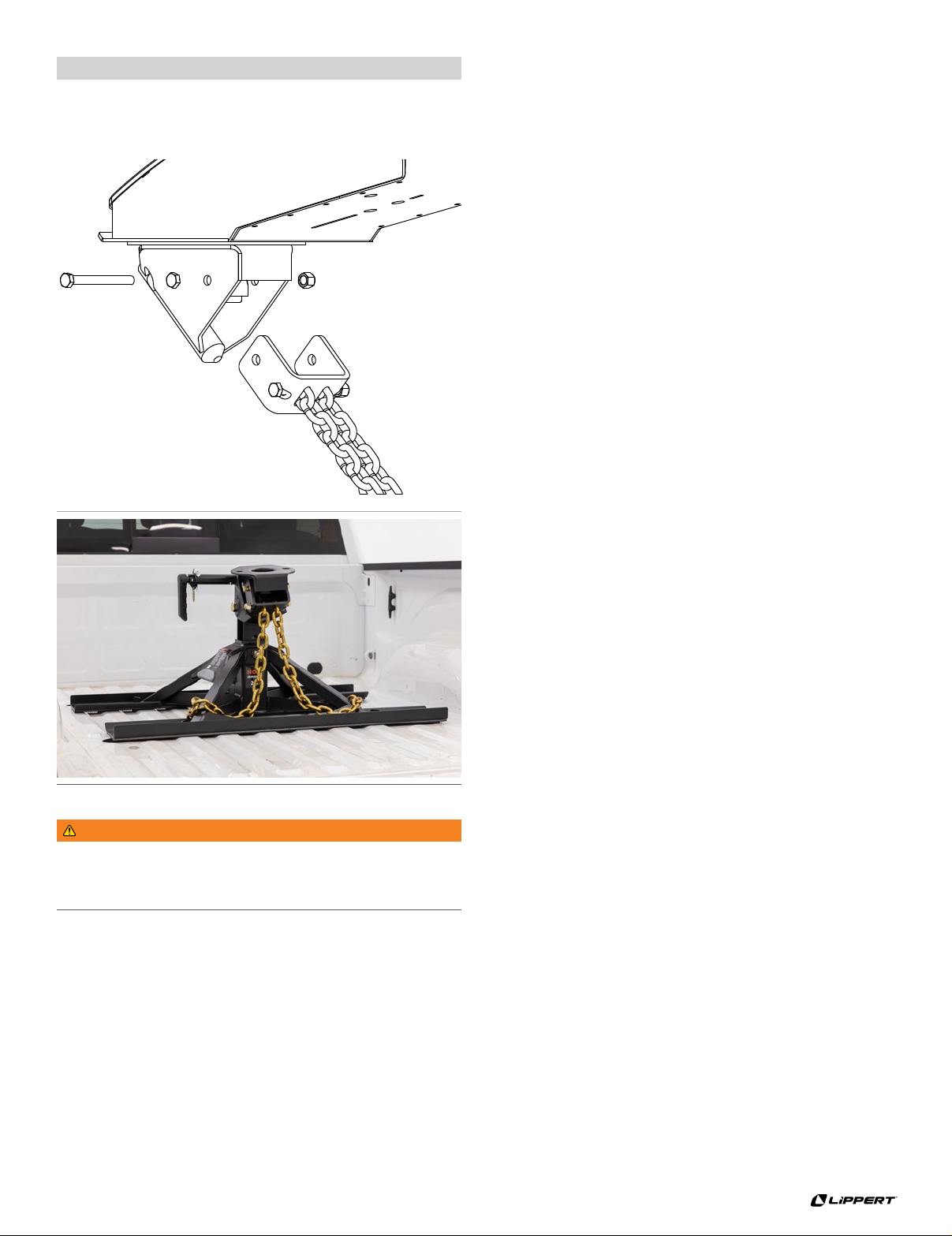

Step 1

Attach the safety chain assembly (#1) to the upper weldment

by aligning the rear hole on the weldment and the hole on

the safety chain assembly. Secure with a 1/2" hex bolt (#2)

and nylock nut (#3) and torque to 65 ft-lbs.

WARNING

After connecting your safety chains to your trailer, always

confirm the chains are long enough to support your maximum

turning radius. Chains without adequate length may bind

resulting in damage to your vehicle, hitch, and/or trailer.
