Litile34™ OPERATION MANUAL
Seamless Tiled Panel Wall Solution for
Large Area Digital Signage Display
(1st Edition 3/25/2009)
All information is subject to change without notice.
Approved by Checked by Prepared by
Ming Hank Jack
Page 2
RECORD OF REVISION
Version and Date Page Old Description New Description Remark
Mar.25 2009 all Preliminary Release
Page 3
TABLE OF CONTENTS
RECORD OF REVISION .................................................................................................. 2
TABLE OF CONTENTS.................................................................................................... 3
1.0 Siting the Litile34 modular display............................................................................... 8
2.0 Litile34 System Diagram ............................................................................................. 9
3.0 Connecting Power To The Litile34 Display................................................................ 10
4.0 Setting up the Video Wall Controller.......................................................................... 13
5.0 Displaying an image.................................................................................................. 15
6.0 Settings for Scaler and MDU controller..................................................................... 16
7.0 Troubleshooting......................................................................................................... 20
8.0 Maintenance and Services........................................................................................ 21
Page 4
IMPORTANT INFORMATION
EMC conformance
All Litile34 equipment and accessories are designed to the best industry standards for
use in the recreational marine environment. The design and manufacture of Litile34
equipment and accessories conform to the appropriate ElectroMagnetic Compatibility
(EMC) standards, but correct installation is required to ensure that performance is not
compromised.
Waste Electrical and Electronic Equipment Directive
The Waste Electrical and Electronic Equipment (WEEE) Directive requires the recycling
of waste electrical and electronic equipment. Whilst the WEEE Directive does not apply
to some of Litile34’s products, we support its policy and ask you to be aware of how to
dispose of this product.
The crossed out wheelie bin symbol, illustrated above, and found on our products
signifies that this product should not be disposed of in general waste or landfill. Please
contact your local dealer, national distributor or Technical Services for information on
product disposal.
Restriction of the use of certain Hazardous Substances
This product uses components that comply with the requirements of the Restriction of
the use of certain Hazardous Substances (RoHS) Directive 2002/95/ EC.
Warranty
To register your new Litile34 product, please go to:
http://www.signage.litemax.com/
It is important that you complete the owner information to receive full warranty
benefits, including notification of software updates if they are required.
Page 5
SAFETY WARNING
Installation should only be carried out by suitably qualified personnel in accordance
with local wiring regulations.
The display must be earthed.
Only suitably qualified personnel to open and work inside the display modules
including changing backlight.
Disconnect from mains supply by removing the mains cable before opening the back
panels. The appliance connector is used as the disconnect device.
The display front surface should be cleaned with a lint free cloth lightly dampened
with Iso Propyl Alcohol. Do not use other solvents to clean.
Steel toe cap safety footwear should be worn when lifting or handling the units.
Appropriate lifting equipment should be used. Modules should not be lifted by one
person.
The equipment must be installed securely and bolted to the ground to avoid toppling.
Each module must be bolted to each of its neighbouring modules and if necessary
securely attached to a fixing point above the display to avoid toppling.
A structural engineer should be consulted prior to installation if there is any doubt
about the structural integrity of the surface on which the display is to be built.
The modules should be stacked no higher than 4-high without additional structural
support. Seek advice from a suitable qualified structural engineer.
This equipment complies with IEC60950-1:2002 Information Technology
Equipment. Safety. General Requirements.
Page 6
Packing List
Before installation, please ensure the following items have been shipped:
z#1 1 x Litile34 module Display
z#2 1 x MDU Controller
z#3 1 x Power Adapter (12V 5A 60W output) for MDU Controller
z#4 1 x CAT7 D-SUB 9P signal cable (6000 mm)
z#5 1 x DVI-D Cable (3000 mm)
z#6 1 x TVone C2-2000 Series Video Scaler Package including
1 x C2-2200 Video Scaler
1 x Power Adapter (12V 3.3A output) for video scaler
1 x Power Cord (1830 mm)
1 x C2-2000 Series Video Processor Operation Manual
If any of these items should be missing or damaged, please contact your distributor
or sales representative immediately.
Page 7
Ordering Information
Model Number Description
SLD3416-SNN-A01
34” Seamless Sunlight Viewable Tiled Panel Wall Display (Litile34), Video Wall
Controller (MDU + TVone C2-2200 Video Scaler Package)
Optional Accessories
xxxxxxxxxxxx CAT7 D-SUB 9P signal cable (6000 mm)
840612051101 Adapter 12V 5A 60W for MDU Controller
810618301010 Power Cable USA Type
810618301090 Power Cable Europe Type
810618301030 Power Cable Japan Type
Page 8
1.0 Siting the Litile34 modular display
About Litile34™ Seamless Tiled Panel Wall Solution
The Litile34 modules are intended to operate in sheltered indoor environments. They
should not be used out of doors or where they could get wet. The modules remain visible
in high ambient light conditions; however it is best to avoid siting the display where
sunlight could fall directly on the front of the display screen.
Care should be taken to provide adequate ventilation or airconditioning for cooling.
This equipment is designed for safe operation at ambient temperatures between 5°C and
+25°C. For optimum performance, the ambient temperature should be maintained
between 10°C and 20°C.
The rear should not be obstructed. The modules should be a minimum of 1m from any
wall. Rear access is required for servicing purposes.
Refer to the Installation Instructions for details of how to move and install the modules.
This handbook contains important information on the installation, operation and
maintenance of the Litile34 Sunlight Viewable Seamless Tiled Panel Wall Solution range
which is intended for use in the recreational digital signage market and covers all
models.
Page 9
2.0 Litile34 System Diagram
Your Litile34 Sunlight Viewable Seamless Tiled Panel Wall Solution’s system diagram
shown as below:
Litile34 System Block Diagram
Page 10
3.0 Connecting Power To The Litile34 Display
It is important that your new display is installed and operated in accordance with the
instructions provided in this handbook. Failure to do so could result in poor product
performance and may invalidate your warranty.

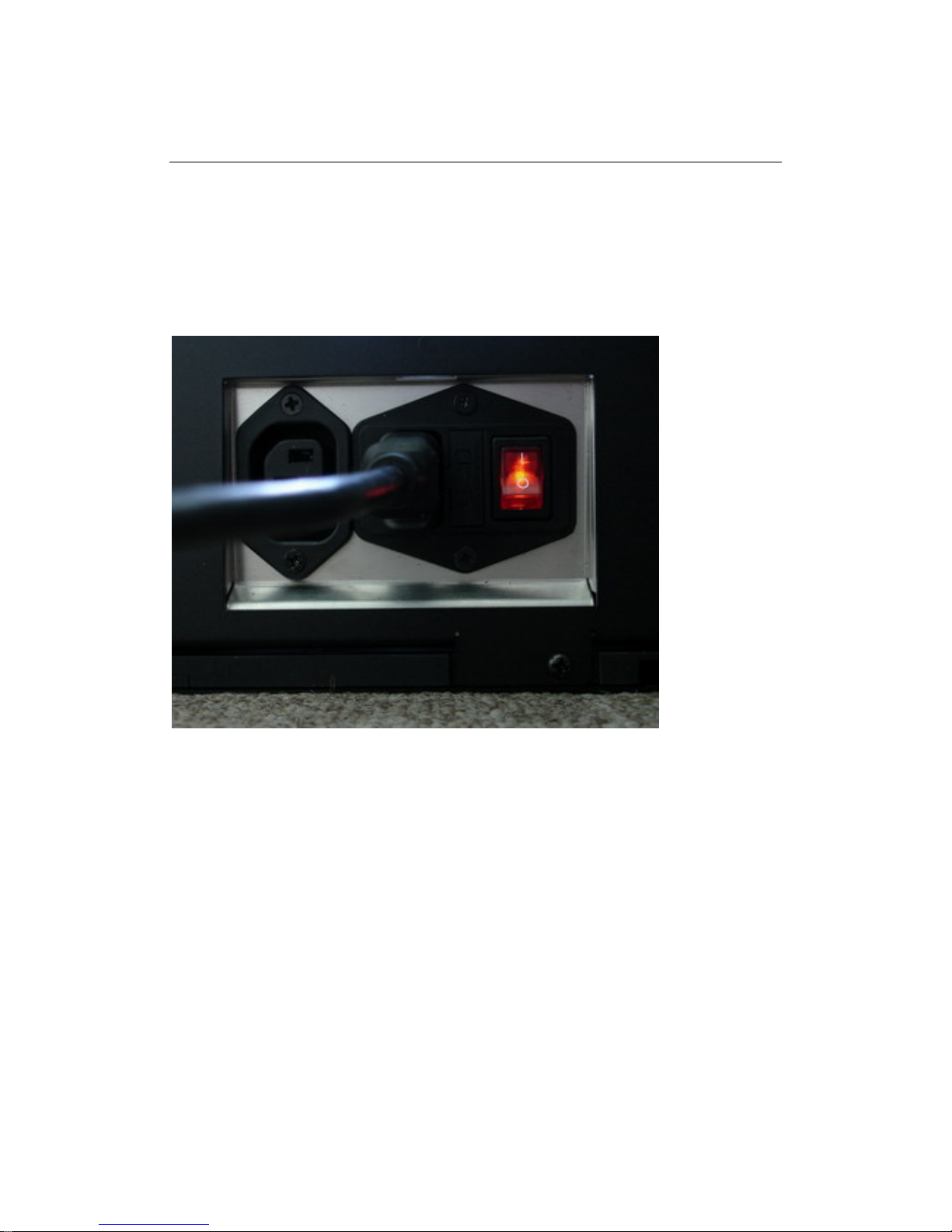

The power cable should be connected to the power input socket on the back of the
display. There is a power switch on the back of each module for switching the units on
and off.
It is important to make sure that the controller is switched on BEFORE the modules to
ensure the correct boot-up sequence for the modules.
The Modules are powered by 220 to 240V, 50-60 Hz AC single phase mains. An earth
connection is essential (through the mains plug supplied). For installations requiring
more power than available from a single ring main, a three phase supply should be
prepared. Please contact Litemax for further detail if this is required. In-line delay
relays (default 5 seconds per Litile34 module) are recommended if powering up
automatically, to sequence the start of the modules and avoid power surges and tripping
of circuit breakers.
Remarks: Please be noted that you need another independent power source cable input
per each 4 Litile34 daisy chain loop.
