LIVARNO LUX 434404-2304 Manuale utente
IAN 434404_2304
FERNBEDIENUNG
DES LED-BANDS
Bedienungs- und Sicherheitshinweise
LED STRIP LIGHT REMOTE CONTROL
LED STRIP LIGHT
REMOTE CONTROL
Operation and safety notes
ΤΗΛΕΧΕΙΡΙΣΜΌΣ ΤΗΣ
ΤΑΙΝΙΑΣ LED
Υποδείξεις χειρισμού και ασφαλείας
Auto
w/ww
IC Set
CS
C3
C7
C16
Flash
Jump
Meteor
GB/IE/NI/CY Operation and safety notes Page 5
GR/CY Υποδείξεις χειρισμού και ασφαλείας Σελίδα 23
DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 45
Before reading, unfold the page containing the illustration and familiarise yourself with all
functions of the device.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με την εικόνα και εξοικειωθείτε με όλες τις
λειτουργίες της συσκευής.
Kl
appen Sie vor dem Lesen die Seite mit der Abbildung aus
und machen Sie sich anschließend
mit allen Funktionen des Gerätes vertraut.
Auto
w/ww
IC Set
CS
C3
C7
C16
Flash
Jump
Meteor
5GB/IE/NI/CY
LED strip light remote control
Switching the LED strip on /
off using the remote control
Be sure there are no obstacles between the transmitter and receiver.
Press the button on the remote control to switch the LED strip on
or off.
Controlling lighting effects
using the remote control

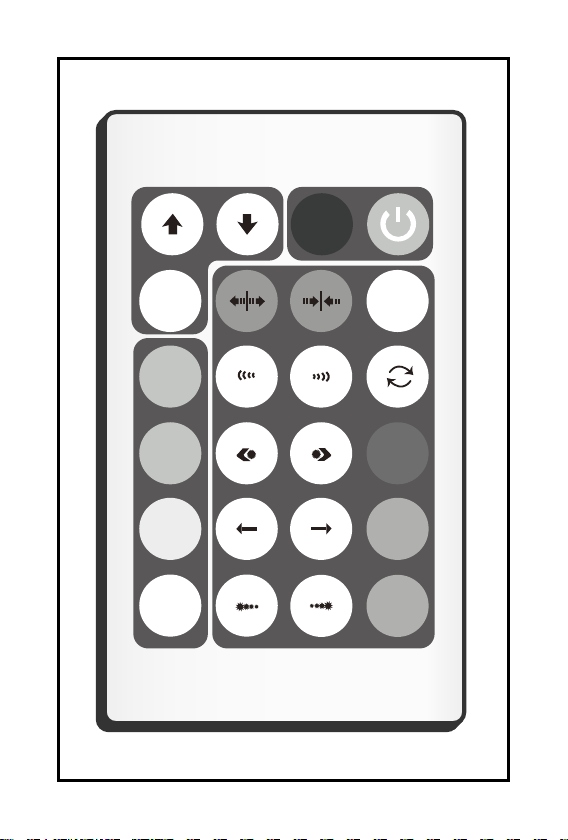

The remote control has 24 buttons. The functions of these buttons are:
Determining the lighting area of the LED strip:
w/ww
IC Set After pressing this button, repeated press the or button
to switch groups of three lights of the LED strip on or off,
starting from the end.
Static color selection buttons:
White light
w/ww After pressing this button all LEDs light up in white. Press the
button again to switch between white and warm white.
6 GB/IE/NI/CY
Dim the lamp / set speed:
Use the two arrow keys / to dim the lamp in 6 increments or to
set the speed.
The LED strip has a memory function.
After switching off, it will start in the last selected setting.
Modes But-
ton 1
But-
ton 2
Function
1
CS
Single color of Red
2 Single color of Green
3 Single color of Blue
4 Single color of Yellow
5 Single color of Purple
6 Single color of Cyan
7 Single color white
8 Single color warm white
9C3 3 colors simultaneously (RGB)
10 C7 7 colors simultaneously
11 C16 16 colors simultaneously
7GB/IE/NI/CY
Modes But-
ton 1
But-
ton 2
Function
12
CS
Chaser, Single color of Red.
Starting from the centre to both ends.
13 Chaser, Single color of Green.
Starting from the centre to both ends.
14 Chaser, Single color of Blue.
Starting from the centre to both ends.
15 Chaser, Single color of Yellow.
Starting from the centre to both ends.
16 Chaser, Single color of Purple.
Starting from the centre to both ends.
17 Chaser, Single color of Cyan.
Starting from the centre to both ends.
18 Chaser light, White.
Running from the centre to both ends.
19 Chaser light, Warm White.
Running from the centre to both ends.
20 C3 Chaser, multi-color (RGB).
Starting from the centre to the ends.
21 C7 Chaser, multi-color (7 colors).
Starting from the centre to the ends.
22 C16 Chaser, multi-color (16 colors).
Starting from the centre to the ends.
8 GB/IE/NI/CY
Modes But-
ton 1
But-
ton 2
Function
23
CS
Chaser, Single color of Red.
Starting from the ends to the centre.
24 Chaser, Single color of Green.
Starting from the ends to the centre.
25 Chaser, Single color of Blue.
Starting from the ends to the centre.
26 Chaser, Single color of Yellow.
Starting from the ends to the centre.
27 Chaser, Single color of Purple.
Starting from the ends to the centre.
28 Chaser, Single color of Cyan.
Starting from the ends to the centre.
29 Chaser light, White.
Running from the ends to the centre.
30 Chaser light, Warm White.
Running from the ends to the centre.
31 C3 Chaser, multi-color (RGB).
Starting from the ends to the centre.
32 C7 Chaser, multi-color (7 colors).
Starting from the ends to the centre.
33 C16 Chaser, multi-color (16 colors).
Starting from the ends to the centre.
9GB/IE/NI/CY
Modes But-
ton 1
But-
ton 2
Function
34
CS
Waterfall effect chaser of Single color -
Red (illuminated, not illuminated).
Running from the end to the start.
35
Waterfall effect chaser of Single color -
Green (illuminated, not illuminated).
Running from the end to the start.
36
Waterfall effect chaser of Single color -
Blue (illuminated, not illuminated).
Running from the end to the start.
37
Waterfall effect chaser of Single color -
Yellow (illuminated, not illuminated).
Running from the end to the start.
38
Waterfall effect chaser of Single color -
Purple (illuminated, not illuminated).
Running from the end to the start.
39
Waterfall effect chaser of Single color -
Cyan (illuminated, not illuminated).
Running from the end to the start.
40
Waterfall effect chaser of Single color -
White (illuminated, not illuminated).
Running from the end to the beginning.
41
Waterfall effect chaser of Single color -
Warm White (illuminated, not illuminated).
Running from the end to the beginning.
42 C3
Waterfall effect chaser of multi-color
(RGB) (illuminated, not illuminated).
Running from the end to the start.
43 C7
Waterfall effect chaser of multi-color
(7 colors) (illuminated, not illuminated).
Running from the end to the start.
10 GB/IE/NI/CY
Modes But-
ton 1
But-
ton 2
Function
44 C16
Waterfall effect chaser of multi-color
(16 colors) (illuminated, not illuminated).
Running from the end to the start.
45
CS
Waterfall effect chaser of Single color -
Red (illuminated, not illuminated).
Running from the start to the end.
46
Waterfall effect chaser of Single color -
Green (illuminated, not illuminated).
Running from the start to the end.
47
Waterfall effect chaser of Single color -
Blue (illuminated, not illuminated).
Running from the start to the end.
48
Waterfall effect chaser of Single color -
Yellow (illuminated, not illuminated).
Running from the start to the end.
49
Waterfall effect chaser of Single color -
Purple (illuminated, not illuminated).
Running from the start to the end.
50
CS
Waterfall effect chaser of Single color -
Cyan (illuminated, not illuminated).
Running from the start to the end.
51
Waterfall effect chaser of Single color -
White (illuminated, not illuminated).
Running from the beginning to the end.
52
Waterfall effect chaser of Single color -
Warm White(illuminated, not illuminated).
Running from the beginning to the end.
53 C3
Waterfall effect chaser of multi-color
(RGB) (illuminated, not illuminated).
Running from the start to the end.
