LIVARNO LUX 319420_1901 Specifiche tecniche

LED SPOTLIGHT 20W

IAN 319420_1901

LED-STRAHLER 20W

Montage-, Bedienungs- und Sicherheitshinweise

ΠΡΟΒΟΛΈΑΣ LED 20 W

Οδηγίες συναρμολόγησης, χειρισμού

και ασφάλειας

LED SPOTLIGHT 20W

Assembly, operating and safety instructions

LED REFLEKTOR 20 W

Upute za montažu, uporabu i sigurnost

LED ПРОЖЕКТОР 20 W

Инструкции за монтаж, обслужване и

безопасност

LED REFLEKTOR 20 W

Uputstva o montaži, rukovanju i bezbednosti

GB/CY Assembly, operating and safety instructions Page 5

HR Upute za montažu, uporabu i sigurnost Stranica 20

RS Uputstva o montaži, rukovanju i bezbednosti Strana 35

BG Инструкции за монтаж, обслужване и

безопасност Cтраница 52

GR/CY Οδηγίες συναρμολόγησης, χειρισμού και

ασφάλειας Σελίδα 72

DE/AT/CH Montage-, Bedienungs- und Sicherheitshinweise Seite 89

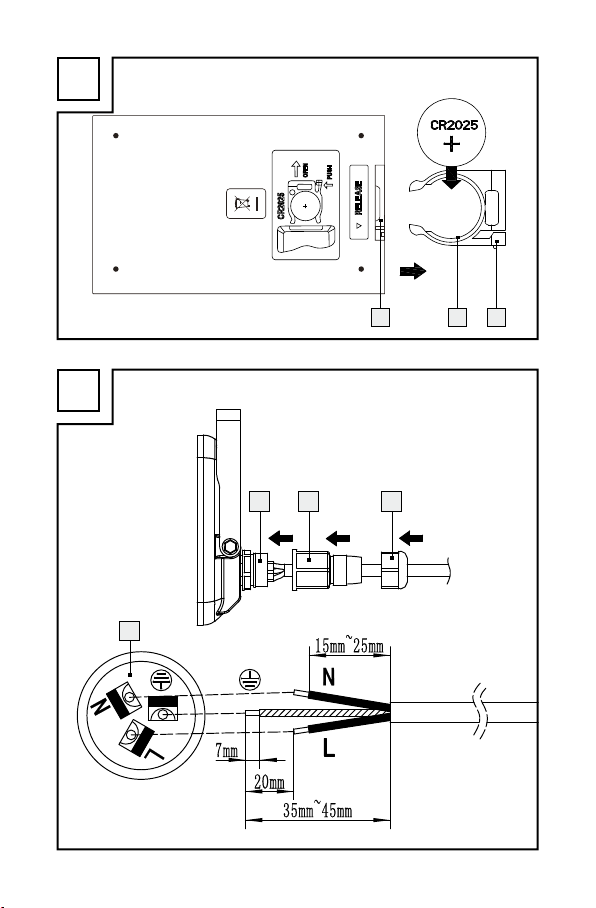

131516 121417

1 2 3 4

CR2025

OPEN

PUSH

RELEASE

202122

6 7

5GB/CY

List of pictograms used..................................................Page 6

Introduction.............................................................................Page 6

Intended use..................................................................................Page 7

Parts description............................................................................Page 7

Technical data...............................................................................Page 7

Scope of delivery..........................................................................Page 8

General safety instructions........................................Page 9

Safety instructions for batteries/ rechargeable batteries ...........Page 10

Before installation.............................................................Page 11

Installation...............................................................................Page 12

Operation .................................................................................Page 13

Mode buttons................................................................................Page 14

Sensitivity buttons..........................................................................Page 15

Time buttons...................................................................................Page 15

Replacing the battery.....................................................Page 16

Cleaning and care..............................................................Page 16

Disposal......................................................................................Page 17

Warranty...................................................................................Page 18

Warranty claim procedure...........................................................Page 18

Service ...........................................................................................Page 19

6 GB/CY

List of pictograms used

Volt (direct current) Continuous light

button: The light is

permanently on

Volt (alternating current)

Day button: The light

signals movements

both in daylight as well

as in the dark

Dust-tight/ water jets

protected (IP65)

Photo cell button: The

light starts to light per-

manently at darkness

Detection angle of

motion detector:

approx. 160°

Night button: The light

signals movements only

in the dark

LED beam angle:

approx. 110° Space button: This

button has no function.

Motion detector

detection range:

approx. 1–8m LED lifespan

Battery included for

remote control

LED Spotlight 20W

Introduction

We congratulate you on the purchase of your new product. You have

chosen a high quality product. The instructions for use are part of the

product. They contain important information concerning safety, use and

disposal. Before using the product, please familiarise yourself with all of

the safety information and instructions for use. Only use the product as

7GB/CY

described and for the speciﬁed applications. If you pass the product on to

anyone else, please ensure that you also pass on all the documentation

with it.

Intended use

The product is intended to illuminate indoor and outdoor areas. This product

is only intended for private use and is not suitable for commercial use or

for use in other applications.

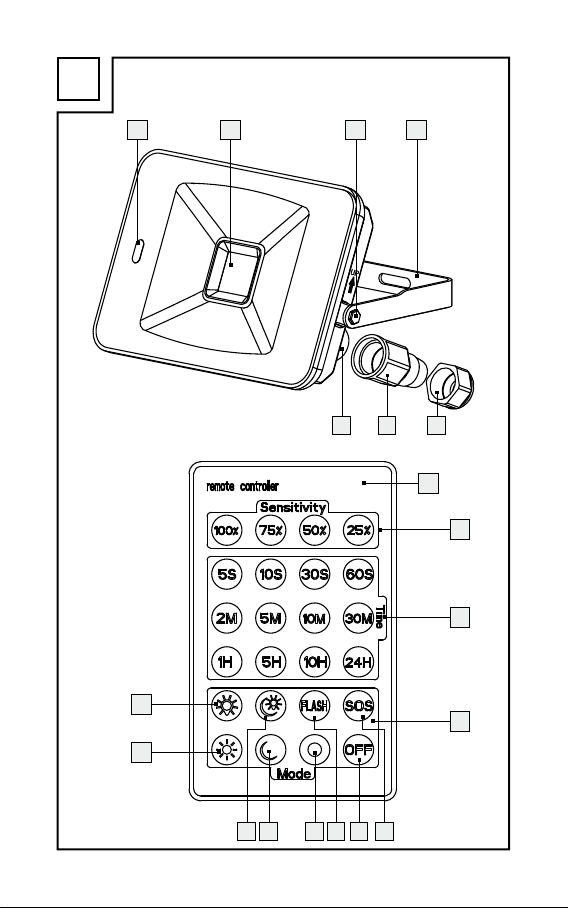

Parts description

1Motion sensor

2LED spotlight

3Locking screw

4Bracket

5Screwless connection terminal

6Terminal cover

7Cable gland

8Remote control

9Sensitivity buttons

10 Time buttons

11 Mode buttons

12 SOS button

13 OFF button

14 FLASH button

15 Space button

16 Night button

17 Photo cell button

18 Day button

19 Continuous light button

20 Spring

21 Battery sled

22 Battery compartment

23 Screws Ø 5 x 50mm

24 Wall plug Ø 8 mm

25 Tooth lock washer

26 Flat washer

27 Spring washer

Technical data

Operating voltage: 230V∼ 50Hz

Total power consumption: 20W

Illuminant (COB LED): 20W (non-replaceable)

8 GB/CY

Motion sensor: Range: max. 8m (adjustable), detection

angle: approx. 160° horizontal

Protection class: I

Degree of protection: IP65 (dust-tight/ water jets protected)

Weight: approx. 640g

Overall dimension: 18 x 12.5 x 8cm

Projected area: max. 18 x 12.5cm

Mounting height: approx. 1.8–2.5m

GS certiﬁed

Remote control

Power supply: 3V

Battery: 1 x 3V ; Type: CR2025 Lithium battery

Operation range: approx. 12m from the product

Scope of delivery

Check immediately after unpacking that the parts are complete and that

the product is in proper condition.

1 LED spotlight

2 Wall plugs (Ø 8 mm)

2 Screws (Ø 5 x 50mm)

1 Bracket

2 Tooth lock washers

2 Flat washers

2 Spring washers

2 Locking screws

1 Terminal cover

1 Cable gland

1 Remote control

1 Lithium battery, type CR2025

(pre-installed)

1 Instructions for use

9GB/CY

General safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH

ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE!

WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO

INCLUDE ALL THE DOCUMENTS!

DANGER TO LIFE AND ACCIDENT HAZARD FOR

TODDLERS AND SMALL CHILDREN! Never leave

children unattended with the packaging material. The

packaging material represents a danger of suﬀocation. Children fre-

quently underestimate the dangers. Please keep the product out of

the reach of children at all times.

This product may be used by children age 8 years and up, as well as

by persons with reduced physical, sensory or mental capacities, or

lacking experience and/or knowledge, so long as they are supervised

or instructed in the safe use of the product and understand the associ-

ated risks. Children should not be allowed to play with the product.

Cleaning and user maintenance should not be performed by children

without supervision.

DANGER OF SUFFOCATION! Children could swallow on small

included parts (e.g. screws). Keep children away from the work area

during assembly.

The illuminants are not replaceable.

If the illuminants fail at the end of their lives, the entire product must

be replaced.

Only to be installed outside arm reach.

Danger to life

by electric shock

Always check the product for damage before connecting it to the

mains. Never use the product if it shows any signs of damage.

10 GB/CY

Prior to installation, verify that the mains voltage on site corresponds

with the operating voltage required for the product (230V∼ 50Hz).

Otherwise do not install the product.

CAUTION! DANGER OF BURN INJURIES! To prevent burns,

verify the product is switched oﬀ and has cooled down for at least

15 min before touching it. The product can become very hot.

1.0 m

FIRE HAZARD! Fit the product so that it is at least

1.0m away from the material to be illuminated. Excessive

heat can result in a ﬁre.

CAUTION! RISK OF INJURY! Broken lamp glass must

be replaced before any further use is made of the product.

The product continues to draw a small amount of power even if the

lamp is oﬀ as long as product is connected to supply mains. To switch

the product oﬀ completely, the mains switch should be switched oﬀ.

If the external ﬂexible cable or cord of this luminaire is damaged, it

shall be exclusively replaced by the manufacturer or his service agent

or a similar qualiﬁed person in order to avoid a hazard.

Safety instructions

for batteries/

rechargeable batteries

EEP BATTERIES OUT OF THE REACH OF CHILDREN!

Swallowing batteries can cause chemical burns, perforation

of soft tissue, and death. Severe burns may occur within 2

hours of swallowing batteries. Seek immediate medical attention.

DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach

of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION! Never recharge non-

rechargeable batteries. Do not short-circuit batteries/

rechargeable batteries and/ or open them. Overheating,

ﬁre or bursting can be the result.

Never throw batteries/ rechargeable batteries into ﬁre or water.

Do not exert mechanical loads to batteries/rechargeable batteries.
