LIVARNO LUX HG00108A Specifiche tecniche

LED SPOTLIGHT 8.5W

IAN 270250

LED-AUSSENSTRAHLER 8,5W

Montage-, Bedienungs- und Sicherheitshinweise

ΠΡΟΒΟΛΕΑΣ ΕΞΩΤΕΡΙΚΟΥ

ΧΩΡΟΥ-LED 8,5W

Οδηγίες συναρμολόγησης, χειρισμού και ασφάλειας

ВЪНШЕН СВЕТОДИОДЕН

ПРОЖЕКТОР 8,5W

Инструкции за монтаж, обслужване и безопасност

REFLECTOR EXTERIOR CU LED 8,5W

Indicaţii de montaj-, utilizare- şi siguranţă

LED SPOTLIGHT 8.5W

Assembly, operating and safety instructions

LED-VANJSKA REFLEKTORSKA

SVJETILJKA 8,5 W

Upute za montažu, uporabu i sigurnost

GB/ CY Assembly, operating and safety instructions Page 5

HR Upute za montažu, uporabu i sigurnost Stranica 13

RO Indicaţii de montaj-, utilizare- şi siguranţă Pagina 21

BG Инструкции за монтаж, обслужване и безопасност Страница 29

GR/ CY Οδηγίες συναρμολόγησης, χειρισμού και ασφάλειας Σελίδα 38

DE/ AT/CH Montage-, Bedienungs- und Sicherheitshinweise Seite 47

2.5 m

5GB/CY

Intended use...........................................................................Page 6

Parts description .................................................................Page 6

Technical Data.......................................................................Page 6

Scope of delivery................................................................Page 6

General safety instructions........................................Page 7

Before installation.............................................................Page 8

Installation...............................................................................Page 8

Start-up

Adjusting the motion detector.......................................................Page 9

Setting the lighting duration..........................................................Page 10

Adjusting the sensitivity of the sensor...........................................Page 10

Setting the daylight level ..............................................................Page 10

Aligning the motion detector........................................................Page 10

Cleaning and Care.............................................................Page 11

Disposal......................................................................................Page 11

Warranty...................................................................................Page 11

6 GB/CY

LED Spotlight 8.5W

Intended use

The LED spotlight with motion

detector is intended for automatic

lighting in outdoor areas. This device

is solely intended for private use.

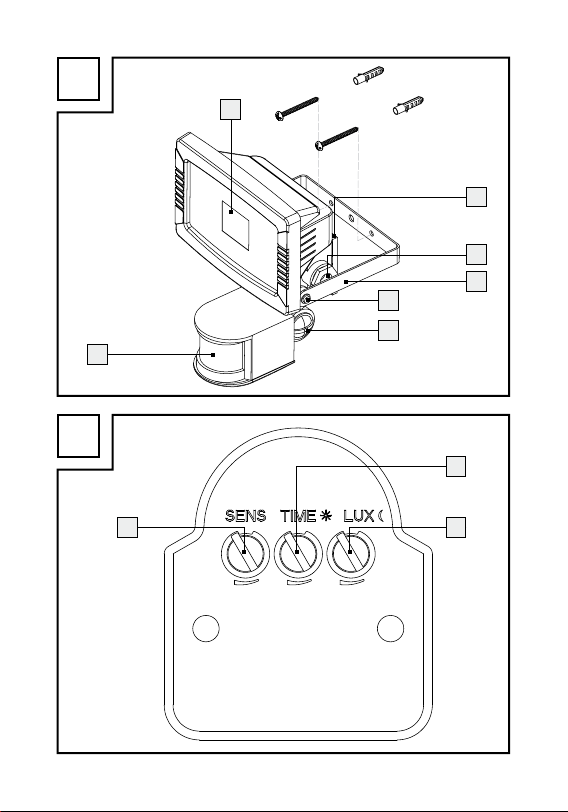

Parts description

1Spot

2Connection box

3Cable gland

4Mounting stirrup

5Hinge joint

6Locking screw (motion detector)

7Motion detector

8Rotary control SENS (sensitivity)

9Rotary control TIME

(switched on duration)

10 Rotary control LUX

(light sensitivity)

11 Terminal block

Technical Data

Operating voltage: 230V∼ 50Hz,

max. 8.5W

LEDs: 12 x LED x

0.5W (LEDs

non-replace-

able)

Dimming switch: Adjustable

from 10lx–

20,000lx

Light on time: adjustable

between

approx.10s –

4min

Protection class: /II

Protection class: IP44 (splash

water proof)

Dimensions

(HxWxD): approx. 197 x

149 x 120mm

Weight: approx. 675g

Scope of delivery

1 LED spot with motion detector

2 Wall plugs (Ø 6mm)

2 Screws

1 Set of mounting and operating

instructions

7GB/CY

General safety

instructions

Before using the product, please

familiarise yourself with all of the

safety information and instructions

for use! When passing this product

on to others, please also include

all the documents!

DANGER TO LIFE

AND ACCIDENT

HAZARD FOR

TODDLERS AND SMALL

CHILDREN! Never leave chil-

dren unattended with the pack-

aging material. The packaging

material represents a danger of

suﬀocation. Children frequently

underestimate the dangers.

Please keep children away

from the device at all times.

This appliance may be used by

children age 8 years and up, as

well as by persons with reduced

physical, sensory or mental

capacities, or lacking experience

and/or knowledge, so long as

they are supervised or instructed

in the safe use of the appliance

and understand the associated

risks. Children should not be

allowed to play with the

appliance. Cleaning and user

maintenance should not be

performed by children without

supervision.

Danger to life by

electric shock

Always check lamp for damage

before connecting it to power.

Never use the light if it shows

any signs of damage.

Prior to installation, verify that

the mains voltage on site corre-

sponds with the operating

voltage required for the light

(230V∼ 50Hz). Otherwise do

not install the light.

CAUTION! DANGER OF

BURN INJURIES! To prevent

burns, verify the light is switched

oﬀ and has cooled down for

at least 15min before touching

it. Lamps can become very hot.

Only intended for installations

out of normal reach.

This product does not contain

any parts that can be serviced

8 GB/CY

by the user. The LEDs cannot

be replaced.

The spotlight is only suited for

use with the built-in LED control

gear.

The product continues to draw

a small amount of power even

if the lamp is oﬀ as long as

product is connected to supply

mains. To switch the device oﬀ

completely, the mains switch

should be switched oﬀ.

Before installation

Important: The electrical con-

nection must be established by a

qualiﬁed electrician or a person

trained to perform electrical instal-

lations. This person must be familiar

with the properties of the light and

the connection regulations.

Before installation ensure that

the circuit, to which the light will

be connected, is not energised.

To do so, remove the fuse or

switch oﬀ the circuit breaker in

the fuse box (0 position).

Use the voltage tester to verify

the de-energised status.

The included mounting material

is suitable for ordinary solid

concrete or masonry construc-

tion. Check which mounting

material is suitable for your

chosen mounting surface. If

necessary, seek expert advice.

Installation

When selecting the mounting loca-

tion, pay attention to the following:

Make sure that the spot 1

illuminates the desired area. You

can move the spot vertically.

Make sure the motion detector

7covers the desired area. The

motion detector has a maximum

coverage range of 12m, with a

coverage angle of about 180°

(depending on the mounting

height – a height of 2.50m is

ideal) (Fig. D).

Make sure the motion detector

is not illuminated at night by

street lighting. This can inﬂuence

its functioning.

9GB/CY

During mounting, proceed as

described below:

Hold the mounting bracket 4

so that it is horizontal (possibly

with a spirit level) against the

wall and mark the fastening

holes.

Now drill the fastening holes

(Ø 6mm) and push the wall

plugs into the drill holes (Fig. A).

Secure the mounting bracket

onto the wall using the screws

provided.

Open the connection box 2

after you have released the lid

of the connection box with a

cross head screwdriver.

Run the ﬂexible supply line

through the cable gland 3

and into the connection box.

Fix the connection cable by

turning the nut of the cable

gland.

Connect it with the connection

terminals in the connection box.

Pay attention to the markings

on the terminals 11 (L for live

and N for neutral) (Fig. C).

Close the connection box.

Align the spot into the desired

direction. For this, you may need

to slacken the screw of the hinge

joint 5. After alignment, tighten

the screw of the hinge joint

again, to ensure a secure hold.

Reinsert the fuse or switch the circuit

breaker back on. Your light is now

ready to use.

Start-up

Adjusting the

motion detector

Depending on the preadjustments

of the motion detector 7, the spot

1will switch itself on for a certain

period of time as soon as the motion

detector detects movement. These

preadjustments are made using the

three controllers on the underside

of the motion detector (Fig. B).

10 GB/CY

Setting the lighting

duration

Turn the rotary control TIME 9

clockwise to increase the dura-

tion of the illumination. The

lighting duration can be adjusted

within a time window of approx.

10 seconds to 4 minutes.

Adjusting the

sensitivity of the

sensor

Turn the rotary control SENS

8clockwise to increase the

sensitivity of the sensor.

Note: The motion detector

responds to heat radiation. When

outdoor temperatures are low,

it is more sensitive to body heat

than when outdoor temperatures

are warm. Be sure to regulate

the sensitivity of the sensor

over the course of the year.

Setting the daylight

level

Turn the rotary control LUX 10

to increase the daylight level:

In the position, the motion

detector only reacts at night

(at approx. 10 lx). In the

position, the motion detector

also responds at daylight levels,

as long as about 20,000lx are

not exceeded.

Aligning the motion

detector

Note: Perform this adjustment at

twilight.

Slacken the locking screw 6.

Turn the rotary control LUX 10

to position .

Align the motion detector 7

into the central region of the

desired coverage area.

Move about through the cover-

age area until you are satisﬁed

with the response characteristics

of the motion detector. To ﬁnd

the proper orientation, change

Altri manuali per HG00108A

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali LIVARNO LUX Riflettore

LIVARNO LUX

LIVARNO LUX 113227 Specifiche tecniche

LIVARNO LUX

LIVARNO LUX LSL 10 A4 Scheda informativa del prodotto

LIVARNO LUX

LIVARNO LUX LSS 520 A1 Foglio di istruzioni

LIVARNO LUX

LIVARNO LUX HG03444B Specifiche tecniche

LIVARNO LUX

LIVARNO LUX 319420_1901 Specifiche tecniche

LIVARNO LUX

LIVARNO LUX 271694 Specifiche tecniche

LIVARNO LUX

LIVARNO LUX 327293_1904 Istruzioni per l'installazione e il funzionamento

LIVARNO LUX

LIVARNO LUX 300283 Manuale utente

LIVARNO LUX

LIVARNO LUX ESL-156 Manuale utente

LIVARNO LUX

LIVARNO LUX HG00108A Specifiche tecniche

LIVARNO LUX

LIVARNO LUX 340494 1910 Manuale del proprietario

LIVARNO LUX

LIVARNO LUX 113901 Manuale utente

LIVARNO LUX

LIVARNO LUX 273533 Manuale utente

LIVARNO LUX

LIVARNO LUX 282514 Specifiche tecniche

LIVARNO LUX

LIVARNO LUX 304540 Specifiche tecniche

LIVARNO LUX

LIVARNO LUX 286954 Specifiche tecniche

LIVARNO LUX

LIVARNO LUX 286860 Specifiche tecniche

LIVARNO LUX

LIVARNO LUX 300304 Specifiche tecniche

LIVARNO LUX

LIVARNO LUX LSS 520 A1 Foglio di istruzioni

LIVARNO LUX

LIVARNO LUX LSS 520 A1 Foglio di istruzioni

LIVARNO LUX

LIVARNO LUX 40114 Specifiche tecniche

LIVARNO LUX

LIVARNO LUX LED SPOTLIGHT 20W Specifiche tecniche

LIVARNO LUX

LIVARNO LUX 284921 Specifiche tecniche

LIVARNO LUX

LIVARNO LUX HG06105A Manuale utente

Manuali Riflettore popolari di altre marche

Guangzhou Yinhe Lighting&Sound Equipment Factory

Guangzhou Yinhe Lighting&Sound Equipment Factory NE-204 Manuale utente

LIVARNO home

LIVARNO home 375304 2101 Istruzioni originali

Cameo

Cameo CLQS40WW Manuale utente

Leviton

Leviton Ellipsoid 5/50 Manuale utente

Monacor

Monacor img Stage Line PARL-56PDX/CR Manuale utente

Vector

Vector SL3AKV Manuale utente

Quantum

Quantum Q262 Manuale operativo

Philips

Philips Vari-lite VL3015LT Manuale utente

EUROSPOT

EUROSPOT C51 Manuale utente

DTS

DTS MINI BRICK ARC Manuale utente

Federal Signal Corporation

Federal Signal Corporation VISIBEAM II Manuale

ACME

ACME LED-MS350B Manuale utente

EuroLite

EuroLite Akku flat light 1 Manuale utente

Commercial Electric

Commercial Electric SPTM-1401 Manuale utente

Vision & Control

Vision & Control SLB-500-W5K7-P-SL Manuale utente

Teknik

Teknik FLEXI Manuale utente

Craftsman

Craftsman CMXLSB10 Manuale utente

EuroLite

EuroLite LED SLS-144 UV Floor Spot Manuale utente
