LIVARNO LUX 113227 Specifiche tecniche

IAN 113227

20W LED SPOTLIGHT

LED-STRAHLER 20W

Montage-, Bedienungs- und Sicherheitshinweise

20W LED SPOTLIGHT

Assembly, operating and safety instructions

REFLEKTOR LEDOWY 20 W

Wskazówki montażu, obsługi i bezpieczeństwa

LED REFLEKTOR 20W

Pokyny k montáži, obsluze a bezpečnostní pokyny

LED REFLEKTOR 20W

Pokyny pre montáž, obsluhu a

bezpečnostné pokyny

LED FÉNYSZÓRÓ 20W

Szerelési, használati és biztonsági tudnivalók

GB Assembly, operating and safety instructions Page 5

PL Wskazówki montażu, obsługi i bezpieczeństwa Strona 14

HU Szerelési, használati és biztonsági tudnivalók Oldal 24

CZ Pokyny k montáži, obsluze a bezpečnostní pokyny Strana 34

SK Pokyny pre montáž, obsluhu a bezpečnostné pokyny Strana 43

DE/AT/CH Montage-, Bedienungs- und Sicherheitshinweise Seite 52

423

126

C13

16 15 17

10m

0m1m 1m

max. 10m

5GB

Intended use...........................................................................Page 6

Parts description .................................................................Page 6

Technical data........................................................................Page 6

Scope of delivery................................................................Page 7

General safety instructions........................................Page 7

Before installation.............................................................Page 8

Installation

Connecting the lamp.....................................................................Page 9

Wall Mounting..............................................................................Page 10

Mounting with ground stake ........................................................Page 10

Start-up

Adjusting the motion detector.......................................................Page 11

Setting the lighting duration..........................................................Page 11

Adjusting the sensitivity of the sensor...........................................Page 11

Setting the daylight level ..............................................................Page 12

Aligning the motion detector........................................................Page 12

Cleaning and Care.............................................................Page 12

Disposal......................................................................................Page 13

Warranty...................................................................................Page 13

6 GB

20W LED spotlight

Intended use

The LED spotlight with motion

detector is intended for automatic

lighting in outdoor areas. This de-

vice is solely intended for private use.

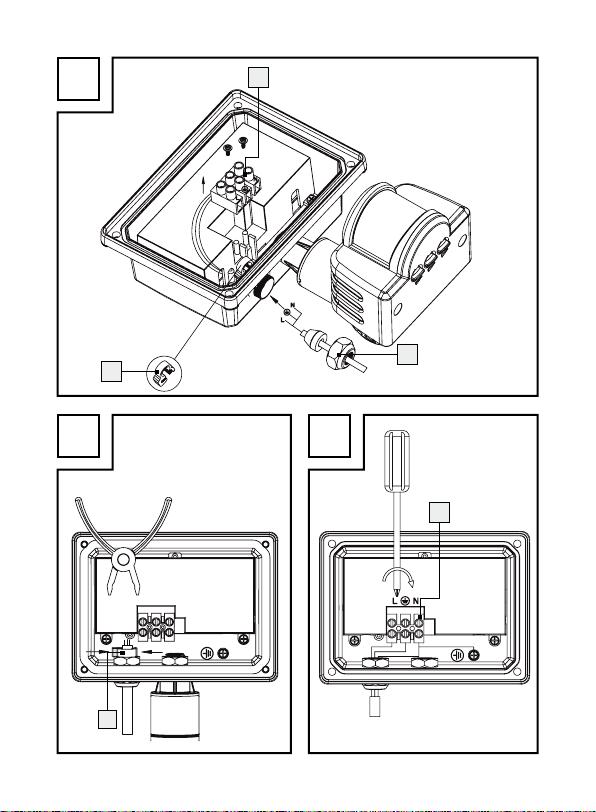

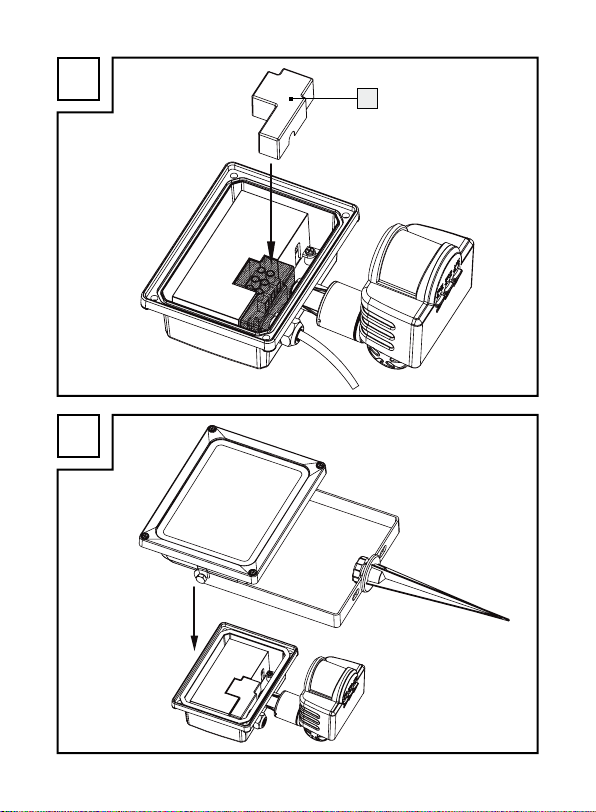

Parts description

1Wall plug

2Washers

3Screws

4Spotlight

5Mounting bracket

6Connection box

7Locking screw (mounting

bracket)

8Locking screw (motion detector)

9Motion detector

10 Ground stake

11 Knurled screw

12 Fixing screws (connection box)

13 Terminal block

14 Cable gland

15 SENS rotary control

16 TIME rotary control

17 LUX rotary control

18 Cord anchorage

19 Protection plastic cover

Technical data

Operating

voltage: 230V∼ 50Hz

Total power

consumption: 20W

Illuminant: COB-LED,

19W (non-re-

placeable)

Twilight-

switch: adjustable be-

tween 20lx–

20,000lx

Lighting duration: adjustable be-

tween approx.

5s–7½min

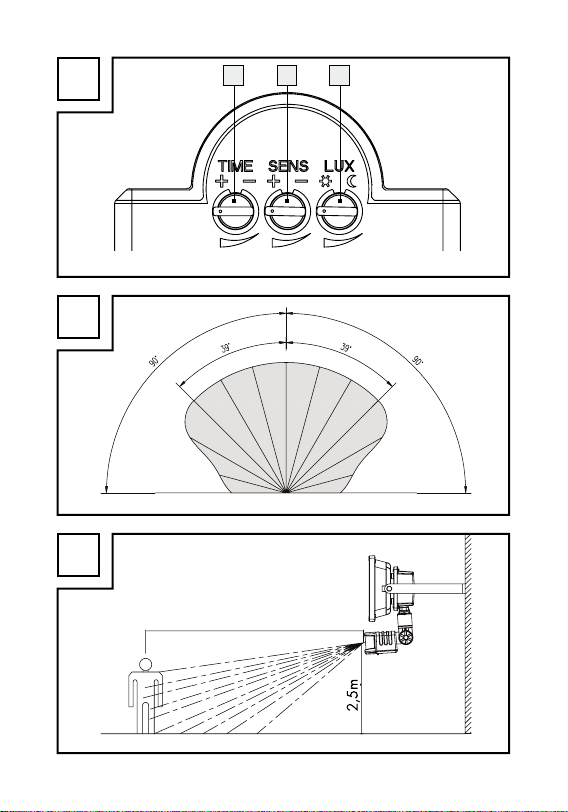

Coverage angle

of motion detector: approx.180°

horizontal

Reach of the

motion detector: maximum 10m

(adjustable)

Protection class: /I

Protection type: IP65 (dust/

splash-proof)

Weight (without

ground stake): approx. 1055g

7GB

Dimension (without

ground stake): approx.

18 x 23 x 10cm

TÜV/ GS tested.

Scope of delivery

1 LED spotlight with motion

detector

2 Wall plugs (Ø 8 mm)

2 Washers (Ø 20mm)

2 Screws (6 mm x 50 mm)

1 Ground stake

1 Cord anchorage

1 Protection plastic cover

1 Set of mounting and operating

instructions

General safety

instructions

Before using the product, please

familiarise yourself with all of the

safety information and instructions

for use! When passing this product

on to others, please also include

all the documents!

DANGER TO LIFE

AND ACCIDENT

HAZARD FOR

TODDLERS AND SMALL

CHILDREN! Never leave chil-

dren unattended with the pack-

aging material. The packaging

material represents a danger of

suﬀocation. Children frequently

underestimate the dangers.

Please keep the product out of

the reach of children at all

times.

This device may be used by

children age 8 years and up,

as well as by persons with

reduced physical, sensory or

mental capacities, or lacking

experience and/or knowledge,

so long as they are supervised

or instructed in the safe use of

the device and understand the

associated risks. Children

should not be allowed to play

with the device. Cleaning and

user maintenance should not

be performed by children

without supervision.

8 GB

Danger to life by

electric shock

Always check the light for

damage before connecting it

to the mains. Never use the

light if it shows any signs of

damage.

Prior to installation, verify that

the mains voltage on site corre-

sponds with the operating

voltage required for the light

(230V∼ 50 Hz). Otherwise do

not install the light.

CAUTION! DANGER OF

BURN INJURIES! To pre-

vent burns, verify the light is

switched oﬀ and has cooled

down for at least 15 min be-

fore touching it. Lamps can

become very hot.

1.0 m

FIRE HAZARD!

Fit the light so that it

is at least 1.0m

away from the material to be

illuminated. Excessive heat can

result in a ﬁre.

CAUTION! RISK

OF INJURY! Bro-

ken lamp glass must

be replaced before any further

use is made of the lamp.

The spotlight is only suited for

use with the built-in LED control

gear.

The product continues to draw

a small amount of power even

if the lamp is oﬀ as long as

product is connected to supply

mains. To switch the device oﬀ

completely, the mains switch

should be switched oﬀ.

Before installation

Important: The electrical con-

nection must be established by a

qualiﬁed electrician or a person

trained to perform electrical instal-

lations. This person must be famil-

iar with the properties of the light

and the connection regulations.

Before installation ensure that

the circuit, to which the light

will be connected, is not ener-

gised. To do so, remove the fuse

or switch oﬀ the circuit breaker

in the fuse box (0 position).
