Logic Controls LK7000 Manuale utente
Model: LK7000
Programmable Matrix Keyboard
119 Keys with Built-in Scanner and MSR
USER MANUAL
NOTICE
The manufacturer of the POS programmable keyboard makes no
representationsorwarranties, either expressedorimplied,by or with respect
to anything in this manual, and shall not be liable for any implied warranties
offitnessfor a particularpurposeorfor anyindirect,specialorconsequential
damages. Information in this document is subject to change without notice
and does not represent a commitment on the part of the manufacturer.
FCC NOTICE
This device complies with Part 15 of FCC Rules. Operations is subject to
the following two conditions: (1) this device may not cause harmful
interference. and (2) this device must accept any interference received,
including interference that may cause undesired operation.
i
LOGICCONTROLS,INC.
355DentonAve
NewHydePark, NY 11040
TEL:(516)248-0400
FAX:(516)248-0443
Email:[email protected]
http://www.logiccontrols.com
TABLE OF CONTENTS
FEATURES...............................................................................1
CARTON CONTENTS..............................................................2
HARDWARE CONNECTIONS .................................................3
FUNCTIONAL TEST................................................................4
UTILITY DISK CONTENTS......................................................6
INSTALLINGTHE LK7000.EXE UTILITY PROGRAM..............7
STARTINGTHE LK7000.EXE PROGRAM...............................7
PROGRAMMINGTHE LK7000 KEYBOARD.............................8
ADVANCED PROGRAMMING.................................................10
SPECIAL FEATURES OFTHE LK7000 ....................................11
INTER-STRING DELAY............................................11
MULTI-LEVEL DEFINITION......................................12
SPECIAL CONFIGURATIONS .................................................14
DATA TRANSFER MENU .........................................................16
SPECIFICATIONS....................................................................18
ADDENUM ................................................................................19
ii
FEATURES
• Optional left or right laser bar code reader
• Optional credit card reader
• Contemporary design
• Fully programmable
• Matrix Layout
• Tactile mechanical key switches
• Keylock for multiple program layers
• Multiple shift layers
• True keyboard wedge function, operates with or without
computer keyboard
• Up to 256 characters/key, include all function & control keys
• No programming accessory kit,TSR program, or battery required
• Available with RS232C output
1
2
CARTON CONTENTS
LK7000
1.Keyboard, Model LK7000
2. Computer interface cable - RJ11 6-pin Male
3.Programming Utility software and User's Manual disk
4. Legend label sheet
3
HARDWARE CONNECTIONS
The LK7000 can be connected to an IBM101 PC, XT, AT or clone
computer, PS/2 computer, or computer terminal. Thefollowing diagram
shows how the keyboard connects to the computer and standard
keyboardorother keyboard peripheral (magnetic stripereader, scanner,
etc.).
NOTE:
Before making any connections it is always advisable to
turn off the computer.
A.Connecting the LK7000 to an IBM101 PC,XT,AT,or clone
computer’s keyboard port:
1. Use the computer interface cable. Plug the AT or PS/2 Male
connector plug into the compter.Connect the RJ11 connector into
the“ToComputer”connector on the LK7000.
2. Connectthekeyboardinterface cabletothestandardkeyboard. The
PS/2 Female connector plugs into the PS/2 connector on the rear
panel of the LK7000.The RJ11 connector plugs into the “To
Peripheral”connectoron the backof the LK7000.
To
Computer Reserved
for optional
MSR
To
Peripheral
FUNCTIONAL TEST
Fortestingpurposes,yourLK7000keyboardwas pre-programmed with a
template called LK7000.TPL.The following simple steps will verify that
the keyboard is in good working condition:
1.Follow the Hardware Connections procedure described earlier in
this manual to connect the LK7000 to your computer.
2. Turn on your computer.
3.The keyboard may be tested under DOS or Windows.
4.If it is working under Windows, open Notepad or any text
editingsoftware. Press keys on thekeyboard one by oneto verify
that programmed key definitions are activated.
4
5
6
UTILITY DISK CONTENTS
All LK7000 keyboards come with a utility software disk.This disk
contains several important files:
LK7000D.EXE -Use this utility with or without the keyboard being
attached. It is used to program the keyboard.
For a complete description of how this program
works see the section “Programming the LK7000
keyboard”.
LK7000.TPL -This template was pre-programmed into the
keyboard and matches the legend shown on the
previous page. If you have any questions on how to
program a particular key you can refer back to this
templateto see how it was originally programmed.
INSTALLINGTHE LK7000D.EXE UTILITY PROGRAM
The first step in using the LK7000D.EXE utility program is to copy the
programtoyour hard drive.
1.Insert the LK7000 utility software into drive A or B of the
computer.
2.Type MD LK7000 at the“C>“ prompt to make a directory named
LK7000.
3.Type CD LK7000 to make the LK7000 directory active.
4. Type COPY A:*.* If the disk was inserted into drive A then all
files will be copied into the hard drive’s directory (LK7000).If
drive B is used then you must type COPY B:*.*
7
STARTINGTHE LK7000D.EXE PROGRAM
Thisprogramcanbeusedwithorwithoutthekeyboardbeingattachedtothe
computer. Note that the PC must be booted up in DOS before starting the
program. It will not run properly under Windows DOS prompt.
To start the program, type LK7000D at the LK7000 DOS prompt and press
ENTER. When the program is up, it will automaticallly display the graphic
graphics screen as below.
Altri manuali per LK7000
1
Indice
Altri manuali Logic Controls Tastiera
Logic Controls

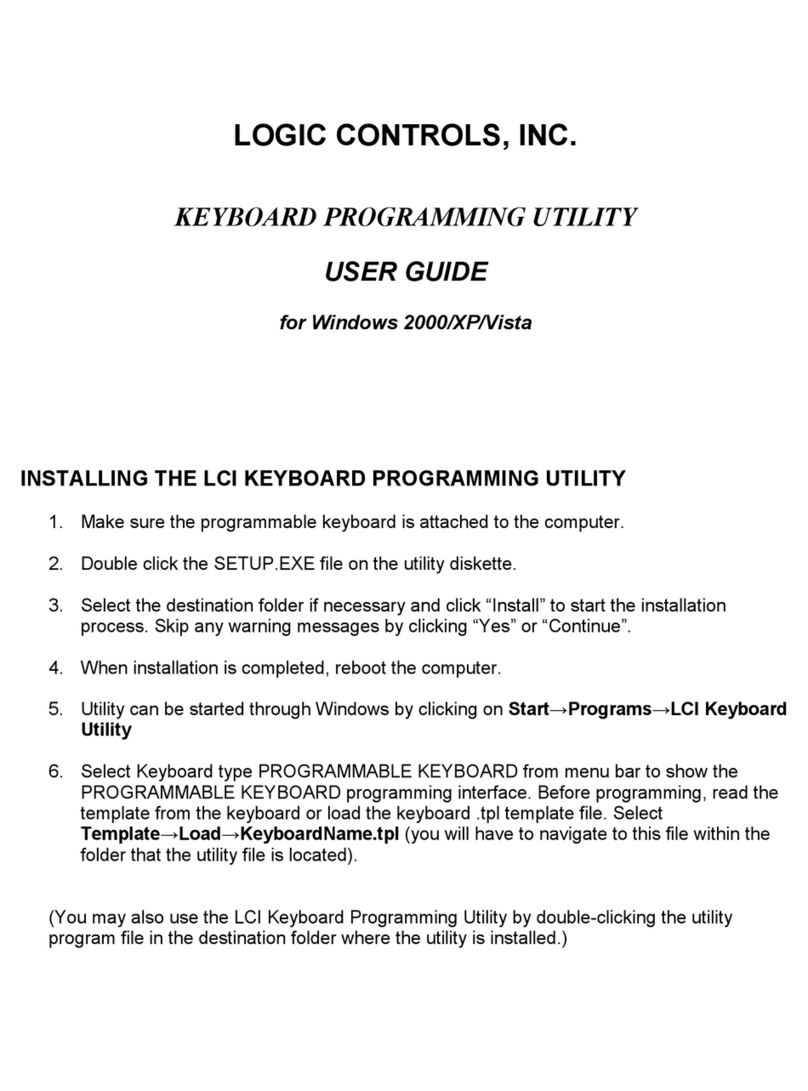

Logic Controls KB5000 Series Manuale utente
