Guardian Alert

SET-UP&OPERATINGINSTRUCTIONS

Model#37911

With DECT Technology

2LifeSentry® v0.3

PLEASE READ THIS MANUAL COMPLETELY AND SAVE IT

FOR REFERENCE.

Thank you for choosing LifeSentry® – the most unique Personal Emergency

Response System in the world, and covered by both US and Canadian patents.

Because you are speaking through the pendant, This system allows you to

personally communicate your emergency from anywhere in your home or

yard. Emergencies can happen anyplace. And just one button activation.

Voice prompts provide easy set-up and testing.

Base unit comes with 4 rechargeable batteries that provide up to 24 hours of

standby power in the event of a power outage.

Need others to share the system in your home? No problem, you can add up

to 3 additional Pendants to one Base unit for a total of 4 pendants as you wish.

Caution - To ensure proper operation, this System’s equipment must be

installed according to the enclosed installation instructions. To verify

that the equipment is operating properly and can successfully report

an alarm, this equipment must be tested immediately after installation,

and periodically thereafter, according to the enclosed test instructions.

This System is designed to be used in conjunction with a professionally

monitored call center. This system must be programmed by an experi-

enced installer to be fully functional.

v0.3 LifeSentry® 3

TABLE OF CONTENTS

System Components ..................................................................................4

Limitations of Liability .............................................................................5

Installing the Batteries ..............................................................................6

Connecting the Base Unit

Power Connection ...........................................................................8

Telephone Connections ...................................................................8

Operating the LifeSentry

Emergency Dialing Using the Pendant ...........................................9

Holding the Pendant ......................................................................10

Hanging Up ...................................................................................10

Lanyard, Belt Clip or Wrist-Strap .................................................10

Battery Check ................................................................................ 11

System Check ................................................................................12

Operating Range ...........................................................................13

Water Resistance ...........................................................................13

Key to LEDs on product ...............................................................14

Periodic Testing / Maintenance

Replacing Batteries .......................................................................14

Adding Additional Pendants to the System ..................................15

Out of Service Storage or Transportation .....................................16

Troubleshooting Guide ...........................................................................17

Disclaimer / General Warnings & Precautions / Safety ......................19

Warranty ..................................................................................................20

Replacement Parts / Additional Accessories Available ........................22

Product Specications ............................................................................23

4LifeSentry® v0.3

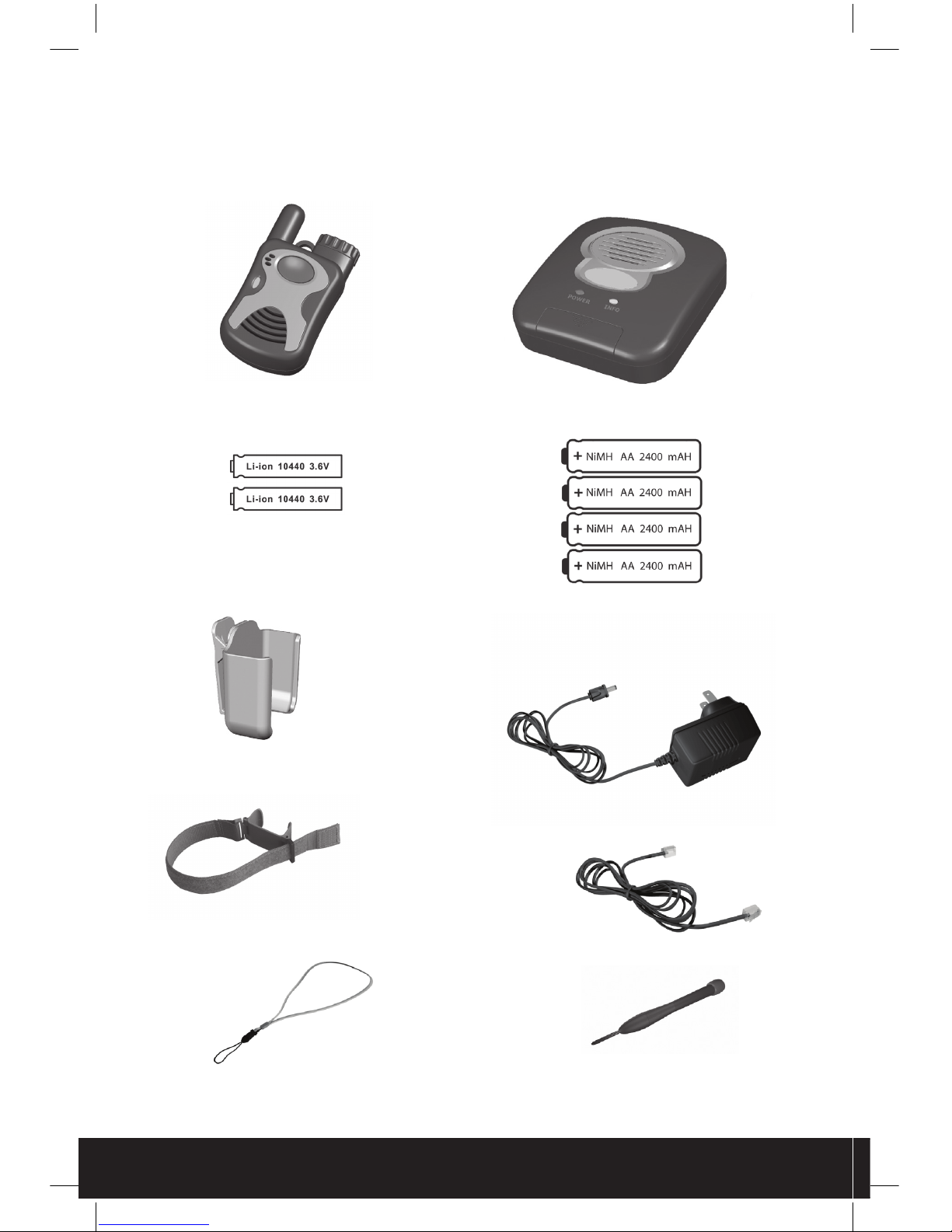

Pendant

Rechargeable Lithium-Ion Special

Pendant Batteries - 2 Pieces

Screwdriver

Base Unit

AC Adapter

Phone Cord

Wrist / Walker / Wheelchair

strap

Belt Clip

Lanyard

Rechargeable AA Batteries - 4 Pieces

System Components:

The items below are included with your system .

v0.3 LifeSentry® 5

Limitation of Liability

This page is a summary of the Disclaimer and Limited Warranty disclosed

in full at the end of this instruction manual. Read these carefully.

The purchaser agrees by using this LifeSentry (the “System”) to the terms

and conditions below and in the Disclaimer and Limited Warranty. The

purchaser also agrees to read and follow all instructions and warnings on the

product and contained within these Installation and Operation Instructions.

It will be the sole responsibility of the purchaser and user to assure that this

System is installed and programmed properly, and that the unit is used and

maintained correctly. This includes, but is not limited to, periodic use to

assure that the system, including batteries, are in proper working order, that

the unit is located in an appropriate location in the home, that the electri-

cal outlet is supplying power, and that the user has been educated as to the

operation and functionality of the product as a whole.

The System’s equipment is not designed or guaranteed to prevent any loss or

injury. This Limited Warranty and Disclaimer of Liability discussed in full

at the end of this instruction manual constitutes the terms of sale and use of

the system (and accessories) equipment, and if, notwithstanding these terms

of sale and use of the product, there should arise any liability on the part of

LogicMark LLC as a result of any cause whatsoever, regardless of whether

or not such loss, damage, or personal injury was caused by or contributed to

by LogicMark’s negligence to any degree or failure to perform any obligation

or strict products liability, such liability will be limited to an amount paid by

the Purchaser for the product.

Further, LogicMark has no obligation to assure that calls are made, received

or responded to, nor is LogicMark responsible for acts, or consequences of

the acts, of those responding.

LogicMark provides no monitoring service for this product. It is up to the

persons at the numbers called to respond in an appropriate manner.

6LifeSentry® v0.3

Installing the Batteries

Pendant - small white batteries. The Pendant requires one of the white

Li-Ion (Lithium Ion) batteries at any given time. The pendant should be able

to run over 4 months on a fully charged battery. The second battery is to be

charging in the Base unit when not being used in the Pendant. There is no

problem of over charging while in the base charger.

The battery should already be installed for you at this time. You can con-

rm this by simply pushing the gray button on the back of the pendant for a

second. You will hear the battery status.

If your Pendant did not come with the batteries installed - simply follow these

directions: Unscrew the battery cap counter-clockwise. Pull the battery cap

off. Install the battery with the negative side up facing the cap. Re-install

the cap by screwing the cap clockwise until snug .

When the battery is rst installed into the Pendant - you will hear an audible

announcement of the battery status: “Battery is ok”; “Battery is low” or

“Replace battery now”. If the battery is fully discharged when you get your

unit - you may not hear anything - at which point you will need to charge

one of the batteries up overnight in the base charger (at the top front edge of

the base unit) before you will be able to use the system.

You can check the battery status at any time by simply pushing the gray bat-

tery test button on the back of the Pendant for a second.

NOTE: These white batteries are very special batteries that are not available

at your local store. See Specication on page 23 for more details, or contact

your dealer or service provider to purchase replacement batteries.

Place the extra Pendant battery into the front charging area of the Base unit

so that it will charge and be ready when its time to swap the batteries around.

The LED on the right side will turn red when charging and green when fully

charged.

v0.3 LifeSentry® 7

Base - larger AA rechargeable batteries: The Base unit requires 4 recharge-

able 2400 NiMH batteries. Unlike the Pendant battery - these are readily

available in many retail stores. These are to provide you with up 24 hours

of battery back-up protection in the event of a power failure. They will not

be damaged by continually charging in the base unit.

These should have been installed for you during the set-up. If they are not

installed, simply follow these directions here.

When you rst get your unit - these

batteries will probably be low, or even

fully discharged - and will need to be

charged overnight before being able to

provide you the 24 hour battery back-

up protection.

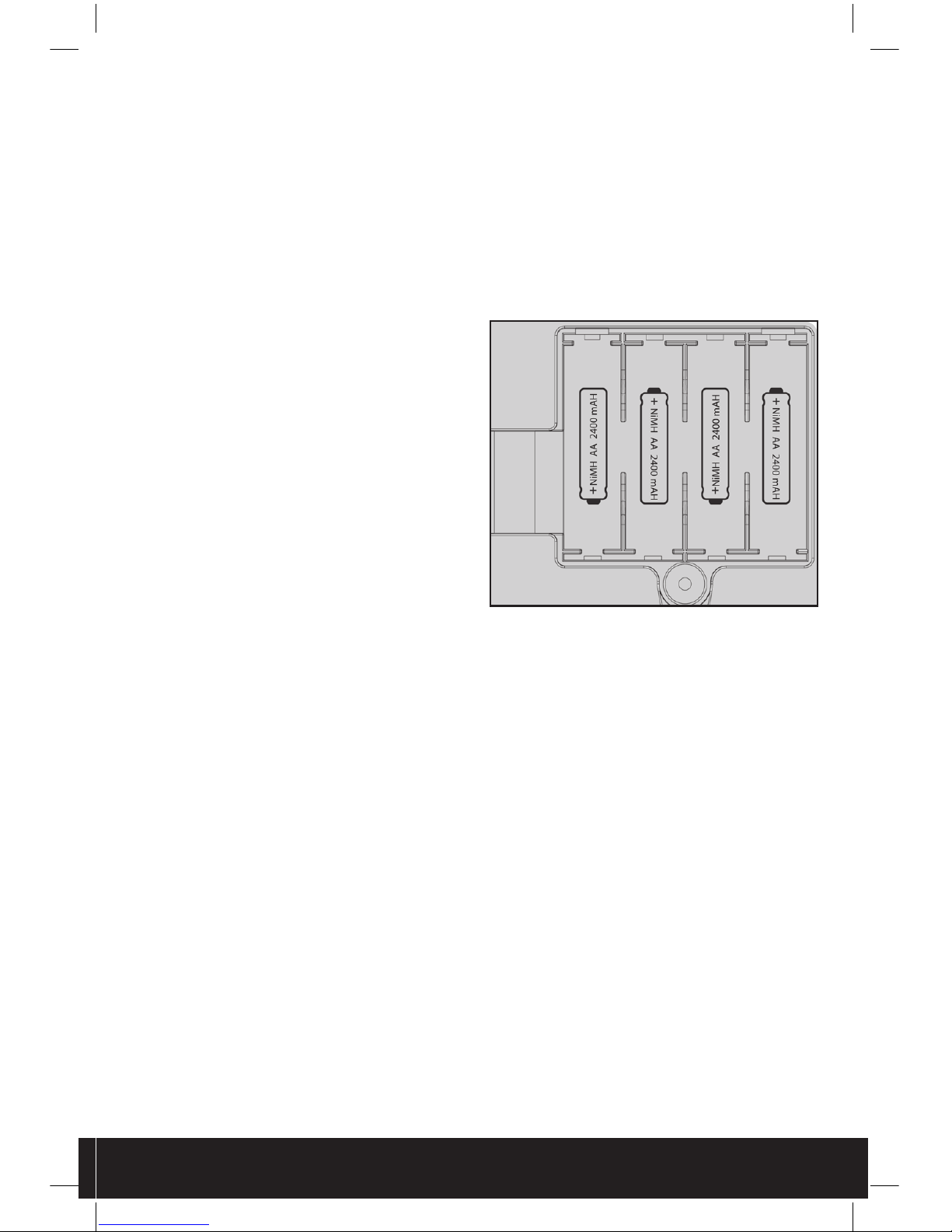

Unscrew the cover on the bottom of

the Base unit with the supplied screw-

driver. Install the 4 batteries as shown

in the plastic engraving in the battery

compartment area. A few seconds after you install these, you might hear

“Running on battery power”. This will continue once every minute for the

rst 15 minutes, then once every 30 minutes until power is applied through

the power adaptor - or until the batteries are depleted. (If you do not hear

anything - this simply means your batteries will need to be fully charged

overnight. Or it may mean that you have already plugged in the power

adaptor - which is why it would not announce “Running on battery power”.

NOTE: the voice prompts of “battery is OK” etc only apply to the pendant

battery - not to the status of the base unit’s batteries. It is recommended that

you replace the base unit batteries with a new set of similar batteries every

two years.

8LifeSentry® v0.3

Connecting the Base Unit

Power Connection. Simply plug in the AC Adapter in to the nearest elec-

trical outlet. Plug the other end of the AC power adapter into the Base unit.

You need to push the plug into the opening in the Base unit and twist 90’

clockwise to lock in place. To remove in the future, simply rotate 90’ coun-

ter-clockwise and pull outward.

Caution: Do not plug the AC Adapter into an outlet which is controlled

by a switch. The switch could accidentally be turned off, thus rendering

the Base unit inoperable after approximately 24 hour when the back up

batteries become discharged.

Telephone Connection. A standard telephone line is required to use your

system. Your phone will work with your existing touch-tone phone line and

existing service. It works the same way as any cordless phone. NOTE:

Touch Tone service is required.

Simply plug one end of the telephone cord into your telephone jack in the

wall, and the other end into the “Line In” at the back of the Base unit. Note

- you will feel a ‘click’ when the cords are rmly seated in the wall and the

Base unit jack receptacles.

If you need to plug a conventional telephone into same outlet used by the Base

unit, simply plug the telephone into the spare jack labeled “To House Phone”

How to Handle VoIP, DSL and other Internet phones: It is NOT recom-

mended to operate this product over VoIP internet phone systems such as

v0.3 LifeSentry® 9

Skype, Magicjack, DSL, Vonage etc. The reliability of such services is not

adequate for emergency use.

Base Unit Options and Features:

The Base unit must be programmed with the central station telephone num-

bers before operation can be successful.

Operating the System:

Emergency Dialing Using the Pendant:

In the event of an emergency, press the blue panic button on the front of the

Pendant. When this button is pressed for more than 4 seconds, the unit will

automatically dial the central monitoring station or emergency call center.

The rst thing you will hear is a few beeps from the pendant - then the dial-

ing sound. You will then hear the pick-up from the Central Station then

communication tones as the Base and Central Station communicate back

and forth - 10 to 20 seconds later, you will hear an operator come on line to

communicate with you.

10 LifeSentry® v0.3

Holding the Pendant. At

this point - you simply hold

the Pendant as you would any

normal telephone receiver -

close to the head so that you

can hear the other person being

called - and they can hear you

speaking.

The microphone is sensitive

enough to easily pick up your

voice regardless of where you

are holding the pendant.

Hanging -Up. If you choose to cancel the call once initiated - you can simply

push the Gray button on the back of the Pendant to cancel the call and you

will hear “Hanging up”. If at the end of the conversation, the Central Station

hangs-up, the System will hang-up and reset automatically over the next sec-

onds to minute, or you can push the gray button to end the call immediately.

Lanyard, Belt Clip or Wrist Strap.

The System comes with 3 accessories for carrying the pendant . You can

carry the Pendant using the Lanyard. You can slide the Pendant in the Belt

Clip, or you can use the Wrist-strap as a means to carry the Pendant. Note

that the Wrist-Strap can also be used as a way to attach the Pendant to a wheel

chair. Choose the method that

suits you best.

The drawing at the right shows

the method of attaching the

lanyard to the Pendant. Note

that your lanyard has a break-

away feature in the event it gets

tangled on something in a fall.

Altri manuali per 37911

Indice

Altri manuali LogicMark Telefono di emergenza

LogicMark

LogicMark CaretakerSentry 40911 Manuale di installazione

LogicMark

LogicMark FreedomAlert 35911 Istruzioni per l'installazione

LogicMark

LogicMark CaretakerSentry Manuale utente

LogicMark

LogicMark Freedom Alert 35911 Istruzioni per l'installazione

LogicMark

LogicMark GUARDIAN ALERT 911 Manuale utente

LogicMark

LogicMark GUARDIAN 911 ALERT PLUS Manuale utente

LogicMark

LogicMark FreedomAlert 35911 Istruzioni per l'installazione

LogicMark

LogicMark 30911 Manuale utente

LogicMark

LogicMark CaretakerSentry 40914 Manuale utente

LogicMark

LogicMark 37911 Istruzioni per l’uso

LogicMark

LogicMark CaretakeSentry 40914 Manuale utente

LogicMark

LogicMark Freedom Alert 35911 Istruzioni per l'installazione

Manuali Telefono di emergenza popolari di altre marche

Dosch&Amand

Dosch&Amand DA1450 Manuale utente

Viking

Viking E-1600A series Istruzioni per l'installazione e il funzionamento

Rath

Rath 2500-205D Manuale utente

Wind n Go

Wind n Go 7700 Manuale utente

Rath

Rath 2100-CPV Manuale utente

Wind Crest

Wind Crest ILO1 Manuale utente

Bell System

Bell System Master 200Plus Manuale utente

Linear

Linear PERS-3600 Istruzioni per l'installazione

ooma

ooma Safety Phone 700-0129-203 Manuale utente

CareTech

CareTech Gina Manuale utente

Rath

Rath SmartPhone VI Guida rapida

Paso

Paso PA8506-V Manuale utente

JNY Safetycare

JNY Safetycare FDC Manuale utente

Rath

Rath 2100-TL9 Manuale utente

Eldat

Eldat Easywave Fon Alarm Manuale utente

Merak

Merak MMk-656 Manuale utente

Assistive Technology Services

Assistive Technology Services TOUCH N TALK FD Istruzioni per il montaggio

Great Arnoldi

Great Arnoldi Just in Case Manuale utente
