Logik L200CFW14 Manuale utente

Refrigerator

Service Manual

Models: L200CFW14

Features

●Energy efficiency

●Micro foam technology

●Low noise operation

●Thick insulation for energy efficiency

●Latest No. 2 micro-biological technology

CONTENT

1. Content.

2. Product code illumination and Series Introduction2

3. Specifications.... 3

4. Safety precautions.... 4

5. Function Schedule........ 7

6. System Flow Chart..... 8

7. Circuit Diagram..... 9

8. Maintenance Service and Trouble Shooting.... 10

9. Exploded View... 30

10. List of Parts...31

Specifications

Models

capacity

(L)

L200CFW14

198

Color

White

Power Supply

(V/Hz)

220-240V/50HZ

Rated Input Power

(W)

Power Consumption

(kW·h/Y)

219

Net Weight

(kg)

Gross Weight

(kg)

Unit Dimension

(D*W*H)

(mm)

Packing Dimension

(D*W*H)

(mm)

Container Quantity

40'HQ

(PCS)

523x945x850

545x985x870

144

Safety precautions

Function Schedule

●Energy efficiency

●Micro foam technology

●Low noise operation

●Thick insulation for energy efficiency

System Flow Chart

1 Schematic diagram of System Flow Chart

Flows in the sequence: 1->2->3->4->5>1

Circuit Diagram

1Schematic Circuit Diagram

Maintenance Service and Trouble Shooting

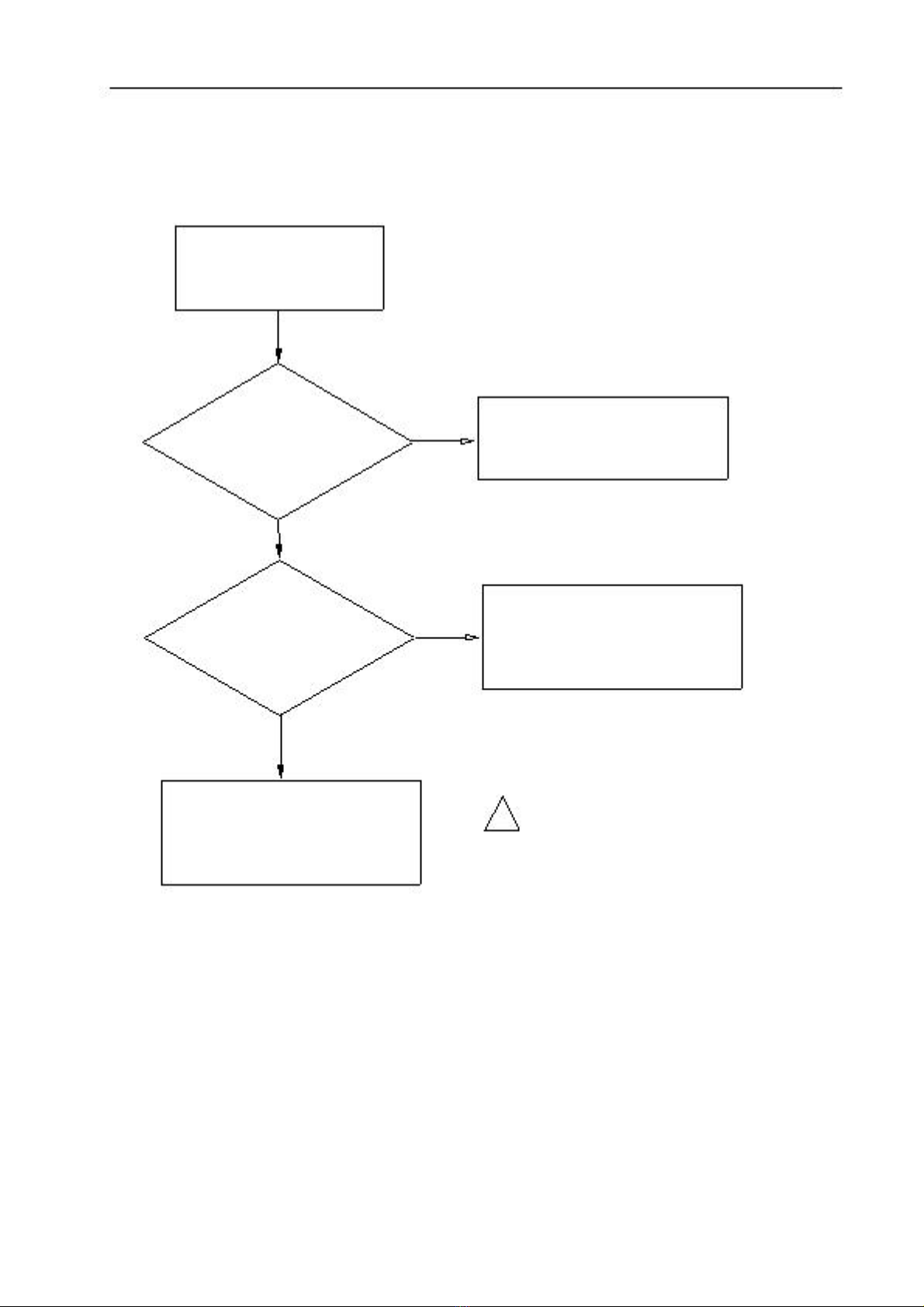

1. No cooling

No cooling

If compressor

can run after it stop to

run five minutes and

give power.

Check and repair according to

the section of "the compessor

doesn't work".

YES

If compressor

can run naturally and

temperature raising

of condenser is

very low

YES

Refrigerant

leak,check and

repair charge

refrigerant again.

Block by ice or dirty

things,change filter and change

refrigerant again.

When charging refrigerant,we must

notice to make refrigerant true.
