Logitech PRO X Manuale utente

PRO X

SETUP GUIDE | 设置指南 | 設定指南 | 설치 가이드

ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . .3

简体中文 . . . . . . . . . . . . . . . . . . . . . . . . .7

繁體中文 . . . . . . . . . . . . . . . . . . . . . . . . 11

한국어 . . . . . . . . . . . . . . . . . . . . . . . . . 15

3ENGLISH

PC SETUP

1 Plug in microphone

2 Plug console/PC cable into headset

3 Using USB DAC:

1.Plug console/PC cable into USB DAC

2. Plug USB DAC into PC1

4 Using PC sound card:

1.Plug console/PC cable into PC splitter

2. Plug PC splitter into PC’s headphone and mic ports

Included USB DAC enables 5-band EQ tuning,

DTS Headphone:X 2.0 and Blue VO!CE microphone lters on PC.

Requires Logitech G HUB software download.

5-band EQ tuning, DTS Headphone:X 2.0 and Blue VO!CE

arenot available while using PC sound card.

USB

4ENGLISH

CONSOLE SETUP

(XBOX ONE™, PLAYSTATION®4)

1 Plug in microphone

2 Plug console/PC cable into headset

3 Plug other end into controller2

Instructions may vary based on your system version.

Please check your console manual for additional guidance.

Xbox One and PlayStation 4 operate in stereo mode only

viaanalog cable. Some Xbox One controllers may require

XboxOne Stereo Headset Adapter, sold separately.

5-band EQ tuning, DTS Headphone:X 2.0 and Blue VO!CE

arenotavailable while connected to console controller.

3.5mm

5ENGLISH

MICROPHONE POSITION SETUP

1 Remove microphone

2 Plug in mobile cable to headset

3 Plug mobile cable into phone3

5-band EQ tuning, DTS Headphone:X 2.0 and Blue VO!CE

arenotavailable on mobile devices.

6ENGLISH

FREQUENTLY ASKED QUESTIONS

Q: How do I save a custom EQ to the USB DAC?

A: Connect the USB DAC to a PC’s USB port and use G HUB software

to download a pre-congured EQ from your favorite pro gamer,

orto congure your own custom EQ settings. After using G HUB to

save your EQ to the DAC, you can then enjoy your custom settings

even on tournament PCs with no G HUB software installed.

Q: Can I save Blue VO!CE settings to the USB DAC?

A: No, Blue VO!CE technology is only available while using G HUB

software and the USB DAC on PC.

Q: Can I save DTS Headphone:X 2.0 settings to the USB DAC?

A: No, DTS Headphone:X 2.0 is only available while using G HUB

software and the USB DAC on PC.

www.logitechG.com/GHUB

www.logitechG.com/support/proxheadset

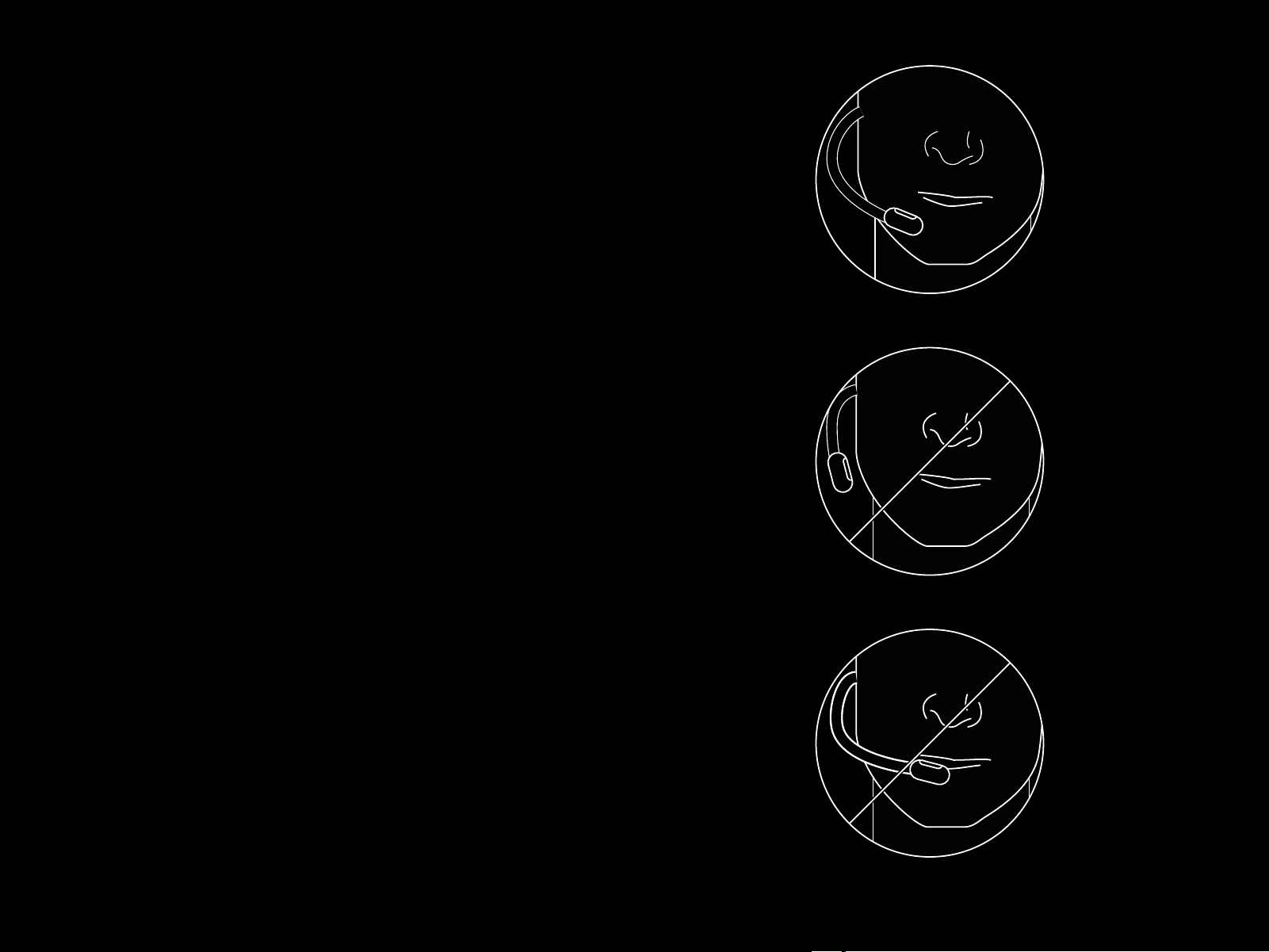

MICROPHONE PLACEMENT

Ideal placement of the microphone is at the corner of

yourmouth. In this position, your voice can be heard clearly

without the microphone picking up breathing sounds.

7简体中文

PC 设置

1 插入麦克风

2 将游戏主机/PC 线缆插入耳机麦克风

3 使用 USB DAC：

1.将游戏主机/PC 线缆插入 USB DAC

2. 将USB DAC 插入 PC1

4 使用 PC 声卡：

1.将游戏主机/PC 线缆插入 PC 分线器

2. 将PC 分线器插入 PC 的耳机和麦克风端口

随附的 USB DAC 在PC 上支持 5 频均衡器调节、

DTS Headphone:X 2.0 和Blue VO!CE 麦克风滤波器。

需要下载罗技 G HUB 软件。

5 频均衡器调节、DTS Headphone:X 2.0 和Blue VO!CE

麦克风滤波器均不支持 PC 声卡。

USB

8简体中文

游戏主机设置

(XBOX ONE™, PLAYSTATION®4)

1 插入麦克风

2 将游戏主机/PC 线缆插入耳机麦克风

3 将另一端插入控制器2

说明可能依系统版本而异。

请检查游戏主机手册，了解其他说明。

Xbox One 和PlayStation 4 只有通过模拟线缆才可在立体声模式下

运行。某些 Xbox One 控制器可能需要搭配单独出售的 Xbox One

立体声耳机麦克风适配器使用。

5 频均衡器调节、DTS Headphone:X 2.0 和Blue VO!CE 麦克风滤波

器在连接至游戏主机控制器时均不可用。

3.5mm

9简体中文

麦克风位置设置

1 取下麦克风

2 将移动线缆插入耳机麦克风

3 将移动线缆插入手机 3

5 频均衡器调节、DTS Headphone:X 2.0 和Blue VO!CE 麦克风滤波

器在连接至移动设备时均不可用。

10 简体中文

常见问题与解答

问：如何将自定义均衡器保存至 USB DAC？

答：将USB DAC 连接至 PC 的USB 端口，并使用 G Hub 软件下载您喜

爱的职业玩家的预配置均衡器，或者配置您的专属自定义均衡器设置。

使用 G HUB 将均衡器保存至 DAC 后，即便在未安装 G HUB 软件的

比赛 PC 上，您也可以享受自己的自定义设置。

问：是否可以将 Blue VO!CE 设置保存到 USB DAC？

答：抱歉，Blue VO!CE 技术仅在 PC 上使用 G HUB 软件和 USB DAC

时可用。

问：是否可以将 DTS Headphone:X 2.0 设置保存到 USB DAC？

答：抱歉，DTS Headphone:X 2.0 仅在 PC 上使用 G HUB 软件和 USB DAC

时可用。

www.logitechG.com/GHUB

www.logitechG.com/support/proxheadset

麦克风放置

麦克风的理想位置是您的嘴角附近。在此位置，可以清晰地听到您

的声音，并且麦克风不会拾取呼吸声。
