Logitech Dinovo Edge Mac Edition Manuale utente
1
diNovo Edge™ Keyboard
User’s guide
2
Contents
Welcome 3
Packagecontents 4
YourdiNovoEdge™keyboard 5
ThediNovoEdgekeyboard ataglance 6
Installation 7
Conguration 12
UsingthediNovoEdgekeyboard 14
Tipsandtroubleshooting 19
Serviceandsupport 20
ComplianceandFCCstatement 22
Logitech®hardwareproduct 24
limitedwarranty
3
Welcome
Thank you for purchasing the Logitech®
diNovo Edge™ keyboard.
This document provides a comprehensive guide
to using your new keyboard with your Macintosh®
computer.
If you need more information about this product,
visit
www.logitech.com.
4
Package contents
diNovo
Logi tech
diNovo Edge keyboard
Cleaning cloth
CD-ROM with
Logitech Control Center software
Power supply
Dock/charging station
5
Your diNovo Edge keyboard
The Logitech diNovo Edge keyboard excels at
delivering performance, comfort, easy of use,
and style, and is an excellent match for your
Macintosh computer.
Stylishly slim and sleek, the diNovo Edge keyboard
simplies and extends your access to the digital
universe with a number of innovative features.
The PerfectStroke™ key system has a micro-
scissor mechanism that distributes force evenly
across key surfaces. Forgiving of mis-strokes,
PerfectStroke improves your accuracy while
providing a consistent typing experience.
The longer key travel of diNovo Edge keyboard—
3.2 millimeters—gives you a better feel and makes
the keyboard more responsive and comfortable.
Concave keycaps add to the experience, helping
make every keystroke natural and uid.
An elegant charging station doubles as a stand and
keeps your desk clutter-free. Only four hours of
charging provides up to one month of battery life.
The innovative TouchDisc™ integrates hyper-fast
scrolling, selection, and cursor control, making
control and navigation intuitive and convenient.
Extended function keys streamline your Macintosh
computer experience with one-touch access to
Mai™, iTunes® and more.
Use your diNovo Edge keyboard with Front Row®
to enjoy movies and music, and to share photos
from anywhere in the room. Bluetooth® wireless
technology delivers seamless operation from up to
30 feet (9 meters) under most conditions.
6
The diNovo Edge keyboard at a glance
Volume slider
Launch Front Row
Mute
Power indicator
Launch
sleep mode
TouchDisc
Operates as
touch pad and
scroll wheel
Battery-indicator light
Blinks green while charging; lights green for 5 seconds
upon connection; glows red when batteries are low
Mouse-left and right-click
Mouse
left-click
Bluetooth status light
Blinks green during connection; lights
green for 5 seconds upon connection
Media
hot keys
7
Installation

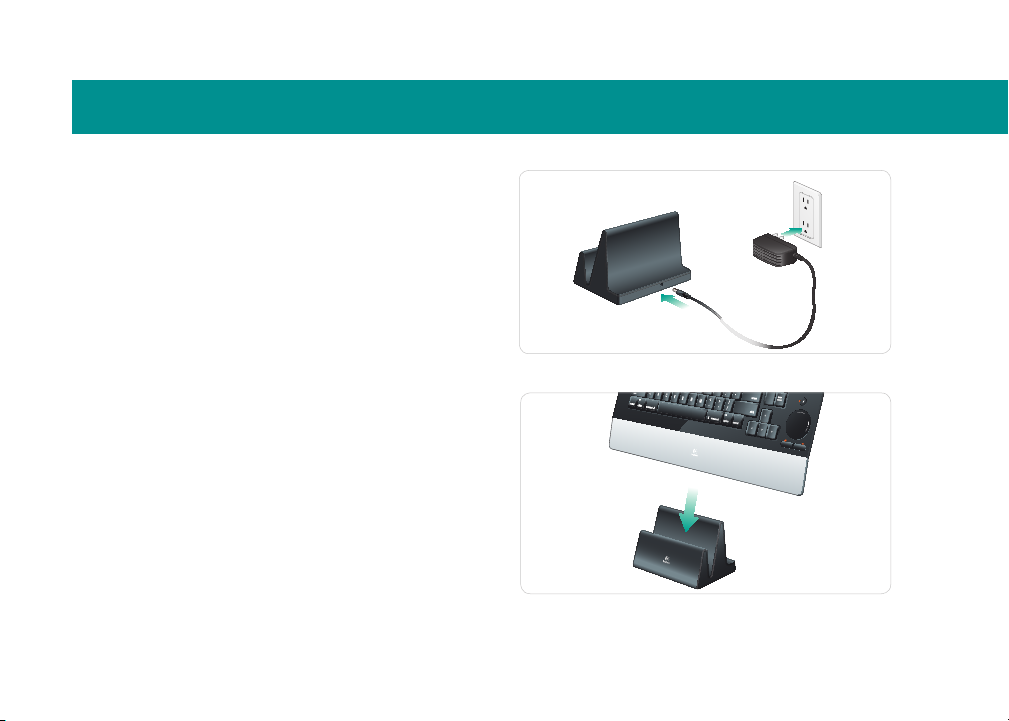

Plug the AC cable into the power port on 1
the back of the diNovo Edge keyboard
dock/charging station.
Plug the AC adapter into a wall socket. 2
Connect power
Insert the lower edge of the keyboard into •
the dock/charging station, lining up the
Logitech logo on the keyboard with the
logo on the charging station.
A full charge takes about four hours and
provides up to one month of normal use.
A 10-minute charge provides about a day
of use.
Charge the keyboard (optional)
8
Installation
Slide down the power switch on the right •
edge of the keyboard.
The keyboard is on when the orange power
indicator is visible next to power icon.
Power on
Off
On
9
Installation
Choose 1 Apple () menu > System
Preferences, and then click the Bluetooth
option.
The Bluetooth preference pane appears.
Click the (Set Up New Device) button.2
The Bluetooth Setup Assistant starts.
From the list of Bluetooth devices, select 3
Keyboard, and then click Continue.
The Setup Assistant displays a list of
Bluetooth keyboards within range of the
console.
Set up a Bluetooth connection Click + to set up a Bluetooth device
Choose Keyboard for device type
10

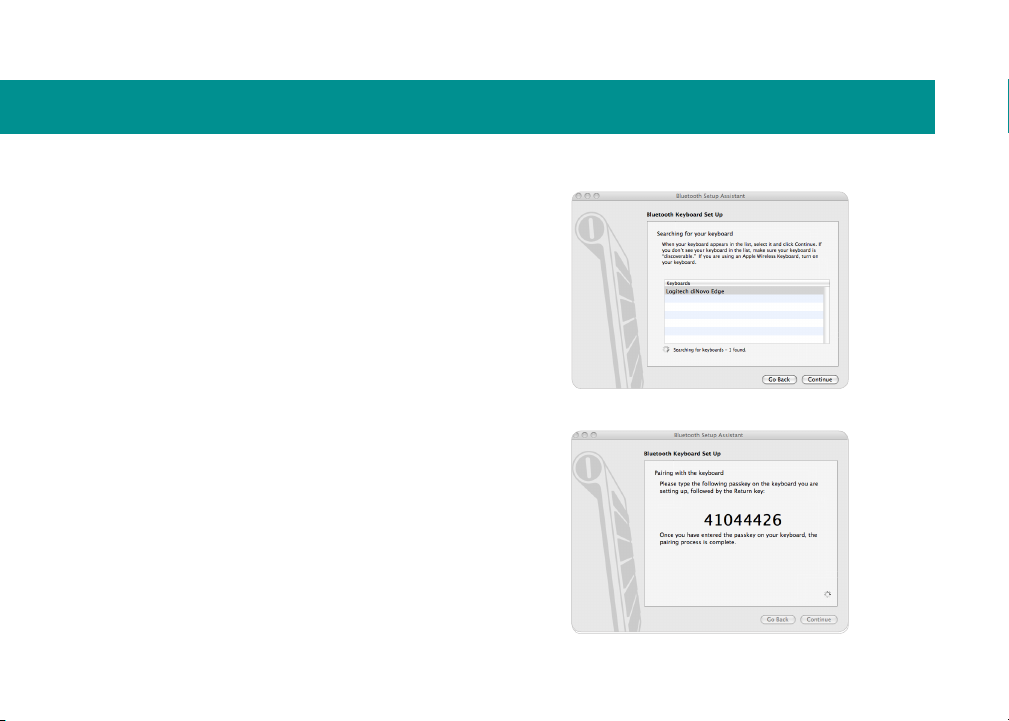

Select 4 Logitech diNovo Edge.
Note: If the diNovo Edge keyboard does not
appear in the list of Bluetooth keyboards, turn
the keyboard off and then back on to restart
the pairing.
The Setup Assistant displays a randomly
generated passkey.
Using your diNovo Edge keyboard, enter the 5
provided passkey and press Return to pair the
keyboard with your computer.
A message appears conrming that your
computer is set up to use the Bluetooth
keyboard, followed by a list of connected
devices.
When the diNovo Edge keyboard appears
in the device list, you can start using the
keyboard with your Macintosh computer.
Installation
Select Logitech diNovo Edge
Passkey for pairing diNovo Edge to Mac
