Logitech Folio S310 Manuale utente

Ultrathin Keyboard Folio S310

for Samsung Galaxy Tab 3™ (10.1")

Setup Guide

Logitech Ultrathin Keyboard Folio S310

Contents

English. . . . . . . . . . . . . . . . . . 3

www.logitech.com/support . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Logitech Ultrathin Keyboard Folio S310

English 3

Know your product

1. Tablet holder

2. Protective folio

3. Hook

4. Magnet

5. Function keys

6. Keyboard

7. Bluetooth/battery status light

8. Bluetooth connect button

9. On/o switch

10. Micro-USB charging port

11. Micro-USB charging cable

12. Product documentation

Ultrathin Keyboard Folio S310

PDF

www.logitech.com/support/ultrathin-keyboard-folio-s310

Logitech Ultrathin Keyboard Folio S310

4 English

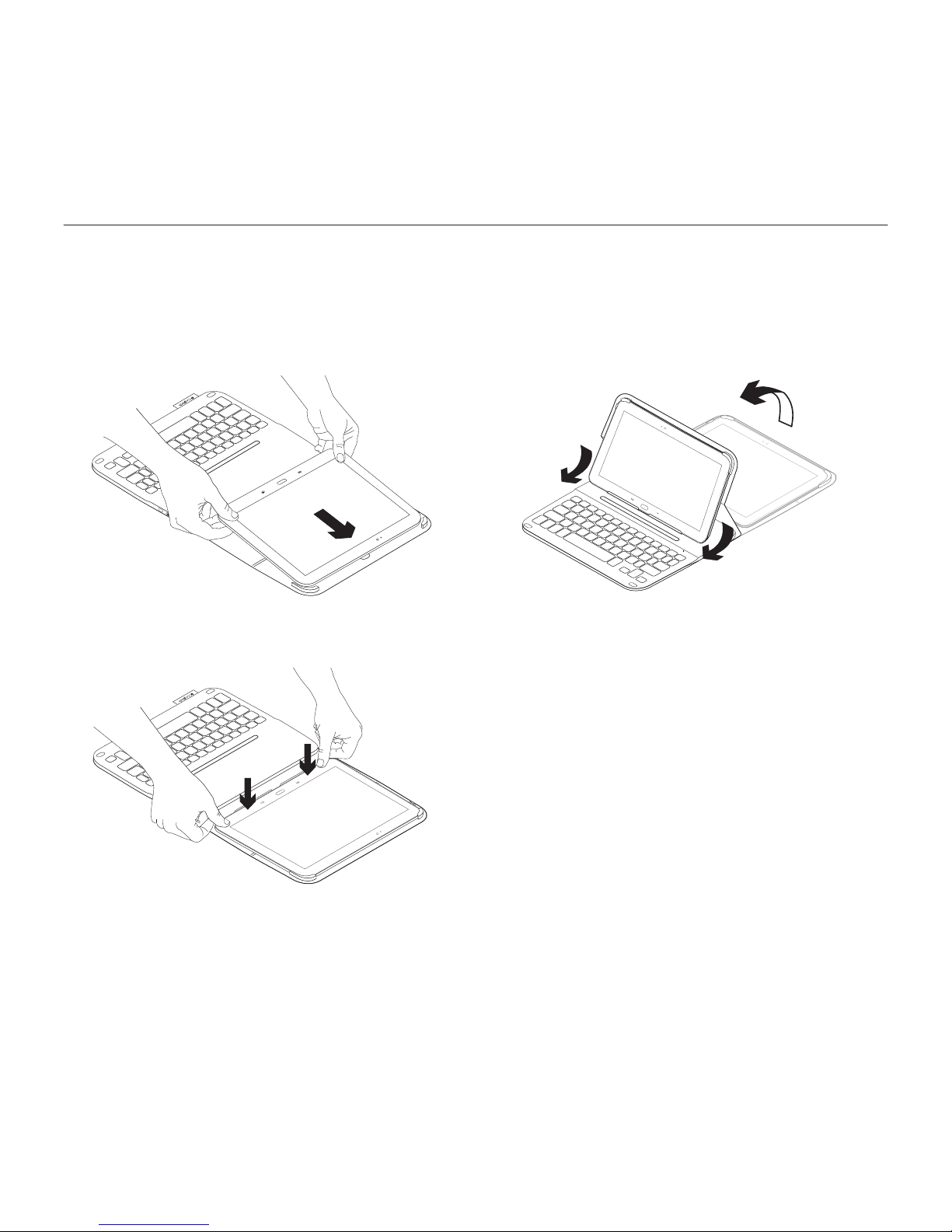

Setting up the keyboard folio

Getting started

1. Open the keyboard folio and push your

Samsung Galaxy Tab 3 into the tablet

holder:

2. Push your Samsung Galaxy Tab 3 down

into the hook:

3. Move the keyboard folio into the typing

position by lifting the back of the

protective folio and sliding the hook

forwards until it aligns with the magnet:

4. Establish Bluetooth connection with your

Samsung Galaxy Tab 3. See “Using the

Keyboard Plus app.”

Logitech Ultrathin Keyboard Folio S310

English 5

Using the Keyboard Plus app

You use the Keyboard Plus app when ﬁrst

setting up your keyboard folio, to establish

Bluetooth connection with your Samsung

Galaxy Tab 3 and conﬁgure the keyboard

to get the best typing experience.

You can use the app at any point in the

future if you experience issues, or want to

change your settings.

The Keyboard Plus app is available on the

Google Play™ Store.

To install the Keyboard Plus app:

1. From a Home screen, touch Apps

Play Store.

2. Touch and search for ‘Keyboard Plus’.

3. Select and install the app.

When the app is successfully installed

it is displayed on the Apps screen as

Keyboard Plus.

To establish connection with your

Samsung Galaxy Tab 3:

1. Launch the app. From a Home screen,

touch Apps Keyboard Plus.

You are prompted:

2. Touch START to start the Keyboard

Setup Assistant which guides you

through the connection process.

3. Turn on Bluetooth on your Samsung

Galaxy Tab 3.

If Bluetooth is turned o you are

prompted:

Logitech Ultrathin Keyboard Folio S310

6 English

Touch NEXT to turn on Bluetooth.

4. Pair your Samsung Galaxy Tab 3 and

keyboard folio. You are prompted:

To pair the devices:

a. Touch NEXT. You are prompted:

b. Turn on your keyboard (see “Using the

keyboard folio”), and touch NEXT.

You are taken to the Samsung Galaxy

Tab 3 Settings page.

The ﬁrst time you turn on your

keyboard the status light blinks

blue to indicate that the keyboard

is discoverable, ready for pairing

with your Samsung Galaxy Tab 3.

It remains discoverable for 15 minutes.

If the status light doesn’t blink blue,

press the Bluetooth connect button.

c. In the Settings page, touch Keyboard

Folio S310 from the list of ‘Available

devices’. A PIN is displayed on screen.

d. On the keyboard, enter the PIN and

press Enter.

When successful connection is made the

keyboard status light turns solid blue for

a short time, and then o. The keyboard

folio is now paired with your Samsung

Galaxy Tab 3.

5. Enable the keyboard folio. You are

prompted:

Logitech Ultrathin Keyboard Folio S310

English 7

To enable the keyboard folio:

a. Touch NEXT. You are prompted:

b. Touch NEXT. You are taken to the

Samsung Galaxy Tab 3 Settings page,

“Language and input” section.

c. Check “Ultrathin Keyboard Folio S310”:

The following note is displayed:

d. Touch OK to close this note, and

then press the button on your

Samsung Galaxy Tab 3 to return to

the Keyboard Setup Assistant.

6. Set the keyboard folio as the default

device for typing. You are prompted:

To set the keyboard folio as the default:

a. Touch NEXT.

b. Select “Ultrathin Keyboard Folio S310”

as the default input method:

Logitech Ultrathin Keyboard Folio S310

8 English

7. Set the keyboard language. You are

prompted:

To set the keyboard language:

a. Touch NEXT.

b. Choose your language.

The setup process is now complete. You

are prompted:

Touch START to start using your keyboard.

Resolving issues and changing

settings

Having set up your keyboard folio, your

keyboard works each time you turn it on.

If you experience any issues, or want to

change your settings, re-launch the app.

The app opens on the Status page:

Any issues identiﬁed are denoted by a red

cross.

To correct an issue or change a setting,

touch the item and follow the instructions

shown.

Logitech Ultrathin Keyboard Folio S310

English 9

Using the keyboard folio

Two viewing positions

The keyboard folio provides two viewing

positions—one for typing and another

for browsing.

To type:

1. Move the Samsung Galaxy Tab 3 holder

into the typing position, aligning it with

the built-in magnet to secure it:

2. Turn on the keyboard:

If the status light turns red, charge

the battery. For more information,

see “Charging the keyboard battery.”

If you don’t use the keyboard for a while

in the typing position, it enters sleep mode

automatically. Pressing any key wakes it.

To browse, place the Samsung Galaxy

Tab 3 holder in the browsing position:

You can switch o the keyboard if you

want to conserve battery power.

Typing position

Browsing position

Logitech Ultrathin Keyboard Folio S310

10 English

Status light indicators

Bluetooth and battery status light

Light Description

Blinking green The battery is charging.

Green The battery is charged (more than 10%).

Red Battery power is low (less than 10%). Recharge the battery.

Blinking blue Fast: The keyboard is in discovery mode, ready for pairing.

Slow: The keyboard is trying to reconnect to your Samsung

Galaxy Tab 3.

Solid blue Bluetooth pairing or reconnection is successful.
