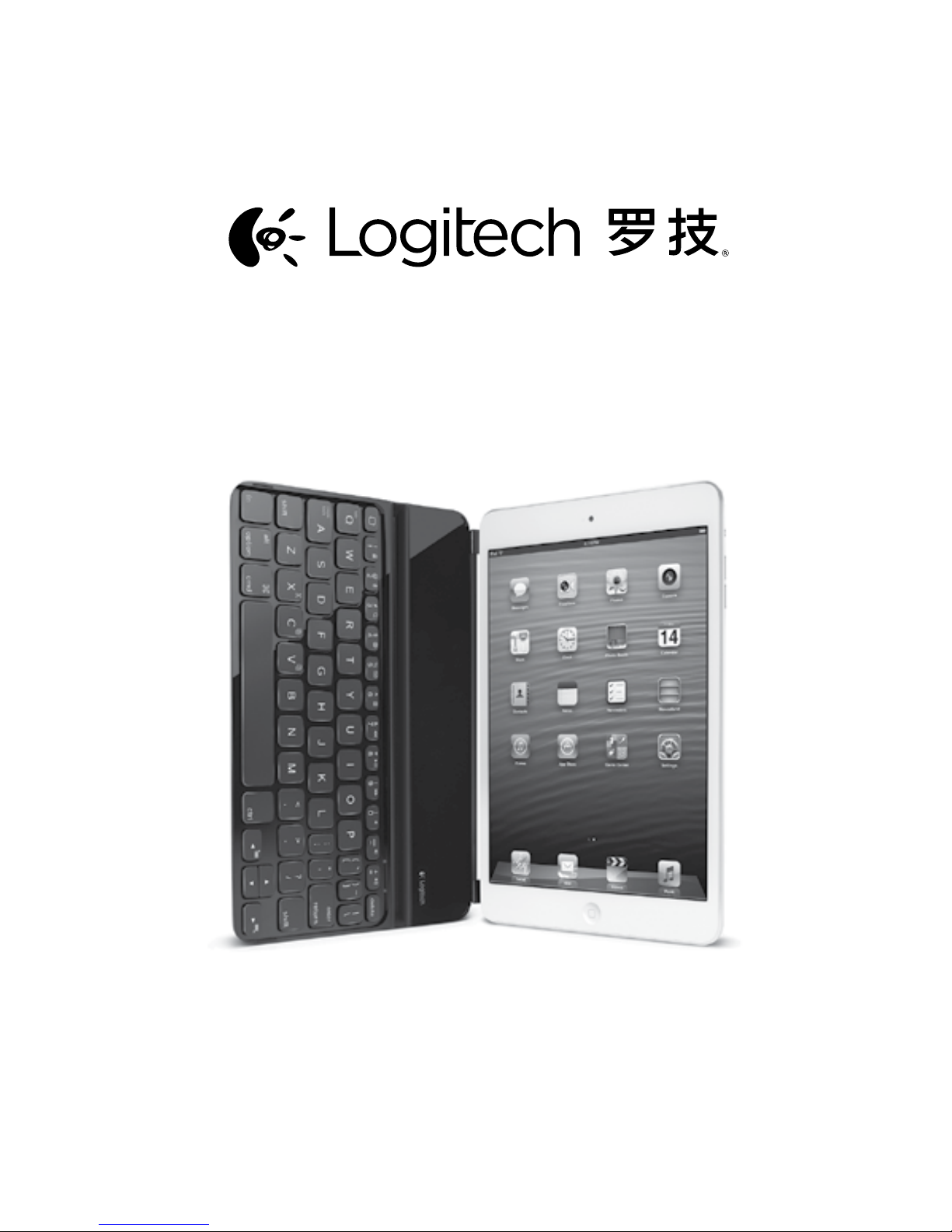

Logitech IK700 mini Manuale utente

Setup Guide | 设置指南

Ultrathin Keyboard Mini

iK700 mini超薄迷你键盘

Contents / 目录

English. . . . . . . . . . . . . . . . . . . . 3 简体中文 . . . . . . . . . . . . . . . . . . . 11

www.logitech.com/support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

English 3

Know your product

1. Protective cover

2. iPad mini holder

3. Keyboard

4. Function keys

5. Bluetooth® light

6. Status light

7. Bluetooth connect button

8. On/O switch

9. Documentation

10. Micro-USB charging cable

Setup Guide | 设置指南

Ultrathin Keyboard Mini

iK700 mini超薄迷你键盘

4 5 6

4 English

Set up your product

1. Turn on the Keyboard:

• Bluetooth discovery starts automatically

and continues for 15 minutes.

The Bluetooth light blinks.

• If the Status light brieﬂy turns red,

charge the batteries. For more

information, see “Charge the batteries.”

2. Make sure your iPad mini’s Bluetooth

feature is on. Select Settings >

Bluetooth > On.

3. Select “Ultrathin Keyboard Mini”

on the iPad mini’s Devices menu.

4. If your iPad mini requests a PIN,

enter the code using the Keyboard

and not your iPad mini’s virtual keyboard.

After the Bluetooth connection

is made, the Bluetooth light turns on,

and then it turns o.

5. Place the iPad mini landscape

on the Keyboard.

English 5

Charge the keyboard battery

1. Plug one end of the micro-USB cable

into the charging port, and the other end into

a USB port on your computer.

Alternatively, you can use a 5V USB charger,

such as that provided with your iPad mini,

providing the power output rating is at least

500mA.

The status light blinks green as the battery

charges.

2. Charge the battery until the Status light turns

solid green.

Battery information:

• A fully charged battery provides about

3 months of power when the Keyboard

is used about 2 hours a day.

• Charge the battery when the Status light

brieﬂy turns red after the Keyboard turns on.

• When not in use, turn o the Keyboard

to conserve battery power.

• The Keyboard enters sleep mode

if powered on and not used. Press any key

to wake.

USB

6 English

Visit Product Central

There’s more information and support

online for your product. Take a moment

to visit Product Central to learn more about

your new Keyboard.

Browse online articles for setup help,

usage tips, or information about

additional features.

Connect with other users in our Community

Forums to get advice, ask questions,

and share solutions.

At Product Central, you’ll ﬁnd a wide

selection of content:

• Tutorials

• Troubleshooting

• Support community

• Online documentation

• Warranty information

• Spare parts (when available)

Go to www.logitech.com/support/

ultrathinkeyboardmini

English 7

Use your product

Product features

Home

Displays the iPad mini Home screen

Fn + 1 = Lock screen

Locks or unlocks the iPad mini

screen

Fn + 2 = Siri

Siri lets you use your voice to send

messages, schedule meetings,

place phone calls, and more

Fn + 3 = Search

Note: Available only for iPad mini

with iOS 6 or earlier.

Fn + 4 = Switch language

Switches the keyboard language

Fn + 5 = Virtual keyboard

Shows/hides the virtual keyboard

Fn + 6 = Slide show

Note: Available only for iPad mini

with iOS 6 or earlier.

Fn + 7 = Previous track

Fn + 8 = Play/Pause

Fn + 9 = Next track

Fn + 0 = Mute

Fn + dash = Volume down

Fn + plus = Volume up

Fn + X = Cut

Fn + C = Copy

Fn + V = Paste

Fn + Left cursor = Select left

Selects text on the left,

word by word

Fn + Right cursor = Select right

Selects text on the right,

word by word

Fn + Space bar =

Switch applications

Note: Function keys To use, press and hold the Fn key, and then press a key listed above.

8 English

Status light indications

Light Description

Blinking green The battery is charging.

Solid green The battery is fully charged (100%).

Red Battery power is low (less than 10%). Recharge the battery.

Bluetooth light indications

Light Description

Blinking Fast: The keyboard cover is in discovery mode, ready for pairing.

Slow: The keyboard cover is trying to reconnect to your iPad mini.

Solid Bluetooth pairing or reconnection is successful.

Storing the iPad mini for travel

1. Lift the iPad mini from the Keyboard.

2. Rotate the iPad mini, with the screen side

down, so the Home button is on the right.

3. Place the iPad mini on to the Keyboard.

A magnetic clip holds the iPad mini

in position.

English 9

Connecting to a dierent iPad mini

1. Make sure the Keyboard is turned on.

2. Check that your iPad mini’s Bluetooth feature

is on. Select Settings > Bluetooth > On.

3. Press the Bluetooth Connect Button.

The Keyboard is discoverable for 3 min.

4. Select “Ultrathin Keyboard Mini”

on the iPad mini’s Devices menu.

5. If your iPad mini requests a PIN,

enter the code using the Keyboard

and not your iPad mini’s virtual keyboard.

After the Bluetooth connection

is made, the Bluetooth light turns on,

and then it turns o.

6. Place the new iPad mini on the Keyboard.

Troubleshooting

The Keyboard does not work

• Press any key to wake the Keyboard

from sleep mode.

• Turn the Keyboard O and then back On.

• Recharge the internal batteries. For more

information, refer to “Charge the batteries.”

• Re-establish the Bluetooth connection

between the Keyboard and iPad mini.

• Verify that iPad mini’s Bluetooth feature

is turned on.

• Choose “Ultrathin Keyboard Mini”

from the Devices menu on your iPad mini.

The Bluetooth light turns on after

the Bluetooth connection is made.

What do you think?

Please take a minute to tell us.

Thank you for purchasing our product.

www.logitech.com/ithink

10 English

Battery disposal at product end of life

1. Pry o top cover of keyboard

with screwdriver.

2. Detach battery from circuit board

and remove battery.

3. Dispose of your product and its battery

according to local laws.

1 2
