Logitech G502 Proteus Spectrum Manuale utente

Logitech® G502 Proteus Core

Setup Guide

Guide d’installation

English. . . . . . . . . . . . . . . . . . 3 Français . . . . . . . . . . . . . . . . . 13

www.logitech.com/support . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

English 3

Your G502 is ready to play games.

If you would like to customize your G502,

refer to the next section.

You can customize the three onboard

proﬁles of the G502—surface tuning,

button programming, and tracking

behavior—using the Logitech Gaming

Software. Download this free software

and learn how to customize the G502

at www.logitech.com/support/g502

USB

4 English

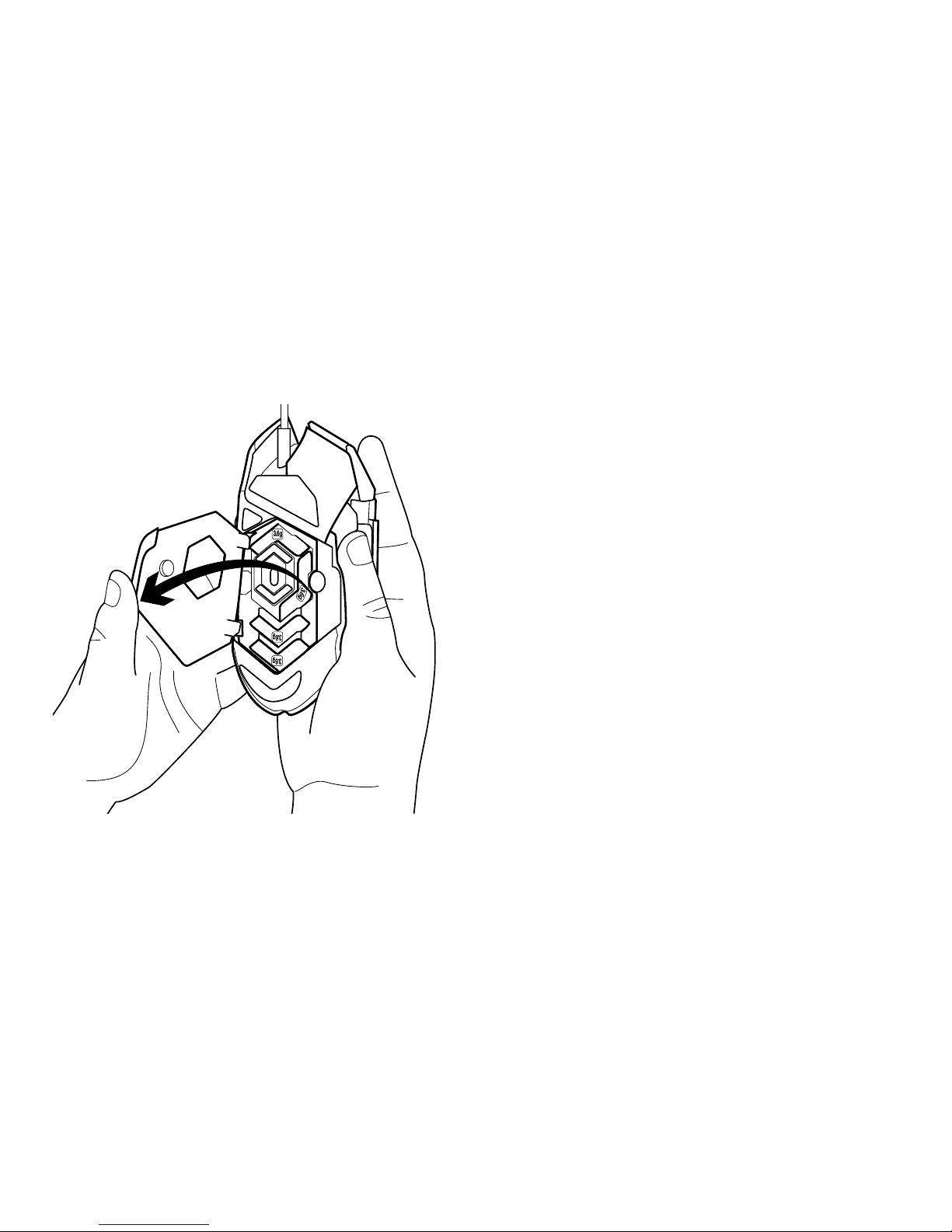

4 To adjust the weight and balance of

your G502, ﬁrst open the weight door

by grasping the mouse ﬁrmly in your right

hand and pulling the blue tab down with

your left thumb.

English 5

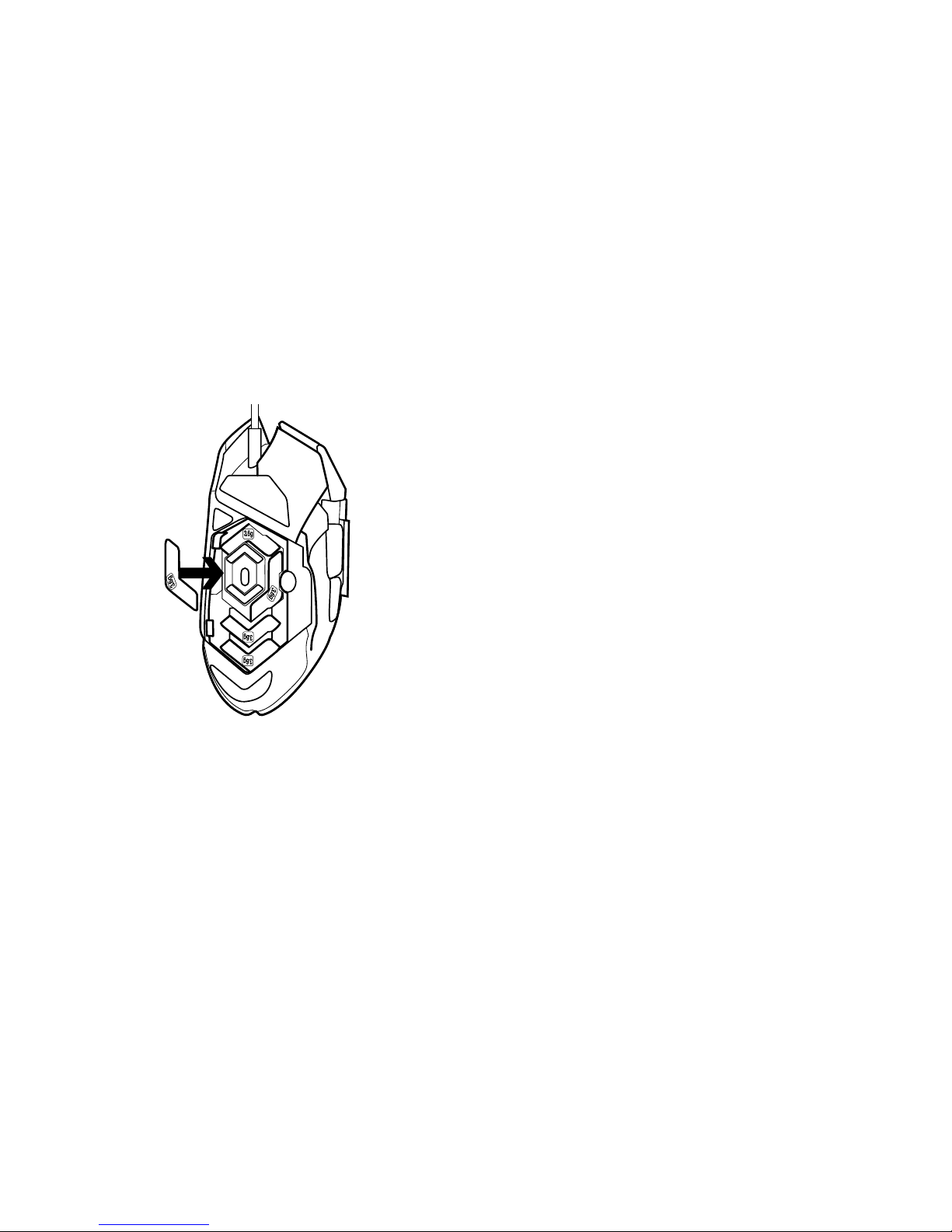

5 You can place up to ﬁve 3.6 gram weights

in a number of dierent orientations.

Experiment with dierent positions

for the weights to ﬁnd an overall weight

and balance that feels right for you.

6 English

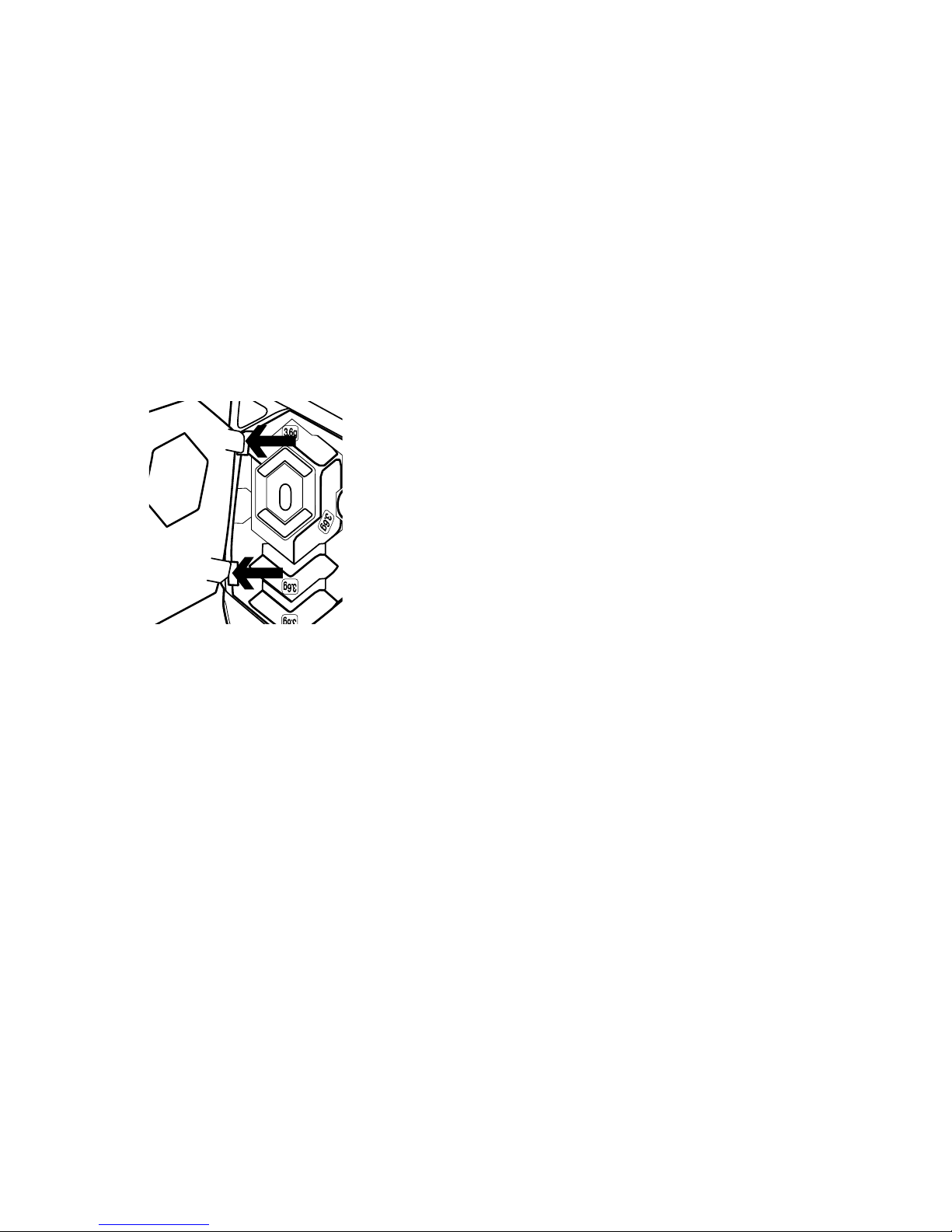

After inserting the weights, close the weight

door by inserting the tabs on the weight

door into the slots on the left side of

the mouse and rotating the door down

until the magnet holds the weight door

ﬁrmly closed.

Out of the box, the sensor for the G502

is conﬁgured to deliver amazing

tracking across a wide range of surfaces.

For an extra edge, it can also be further

tuned for optimal performance with the

speciﬁc surface that you use for gaming.

To tune the sensor, use the Logitech

Gaming Software.

English 7

11 fully programmable buttons

1. Left (Button 1)

2. Right (Button 2)

3. Wheel click (Button 3)

4. Back (Button 4)

5. Forward (Button 5)

6. DPI Shift (Button G6)

7. DPI Down (Button G7)

8. DPI Up (Button G8)

9. Scroll left (wheel tilt left)

10. Scroll right (wheel tilt right)

11. Proﬁle select (Button G9)

12. Wheel mode shift (not programmable)

8 English

Proﬁle 1*

(High-DPI

gaming)

Proﬁle 2*

(Low-DPI

gaming)

Proﬁle 3*

(Standard:

unshifted)

Proﬁle 3*

(Standard:

G-shifted)

DPI values 1200, 2400,

3200, 6400

400, 800, 1600,

2400

2400 2400

Default DPI

value

2400 1600 2400 2400

DPI Shift value 1200 400 N/A N/A

Reports/sec 1000 1000 500 500

1Button 1

(left click)

Button 1

(left click)

Button 1

(left click)

Button 1

(left click)

2Button 2

(right click)

Button 2

(right click)

Button 2

(right click)

Button 2

(right click)

3Button 3

(middle click)

Button 3

(middle click)

Button 3

(middle click)

Ctrl-T

English 9

Proﬁle 1*

(High-DPI

gaming)

Proﬁle 2*

(Low-DPI

gaming)

Proﬁle 3*

(Standard:

unshifted)

Proﬁle 3*

(Standard:

G-shifted)

4Button 4 (back) Button 4 (back) Button 4 (back) Ctrl-Shift-Tab

5Button 5

(forward)

Button 5

(forward)

Button 5

(forward)

Ctrl-Tab

6DPI Shift (sniper) DPI Shift (sniper) G-Shift (double

functions)

N/A

7DPI Down DPI Down Ctrl-C Ctrl-X

8DPI Up DPI Up Ctrl-V Ctrl-Z

9Scroll left Scroll left Scroll left Ctrl-F4

10 Scroll right Scroll right Scroll right Ctrl-Shift-T

11 Next proﬁle Next proﬁle Next proﬁle Ctrl-0

10 English

Onboard proﬁles

The G502 has three preconﬁgured proﬁles,

one each for high sensitivity gaming,

low sensitivity gaming, and standard mouse

usage. Use Button 9 (see mouse drawing)

to rotate through these default proﬁles.

When you change proﬁles, the DPI indicator

lights will change color from cyan to blue

for three seconds and will indicate the new

mode as shown here:

DPI indicators

DPI values are shown using the three LEDs

indicated in the mouse drawing. The image

below shows which DPI value is being

indicated by the LED panel.

Prof. 1 Prof. 2 Prof. 3

DPI 1 DPI 2 DPI 3 DPI 4 DPI 5
