BRIO 505

Setup Guide

CONTENTS

English . . . . . . . . . . . . . . . . . 3

Français . . . . . . . . . . . . . . . . 10

Español. . . . . . . . . . . . . . . . .17

Português . . . . . . . . . . . . . . .24

KNOW YOUR PRODUCT

BRIO 505 FRONT VIEW WITH

FUNCTION INDICATIONS

MOUNT DESIGN OVERVIEW

Privacy shutter dial

¼-20 adaptor for

3rd party mounts

Attached

USB-C cable

Rear adjustment

hinge for monitor

sizing

Removable mount

adaptor

LED activity light

Magnetic mount

receiver

Padded foot

Micro-suction pad

protective lm

(Remove before

setting up mount)

Tilt adjustment

hinge

Brio 505 webcam

Privacy shutter

Magnetic thread

mount screw

(Removable)

Ultrawide-angle

lens with 90° dFOV

Dual noise

reduction

microphones

Micro-suction pad

Micro-suction pad allows the mount to

stay securely attached to your monitor.

This removable pad leaves no residue

and can be cleaned with water.

3English

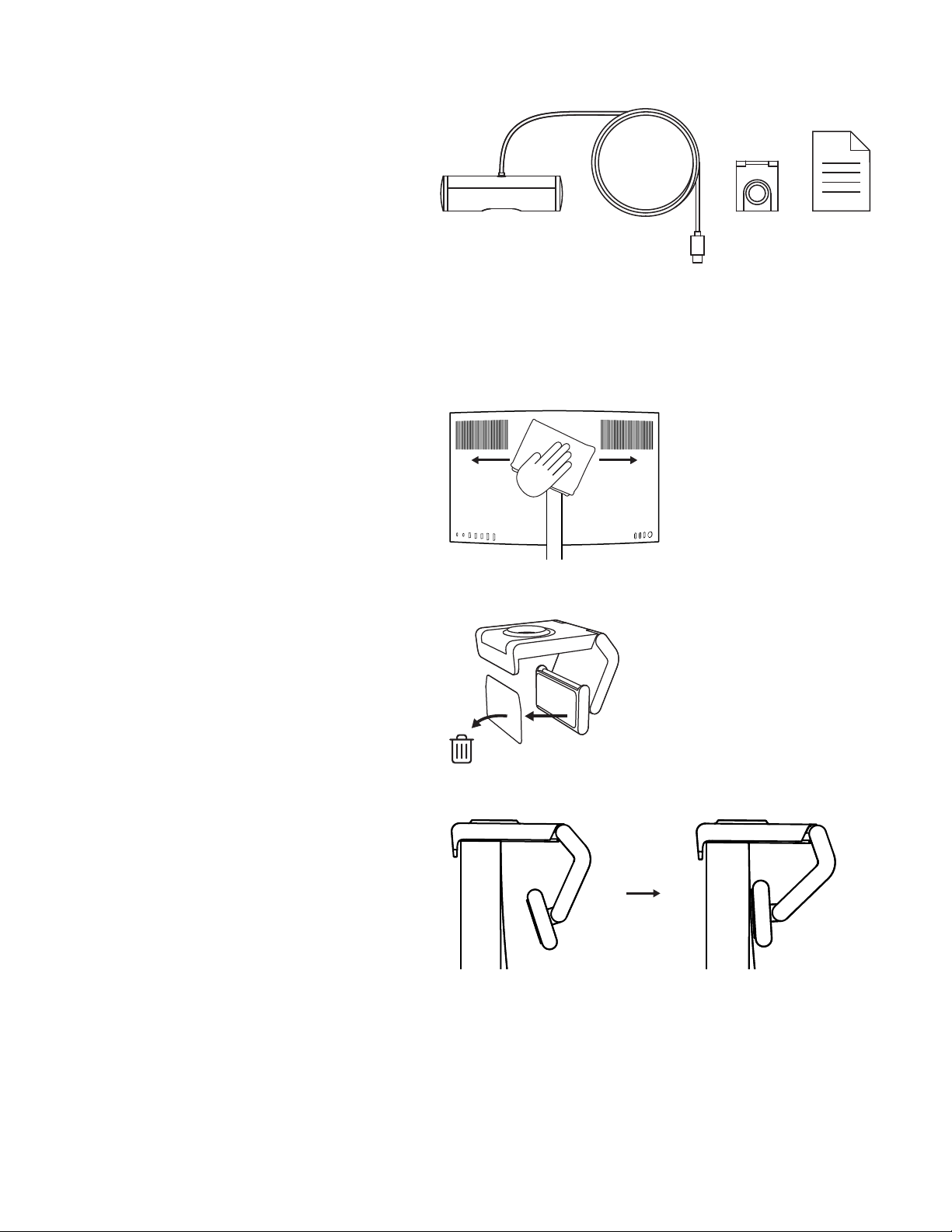

STEP 1: WHAT’S IN THE BOX

1. Webcam with attached

USB-C cable

2. Mount clip with removable

mount adaptor

3. User documentation

STEP 2: DETERMINE MOUNT PLACEMENT

Placement to allow one-handed camera

adjustments (using micro-suction pad)

1. Determine the best placement for your

webcam before continuing.

2. Wipe the back of your monitor to clear

any dust or dirt.

USB-C

3. Remove the protective lm from the

micro-suction pad.

Note:

– The mount adaptor can be removed and reused

for mounting adjustments without leaving residue.

– To clean the micro-suction pad, rinse with water

to remove debris, and let it air dry in order to

regain strong suction.

4. Open the mount fully and place

on top of your monitor, being sure

that the pad of the front clip makes

contact with the front of the monitor.

5. Rotate the rear foot down until it

makes contact with the back of the

monitor.

6. Press the micro-suction pad to the

back of your monitor rmly to create

a good bond.

4English

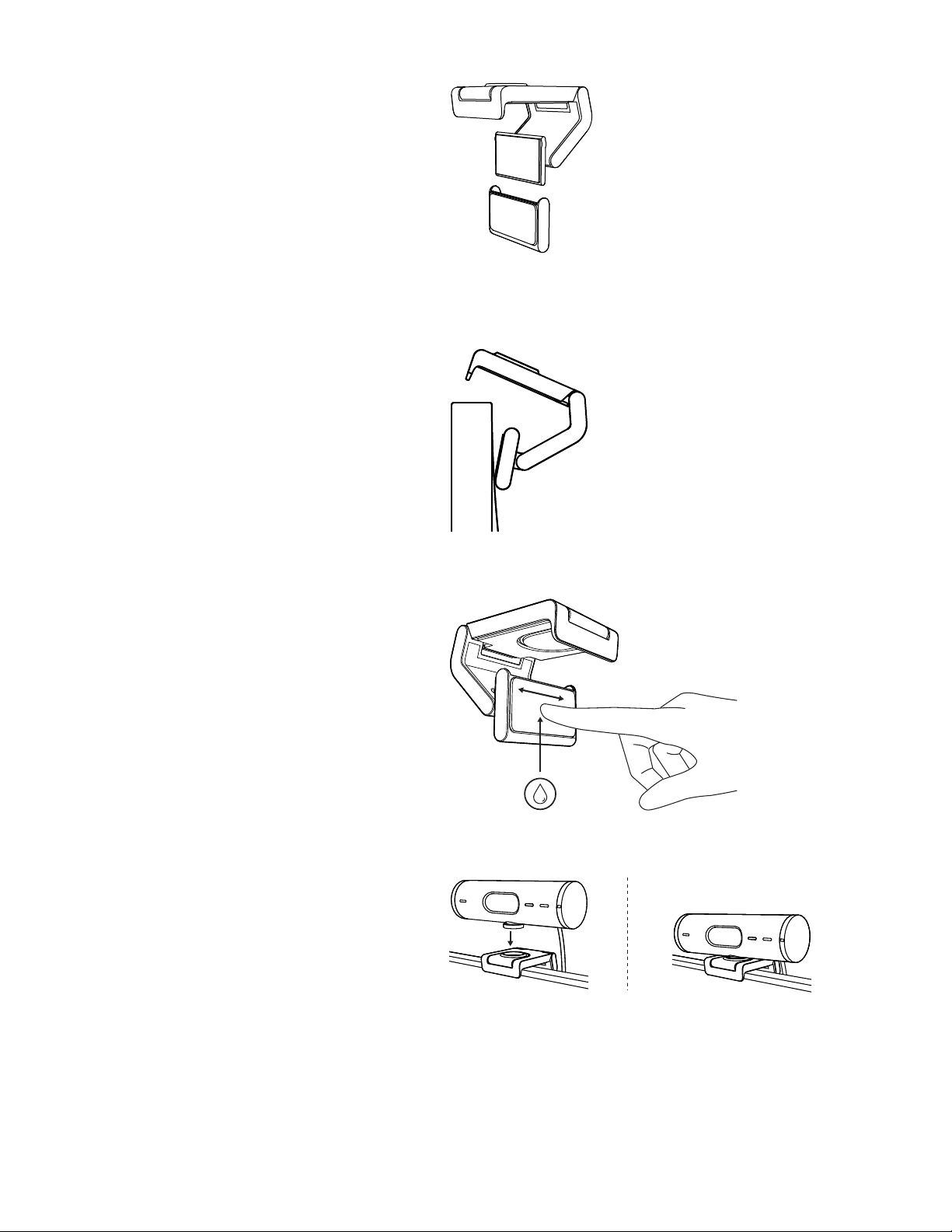

STEP 4: ATTACH CAMERA TO THE MOUNT

Place the webcam into the magnet

attachment point on top of the mount.

Listen for an audible click indicating the

webcam is properly seated on the mount.

(Optional) Placement without

the micro-suction pad

Slide the removable mount adapter

down to remove it from the webcam

foot. Adjust the foot on the mounting

clip until it is ush with the back of your

device and press rmly in place.

STEP 3: MOUNT ADAPTOR REMOVAL AND

CLEANING

1. Remove the webcam from mount and gently

peel the adaptor from one corner to remove.

2. With a wet nger gently rub the pad clear of

dust and dirt and let the micro-suction pad air

dry completely before remounting (do not use

cloth or tissue to dry).

3. Repeat the monitor placement setup steps to

best deploy your webcam.

5English

STEP 5: CONNECT THE WEBCAM VIA

USBC & GET STARTED

1. Plug the USB-C connector into the USB-C

port on your computer, monitor, laptop,

or docking station.

STEP 6: SUCCESSFUL CONNECTION

LED activity light will light up when the

webcam is in use by any video application.

LED activity lights:

• Video ON / Audio ON: White

• Video ON / Audio OFF: White

• Video OFF / Audio ON: Yellow

• Video OFF / Audio OFF: No light

• Firmware Update: Breathing Lilac

2. Rotate the dial on the right side of the

webcam to open/close the privacy shutter.

3. Adjust the webcam by turning side to side

and tilting up and down to nd the best

framing for your video meetings.

6English

STEP 7: SHOW MODE

Easily show physical items in video calls by

tilting the camera down to present sketches,

objects, and work in progress. There are two

ways to use Show Mode:

1. If mount is secured with micro-suction

pad: Using one hand, tilt the camera

down to show your desktop, and tilt back

up to show yourself.

2. If mount is not secured with micro-suction

pad: Hold the mount still with one hand and tilt

the camera up or down with the other.

7English

STEP 8: LOGI TUNE

Logi Tune helps boost your webcam

performance with periodic soware and

rmware updates.

It is recommended to update your webcam.

To do so, download Logi Tune from

www.logitech.com/tune

ADJUSTABLE OPTIONS

• Show Mode

• Auto-framing

• Zoom adjustment

• Field of View (90°/78°/65°)

• Image adjustment

• Auto-focus

• Disable mics

• LED on/o for video and audio

www.logitech.com/tune

Brio 505

CONNECTED

Show Mode

RightSight

Field of view 90°78°65°

Zoom

Image adjustments

Disable Show Mode

8English

STEP 9: OPTIONAL ATTACH TO A TRIPOD

For placement on a tripod (not included)

1. Rotate counterclockwise to remove

the mounting screw from the bottom of

the webcam.

2. Locate the ¼ inch tripod thread on the

bottom of the universal mounting clip.

3. Secure the webcam on your tripod by

twisting it into the ¼ inch thread.

4. Repeat the monitor placement setup

steps to best deploy your webcam.

5. Please refer to step 5 and 6 to complete

your webcam setup.

9English

DIMENSIONS

WEBCAM:

Height x Width x Depth:

1.2 in (31.5 mm) x 4.3 in (110 mm) x 1.2 in (31.5 mm)

Height x Width x Depth (incl. mount clip):

2 in (51.5 mm) x 4.3 in (110 mm) x 1.8 in (45 mm)

Weight: 4.2 oz (121 g), incl. mount clip & cable

Attached Cable length: 5  (1.5 m)

MOUNTING CLIP:

Height x Width x Depth:

1 in (25 mm) x 1.8 in (45.8 mm) x 2.6 in (65.1 mm)

Weight: 1.4 oz (40 g), incl. Removable mount adapter

Logitech Europe S.A. and/or its aliates in the U.S. and other countries. The Bluetooth® word mark

and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by

Logitech is under license. USB-C is a registered trademark of USB Implementers Forum. All other

trademarks are the property of their respective owners. Logitech assumes no responsibility for any

errors that may appear in this manual. Information contained herein is subject to change without

notice.

WEB-621-002245.00A

www.logitech.com/support/Brio505
