LONGHORN 4000 PRO Manuale utente
LONGHORN 4000 PRO
Touch Screen Smart Remote Control
User’s Manual
040130
i
Preface
About this manual
This manual is designed to make it easy to use the 4000-PRO
Touch Screen Remote Control as easy as possible.
Information in this document has been carefully checked
for accuracy; however, no guarantee is given to the
correctness of the contents. The information in this
document is subject to change without notice.
Copyright
© Copyright 2006
This document contains proprietary information protected
by copyright. All rights are reserved. No part of this manual
may be reproduced by any mechanical, electronic or
other means, in any form, without the prior written
permission of Longhorn Australia.
Trademarks
All trademarks and registered trademarks are the property
of their respective owners.
LONGHORN Customer Service & Support Info
URL: www.longhorn.com.au
ii
Table of Contents
Chapter 1 Introducing the 4000-PRO...............1
1.1 4000-PRO Features.................................................................2
1.2 Unpacking the 4000-PRO .....................................................2
1.3 Identifying Components.......................................................3
Chapter 2 Getting Started.................................4
2.1 Inserting the Batteries............................................................4
2.1.1 Battery Indicator......................................................4
2.1.2 Battery Tips and Precautions.................................5
2.2 About the Touch Screen.......................................................6
2.2.1 Turning the Touch Screen On................................6
2.2.2 Touch Screen Precautions.....................................6
2.2.3 Using the Touch Screen Soft Keys.........................7
2.2.4 Accessing Setup......................................................7
Chapter 3 Setting Up the 4000-PRO..................9
3.1 Customizing the LCD Layout................................................9
3.2 Code and Learn Setting Key .............................................11
3.3 Using Pre-programmed Code to Program Devices.......12
3.4 Using Learning Function to Customize 4000-PRO ...........15
3.4.1 Before Using Learning Function ..........................15
3.4.2 Learning from Another Remote Control............15
3.4.3 Deleting Key Codes and Device Codes...........18
3.5 Resetting the 4000-PRO to Factory Defaults....................19
3.6 Macro Function....................................................................21
iii
3.6.1 Creating a Macro................................................. 21
3.6.2 An example to create a Macro........................ 23
3.6.3 Macro Interruption................................................ 25
3.6.4 Viewing the Macro Key ....................................... 25
Chapter 4 Miscellaneous Settings..................26
4.1 Using the Transmission Function......................................... 26
4.2 Setting the Backlight........................................................... 28
4.2.1 Setting the Backlight............................................. 28
4.2.2 Setting Backlight Sensitivity................................. 29
4.3 Turning Off the Beep Signal ............................................... 30
Chapter 5 Controlling Devices.......................31
5.1 Alternating Between Screens............................................ 31
5.2 Controlling Devices............................................................. 31
Appendix A Functions and Specifications...32
Functions..................................................................................... 32
Specifications............................................................................. 33
Appendix B Accessories...............................34
Appendix C Troubleshooting........................35
Troubleshooting Tables ............................................................. 35
iv
1
Chapter 1 Introducing the 4000-PRO
Congratulations on your purchase of the 4000-PRO Touch
Screen Remote Control. The 4000-PRO is a digital universal
remote control that is easy to use, enabling you to control
all of your electronic devices equipped with an infrared (IR)
remote.
The 4000-PRO uses a user-friendly Touch Screen panel. You
can control up to eight devices, including VCRs, DVDs, TVs,
and satellite dishes.
The 4000-PRO enables you to quickly configure each
device in your household or office by using the innovative
“learning eye” feature. In addition, the advanced Macro
function enables you to initiate a chain of up to 60
commands with the touch of a single key.
The 4000-PRO, a simple and user-friendly remote, provides
you with a complete central control solution.
NOTE:
This manual helps you to learn how to use the advanced
features of the 4000-PRO. However, it does not explain how
to use the functions of your devices. Please refer to the user’s
manuals of your devices for further information.
4000-PRO User’s Manual
2
1.14000-PROFeatures
zLarge touch screen display
zMacro function, each Macro can store 60
commands at most
zControls up to eight devices including DVDs, TVs,
Satellite Receivers, VCRs, and CDs
zLearns the IR codes from your existing remotes to
control your devices quickly
zPre-programmed codes for many remote controls
zUser-programmable keys for each device, up to 56
keys in total
zAutomatic shutoff after 90 seconds of inactivity
1.2Unpackingthe4000-PRO
After unpacking the 4000-PRO, please check out the
contents to make sure that the following items are
included.
1. 4000-PRO
2. User’s Manual
3. Pre-programmed Code List
If any of the above items is missing or appears to be
damaged, please contact your dealer immediately. Please
do not throw the package away in case you need to ship
your 4000-PRO.
3
1.3IdentifyingComponents
Refer to the following illustration to identify the components of
the 4000-PRO.
1. Infrared Eye
Point the infrared eye at
the device you want to
operate.
2. Light Sensor
Detects ambient light to
automatically turn on the
backlight.
3. LCD Touch Screen
The LCD panel enables you
to configure and operate
your devices by touching
the screen.
4. Backlight
Automatic blue backlight
illuminates in a dim
environment.
5. Device keys
Press these keys to display
the LCD layouts for the
specific devices as below.
6. Learning Eye
Point your original remote
control to the learning eye
and press the
corresponding keys to send
out the IR signals; so that
the 4000-PRO can learn the
IR codes for your devices.
Figure 1: Front View
1. Infrared Eye
2. Light Sensor
3.
LCD Touch Screen
4. Backlight
5. Device Keys
6. Learning Eye
4
Chapter 2 Getting Started
This chapter provides the information helping you to use the
4000-PRO quickly.
2.1InsertingtheBatteries
The 4000-PRO operates on three AAA alkaline batteries (not
included in the package). Batteries must be inserted before
you can operate the 4000-PRO.
1. Lift the battery cover.
2. Insert three AAA batteries according to the polarities
inside the battery compartment.
3. Snap the battery cover back.
2.1.1BatteryIndicator
Battery low icon

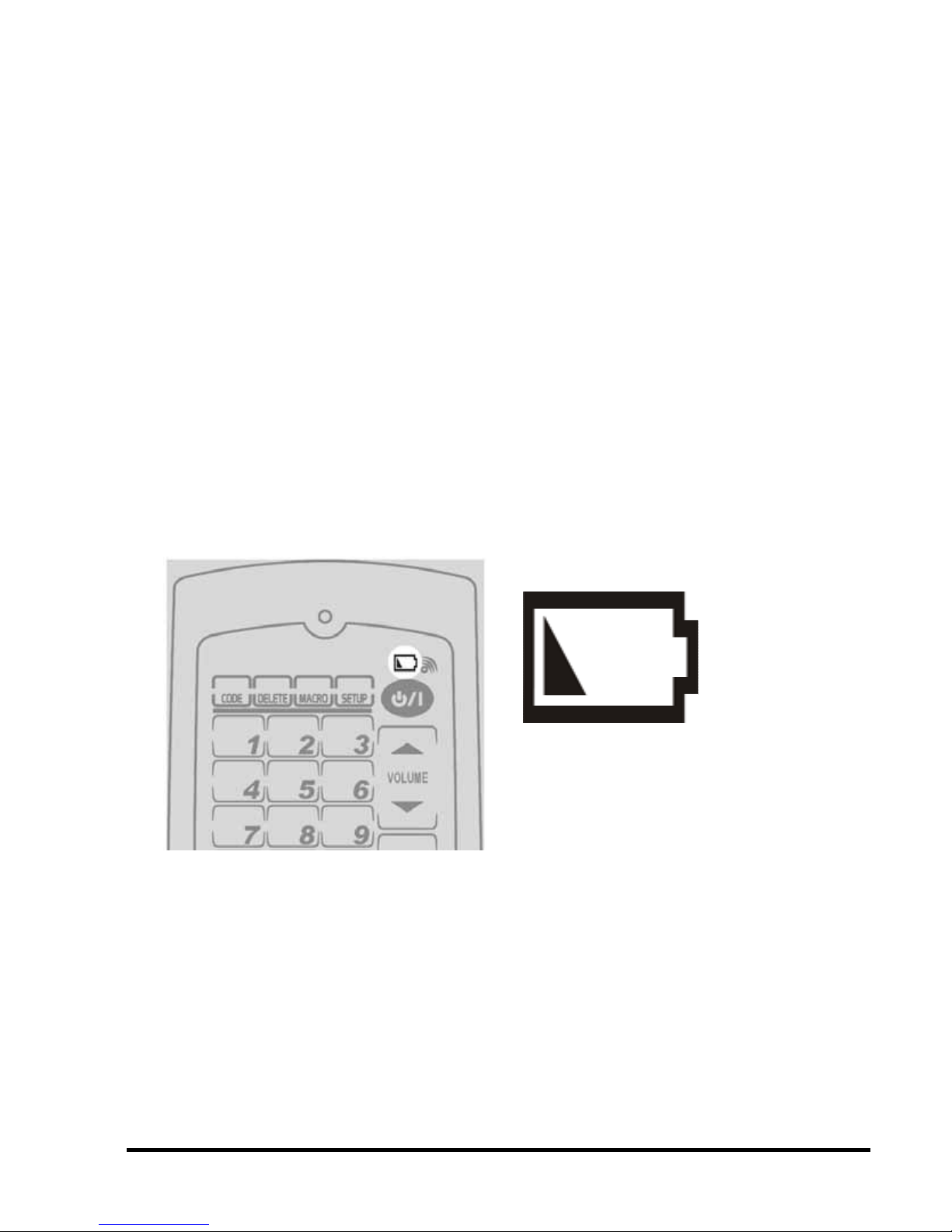

Figure 2: The Battery Low Icon
When the power of batteries is weak, the “battery low” icon
is displayed in the upper right corner.
