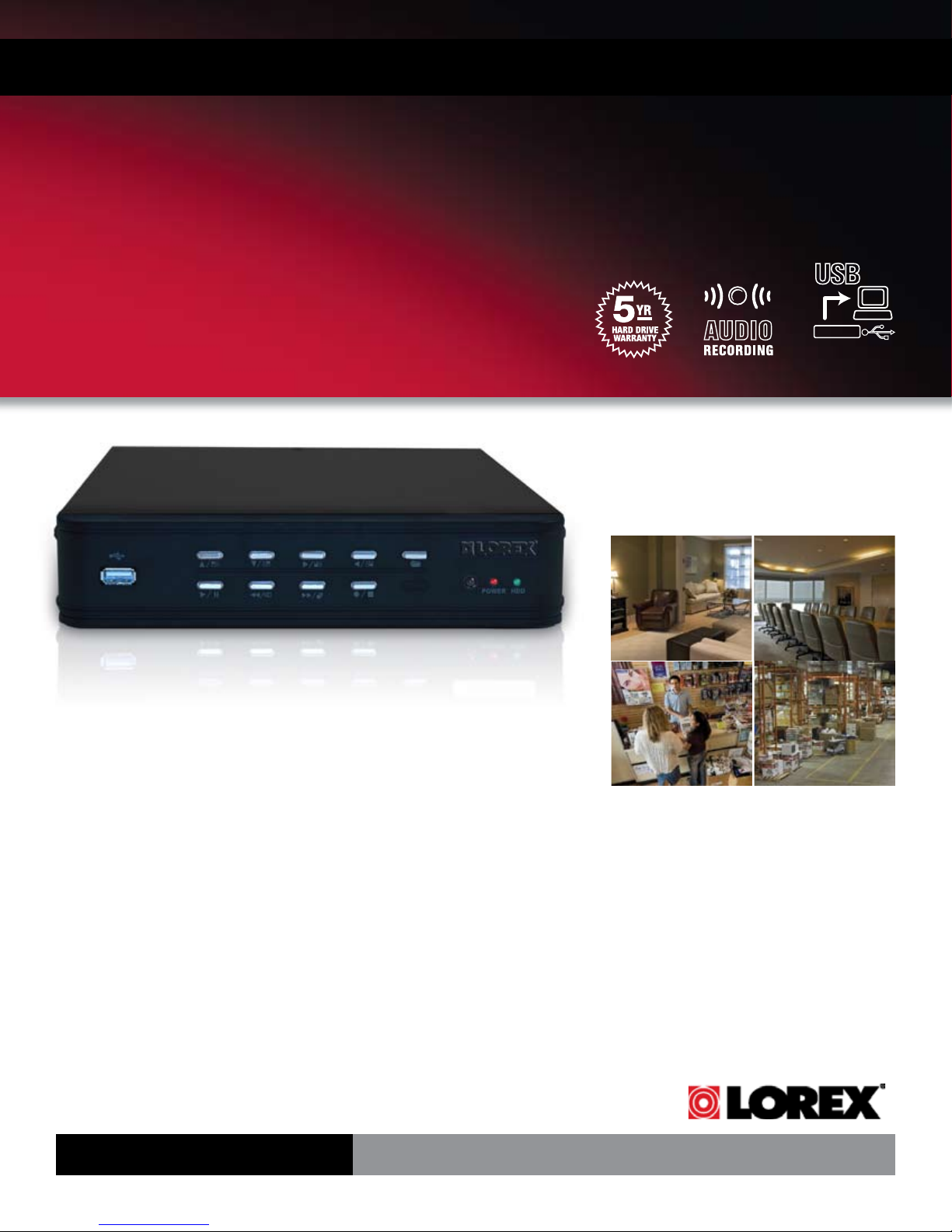

Lorex L114V251 Manuale utente

COMPACT, DISCRETE DESIGN, AUDIO RECORDING

DIGITAL VIDEO SURVEILLANCE RECORDER

L114V Series DIGITAL VIDEO SURVEILLANCE RECORDER

www.lorexcctv.com

HOME & BUSINESS SECURITY

BACKUP

HOME BUSINESS

RETAIL INDUSTRY

It’s everything you need for business

or home!

CONNECT easily: Easy local connection.

SEE and hear: Excellent quality live and

recorded video and audio. VGA resolution

display on TV or PC screen.

RECORD accurate video & audio: MJPEG

compression enables high resolution video

recording on “Security certified” Hard Disk

or USB. Supports up to 500GB of data

storage.

PROTECT what matters: Live and recorded

video helps to protect your business,

home and anything else that matters at an

affordable price.

•

Small (9 x 12 x 2”) discrete component size.

Easy set up and operation.

MJPEG video compression.

Display camera images in single or quad mode.

Record and playback simultaneously.

Password protection.

Optional composite and VGA output (included in

L114V Series).

•

Features:

COMPACT, DISCRETE DESIGN, AUDIO RECORDING

DIGITAL VIDEO SURVEILLANCE RECORDER

Speciﬁcations:

Image size 12 Kbyte (Normal), 15 K byte (HIGH) 20K byte (Highest)

Video inputs 4 x 1Vp-p, 75 ohms, BNC

Audio inputs 1 x line-in, RCA

Audio output 1 x line-out, RCA

Supply voltage 12VDC , 4.A,(AC100V-240V 50/60Hz)

Power consumption Approx. 60 watts

Operating Temp. Range 10° ~ 40° C

Hard disk capacity 250GB HDD (Max 1000 G), 100% duty cycle,

Operating System Embedded RTOS

Backup USB Default (USB memory stick)

Back-up ﬁle formats VIDEO: VVF , picture: BMP

Compression Modiﬁed Motion Jpeg

Recording speed 60/50 (NTSC/PAL) ,

Record Scheduling Manual/ Motion Record/Time Record

Pre/Post alarm recording Alarm recording 5-30 Secs(motion)

Event/Log search Up to 127 for user login/out, conﬁguration

changes, remote access, connects/disconnects

Playback Single, Quad

Activity detection Sensitivity levels: 4, motion detection

Dimension (unit): 8.6”(220mm) x 11.3”(288mm) x 1.8”(48mm) (W x D x H)

Weight (unit): 3.4lbs (1.5kg)

VGA Video OUT Video IN Audio IN/OUT DC-12V

As our product is subject to continuous improvement, Lorex

Technology & subsidiaries reserve the right to modify product

design, specifications & prices without notice and without

incurring any obligation. E&OE

3700 Koppers Street

Baltimore, Maryland 21227,

USA.

Lorex Technology Inc.

300 Alden Road, Markham,

Ontario L3R 4C1

Canada.

27012009

Dimensions:

Front

Side

1.8” (48mm)

8.6” (220mm)

11.3” (288mm)

Product Information:

Model#: L114V251: with 250GB HDD

UPC Code: 7-78597-41625-1

Weight: 2.86kg/6.3 lbS

Cube: 0.01m / 0.39ft

Package

Dimensions:

400mm x 327mm x 85mm

15.7” x 12.9” x 3.35” (W x H x D)

Includes: DVR, Remote Control, Power Supply, Software CD

Back Panel:
