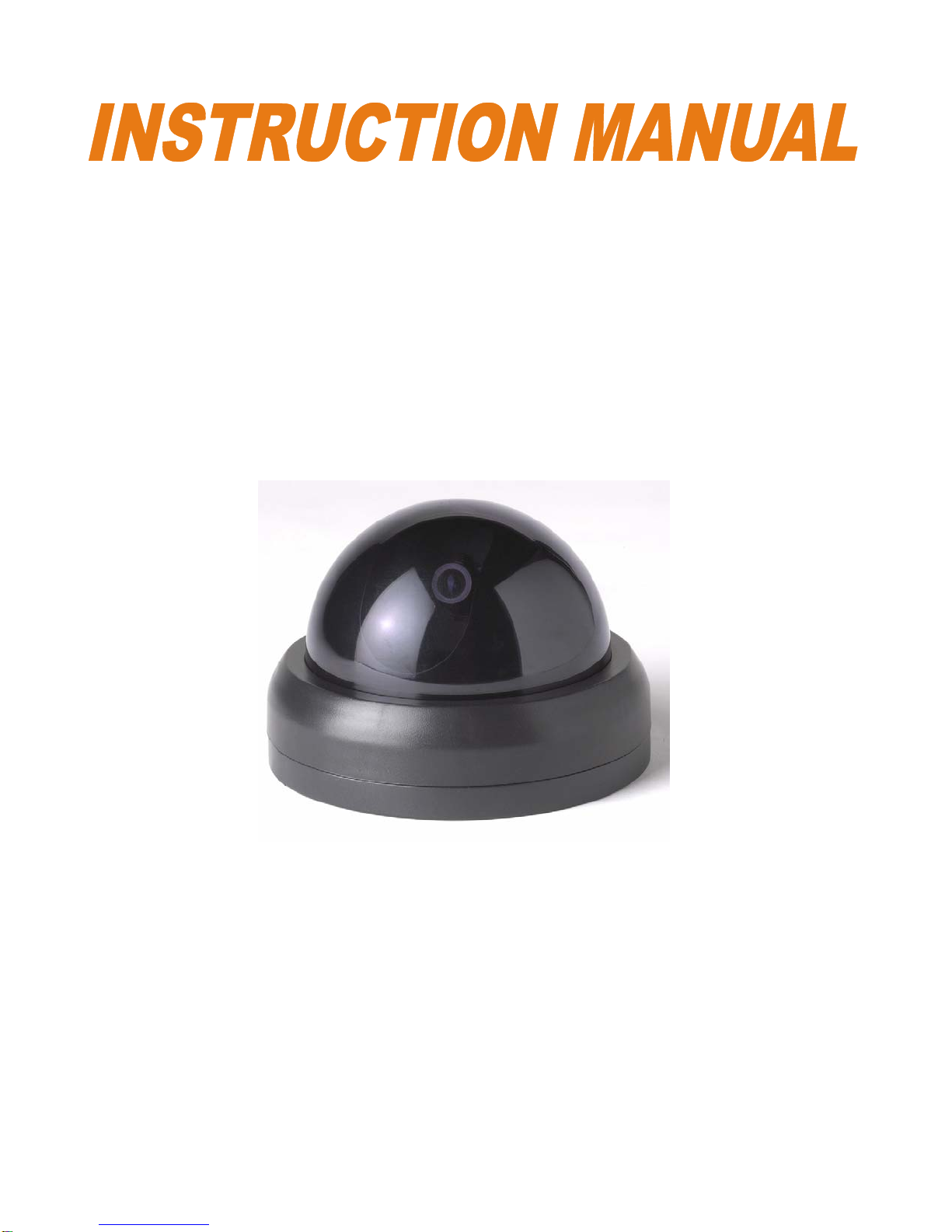

1/3”B&W CCD DOME CAMERA

FOR OBSERVATION SYSTEMS

SG7120

BEFORE OPERATING THIS SYSTEM, PLEASE READ THIS MANUAL THOROUGHLY

AND RETAIN IT FOR FUTURE REFERENCE

FOR MORE INFORMATION

WWW.STRATEGICVISTA.COM

Thank you for purchasing the accessory B&W dome camera for use with your observation

system. LOREX is committed to providing our customers with a high quality, reliable security

product that customers have come to expect from us.

This camera features a 1/3-inch Black & White CCD lens, allowing for excellent picture quality

under varying conditions, plus the added benefit of Listen-in audio. The compact smoked acrylic

dome housing blends with any décor and provides discrete video surveillance.

You can easily connect the dome camera any B&W LOREX, Home Sentinel or Sylvania

observation system. The camera receives power directly from the monitor

To learn more about this Dome Camera and see the complete range or Lorex products, please

visit our website at:

www.strategicvista.com

SYSTEM INCLUDES:

B&W DOME CAMERA 1 - 65 FT CABLE

OWNER’S MANUAL

CHECK YOUR PACKAGE TO MAKE SURE THAT YOU RECEIVED THE COMPLETE

CAMERA SYSTEM, INCLUDING THE COMPONENTS SHOWN ABOVE

MOUNTING BRACKET

• Compatible with Lorex, Sylvania and Home Sentinel Observation Systems

• 1/3” B&W CCD camera, fixed lens

• 380 lines, 0.5 lux

• Indoor Dome Camera System

• Light Weight, Compact Size

• One-way audio communication (listen-in)

• Smoked housing provides unobtrusive appearance

• Manually rotate camera 360°and/or tilted 90°for optimum angle selection

FEATURES:

-2-

-3-

CAMERA COMPONENTS:

1. Camera Lens – Delivers high quality image by using a

1/3” B&W CCD Image sensor

2. Plastic Bubble Housing - Smoked acrylic housing

protects lens and provides an unobtrusive appearance

3. Camera Input – Connect the extension cable to the

back of the monitor

4. Microphone – Picks up sound around the camera

Base Plate

Adapter Plate

Drywall Anchors

Screws

INSTALLATION:

Please refer to the camera component installation diagram above. To install the dome camera on a ceiling or

wall, follow these procedures:

1. Unscrew the base plate from the dome camera

2. Using the 2 screws and drywall anchors mount the base plate and adapter plate on the

wall or ceiling

3. Screw the dome camera onto the mounting bracket (base and adapter plate)

4. Connect the 65ft Din cable (included) to the male lead of the dome camera

5. Connect the other end of the 65ft cable to one of the camera inputs on the back of the

monitor and power unit

6. Adjust the camera direction for the desired picture view

Before installation make sure that:

(A) You have the proper lift equipment or ladder to

reach the installation

(B) Electrical power is not connected to the dome

camera and surveillance monitor during

installation

-4-

Dome

Camera

Camera input

Monitor

IMPORTANT NOTE:

Keep camera installed away from direct

sunlight. Also avoid places where humidity

and moisture are high.

Typical Configuration showing a dome camera connected to an Observation System:

OPERATION:

Since this camera has a fixed lens, the camera lens must be adjusted manually to the desired position for

optimum viewing before installing the plastic bubble housing on the base plate.

TECHNICAL SPECIFICATIONS:

62 degrees horizontallyViewing Angle

1.3Vp-p (at 0.5M from camera)Audio Output

Powered from monitor via cablePower Supply

-10°C ~ +50°C (-14°F ~ 122°F)Operating Temperature

5” (Diameter) x 3.5”(Height)Dimensions

1.1Vp-p (75 Ohms)Video Output

0.5 Lux (F2.0)Minimum Illumination

More than 46dBS/N Ratio

1/60 ~ 1/100,000 sec.Shutter Speed

3.6mm, F2.0Lens

380 LinesHorizontal Resolution

510(H) x 492(V)Effective Pixels

1/3" B&W CCDImage Sensor

Distributed By:

STRATEGIC VISTA

300 Alden Road, Markham, Ontario, Canada L3R 4C1

For more information: www.strategicvista.com

As our products are subject to continuous improvement, SVII and its subsidiaries reserve the right to modify

product design, specifications and prices, without notice and without incurring any obligation. E&OE
