Lorex SG15F6584 Manuale utente
www.lorexcctv.com
SG15F6584 Page 1
BUSINESS & HOME SECURITY
STEP 1
SETTING UP YOUR MONITOR FIRST
Package Contents
4Turn the Master
Power switch ON
(located at the back
of the Monitor).
2Connect one end of the ethernet
cable to a broadband router (not
included) and the other end to the
back of the monitor.
5View Picture Image
on Monitor.
3Connect one end of
the power cord to the
monitor, the other
end to an electrical
outlet.
Information in this document is subject to change without notice. As our products are subject to continuous improvement, Lorex Technology and our subsidiaries reserve the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE © 2006 LOREX. All rights reserved.
1Connect Cameras to
Monitor.
Connect the first camera to the
CH1 input. Follow the same
steps to connect the other 3
cameras to the CH2, CH3, CH4
camera inputs
BACK OF THE MONITOR
BACK OF THE MONITOR
BACK OF THE MONITOR
BACK OF THE MONITOR
ROUTER (NOT INCLUDED)
1 - 15” Flatscreen Quad Monitor
4 - Color Cameras with Sunshade Housing
4 - 57 ft Extension Cables
4 - Camera Brackets
1 - Remote Control
1 - Ethernet Cable
1 - Set Up CD Rom
1 - Power Cord
1 - Owner’s Manual
1 - Quick Installation Guide
1 - BROADBAND ROUTER REQUIRED - NOT INCLUDED
www.lorexcctv.com
SG15F6584 Page 2
BUSINESS & HOME SECURITY
STEP 2
SET UP LOCAL VIEWING ON YOUR PC SECOND
5(a)
Enable Active X.
To do this, open
your web browser
to enable Active X.
Information in this document is subject to change without notice. As our products are subject to continuous improvement, Lorex Technology and our subsidiaries reserve the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE © 2006 LOREX. All rights reserved.
2Select LOREX
IP Edit Program
option and follow
instructions from
the dialog boxes
to guide you
through installa-
tion.
1Insert the network
video CD software into
the computer’s CD
ROM drive.
4Record the 12 digit IP and the 12 digit
MAC Addresses
IP ADDRESS : . . .
MAC ADDRESS :
(record the period. It is part of the IP Address)
(DO NOT record the colorn (:))
NOTE: Active X must be enabled to set up the system. If it is already set up
proceed to Step 6, otherwise continue to Step 5.
3Double click on the
item listed under
‘Monitor Lists’ to
automaically set local
viewing settings.
NOTE: Click here
to automatically
set viewing
settings
Second, click the
settings button
in the temporary
internet file option
and check ‘Auto-
matically’ followed
by OK. Close the
‘Settings Window’.
5(b)
NOTE: Click
“Tools” and select
“Internet Options”
www.lorexcctv.com
SG15F6584 Page 3
BUSINESS & HOME SECURITY
STEP 2
SET UP LOCAL VIEWING ON YOUR PC SECOND - Continued
Information in this document is subject to change without notice. As our products are subject to continuous improvement, Lorex Technology and our subsidiaries reserve the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE © 2006 LOREX. All rights reserved.

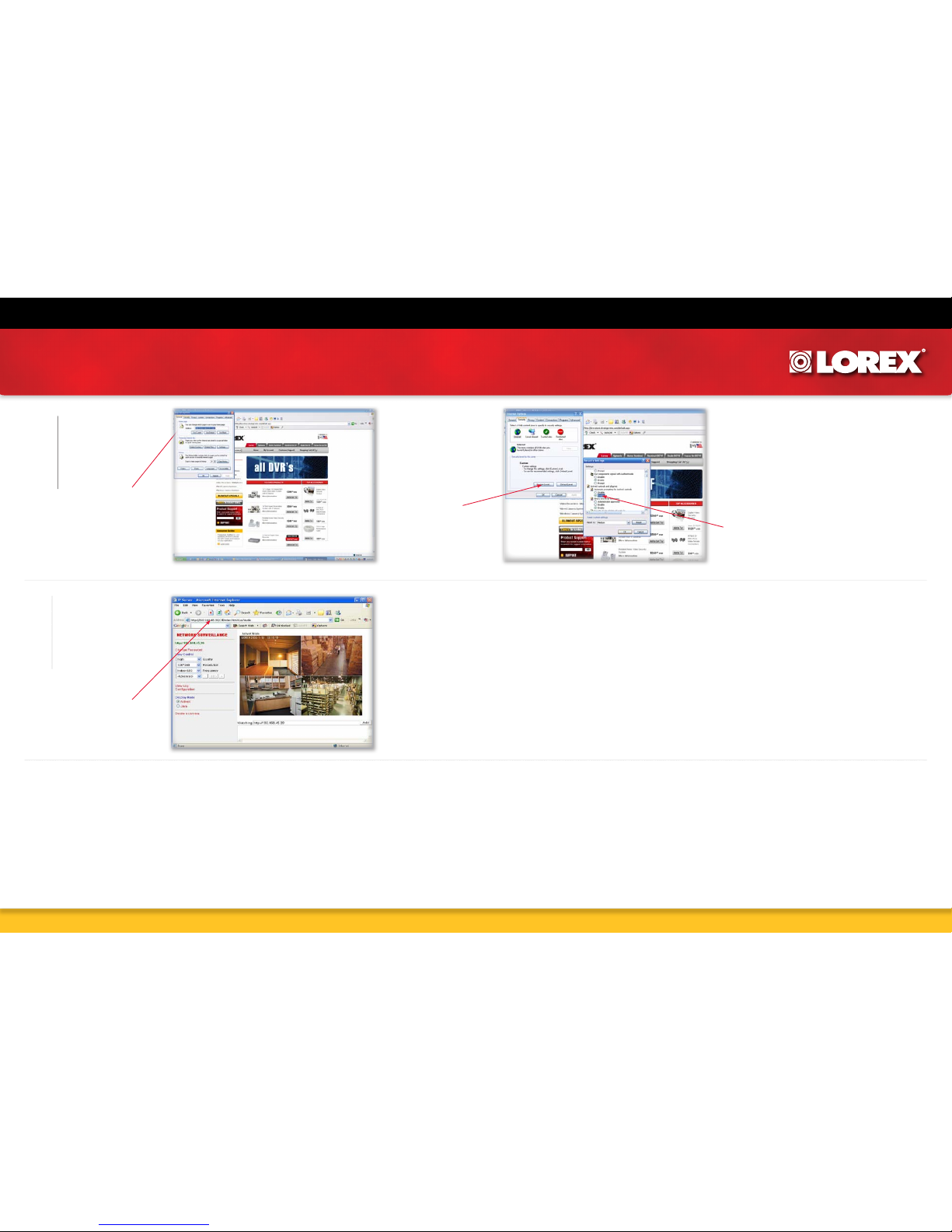

5(c)
Third, set the
Security level
to run Active X
by clicking the
Security tab.
NOTE: Click the
Security tab
Open the web
browser and enter
on the address bar
your computer’s IP
address to view the
picture.
6
NOTE: Enter
your computer’s
IP Address you
recorded in Step 2
Section 4
FOR ADVANCED SETTINGS REFER TO YOUR OWNER’S MANUAL OF THIS PRODUCT
NOTE: Fourth,
select the ‘Custom
Level’ button
NOTE: Finally, enable all
Active X settings in the
security settings window
followed by pressing the
OK button
www.lorexcctv.com
SG15F6584 Page 4
BUSINESS & HOME SECURITY
STEP 3
SET UP INTERNET REMOTE MONITORING THIRD
Information in this document is subject to change without notice. As our products are subject to continuous improvement, Lorex Technology and our subsidiaries reserve the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE © 2006 LOREX. All rights reserved.
2Enter ‘ddns.strategicvista.
net’ in the address bar.
1Port Forward your Router FIRST before proceeding with the Set-up (you
must Port Forward Port 80).
All routers are different. To Port Forward your Router:
Refer to your Router’s manual for specific instructions on port forwarding
(or)
Check the Router configuration guide support document in the consumer
guide section on our website http://lorexstore.strategicvista.com/article.
aspx?aid=3 and select Router Configuration Guide
3Click Create Account
option 4Complete new account
information
1. FOR PRODUCT LICENSE select the
SG15F6584 option from the drop down menu.
2. FOR PRODUCT CODE enter your computer’s
MAC address (recorded in step 2, section 4).
3. FOR URL REQUEST enter a unique URL name
(eg. Johndoe). Note: An URL name should not
be more than 8 characters.
5An Automated
Registration
Confirmation
Email will be
sent to your
email. Print
and Save this
Registration
Confirmation.
Service Provider: ddns.strategicvista.net
Domain name: house.strategicvista.net
User name: John Doe
Password: <leave this field blank>
Use Public IP to Register: Yes
Open your web
browser and enter
the monitor’s IP
address
6
NOTE: Enter the
IP Address you
recorded in Step 2
Section 4
Click the
Configuration
option
7
1 2
3
Create Account
http://ddns.strategicvista.net
www.lorexcctv.com
SG15F6584 Page 5
BUSINESS & HOME SECURITY
1. Enable: Click on the Radio Button (circle)
2. UserName: Enter the user name from your confirmation of
registration email
3. Password: <leave blank>
4. DomainName: Enter the domain name from your confirmation
of registration email.
5. Make sure the interval is set to 15 minutes
6. Click Submit
STEP 3
SET UP INTERNET REMOTE MONITORING THIRD - Continued
Information in this document is subject to change without notice. As our products are subject to continuous improvement, Lorex Technology and our subsidiaries reserve the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE © 2006 LOREX. All rights reserved.
It’s all on the web
Product Information
User Manuals
Quick Start Guides
Specification Sheets
Software Updates
Firmware Upgrades
FOR ADDITIONAL INFORMATION OR TROUBLESHOOTING HELP, REFER
TO YOUR OWNERS MANUAL FOR ASSISTANCE. YOU CAN ALSO CALL OR
EMAIL FOR FURTHER SUPPORT.
TOLL FREE TECHNICAL SUPPORT: 1-888-42 LOREX (1-888-425-6739)
WEBSITE: WWW.LOREXCCTV.COM
8
10 Open your Web
Browser and enter
your Domain Name
to view the picture
remotely
9Enable Network Surveillance
option, enter User Name
and Domain Name
NOTE: Please allow 15 minutes for your entries to be registered.
Click DDNS Option
NOTE: Enter your
Domain Name (i.e
john.strategicvista.
net) to View
Picture.
