Lorex SHS-2S7LD Series Manuale utente

The SHS System comes with the following components:

• 1x 7” LCD Monitor

• 2x Weather resistant Color Day/Night*IR Cameras with Stand

• 2x 60’ Extension Cables

• 1x AV Cable

•2 x Phone Jack RCA Cables

• 1x Monitor Stand

• 1x Wall Mounting Bracket

• 1x Power Adapter

Getting Started

AV Cable

Phone Jack RCA Cables Wall Mount Bracket

60’ Extension Cables

Monitor Stand

Power Adapter

7” LCD Monitor with 2 Cameras

Before you install the camera, carefully plan where and how you will position the camera, and where you will route the cables.

A. Connect Cameras

Connect the DIN female end of the supplied 60’

extension cables to the cameras.

NOTE: Confirm that the arrows on the DIN Camera Cable and the

DIN Extension cable are aligned when connecting the cable. If the

pins in the DIN Cable are bent, the Camera will NOT function.

* IR illumination range up to 13ft. (4M) under ideal conditions. Objects at

or beyond this range may be partially or completely obscured depending on

the camera application. Picture changes from Color to B&W under low light

conditions.

** Not for use in direct exposure to water, rain or snow

SHS-2S7LD SERIES

QUICK SET-UP GUIDE

STEP - 1

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Time Tools Skills - Easy

Under 30 Minutes* Hand Tools Plug & Play connectors, On

screen set up

* Installation time may vary based on

application and camera cabling

7” LCD VIDEO SURVEILLANCE SYSTEM

WITH 2 DAY/NIGHT*INDOOR/OUTDOOR** CAMERAS

B. Connectivity Diagram

Check your package to conﬁrm that you have received the

complete system, including all components shown above.

2Connect the other end of the extension cables to

the short phone jack RCA Cables.

Connect the short phone jack

RCA Cable to the bottom of the

monitor.

Monitor Bottom

QSG_EN_R1

Connect one end of the power adaptor to the

power outlet and the other end to the monitor

2 x Cameras

2 x 60’ Extension Cables

7” LCD Monitor

Phone Jack RCA CablesPower Adapter

Counter/Table Vertical “Picture” Frame Tilted

MOUNTING OPTIONS

Wall Mount

(bracket included)

Stand Mount - For Flexible

Viewing Angles

Turn ON the monitor by pressing the Power ON/Off button located on the side of the monitor.

Channel Display LED Indicator:

• Select the channel you wish to watch by pressing the channel selection button on the monitor. A permanent

green light will appear in the relevant channel (1 or 2).

• Press the channel selection again to switch to the second channel.

• Press one more time for an auto switching mode. Green light will ﬂash.

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Time Tools Skills - Easy

Under 30 Minutes* Hand Tools Plug & Play connectors, On

screen set up

* Installation time may vary based on

application and camera cabling

7” LCD VIDEO SURVEILLANCE SYSTEM

WITH 2 DAY/NIGHT*INDOOR/OUTDOOR** CAMERAS

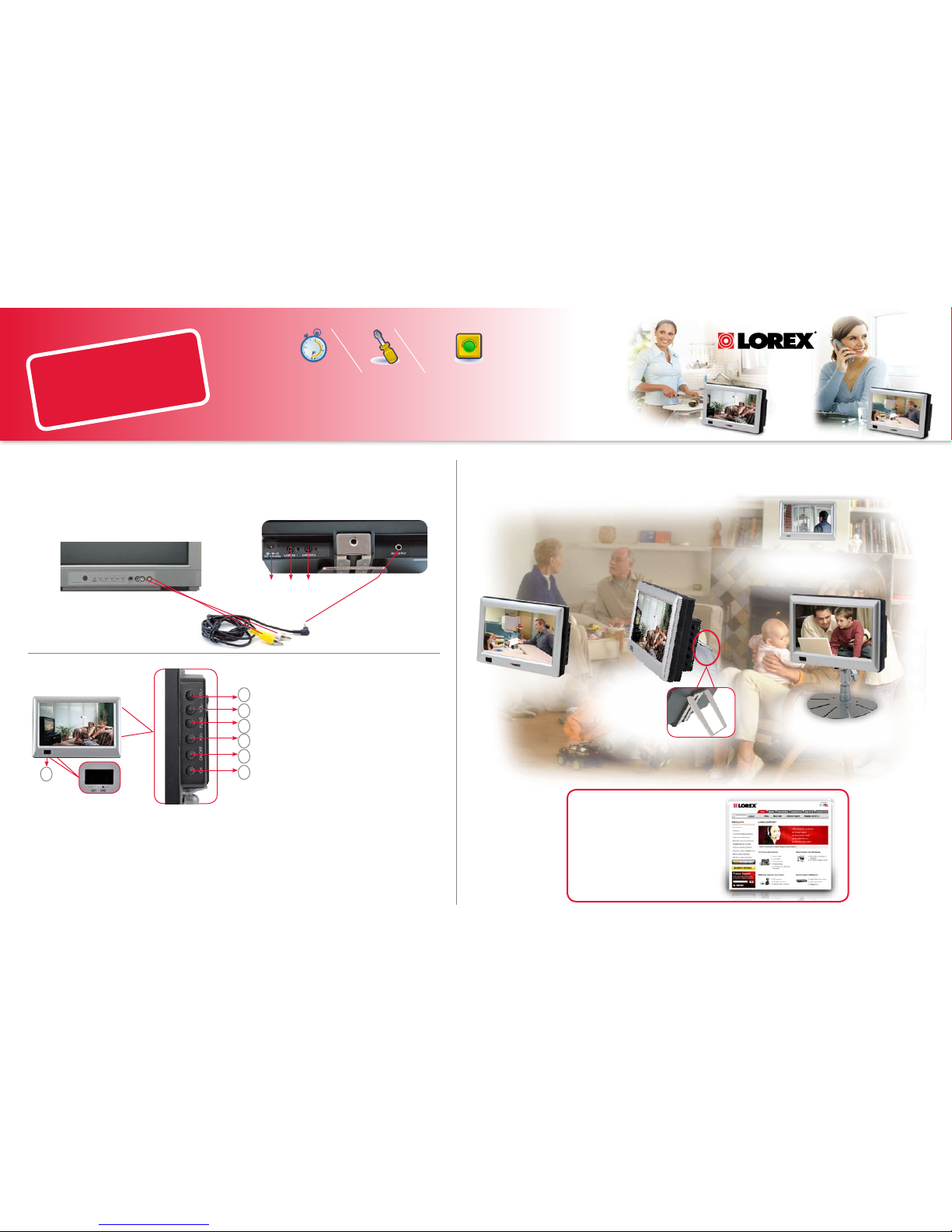

7” LCD MONITOR (PORTS)

Connect the phone jack end of the Audio/Video Cable to the A/V Output at the

bottom of the monitor. Connect the other end (Video - Yellow, Audio - White)

to your TV/VCR or Monitor (not included).

SHS-2S7LD SERIES

QUICK SET-UP GUIDE

STEP - 2

It’s all on the Web

For detailed setup information,

please refer to your User’s Manual.

For additional information, please

visit our website

www.lorexcctv.com/support

www.lorexcctv.com

QSG_EN_R1

OPTIONAL STEP

1. Channel display LED indicator

2. Volume / brightness button control (+)

3. Volume / brightness control (-)

4. Function key (OSD for brightness, contrast control)

5. Mirror-view function

6. Power ON/OFF

7. CH Select / Auto switch

DISPLAY

TV / VCR / MONITOR

A/V Cable

Power Camera 1Camera 2 A/V Output
