Lowrance Endura Out&Back Manuale utente

Sierra, Safari &

Out&Back

Operations Guide

Operation Manual

for

Sierra, Safari

and Out&Back

Endura GPS

™

No part of this manual may be copied, reproduced, republished, transmitted or distributed for any purpose, without prior

written consent of Lowrance.

Endura™ is a trademark and Lowrance® and Navico® are registered trademarks of Navico, Inc.

Accuterra® is a registered trademark and NEXTMAP® is a registered trademark of Intermap Technologies Corporation.

microSD™ is a trademark of the SD Card Association.

Navico may nd it necessary to change or end our policies, regulations and special offers at any time. We

reserve the right to do so without notice. All features and specications subject to change without notice.

For user manuals and the most current information on this product, its operation and accessories, visit our web site:

www.lowrance.com

Lowrance Electronics

12000 E Skelly Dr.

Tulsa, OK 74128-2486

WARNING: When a GPS unit is used in a vehicle, the vehicle operator is solely responsible

for operating the vehicle in a safe manner. Vehicle operators must maintain full surveillence of

all pertinent driving, boating or ying conditions at all times. An incident or collision resulting in

damage to property, personal injury or death could occur if the operator of a GPS-equipped vehicle

fails to pay attention to travel conditions and vehicle operation while the vehicle is in motion.

Contents

Table of Contents

Basic Operation............................... 2

Adjusting the backlight: ..................................2

Restore Defaults.............................................3

Touchscreen vs. Arrow/Mark keys..................3

Working with Menus .......................................3

Page Settings/Data Fields..............................4

Installing batteries...........................................4

Mini-USB Cable and microSD card ................5

Loading les onto Endura:..............................5

Pages................................................ 6

Map Page.......................................................6

Display Mode..................................................7

Orientation......................................................7

North Up .........................................................7

Course Up ......................................................7

Track Up .........................................................7

Detail Settings ................................................7

Satellite Page ................................................8

Trip Computer ...............................................9

Elevation......................................................10

Nav Status Page .........................................11

Compass Page............................................12

Main Menu: Map/Find.................... 13

Waypoints.....................................................14

Geocaches ...................................................16

Trails.............................................................17

Points of interest...........................................18

Address ........................................................18

Routes ..........................................................19

Navigating a Route.......................................20

Tools .............................................................20

Nav Options..................................................23

Specications ................................ 24

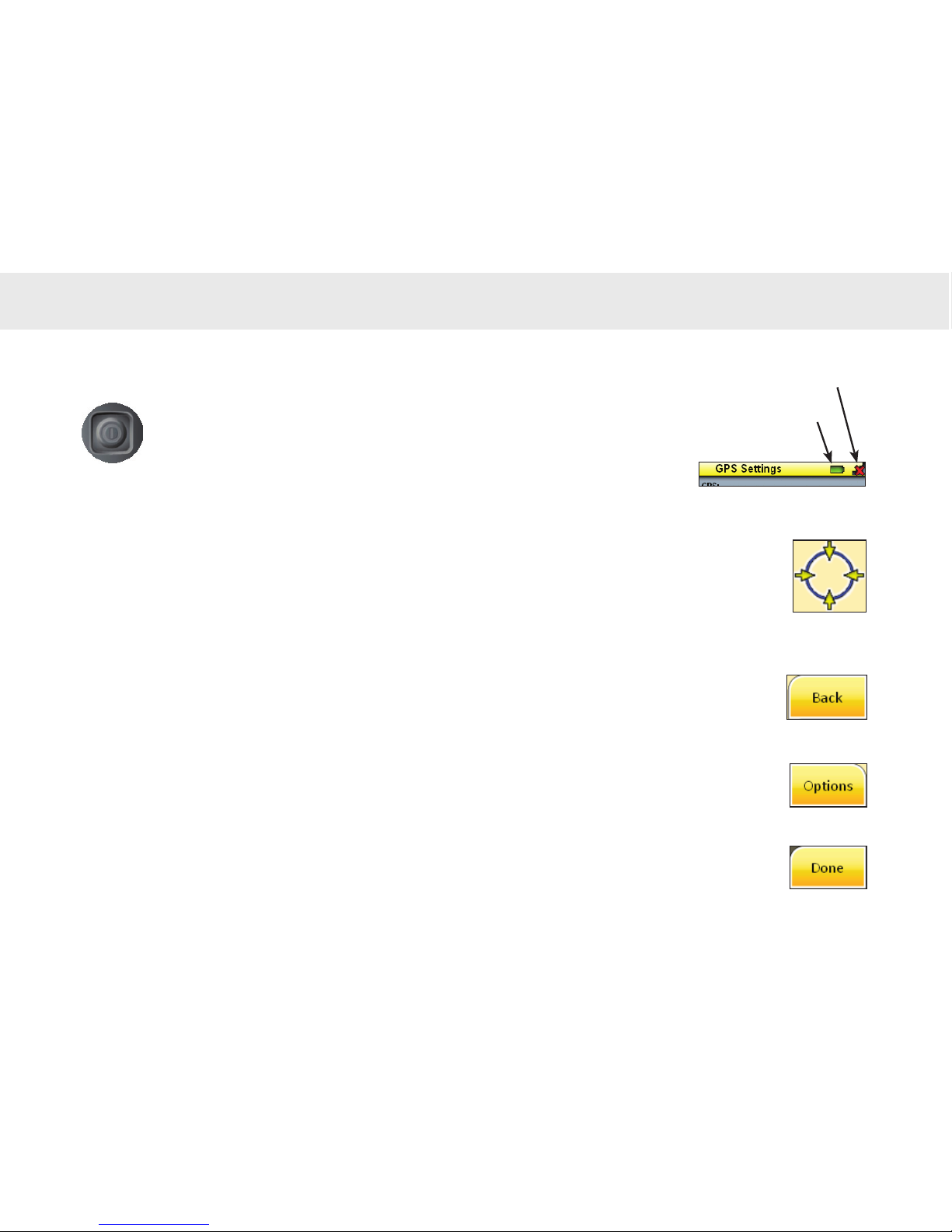

Titlebar

The titlebar is located at

the top of the screen.

It displays battery strength

and satellite reception

indicators.

Cursor

Selects objects on the Map page and

pans the map when using arrow keys.

The cursor will appear when you touch

the screen or press the arrow keys.

Back tab

Touching the Back tab will take you

back to the previous page.

Options/More Options

Touch the Options or More Options tab

to open context and settings menus.

Done tab

Touch the Done tab to nalize changes

and return to the previous page.

Basic Operation

Turning on Endura

Hold down the POWER key for three seconds to

turn on Endura. The rst time Endura is

turned on, the select Language screen will

appear. Touch the desired language.

Turning off Endura

Hold down the Power key for three seconds and the

Standby menu will appear. Continue to hold down

the power key to turn off the unit, or touch Standby

to switch the unit into Standby mode.

Standby preserves battery life without turning off

Endura. That allows you to resume using the unit

without going through the power-on sequence.

Backlight

Press the Power key to toggle the backlight on/off.

Adjusting the backlight:

Tap the1. POWER key to view the

backlight meter.

Drag your nger along the meter to 2.

make adjustments.

Battery strength

Satellite reception

Restore Defaults

Resets all device settings to factory defaults.

To Restore defaults:

Touch Settings on the Main menu.1.

Select2. Restore Defaults. A conrmation

message will appear.

Touch3. Yes.

Touchscreen vs. Arrow/Mark keys

You can use the unit’s touchscreen to access menus

and execute commands or do the same thing with

the arrow keys. When using arrow keys, press the

MARK key to nalize commands and selections.

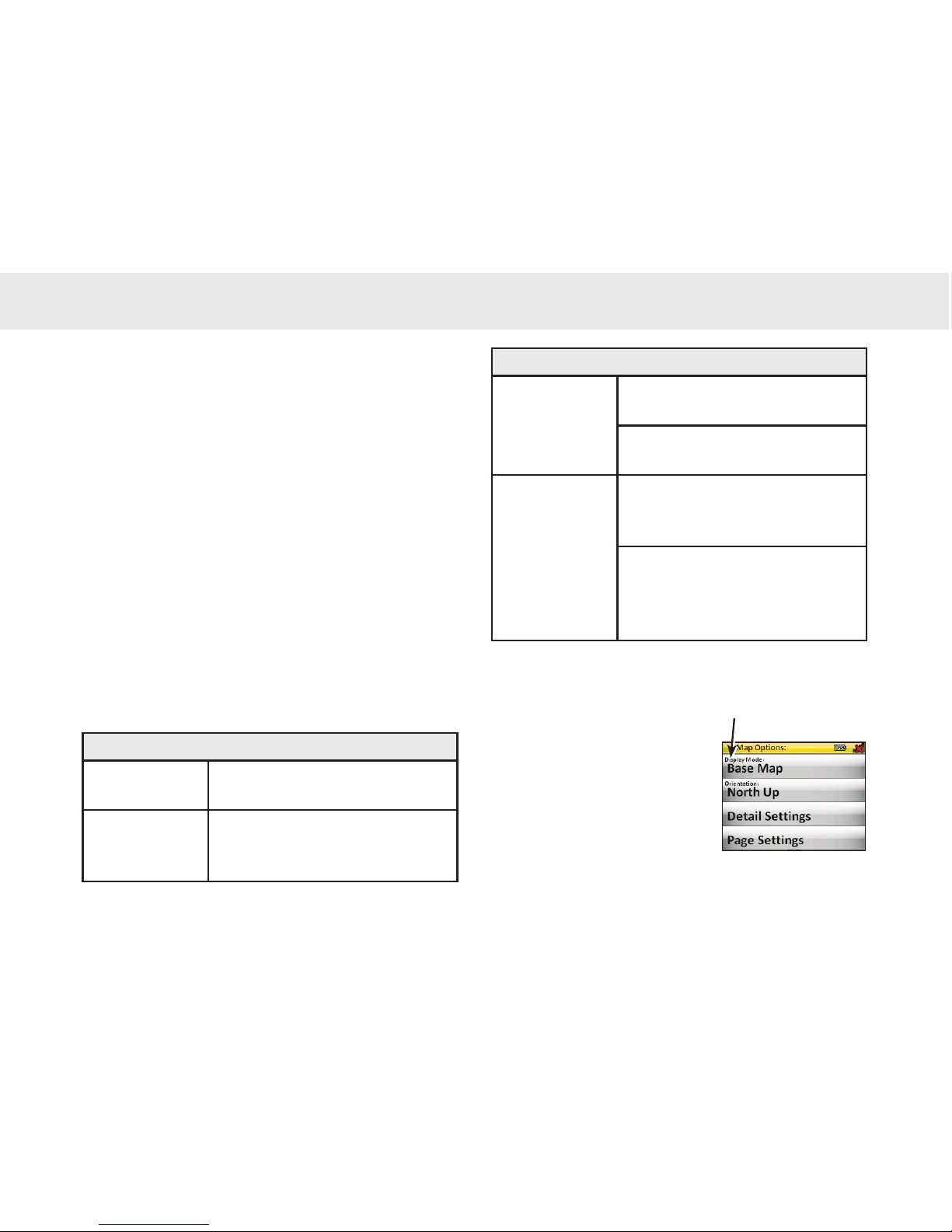

Working with Menus

The method for adjusting Endura menus varies from

menu to menu. Here are some tips on menu usage.

Accessing Menus

Main Menu

items

Press MENU key and touch

desired item

Page Options

From a main page, touch the

screen; if tabs appear, touch

the Options tab

Adjusting Features/Settings

Toggle

Setting changes each time

you touch the menu option

To adjust: Touch option eld

until desired setting is shown

Submenu

Submenu(s) appear when

feature/setting eld is

touched

To adjust: Touch desired

option on the submenu(s)

then touch Back or Done tab

to return to previous page

Page Options

Each Page has a page options

menu used to adjust its

features and settings.

When a page is selected,

touch the screen and/or

options tab to access its page

options.

Basic Operation

Map options menu

Display mode can

be toggled between

Base Map, Imagery

and Hybrid

Basic Operation

Powering the Endura

Endura uses two AA batteries. It can also be

powered with the mini-USB cable (not included

with Out&Back).

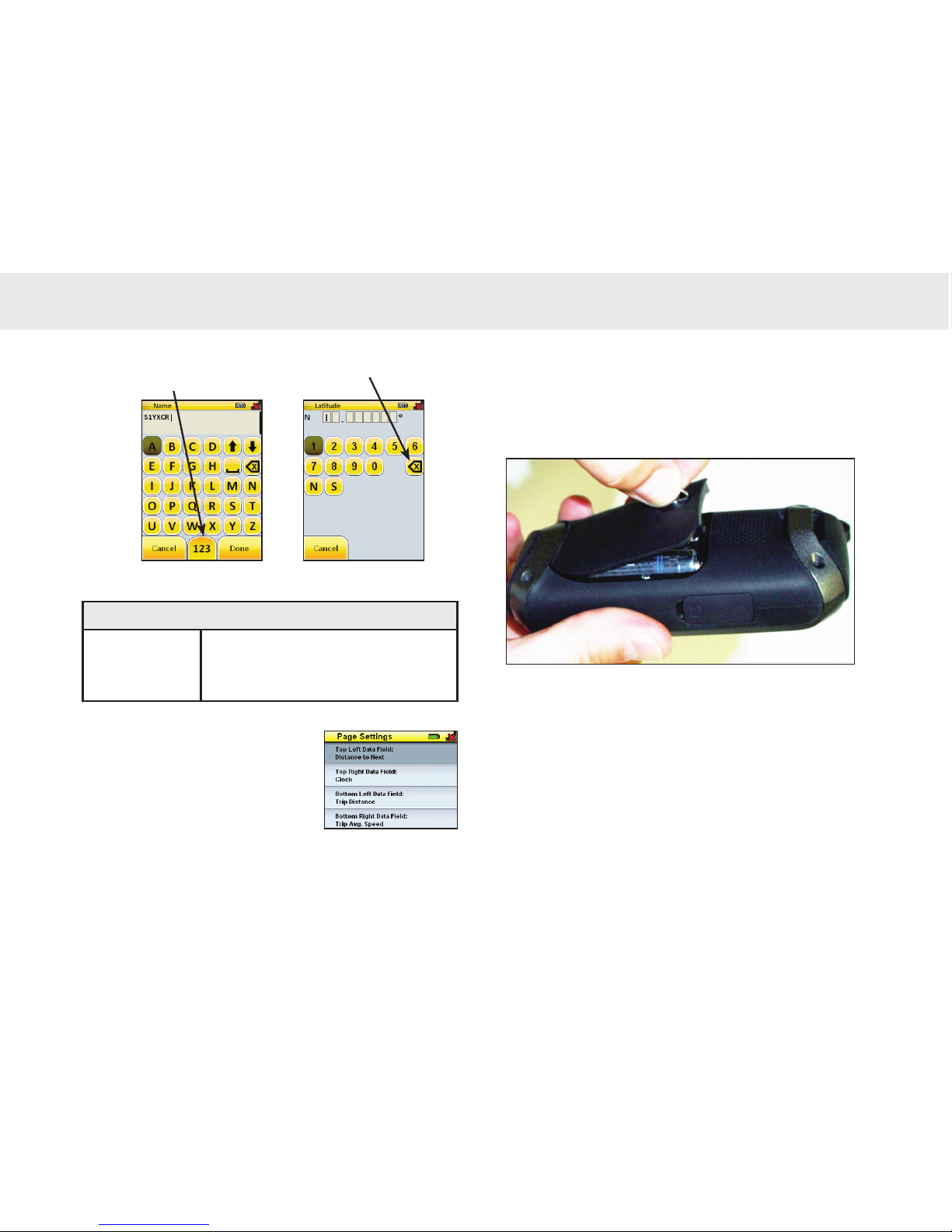

Installing batteries

Turn the battery cover D-ring counter-1.

clockwise, one-quarter turn.

Gently pull the D-ring to remove the2.

battery cover.

Observe polarity marks when installing3.

batteries.

Entering text/numerical values

Entering text

& numbers

Touch desired characters.

Touch Done tab when entry is

completed.

Page Settings/Data Fields

You can choose the data types

that will be displayed on the

Map, Trip Computer, Elevation

and Compass pages.

To make adjustments, touch the screen or options

tab and select Page Settings.

Alpha keypad Numeric keypad

Touch to display

numeric keypad Backspace/delete

GPX user les (trails, routes and waypoints) are

loaded onto Endura’s internal memory using the

mini-USB cable. Accessory map les are stored on

microSD cards (sold separately).

Audio (MP3 or WMA), video (MPEG, AVI or

WMV) and picture (JPEG or BMP) les can be

stored internally or on microSD cards. (Audio and

video les can not be used on Out&Back).

Loading les onto Endura

When Endura is connected to your computer the

device will switch to PC mode and will show a PC

connect screen. Endura will appear on your computer

as “Endura” when using the mini-USB cable. When

a micro SD card is used, it will be shown on your PC

as “Endura SD Card.”

Copy/paste or drag and drop the desired picture,

audio or video le onto the Endura directory on your

computer.

Headphone jack

Sierra and Safari have a 3.5mm

headphone jack on the side of the

unit, allowing you to listen to audio.

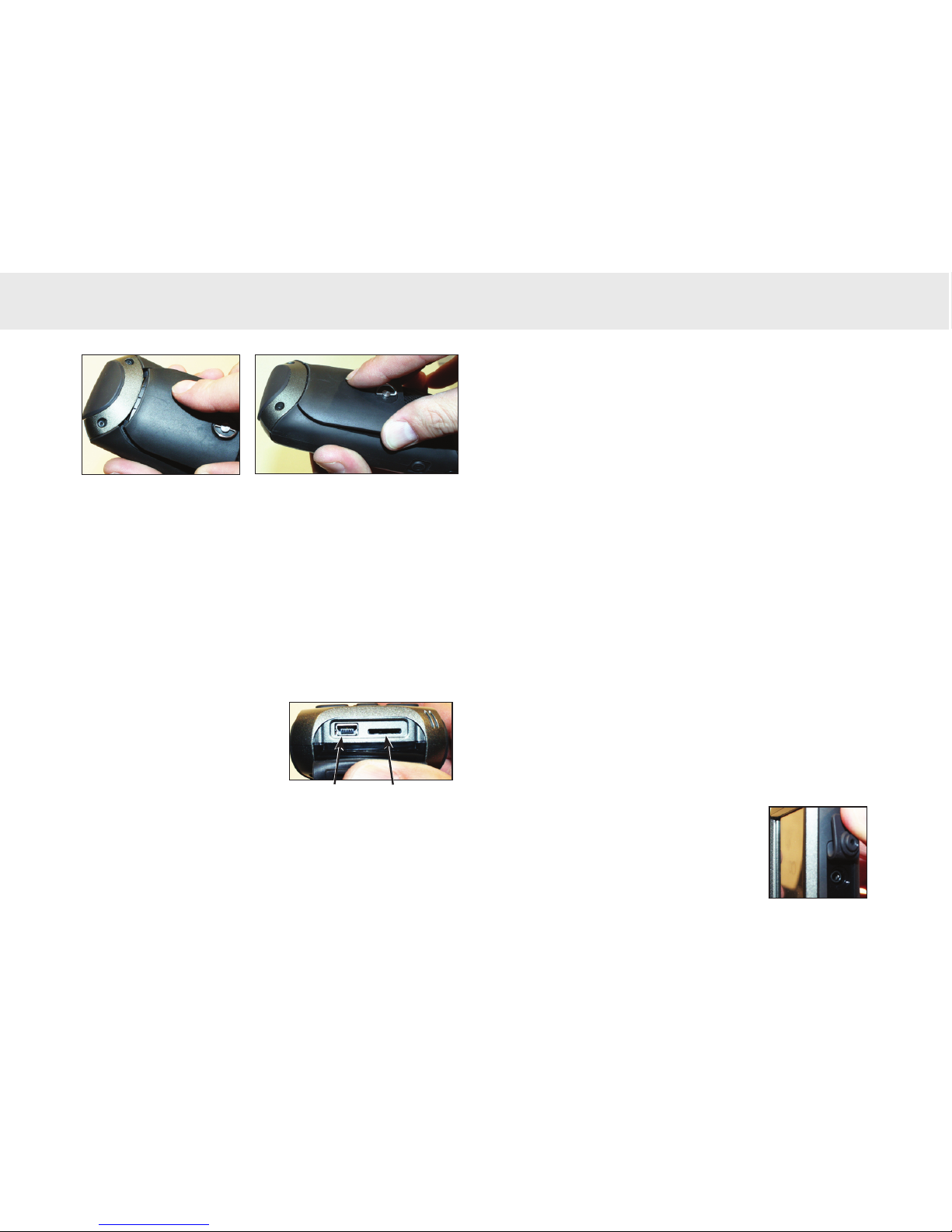

Installing battery cover

Slide the cover at a slight angle to insert1.

tabs into slots at the bottom of battery

compartment.

Once the battery cover is in place, turn2.

the D-ring clockwise one-quarter turn.

Mini-USB Cable and microSD card

A mini USB cable is used to transfer data between

Endura and a computer.

The Micro SD slot is

located next to the mini-

USB port, under the

rubber weathercap, on the

bottom of the unit.

When installing a microSD card make sure the

card’s label if facing the same direction as Endura’s

display screen.

Basic Operation

mini-USB microSD

The Safari and Sierra display Map, Satellite, Trip Computer, Elevation, Navigation and Compass

pages. Elevation and Compass pages are displayed optionally on the Out&Back. See Settings in

the Main Menu section for information on adding/removing pages.

On the Map Page you can:

Drag your nger across the screen to move the map. •

Select items by touching them on-screen. Touching the screen will display the cursor, Zoom,•

Options and Back tabs.

Use arrow keys to ne tune cursor position over selected items. Touch the screen or press •

the Mark key to view on-screen info.

Drop a waypoint at the cursor location with a quick press of the• MARK key.

Pages

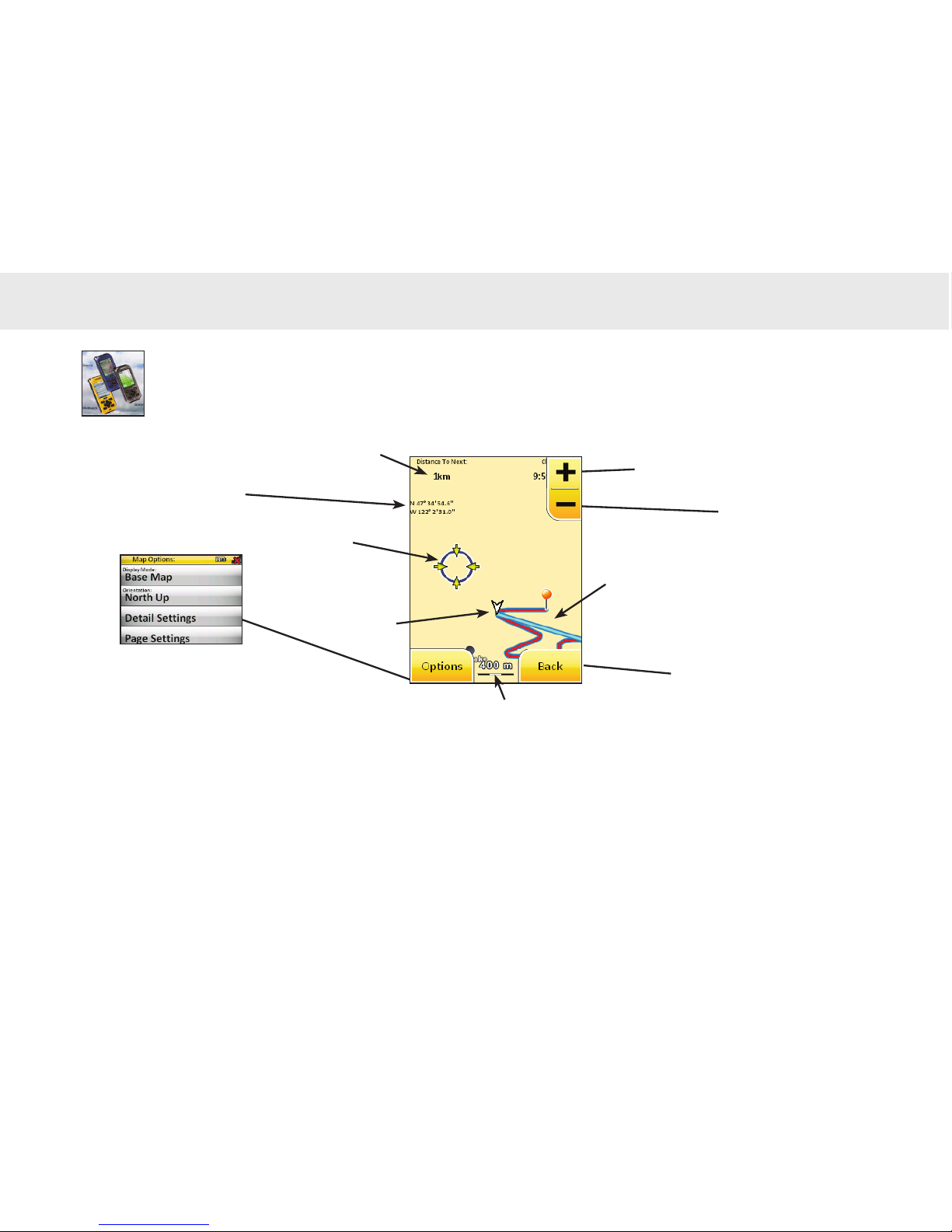

Map Page

Map options menu

Zoom In

Zoom Out

Return to previous

screen

Cursor

Data eld

Current

position

Latitude/Longitude

Navigating

a trail

Map Scale

Pages

Map Options menu

Map display mode, orientation, detail and page display settings are adjusted from the Map Options menu.

Touch the Options tab on the Map page to access the Map Options menu.

Display Mode

Basemap displays points, roads, water features, etc.

Imagery displays satellite images, hillshade, etc.

Hybrid displays both basemap and satellite imagery

Orientation

North Up keeps North at the top of the screen

Course Up aligns map with your route or initial Go To course

Track Up map rotates as your heading changes

Detail Settings

Detail Level toggles level of map detail between Low, Medium and High

Roads, Contour Lines, Trails,

Waypoints, Points of Interest,

Cursor Information

touching these map details toggles them on/off; they will

only be visible on the map when turned on

Page Settings

Top Left, Top Right, Bottom Left

& Bottom Right Data Fields

selects data types to be displayed in four data elds in the

corners of the Map page (See page 4 example)

Using the Satellite Page

Access the GPS Settings menu, check satellite signal strength and position accuracy.

GPS Settings Menu

GPS

Touch GPS, WAAS/EGNOS or Simulated GPS to Enable/Disable the feature

WAAS/EGNOS

Simulated GPS

Pages

WARNING: Simulated GPS simulates operation and allows you to travel a selected route.

Do not attempt actual navigation while in Simulated GPS mode.

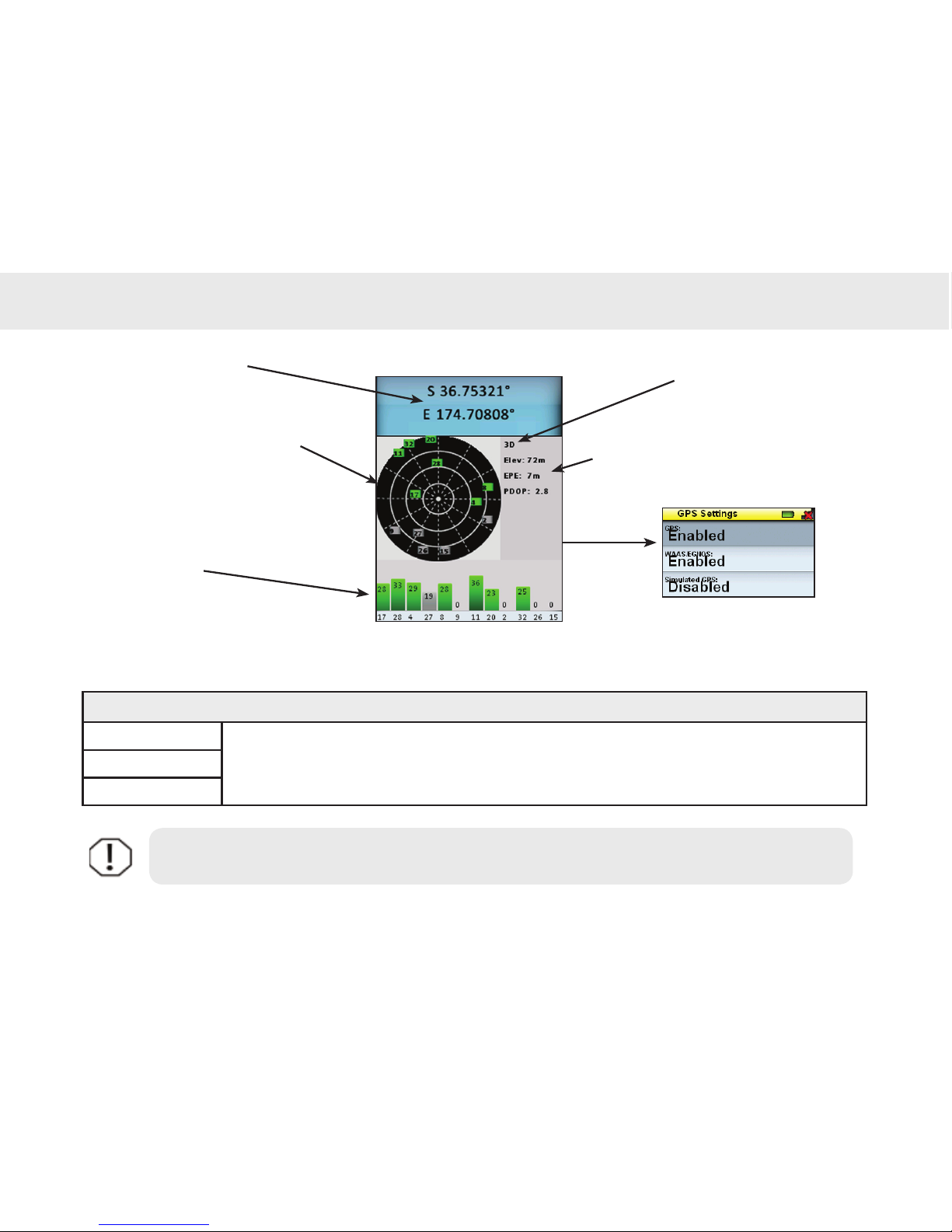

Satellite Page

Satellite location

from horizon to

overhead

Satellite signal strength;

green bars are being used

to determine position; gray

bars are being tracked, but

not used

Touch screen to

view GPS settings

Latitude/Longitude

Elevation, Estimated

Accuracy & Position

Dilution of Precision

Fix type:

2D, 3D or

WAAS

Altri manuali per Endura Out&Back

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Lowrance GPS

Lowrance

Lowrance GlobalNav II Manuale utente

Lowrance

Lowrance M52 S/GPS Manuale utente

Lowrance

Lowrance Lowrance IWAY 350C Manuale utente

Lowrance

Lowrance iFINDER Hunt Manuale operativo

Lowrance

Lowrance GlobalMap 6500C Manuale utente

Lowrance

Lowrance GlobalMap 3600C iGPS Manuale utente

Lowrance

Lowrance iWAY 250C Manuale utente

Lowrance

Lowrance iWAY 600C Manuale

Lowrance

Lowrance iFINDER GO Istruzioni per il montaggio

Lowrance

Lowrance GlobalMap 3000MT Manuale di istruzioni

Lowrance

Lowrance Elite-4m HD Manuale utente

Lowrance

Lowrance 12 Manuale utente

Lowrance

Lowrance LCX-110C Manuale utente

Lowrance

Lowrance StructureMap HDS Gen 2 Manuale utente

Lowrance

Lowrance GlobalMap 5300C iGPS Manuale utente

Lowrance

Lowrance LMS-520C Manuale utente

Lowrance

Lowrance HDS Gen3 Polaris Manuale utente

Lowrance

Lowrance GlobalMap 1600 Manuale utente

Lowrance

Lowrance AirMap 2000c Manuale utente

Lowrance

Lowrance Mark-4 HDI Manuale utente

Lowrance

Lowrance GlobalMap 5150C Manuale utente

Lowrance

Lowrance Lowrance iWAY 500C Manuale operativo

Lowrance

Lowrance HOOK-4 Manuale utente

Lowrance

Lowrance Lowrance IWAY 350C Manuale utente

Manuali GPS popolari di altre marche

Raven

Raven Cruizer II Manuale

Hama

Hama 53118 Manuale utente

Garmin

Garmin SOUNDER 125 Manuale utente

Garmin

Garmin DEZL 580 Manuale utente

Jigabot

Jigabot EX Manuale utente

Pointer

Pointer Cellocator CelloTrack XT LTE Guida all'installazione

Queclink

Queclink GV55LITE Manuale utente

Voxson

Voxson Voxtrack GPS500 Manuale di istruzioni

Garmin

Garmin ECHOMAP PLUS Manuale utente

Starcom Systems

Starcom Systems Kylos Compact Manuale utente

Garmin

Garmin 15 H Series Manuale utente

Cobra

Cobra Marine MC 600Ci Manuale utente

Cellocator

Cellocator CelloTrack T Manuale utente

Enfora

Enfora Mini-MT GSM2228UG001 Manuale utente

Magellan

Magellan eXplorist 100 Manuale utente

LTE

LTE G50B Manuale utente

Garmin

Garmin DEZL OTR500 Manuale utente

SkyGolf

SkyGolf SkyCaddie SG1 Manuale utente
