LUCCI Air AIRFUSION AIRMOVER Guida all'installazione

V1.0 Muti –EU WS (10/2018)

LUCCI

AIRFUSION AIRMOVER

CEILING FAN

INSTALLATION

OPERATION

MAINTENANCE

WARRANTY INFORMATION

CAUTION

READ INSTRUCTIONS CAREFULLY FOR SAFE

INSTALLATION AND FAN OPERATION.

Airmover Fan Installation Instructions

1 | P a g e

CONTENTS

Installation instruction manual ...........................................................................................2

Installationsanleitung ........................................................................................................11

Guide d’installation............................................................................................................20

Manual de instrucciones de instalación.............................................................................29

Manuale delle istruzioni di installazione............................................................................38

Installatiehandleiding.........................................................................................................47

Εγχειρίδιο οδηγιών εγκατάστασης ....................................................................................56

Airmover Fan Installation Instructions

2 | P a g e

THANK YOU FOR PURCHASING

Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read

and save all instructions before using the product.

SAFETY PRECAUTIONS

1. In Europe: This appliance can be used by children aged from 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning the use of the appliance in a safe way and

understand the hazards involved. Cleaning and maintenance shall not be undertaken by children

without supervision.

2. In Australia: The appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning the use of the appliance by a person responsible for their

safety.

3. Children should be supervised to ensure that they do not play with the appliance.

4. An all-pole disconnection switch must be incorporated into the fixed wiring, in accordance with local

wiring rules.

IN AUSTRALIA

WARNING:

FOR SAFE USE OF THIS FAN AN ALL-POLE DISCONNECTION

MUST BE INCORPORATED INTO THE FIXED WIRING IN

ACCORDANCE WITH THE WIRING RULES.

As outline in clause 7.12.2 of AS/NZS 60335-1 for meeting the

minimum electrical safety of this standard.

Please note warranty will be void if installation is without a means for

an all-pole disconnection incorporated in the fixed wiring in

accordance with the wiring rules.

Airmover Fan Installation Instructions

3 | P a g e

Example: If a fan is connected to a circuit that can be isolated via an

all-pole safety switch at the switchboard, then this is considered to be

an all-pole disconnection to the ceiling fan electrical circuit, meeting

the requirements of clause 7.12.2 of AS/NZS 60335.1.

A single-pole switch on the active of the receiver input of remote

control must also be included in the wiring, and located the

same room as the ceiling fan.

5. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection

facilities. Contact your local government for information regarding the collection systems available. If

electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the

ground water and get into the food chain, damaging your health and well-being.

6. The structure to which the fan is to be mounted must be capable of supporting a weight of 30kg.

7. The fan should be mounted so that the blades are at least 2.3 m above the floor in Europe or 2.1 m

above the floor in Australia.

8. This fan is suitable for indoor and alfresco areas where the fan is fully undercover with a minimum of

2 walls. This fan is not waterproof. When installed in an alfresco area, the ceiling fan must be

positioned in a location protected from water, wind, dust and salt. Exposure to these elements will

void the warranty. Mounting the fan in a situation where it is subject to water or moisture is dangerous.

9. Only a licensed electrician should execute the installation.

Airmover Fan Installation Instructions

4 | P a g e

BEFORE INSTALLATION

Unpack your ceiling fan carefully. Remove all parts and hardware. Examine all parts, you should have

the following:

Mounting bracket x 1

Bottom cover x 1

Canopy x 1

Blade x 5

Down rod with ball joint x 1

Wooden screw x 2

Coupling cover x 1

Extra Motor screw x 1

Bolt x 1

Flat washer x 1

Pin x 1

Balance kit x 1 set

Motor assembly x 1

Wall switch x 1 set

Fig. 1

Airmover Fan Installation Instructions

5 | P a g e

INSTALLING THE MOUNTING BRACKET

The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the blade

to the nearest objects or walls.

Secure the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg,

with two long screws provided. Ensure at least 30mm of the screw is threaded into the support.

NOTE: The bracket screws provided are for use with wooden structures only. For structures other than

wood, the appropriate screw type MUST be used.

Angled ceiling Installation

This fan hanging system supports a maximum 15 degree angled

ceiling installation.

Fig. 2

Fig. 3

Airmover Fan Installation Instructions

6 | P a g e

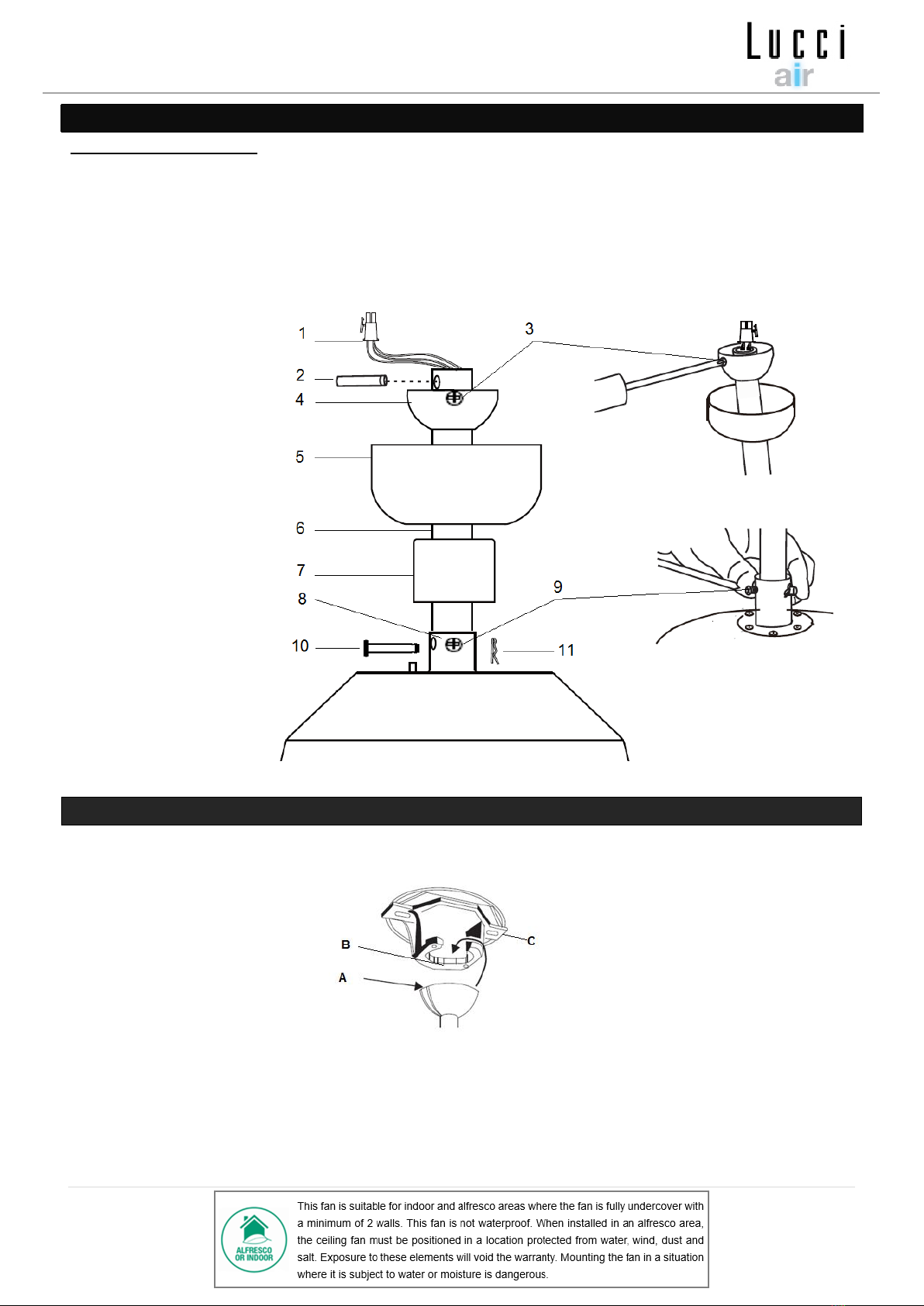

INSTALLING THE FAN

Installing the down rod

1) Feed the down rod (6) through the canopy (5) and the coupling cover (7).

2) Remove the ball joint (4) and cross pin (2) by loosening the set screw (3), insert the motor wires

(1) through the down rod then secure the ball joint and cross pin back to the down rod.

3) Insert the down rod to the coupling (8), line up the coupling holes with the down rod holes and

insert the bolt (10). Then insert the pin (11) to the end of the bolt.

4) Finally secure the down rod and coupling by tightening the two set screws (9) on the coupling.

HANGING THE FAN

Lift the fan assembly onto the mounting bracket. Ensure the registration slot (A) of the hanger ball is

positioned on the stopper (B) of the mounting bracket (C) to prevent the fan from rotating when in

operation.

Fig. 5

Fig. 4

Airmover Fan Installation Instructions

7 | P a g e

BLADE INSTALLATION

BLADE ATTACHMENT

Align the two holes of the blade (3) to the fan

motor assembly (1).

Secure the blade with two blade screws (4) and

flat washers (2) provided.

Follow the same process for the remaining four

blades.

ELECTRICAL WIRING DIAGRAM

WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A

LICENSED ELECTRICIAN.

NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED

WIRING.

NOTE: Wiring diagram includes the light kit wiring. The light wiring diagram and switch is omitted

when no light kit is used with the ceiling fan.

USE WITH WALL SWITCH WIRING DIAGRAM:

Fig. 7

Fig. 6

Airmover Fan Installation Instructions

8 | P a g e

USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold separately)

1/ Remote without plugs

2/ Remote with plugs

Fig. 8

Fig. 9

Airmover Fan Installation Instructions

9 | P a g e

FINISHING THE INSTALLATION

After completing the electrical connection at the mounting bracket terminal

block, connect the ceiling fan wiring via the quick connector plug.

Cover the mounting bracket with the canopy. Ensure all electrical wiring is

tucked inside the canopy and that the wires are not damaged during this

step. Secure the canopy to the hanger bracket using the screws provided.

USING YOUR CEILING FAN

FAN WALL CONTROL

Turn on the power and check the operation of the fan.

• OFF Position – Fan off

• 3rd Position – Low fan speed

• 2nd Position – Medium fan speed

• 1st Position – High fan speed

Light Control

• Toggle Switch – On/off

REVERSING SWITCH

Your ceiling fan can operate in either summer or winter mode.

SUMMER Mode: The reverse switch shall be in the “down” (SUMMER) position to make the fan rotate in an

anticlockwise direction. The airflow will be directed downwards, for cooling in summer.

WINTER Mode: The reverse switch shall be in the “up” (WINTER) position to make the fan rotate in a clockwise

direction. The airflow will be directed upwards assisting in the circulation of warm air, for energy conservation in

winter.

Fig. 12

Fig. 10

Fig. 11
