Lumens VC-TR40 Manuale utente

To download the latest version of Quick Start

Guide, multilingual user manual, software, or

driver, etc., please visit Lumens

https://www.MyLumens.com/support

VC-TR40/ VC-TR40N

Auto Tracking Camera

(PTZ Video Camera)

User Manual - English

Version VXA101p

[Important]

 English-1
 Table of Contents
Chapter 1Package Contents...........................................................................................2
Chapter 2Product appearance........................................................................................3
2.1 I/O functions Introduction......................................................................................3
2.2 Description of LED indicator ..................................................................................3
Chapter 3Instruction for installation..............................................................................4
3.2 Preparation before installation..............................................................................4
3.3 Instruction for installation ......................................................................................4
3.4 Connecting devices...................................................................................................7
Chapter 4Remote Control and Setting Menu ................................................................9
4.1 Remote Control..........................................................................................................9
4.2 Setting Menu ........................................................................................................... 10
Chapter 5Network Function Settings Description......................................................13
5.1 Connecting Camera to Network ........................................................................ 13
5.2 Web Page Menu Function Description ............................................................ 15
Chapter 6Troubleshooting............................................................................................33
Chapter 7Safety Instructions........................................................................................34
Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information.....36
Copyright Information ...................................................................................................37


English-2

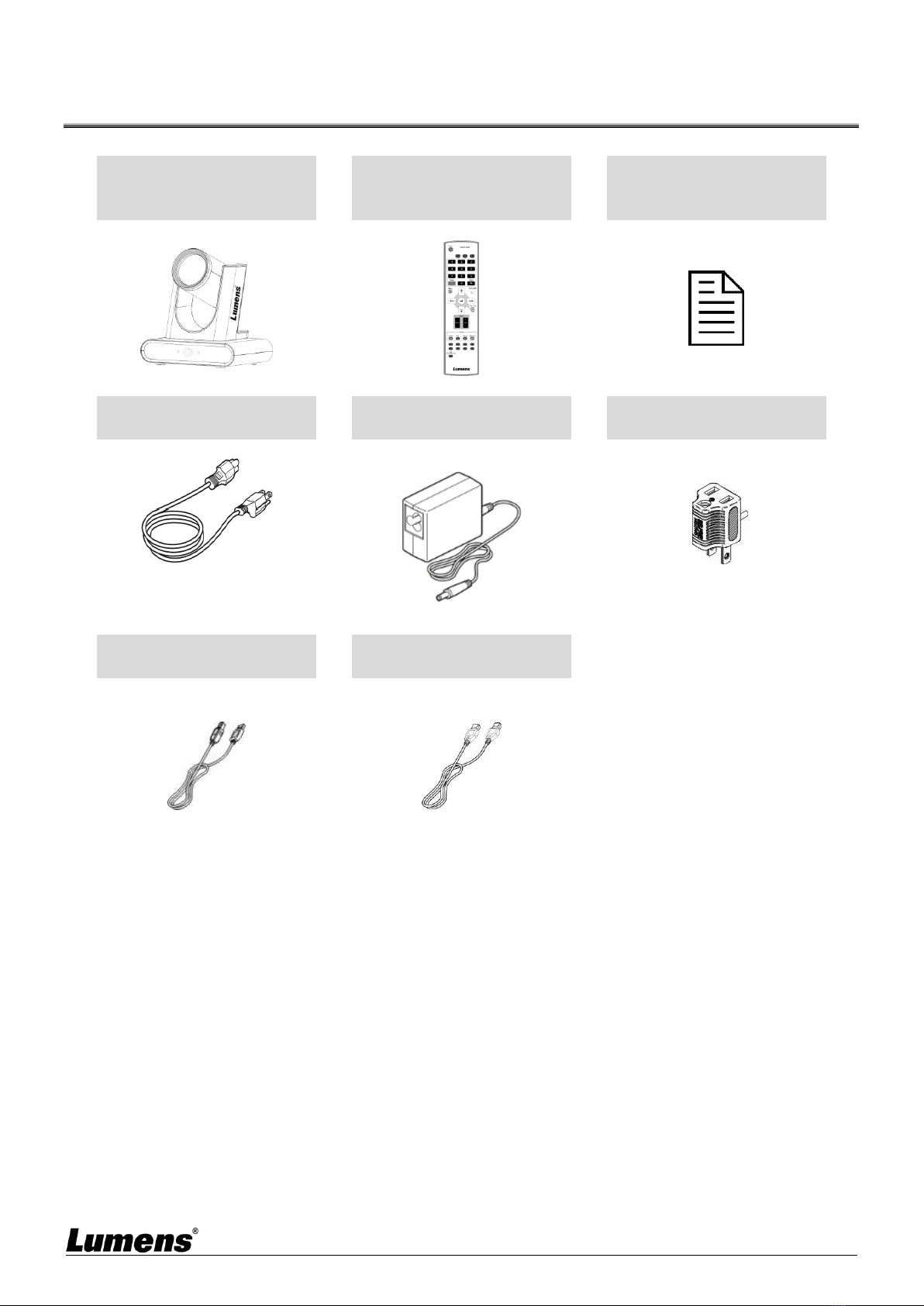

Chapter 1 Package Contents

Camera

Remote Control

RS-232/RS-422

Connection

Instruction

Power Cord

Power Adapter

3-PIN to 2-PIN

connector

Appearance may vary

depending on country/ region

(For Japan only)

USB 3.0 cable - 2 M

(Type B to Type A)

HDMI cable - 1.5 M

English-3

Chapter 2 Product appearance

2.1 I/O functions Introduction

NO.

Item

Function Descriptions

Main camera lens

HD camera lens

Panoramic lens

Panoramic camera lens

USB3.0 Port

The USB port is for connecting to the USB port of the computer

and providing USB signal images

HDMI output

HDMI output (Audio output supported)

3G-SDI output

3G-SDI output(Audio output supported)

Audio In

3.5 mm LINE IN

Network port

Network cable port, supporting PoE (IEEE802.3af) power supply

RS-232 input

RS-232 input port, at most 7 cameras can be connected in a

serial connection

RS-232 output

RS-232 output port, at most 7 cameras can be connected in a

serial connection

10.

DC 12 V power Port

DC supply connecting port

2.2 Description of LED indicator

Status

Power

Standby

Startup in progress

Green light

Orange light

In use

Green light

No indicator

In standby mode

No indicator

Orange light

Tracking / Framing mode

Flickering green light

○

Front View

Back View

○

English-4

Chapter 3 Instruction for installation

3.1.1 Scenario

3.1.2 Applicable distance range of VC-TR40: 2 - 12 m, best tracking target distance recommended: 8

3.1.3 Mounting height: 2 - 3 m, best height recommended: 2.4 m

<Note> For maintaining the best tracking results, please avoid images of people on posters, screens,

monitors, TVs in the background

3.2 Preparation before installation

Installation and connection of HD camera requires special skills. To install by yourself, please follow

necessary steps, ensure steady and tight installation of the device, and pay attention to your safety

to avoid any accident.

3.2.1 Ensure the safety of the installation environment. Please do not install the device on unstable ceiling

or in a place where the device is in danger of falling to avoid any accident.

3.2.2 Please check whether accessories in the box are complete or not. Please contact the

supplier for any shortage, and make sure to keep the accessories in the box intact.

3.2.3 Please choose a proper place for installation of camera in advance. Please determine an

installation place according to the following requirements

3.2.3.1 Confirm the position for the object to be captured.

3.2.3.2 Confirm whether the camera is set at a proper distance from other light sources.

3.3 Instruction for installation

3.3.1 I would like to install camera on the desk

3.3.1.1 Precautions for installation

Please install the machine on a flat desk

Do not grab the camera head by hand when handling the device

Do not rotate the camera head by hand. Improper rotation may result in breakdown of the camera

English-5

3.3.2 I would like to install the camera on the ceiling/wall/TV stand

Lumens can provide the following optional accessories. Please contact your Lumens distributer if

needed for purchase

VC-WM14 3 in 1 Folding Bracket

VC-WM15 Ceiling Mounted Bracket

For installation of brackets, please download VC-WM14/VC-WM15 Quick Installation Guide from

the Lumens website

Install on the TV

Install on the ceiling

Install on the wall

English-6

3.3.3 Camera Size

Length x Width x Height: 190 x 138 x 185 mm

Weight: 1.3 Kg

3.3.4 Dimensions of the bottom of the machine

The camera can be mounted on a 1/4”-20 UNC PTZ tripod deck by using the lock holes on the

bottom for the tripod

English-7

3.4 Connecting devices

<Remark> Network cable port, supporting PoE (IEEE802.3af) power supply

3.4.1 RS-232 connection (up to 7 Lumens cameras)

English-8

RS-232 pins definition instructions

English-9

Chapter 4 Remote Control and Setting Menu

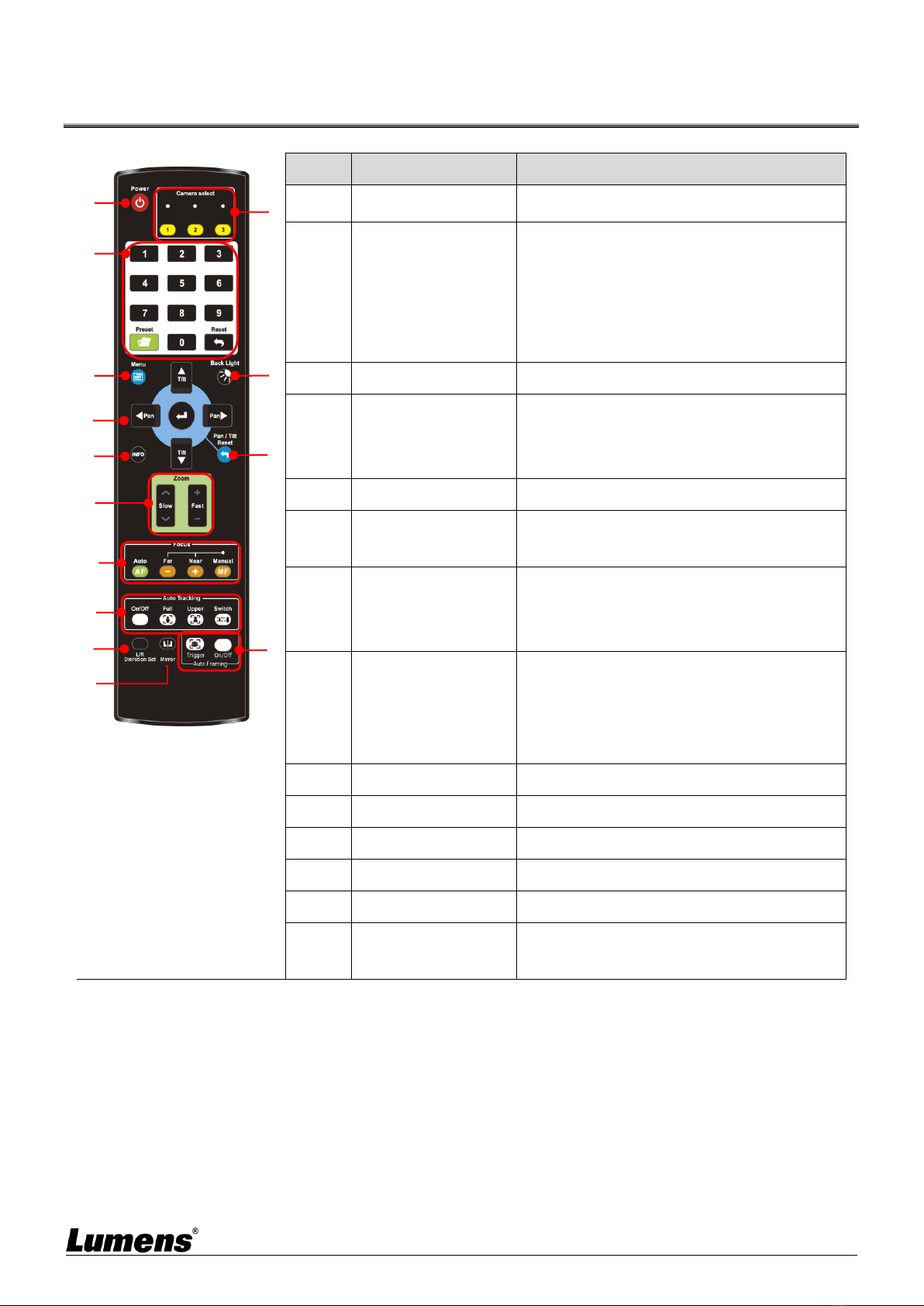

4.1 Remote Control

編號

項目

說明

Power

Power Switch

Preset

Numeric Keys 0 - 9: Click to call the preset

Preset: Appoint an ID (0 ~ 9) to save the

current position data

Reset: Appoint an ID (0 ~ 9) to delete the

current position data

Display OSD menu

Pan/ Tilt/ Enter

Pan/Tilt: Move the lens

Home-Enter: Go back to the main page /

Execute

Info

Status information

Zoom

Fast: Adjust image size

Slow: Fine-tune image size

Focus

Auto: Auto focus

Manual: Enable Manual Focus

Far/Near: Adjust the focal length in Manual

Auto Tracking

On/Off: Enable/Disable Auto Tracking

Full: Full body tracking

Upper: Half body tracking

Switch: Switch tracking object

L/R Direction Set

L/R Direction / Normal

10.

Mirror

Rotate the image (OFF / Mirror / Flip / Rotate)

11.

Camera select

Choose Camera ID 1 ~ 3

12.

Back Light

Turn on/off back light compensation

13.

Pan/Tilt Reset

Clear the Pan/Tilt setting

14.

Auto Framing

On/Off: Enable/Disable auto framing

Trigger: Manual framing correction

⓫

⓬

⓭

⓮

➊

➋

➌

➍

➎

➏

➐

➑

➒

➓
