IMPORTANT SAFETY INSTRUCTIONS
INSTALLATION GUIDE
LR34129, LR34130, LR34131, LR34132
The T8 LED tube intended to retrofit surface mount listed fluorescent luminaires that use maximum two straight tubular lamps without a
diffuser with 9 cm minimum lamp to lamp spacing. The product is intended to be used in dry and damp locations only.
THIS RETROFIT KIT IS ACCEPTED AS A COMPONENT OF A LUMINAIRE WHERE THE SUITABILITY OF THE COMBINATION SHALL BE
DETERMINED BY AUTHORITIES HAVING JURISDICTION,
33 Randolph Ave. • Avenel NJ 07001 | 732-882-1500 1
RETROFIT TUBE T8 BYPASS
DANGER - RISK OF ELECTRIC SHOCK - DISCONNECT POWER BEFORE INSTALLATION
RISK OF ELECTRIC SHOCK - USE IN DRY AND DAMP LOCATION ONLY
THIS DEVICE IS NOT INTENDED FOR USE WITH EMERGENCY EXITS
DO NOT USE WITH DIMMERS
WARNING - Risk of fire or electric shock. The electrical rating of the product is 120-277Vac, the installer must determine whether they have 120-277Vac at the luminaire
before installation.
WARNING - Risk of fire or electric shock. Luminaire wiring and electrical parts may be damaged when drilling for installation of LED retrofit kit. Check for enclosed wiring
and components.
WARNING - Risk of fire or electric shock. LED Retrofit Kit installation requires knowledge of luminaires electrical systems. If not qualified, do not attempt installation.
Contact a qualified electrician.
WARNING - Risk of fire or electric shock. Install this kit only in the luminaires that have the construction features and dimensions shwon in the photographs and/or
drawings and where the input rating of the retrofit kit does not exceed the input rating of the luminaire.
WARNING - To prevent wiring damage or abrasion, do not exposte wiring to edges of sheet metal or other sharp objects.
Only those open holes indicated in the photographs and/or drawings may be made or altered as a result of kit installation. Do not leave any other open holes in an
enclosure of wiring or electrical components.
RETROFIT FLUORESCENT LUMINAIRE WITH BALLAST:
STEP 1. SHUT OFF POWER BEFORE WORK.
STEP 2. Remove existing fluorescent tube(s), open the ballast cover
STEP 3. Disconnect luminaire supply wirings L and N to branch circuit shown in Figure 1.
STEP 4. Original circuit as shown in Figure 2, cut lampholder leads “1” and “2” as shown in Figure 3.
NOTE: Ballast must be retained in place.
FIGURE 1
FIGURE 2
www.allstarlighting.com

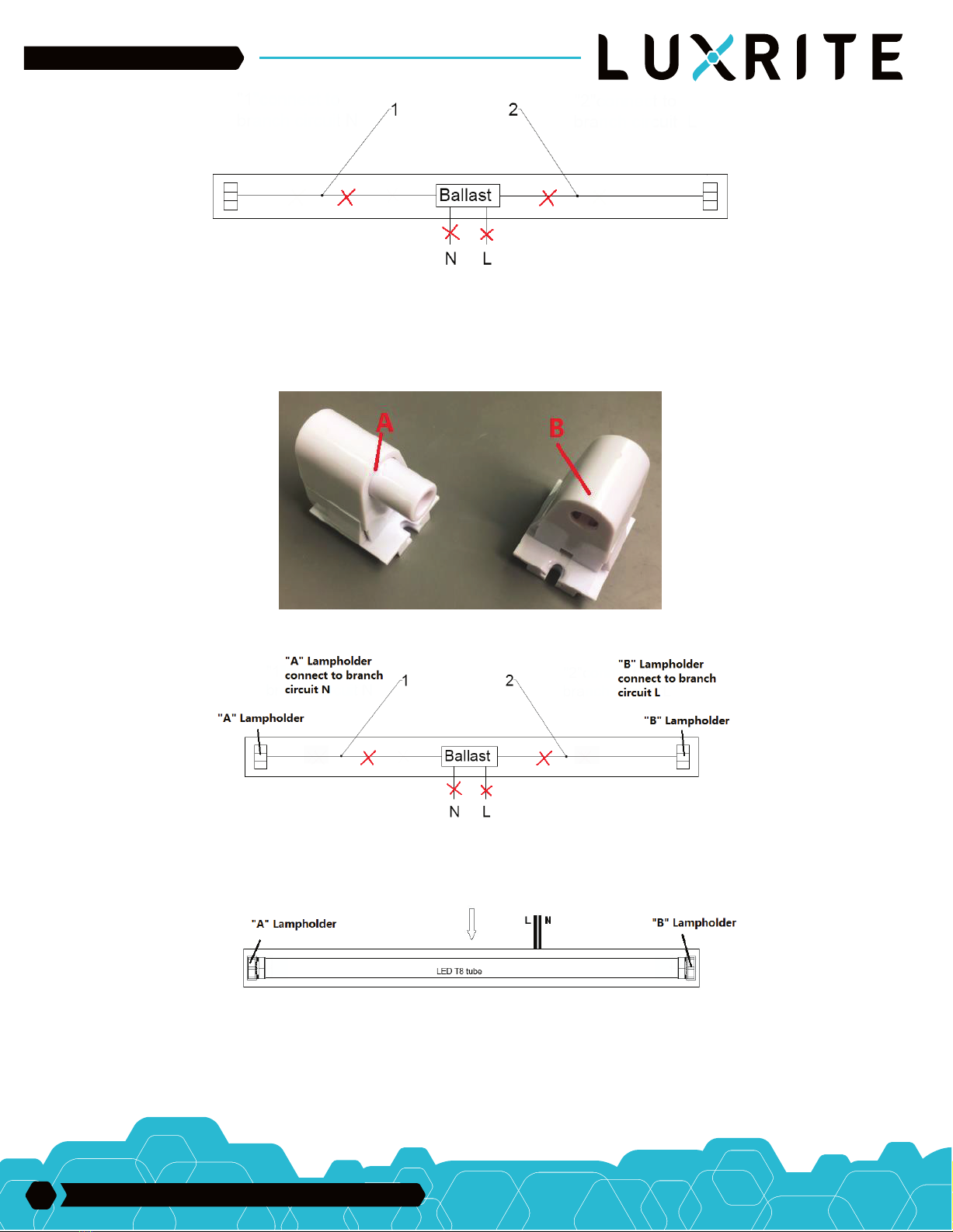

FIGURE 3
FIGURE 4
FIGURE 5
FIGURE 6
STEP 5. Please check whether the existing lampholders are the same as shown in Figure 4. If yes, skip to Step 7: if not go to next Step 6.
STEP 6. Remove the original lampholders, check the holes of original lampholders to see whether they are suitable to install the attached
lampholders: if not, drill new holes for mounting lampholders.
STEP 7. The attached “A: and ”B” lampholders as shown in Figure 4, with “A” lampholder connecting grounded (neutral) branch circuit “N”
and “B” lampholder connecting ungrounded branch circuit “L” as shown in Figure 5. NOTE: Ballast must be retained in place.
STEP 8. Attach the Luminaire Marking Label to the luminaire. Install ballast cover (if applicable) back on Luminaire, and make sure T8 LED
tube insert into the “A” lampholder first, then “B” lampholder as shown in Figure 6.
STEP 9. Turn on the AC power source, LED Tube will light.
THE WIRING OF TWO LAMPS IS THE SAME AS ABOVE.
