M-E VT592 Manuale utente
-1-
MIC adjustment
Connection Port
Monitor AMonitor B
SPK adjustment
LK-
LK+
1R
2W
4B
3Y
3Y
4B
2W
1R
•1R (Red): Power positive. +12V present when Door Station calling or being monitored.
•2W (White): Power negative (Ground).
•3Y (Yellow): Image signal (Video signal).
•4B (Black): Talk and control signal (Audio signal).
•LK+,LK-:Normally opened connection port.
Rainy Cover
Camera Lens
Night View LED
Speaker
Nameplate
B Call Button
A Call Button
Microphone
90 mm
176 mm
23 mm
VT592 User Manual VT-ENG-592-V1 1005S24
1. Parts and Functions
2. Terminal Descriptions
-2-
160-165cm
1
2
1 2 3 4
160-165cm
1
2
1 2 3 4

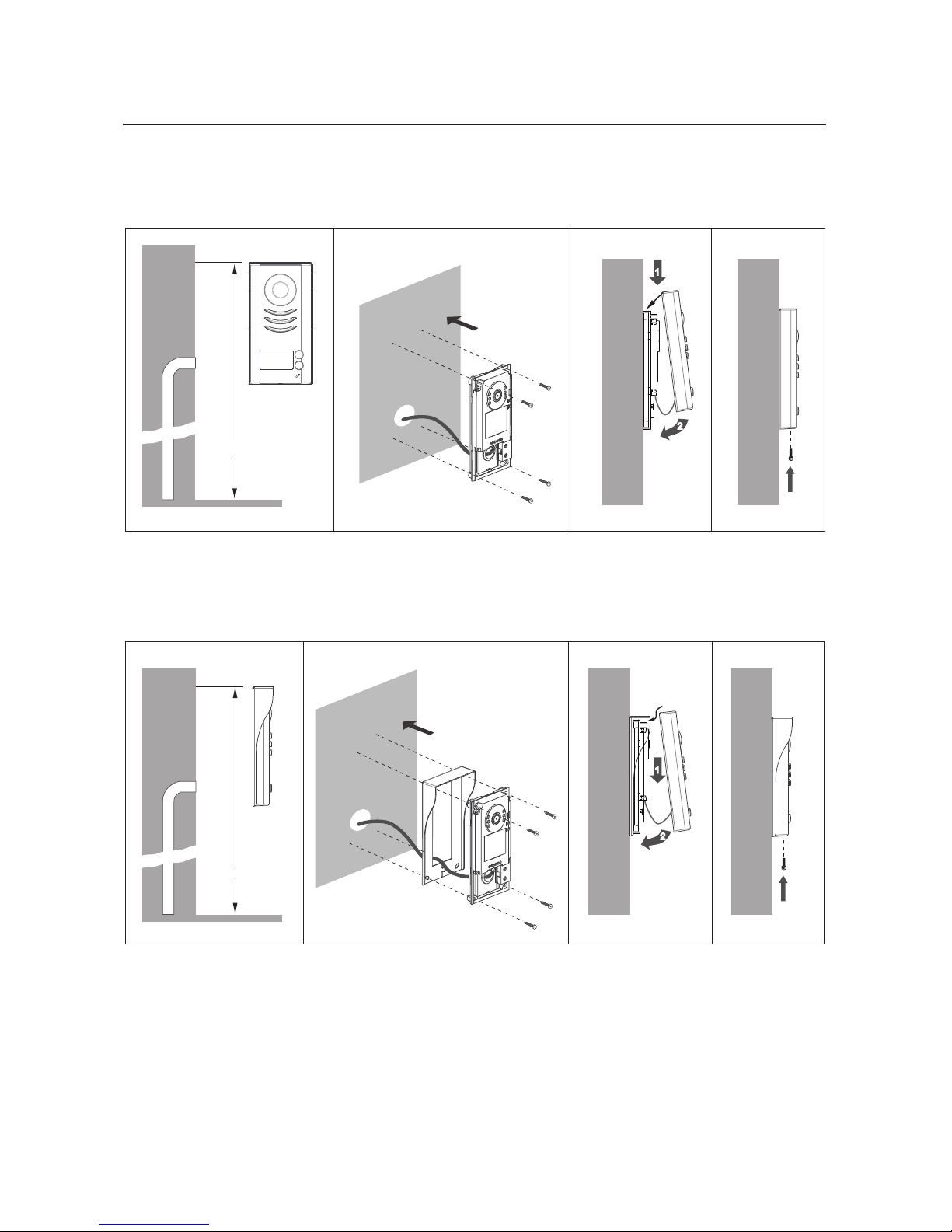

3. Mounting
3.1 Mounting Without Rainy Cover
3.2 Mounting With Rainy Cover
-3-
White
Red
Yellow
Black
Black
Yellow
Red
White
LK-
LK+
1R
2W
4B
3Y
3Y
4B
2W
1R
Back View
VT592 Door Camera
Control Monitor A
Control Monitor B
To Monitor A
To
Monitor B
JS_OS1
JS_OS1

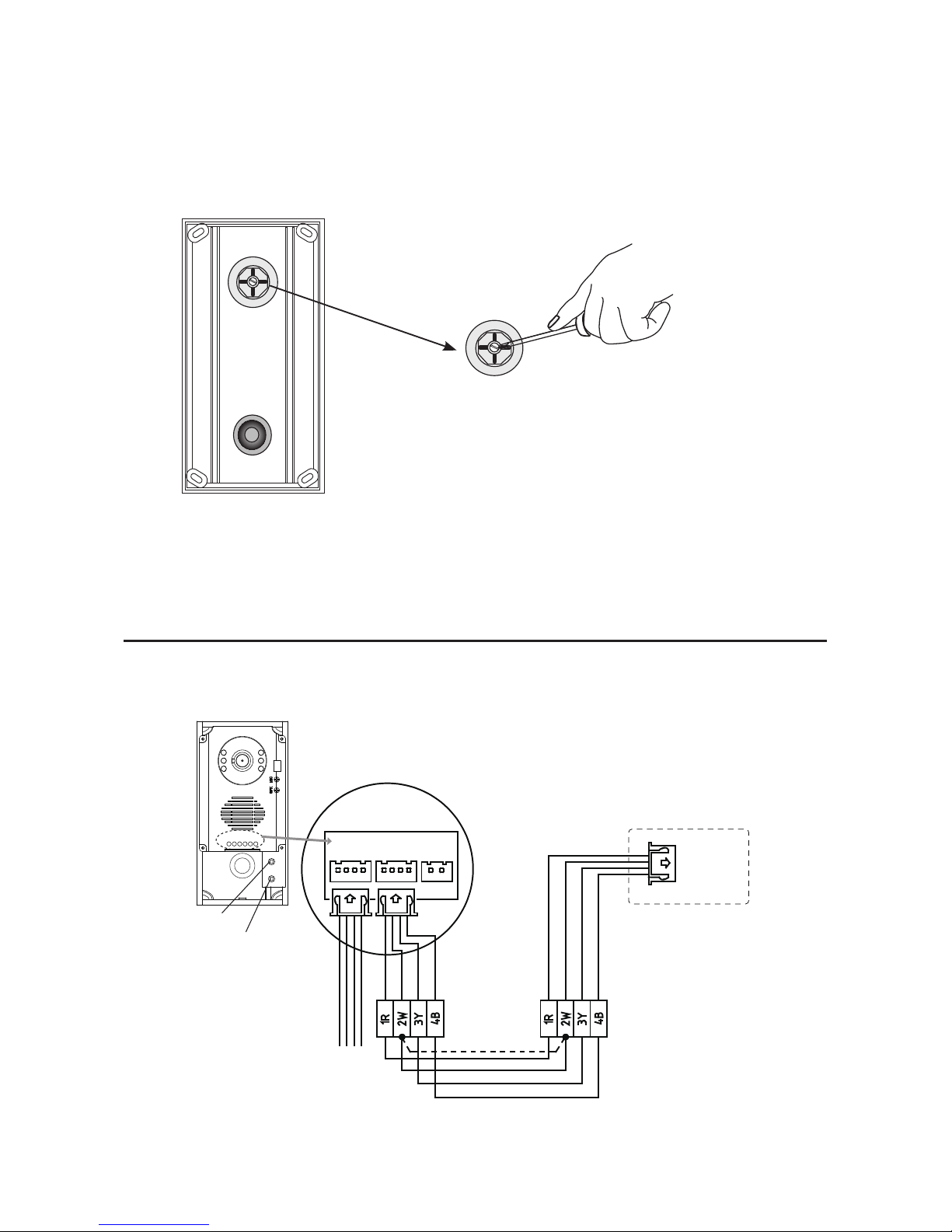

3.3 Adjusting Camera Angle
4. System Wiring and Connections
4.1 Basic Connection
use a screwdriver to loosen the screw and
then adjust the angle of the camera ,then
x the screw.
-4-
1
2
POWER
SUPPLY
LK-
LK+
+ -
2
1
Connect with 1R
Connect with 2W
LK-
LK+
+
-

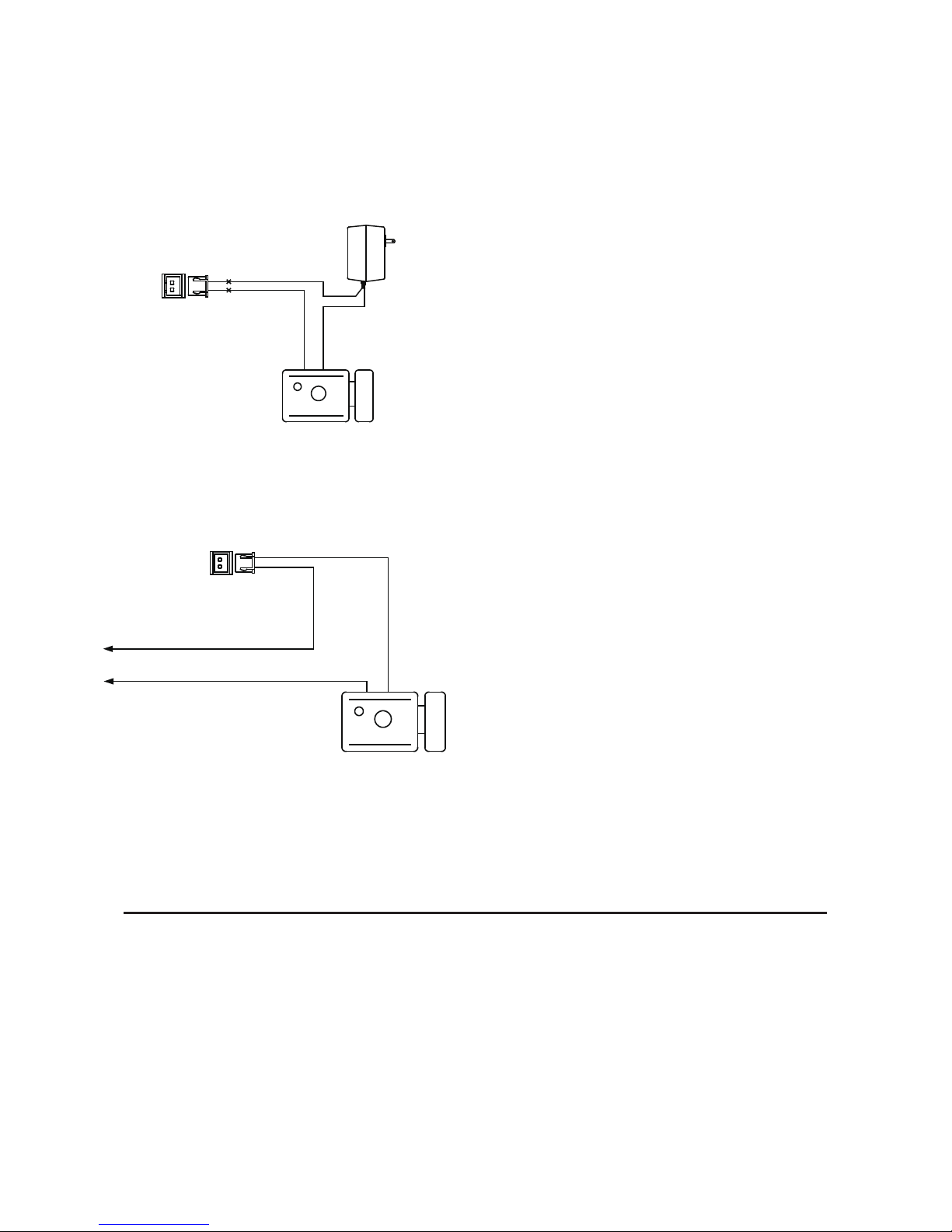

4.2 Electric Lock Connection
5. Specications
Power Supply: DC 10~12V (Internal Power supply)
Consumption: 200mA in working state (latch not included)
Video Output: 75Ohm, 1Vp-p, CCIR standard (unless specied)
Camera: 76 degree, CCD camera with IR-LED
Working temperature: -10ºC ~ 40ºC
•Mode1:Door Lock Controlled With Dry Contact
•Mode2:Door Lock Controlled With Internal Power
Must install external power supply
for lock,and nearly all kinds of
electronic lock can be used.
Incidentally,in this mode,you can
continue talking and monitoring
during unlock operation.
Note:
1.The external power supply must
be used according to the lock.
2.The inside relay contact is
restricted to AC or DC 24V/3A.
Note:
1.Electronic lock of power-on-to-
unlock shoule be used.
2.The door lock is limited to
12V,and holding current must be
less than 250mA
The lock can be directly connected
with the door station and the power
through monitor.During unlock
operation,the monitor will close
screen automatically.
