INSTRUCTION MANUAL

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■PACKAGE INCLUDES:

Totalized pulse input module .............................................(1)

■MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

POINTS OF CAUTION

■CONFORMITY WITH EU DIRECTIVES

• The equipment must be mounted inside the instrument

panel of a metal enclosure.

• The actual installation environments such as panel con-

ﬁgurations, connected devices, connected wires, may af-

fect the protection level of this unit when it is integrated

in a panel system. The user may have to review the CE

requirements in regard to the whole system and employ

additional protective measures to ensure the CE conform-

ity.

■GENERAL PRECAUTIONS

• Before you remove the terminal block or mount it, turn off

input signals for safety.

■HOT SWAPPABLE MODULES

• It is possible to replace a module with the power supplied

provided that the module is replaced with one with the

same model number and installed in the same base slot.

• Turn off input signals before replacing the module for

safety. Note that replacing multiple modules at once may

greatly change line voltage levels. We highly recommend

to replace them one by one.

■ENVIRONMENT

• Indoor use.

• When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -10 to +55°C

(14 to 131°F) with relative humidity within 10 to 90% RH

in order to ensure adequate life span and operation.

■WIRING

• Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

• Be sure to attach the terminal cover for safety.

■AND ....

• The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for

satisfying complete performance described in the data

sheet.

TOTALIZED PULSE INPUT MODULE

(pi 2 points, 32 bits) MODEL R30PA2

R30PA2

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-9022 Rev.1 P. 2 / 7

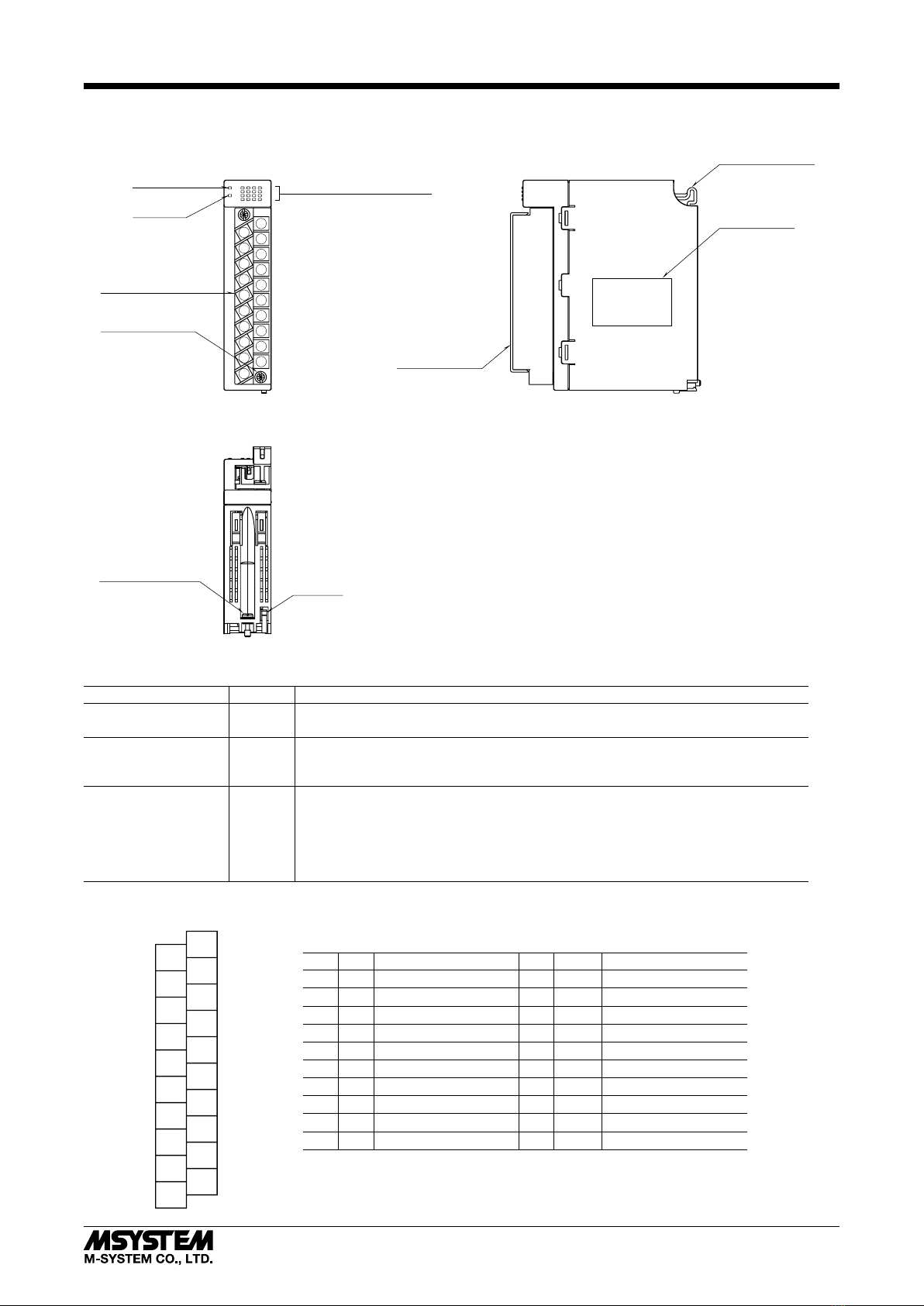

COMPONENT IDENTIFICATION

RUN

ERR

RUN LED

ERR LED

Input Terminal

Block

Terminal Fixing

Screw

■FRONT VIEW ■SIDE VIEW

■BOTTOM VIEW

Terminal Cover

Specifications

Positioning Guide

Lock Tab

Base Fixing Screw

Input Status Indicator LED

■STATUS INDICATORS

ID COLOR FUNCTION

RUN Green ON in normal host communication

OFF in host communication error

ERR Red OFF when internal bus operates normally

ON when an internal bus error occurs

ON during reset/preset processing (approx. 1 sec.)

Input Status Indicator Green 1, 2: Totalized pulse input

ON: LED On

OFF: LED Off

R: Reset input

ON: LED On

OFF: LED Off

■TERMINAL ASSIGNMENTS

RST–

V–

PI1

PI2

RST+

V+

NO. ID FUNCTION NO. ID FUNCTION

1 PI1 Input 1 11 C1 Common

2 PI2 Input 2 12 C2 Common

3 NC No connection 13 NC No connection

4 NC No connection 14 NC No connection

5 NC No connection 15 NC No connection

6 NC No connection 16 NC No connection

7 NC No connection 17 NC No connection

8 NC No connection 18 NC No connection

9 RST+ Reset input (+) 19 RST– Reset input (–)

10 V+ External Excitation (+) 20 V– External Excitation (–)

R30PA2

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-9022 Rev.1 P. 3 / 7

COUNT RESET

There are two different ways to reset count value.

■COUNT RESET WITH RESET SIGNAL

With the conﬁgurator software (model: R30CFG), enable the external reset input setting. The count reset signal becomes

enabled.

One pulse supplied at the Count reset input terminal will be recognized as a reset signal.

1) ERR LED turns on (red color) when the reset signal is received.

2) In 1 second, the module starts resetting its counter.

3) After 1 second, ERR LED turns back to the state before the reset signal has been received.

Note: Reset signals received while the module is processing (1) through (3) are ignored. Even when the count overﬂow set value is 1,

the counter is reset to 0.

■COUNT RESET FROM HOST PC/PLC

Refer to “COUNTER SETTING FROM HOST PC/PLC” section hereafter.

R30PA2

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-9022 Rev.1 P. 4 / 7

COUNTER SETTING FROM HOST PC/PLC

■COUNT RESET

(Available for R30NECT1, R30NCIE1)

In n+0 word of the output data from host PC/PLC, the bits to reset the totalized value of each channel are allocated.

By changing the bits from 0 to 1, the totalized value data of each channel is reset. When it is conﬁrmed that the totalized

values are reset, return the bits to 0.

Notice that if the reset bit remains at 1, the next reset will not work.

■COUNT PRESET

(Available for R30NECT1, R30NCIE1)

Write the preset values in n+2 and n+3 word of the output data from host PC/PLC. As the bits to preset the totalized value of

each channel are allocated in n+1 word, by changing the bits from 0 to 1, the preset values are reﬂected to the totalized value

data of each channel.

When it is conﬁrmed that the totalized values are preset, return the bits to 0.

Notice that if the preset bit remains at 1, the next preset will not work.

Count reset CH.1

Count reset CH.2

Unused

OUTPUT DATA n+0

Count preset CH.1

Count preset CH.2

Preset value (Lower 16 bits)

Preset value (Upper 16 bits)

Unused

OUTPUT DATA n+1

OUTPUT DATA n+2

OUTPUT DATA n+3

•

Note: When reset and preset are simultaneously output, reset overrides preset.

DATA ALLOCATION

ADDRESS CONTENTS

+0 Input 1 totalized value (lower 16 bits)

+1 Input 1 totalized value (upper 16 bits)

+2 Input 2 totalized value (lower 16 bits)

+3 Input 2 totalized value (upper 16 bits)

R30PA2

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-9022 Rev.1 P. 5 / 7

INSTALLATION

■INSTALLATION TO THE BASE

Use the Installation Base (model: R30BS).

The I/O slots are numbered in the ascending order starting

from the one on the immediate right side of the network

module (slot 1, slot 2...).

A code indicating the I/O slot number is assigned to each

I/O slot and I/O data is allocated in the order of this codes.

When an I/O slot is vacant, blank data is sent or received to/

from the PLC, etc.

PWR COM I/O1 I/O n

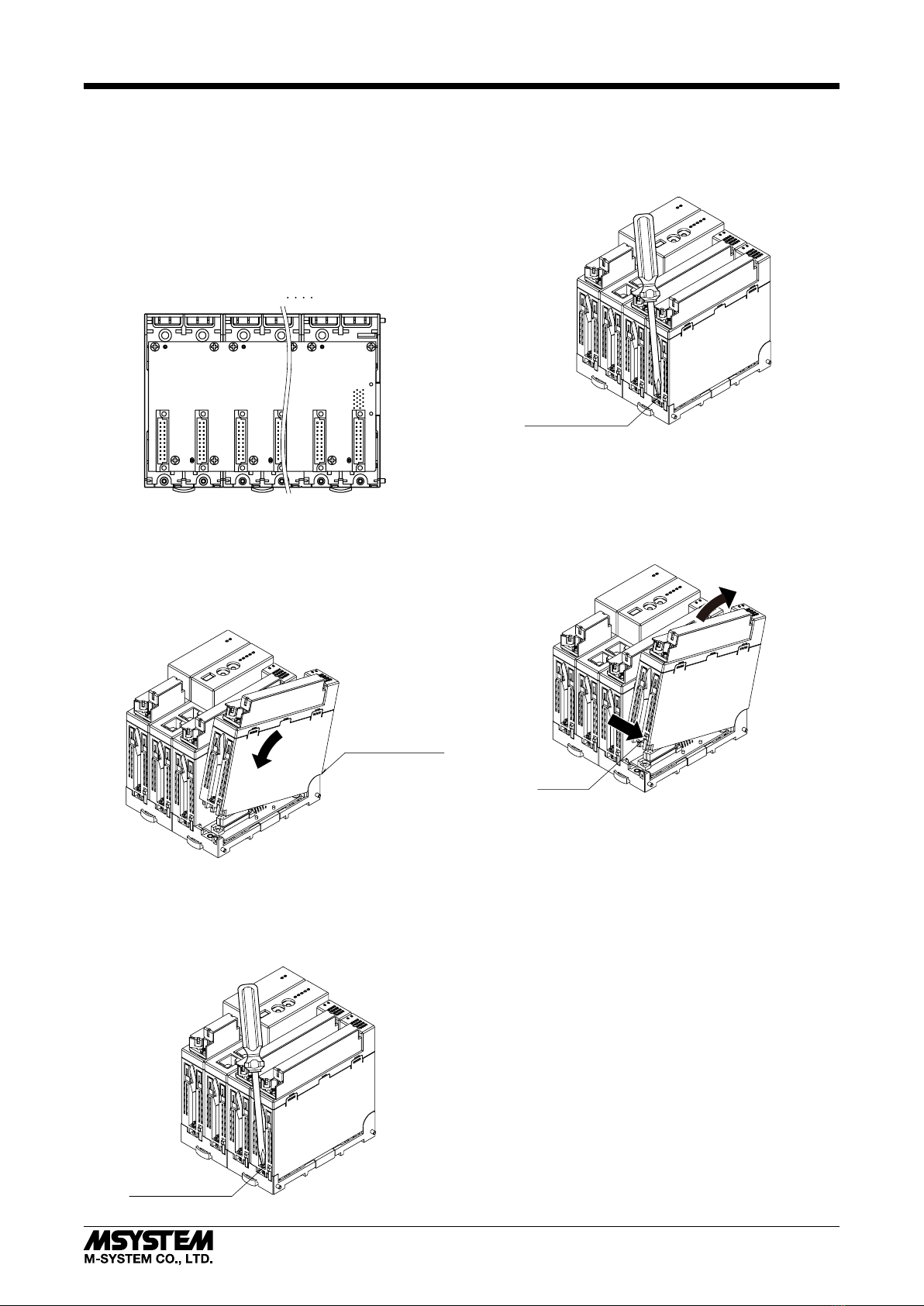

■HOW TO MOUNT THE MODULE

1) Engage the positioning guide of the module with the In-

stallation Base.

2) Pivot the module on the positioning guide and press it

down until the lock tab clicks into place.

Positioning Guide

3) Tighten the base ﬁxing screw using a screwdriver (stem

length: 70 mm/2.76” or more) (torque 0.5 N·m).

Base Fixing Screw

■HOW TO REMOVE THE MODULE

1) Loosen the base ﬁxing screw using a screwdriver (stem

length: 70 mm/2.76” or more).

Base Fixing Screw

2) While pressing the projection on the lock tab, push the

module upward.

3) Detach the positioning guide of the module from the In-

stallation Base.

Lock Tab

R30PA2

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-9022 Rev.1 P. 6 / 7

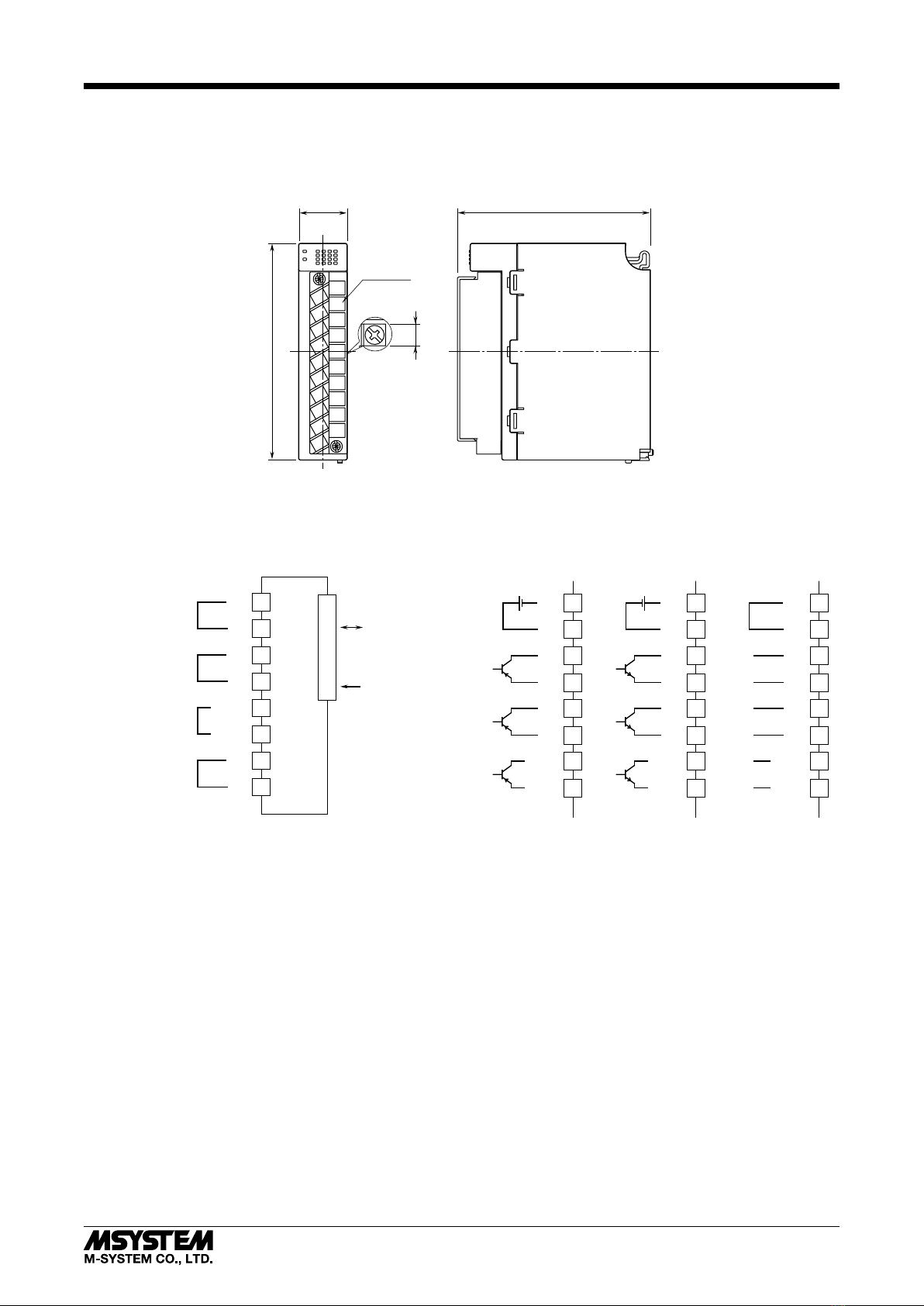

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

■EXTERNAL DIMENSIONS unit: mm (inch)

①

②

③

④

⑪

⑫

⑬

⑭⑤

⑥

⑦

⑧

⑨

⑩

⑮

⑯

⑰

⑱

⑲

⑳

110 (4.33)

25 (.98) 98 (3.86)

20–M3

SCREW

(.24)

■CONNECTION DIAGRAM

PI1

PI2

PNP Connection

RST＋

RST−

V＋

V−

++––

V+

V–

PI1

PI2

RST+

RST–

PI1

PI2

RST+

RST–

PI1

–

PI2

RST+

RST–

NPN Connection

V+

V–

Short V+

V–

External Excitation

Reset Input

Input 1

Input 2

INTERNAL POWER

INTERNAL BUS

BUS CONNECTOR

■Input Connection Examples

Voltage pulse input

R30PA2

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-9022 Rev.1 P. 7 / 7

WIRING INSTRUCTIONS

■TIGHTENING TORQUE

Separable screw terminal wiring screw: 0.5 N·m

Separable screw terminal ﬁxing screw: 0.5 N·m

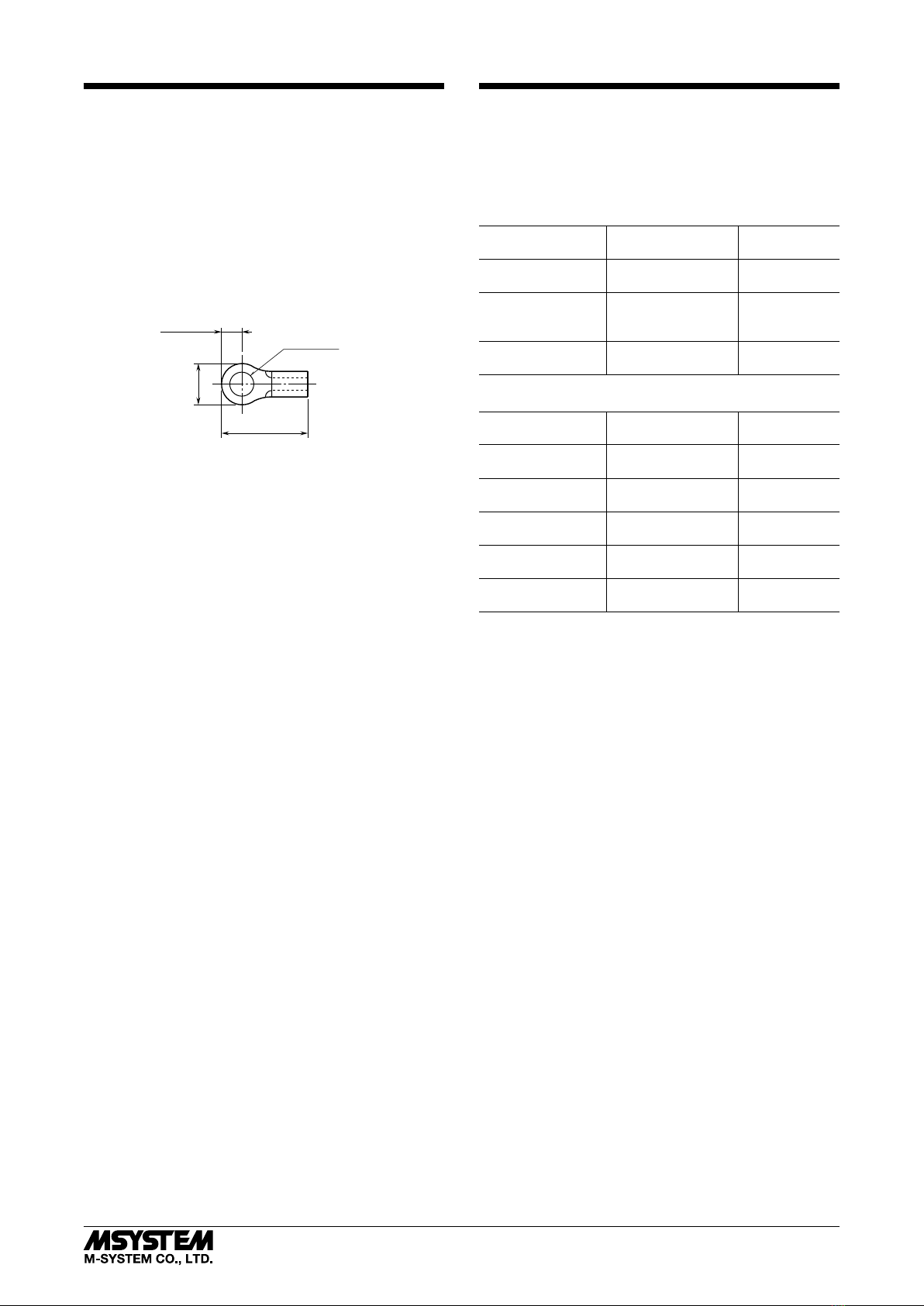

■SOLDERLESS TERMINAL unit: mm (inch)

Refer to the drawing below for recommended ring tongue

terminal size. Spade tongue type is also applicable. Solder-

less terminals with insulation sleeve do not ﬁt.

Applicable wire size: 0.25 to 0.75 mm2

Recommended manufacturer: Japan Solderless Terminal

MFG. Co., Ltd., Nichifu Co., Ltd.

3.2 (.13) dia.

12 (.47) max.

6 max.

(.24)

3 (.12) max.

■HOW TO REMOVE SEPARABLE SCREW TERMINAL

The terminal block is separable in two pieces. Evenly loos-

en two screws on top and bottom of the terminal block to

separate.

PC CONFIGURATOR

The following parameter items can be set with using PC

Conﬁgurator Software (model: R30CFG).

Refer to the users manual for the R30CFG for detailed op-

eration of the software program.

■CHANNEL INDIVIDUAL SETTING

PARAMETER SETTING RANGE DEFAULT

SETTING

Max no. of totalized

pulse

1 – 4,294,967,295 4,294,967,295

Count at overﬂow

(value to which the

count returns)

Preset value 0 – Max no. of total-

ized pulse

■CHANNEL BATCH SETTING

PARAMETER SETTING RANGE DEFAULT

SETTING

Count pulse edge

Falling edge (DI-ON)/

Rising edge (DI-OFF)

Falling edge

(DI-ON)

External reset

pulse edge to detect

Falling edge (DI-ON)/

Rising edge (DI-OFF)

Falling edge

(DI-ON)

External reset

detection

Disable

Enable

Disable

Reset/preset from

host PC/PLC

Disable

Enable

Disable

Simulate input Normal input

Simulate input

Normal input

Indice

Altri manuali M-system Sistema I/O

M-system

M-system R8 Series Manuale utente

M-system

M-system R7C-DC8C Manuale utente

M-system

M-system R7K4DH-1-DAC32A Manuale utente

M-system

M-system R80DAT16A2 Manuale utente

M-system

M-system M8BS1-16U0 Manuale utente

M-system

M-system R7E-PA8-R Manuale utente

M-system

M-system R7D-DC8C Manuale utente

M-system

M-system R7F4HC-DA32-K Manuale utente

M-system

M-system R30SVF4 Manuale utente

M-system

M-system Devicenet R7F4HD-DA32B Manuale utente

M-system

M-system R7D-YS2/UL Manuale utente

M-system

M-system R7 Series Manuale utente

M-system

M-system Devicenet R7F4DD-DC16B-H Manuale utente

M-system

M-system R30SVF4 Manuale utente

M-system

M-system R7D-CT4E Manuale utente

M-system

M-system R7C-YV2 Manuale utente

M-system

M-system R3-SV4C Manuale utente

M-system

M-system R7I4DML3-DC32A Manuale utente

M-system

M-system R7L-DC16B-R Manuale utente

M-system

M-system Devicenet R7F4DD-DAC16C-C Manuale utente

M-system

M-system R3-SV8A Manuale utente

M-system

M-system R7D-RS4 Manuale utente

M-system

M-system R8-DCM16ALZ Manuale utente

M-system

M-system R7L-EA16 Manuale utente

Manuali Sistema I/O popolari di altre marche

WAGO

WAGO 750-344 Manuale utente

Teknim

Teknim TWM-1887 Manuale di istruzioni

Intelligent Appliance

Intelligent Appliance IA-2662-E Manuale utente

BERGHOF

BERGHOF ECC DIO 16/16 Manuale di istruzioni

Advantech

Advantech PCM-27J3AU Manuale di installazione e funzionamento

Festo

Festo CP-E08-M12-CL Manuale utente

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Manuale utente

Hitachi

Hitachi HX-RIO3 Series Manuale utente

NUUO

NUUO SCB-A08 Manuale utente

jablotron

jablotron JB-110N Manuale utente

Omron

Omron SYSMAC C200H Manuale utente

DOLD

DOLD SAFEMASTER M Manuale utente

ABB

ABB OPT-MF-001 Manuale utente

Omron

Omron SYSMAC C2000H Manuale utente

Helmholz

Helmholz TB20 Manuale utente

ICP DAS USA

ICP DAS USA tM-AD2 Manuale utente

Automationdirect.com

Automationdirect.com DL305 Manuale utente

WAGO

WAGO I/O-SYSTEM 750 Manuale utente
