DC VOLTAGE INPUT MODULE

(4 points, isolated, wide span voltage up to ±50V) MODEL R3-SV4C

INSTRUCTION MANUAL

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■ PACKAGE INCLUDES:

DC voltage input module ............................................. (1)

■ MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■ INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

POINTS OF CAUTION

■ HOT INSERTION/REMOVAL OF MODULES

Removing or replacing modules does not affect other mod-

ules on the same backplane. It is possible to replace them

without removing the power supply. However, replacing

multiple modules at once may greatly change line voltage

levels. We recommend that you replace them one by one.

■ ENVIRONMENT

• Indoor use

• When heavy dust or metal particles are present in the air,

install the unit inside proper housing with sufﬁcient ven-

tilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -10 to +55°C

(14 to 131°F) with relative humidity within 30 to 90% RH

in order to ensure adequate life span and operation.

■ WIRING

• Do not install cables (power supply, input and output)

close to noise sources (relay drive cable, high frequency

line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■ UNUSED INPUT CHANNELS

Set the unused channels to -50 – +50V range. Otherwise, set

them as “Unused” with PC Conﬁgurator software: R3CON.

Unused channels left open with other settings may be equal

to the input lower than -15%, which sets a data abnormality

at the PLC or the host device.

■ AND ....

The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for sat-

isfying complete performance described in the data sheet.

INSTALLATION

Use the Installation Base (model: R3-BSx).

R3-SV4C

P. 2 / 3EM-8409 Rev.2

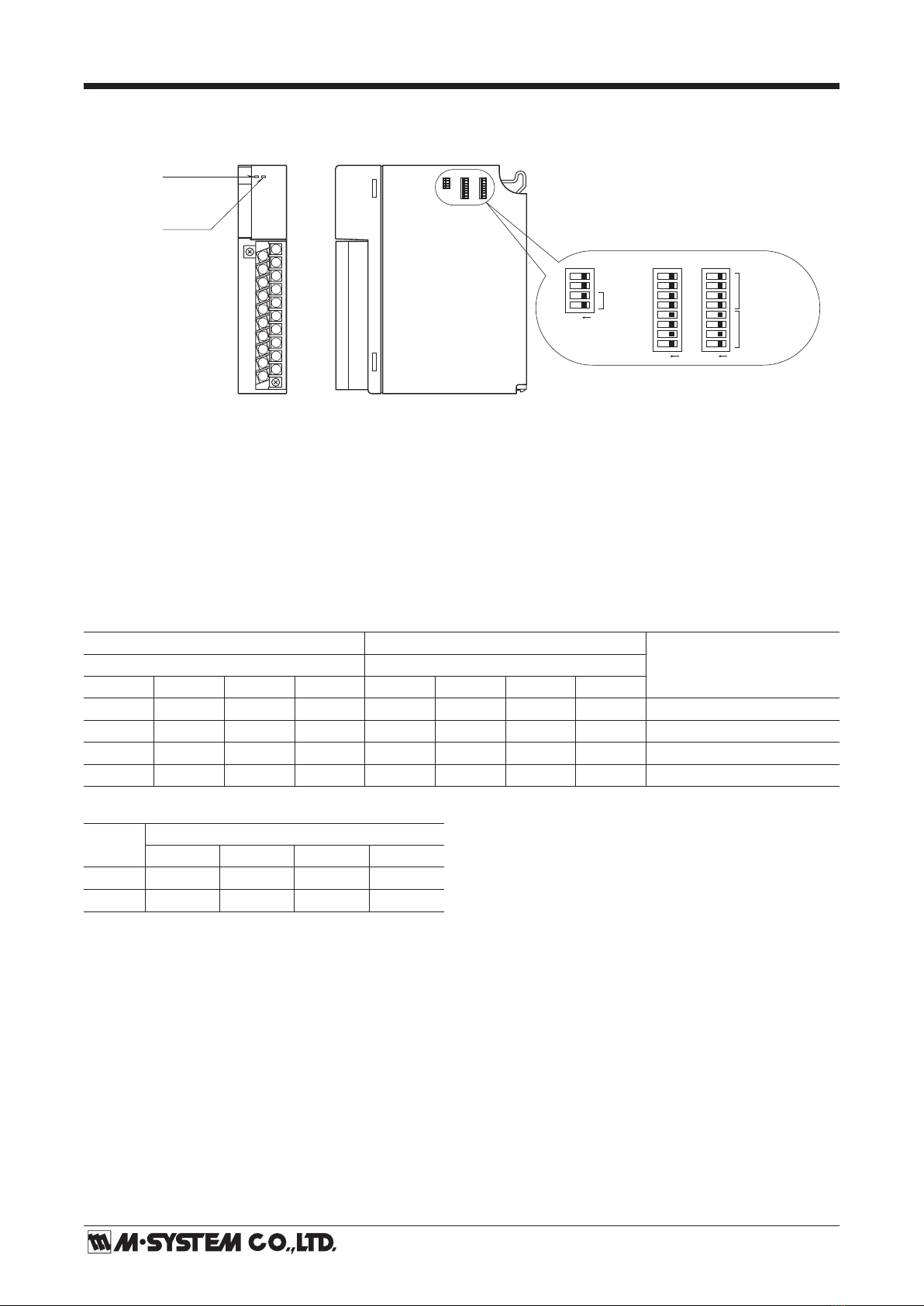

■ STATUS INDICATOR LED

RUN indicator: Bi-color (red/green) LED;

Red when the bus A operates normally;

Green when the bus B operates normally;

Amber when both buses operate normally.

ERR indicator: Bi-color (red/green) LED;

Red with the input circuit abnormality (AD

converter response failure);

Green in normal operating conditions.

■ SIDE DIP SW

• Input Range: SW1, SW2

INPUT 1 (SW1) INPUT 2 (SW1)

RANGEINPUT 3 (SW2) INPUT 4 (SW2)

1 2 3 4 5 6 7 8

OFF OFF OFF OFF OFF OFF OFF OFF -50 – +50V (*)

ON OFF OFF OFF ON OFF OFF OFF -25 – +25V

OFF ON OFF OFF OFF ON OFF OFF 0 – 50V

ON ON OFF OFF ON ON OFF OFF 0 – 25V

• Conversion Rate: SW3

SW CONVERSION RATE

80 ms (*)40 ms 20 ms 10 ms

SW3-1 OFF ON OFF ON

SW3-2 OFF OFF ON ON

(*)Factory setting

SW1SW2

SW3

■ FRONT VIEW ■ SIDE VIEW

ERR LED

RUN LED

Conv.

Rate

Input 2 (SW1)

Input 4 (SW2)

Range

Input 1 (SW1)

Input 3 (SW2)

Functions

COMPONENT IDENTIFICATION

R3-SV4C

P. 3 / 3EM-8409 Rev.2

WIRING INSTRUCTIONS

■ SOLDERLESS TERMINAL mm (inch)

Refer to the drawing below for recommended ring tongue

terminal size. Spade tongue type is also applicable. Solder-

less terminals with insulation sleeve do not ﬁt. Applicable

wire size: 0.3 – 0.75 mm2

3.2 (.13) dia.

4 min.

(.16)

12 (.47) max.

6 max.

(.24)

3 (.12) max.

130 (5.12)

27.5 (1.08) 109 (4.29) POSITIONING

GUIDE

TERMINAL

COVER

20–M3

SCREW

6.2

(.24)

–

INPUT 1

INTERNAL POWER

BUS A

BUS B*

*For dual redundant communication.

DO NOT connect external wiring to the unused terminals.

BUS CONNECTOR

–

INPUT 2

–

INPUT 3

–

INPUT 4

■ DIMENSIONS mm (inch)

■ CONNECTION DIAGRAM

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

M-SYSTEM WARRANTY

M-System warrants such new M-System product which it manufactures to be free from defects in materials and workmanship during the 36-month period following the date that such

product was originally purchased if such product has been used under normal operating conditions and properly maintained, M-System’s sole liability, and purchaser’s exclusive

remedies, under this warranty are, at M-System’s option, the repair, replacement or refund of the purchase price of any M-System product which is defective under the terms of this

warranty. To submit a claim under this warranty, the purchaser must return, at its expense, the defective M-System product to the below address together with a copy of its original

sales invoice.

THIS IS THE ONLY WARRANTY APPLICABLE TO M-SYSTEM PRODUCT AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. M-SYSTEM SHALL HAVE NO LIABILITY FOR CONSEQUENTIAL, INCIDENTAL OR

SPECIAL DAMAGES OF ANY KIND WHATSOEVER.

M-System Co., Ltd., 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN, Phone: (06) 6659-8201, Fax: (06) 6659-8510, E-mail: [email protected]
