M-system R5-SV Manuale utente

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■PACKAGE INCLUDES:

DC voltage input module .................................................. (1)

■MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

POINTS OF CAUTION

■CONFORMITY WITH EU DIRECTIVES

• The equipment must be mounted inside the instrument

panel of a metal enclosure.

• The actual installation environments such as panel con-

ﬁgurations, connected devices, connected wires, may af-

fect the protection level of this unit when it is integrated

in a panel system. The user may have to review the CE

requirements in regard to the whole system and employ

additional protective measures to ensure the CE conform-

ity.

■HOT INSERTION/REMOVAL OF MODULES

• Removing or replacing modules does not affect other mod-

ules on the same backplane. It is possible to replace them

without removing the power supply. However, replacing

multiple modules at once may greatly change line voltage

levels. We recommend that you replace them one by one.

■GENERAL PRECAUTIONS

• DO NOT set the switches while the power is supplied.

The switches are used only for maintenance without the

power.

■ENVIRONMENT

• Indoor use.

• When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -10 to +55°C

(14 to 131°F) with relative humidity within 30 to 90% RH

in order to ensure adequate life span and operation.

■WIRING

• Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■AND ....

• The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for

satisfying complete performance described in the data

sheet.

INSTALLATION

Use the Installation Base (model: R5-BS).

DC VOLTAGE INPUT MODULE MODEL R5-SV

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-6116 Rev.2 P. 1 / 3

INSTRUCTION MANUAL

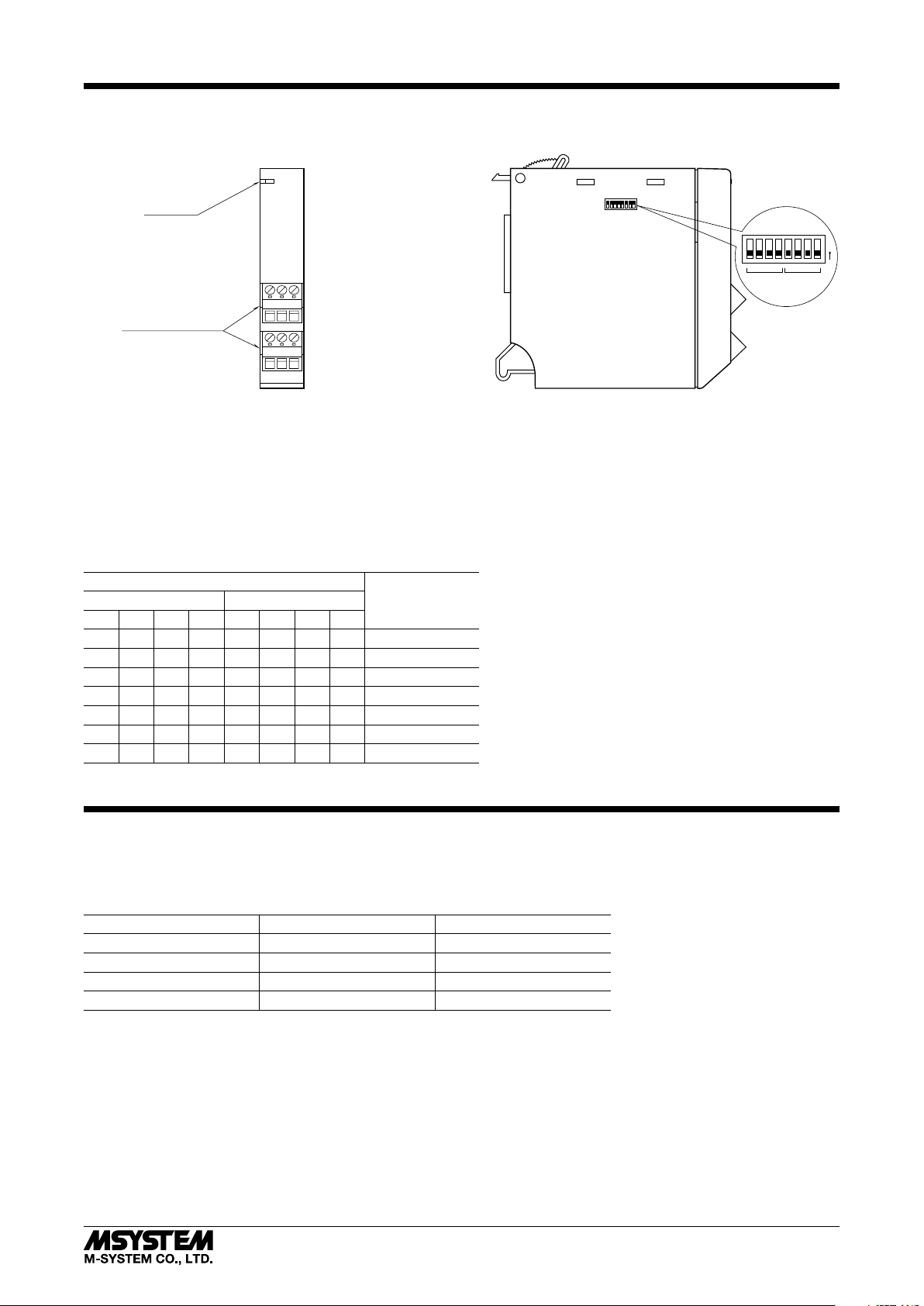

COMPONENT IDENTIFICATION

Euro Type

Connector Terminals

RUN LED

456

123

Input 1 Input 2

2345678

RUN

■

SIDE VIEW ■FRONT VIEW

■STATUS INDICATOR LED

RUN indicator: Bi-color (red/green) LED;

Red when the bus A operates normally;

Green when the bus B operates normally;

Amber when both buses operate normally.

■SIDE DIP SW

• Input Range: SW1 through 8

Each channel independent

DIP SW

RANGEINPUT 1 INPUT 2

12345678

OFF OFF OFF OFF OFF OFF OFF OFF -10 – +10V (*)

ON OFF OFF OFF ON OFF OFF OFF -5 – +5V

OFF ON OFF OFF OFF ON OFF OFF -1 – +1V

ON ON OFF OFF ON ON OFF OFF 0 – 10V

OFF OFF ON OFF OFF OFF ON OFF 0 – 5V

ON OFF ON OFF ON OFF ON OFF 1 – 5V

OFF ON ON OFF OFF ON ON OFF 0 – 1V

(*) Factory setting

PC CONFIGURATOR

With conﬁgurator software, settings shown below are available.

Refer to the software manual of R5CON for detailed operation.

■CHANNEL INDIVIDUAL SETTING

PARAMETER AVAILABLE RANGE DEFAULT SETTING

Zero Scale -32000 to +32000 0

Full Scale -32000 to +32000 10000

Bias [Zero Adj.] -320.00 to +320.00 0.00

Gain [Span Adj.] -32000 to +32000 1.0000

R5-SV

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-6116 Rev.2 P. 2 / 3

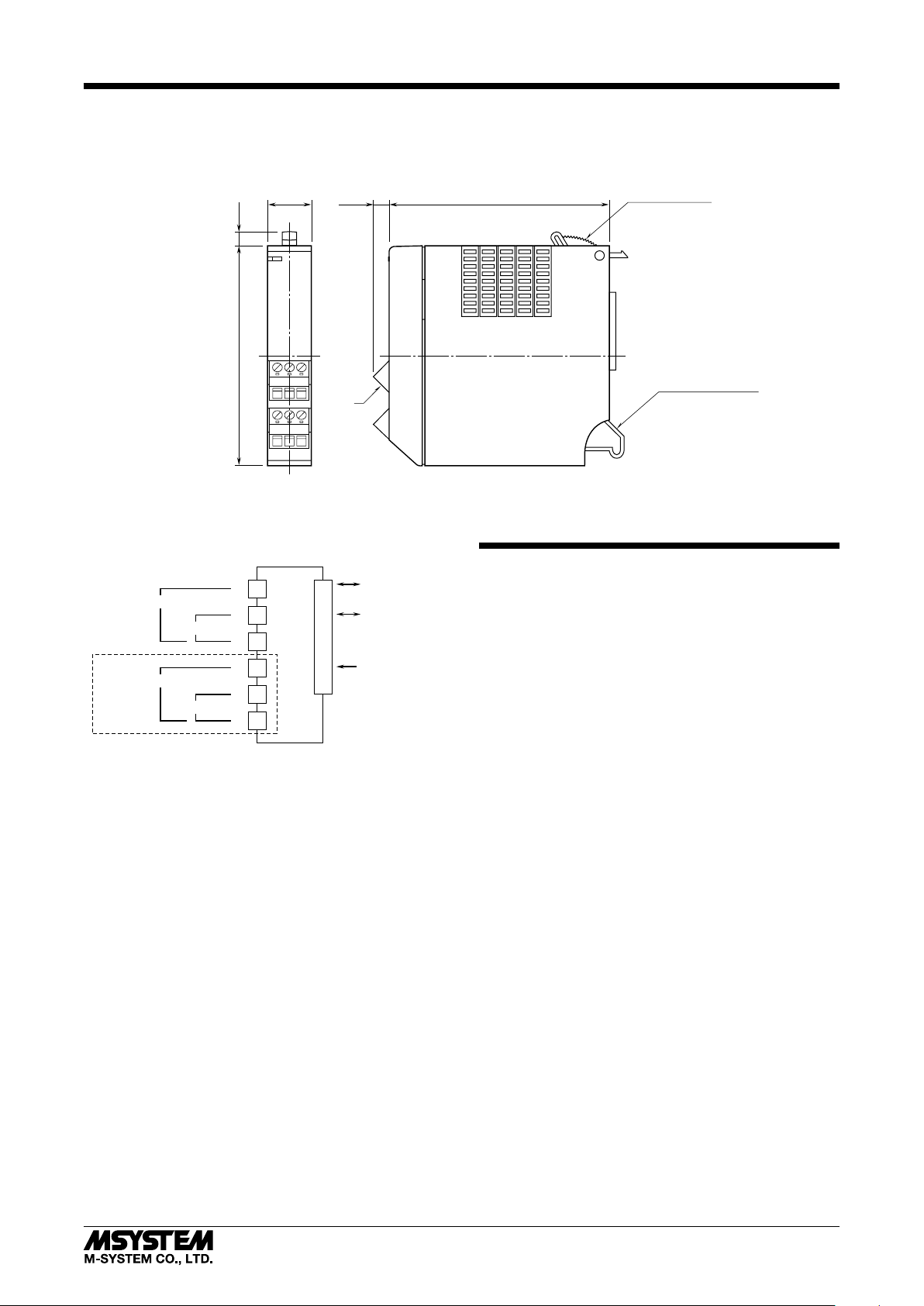

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

■EXTERNAL DIMENSIONS unit: mm (inch)

456

123

6.5

(.26)

90 (3.54) LOCKING CLAMP

90 (3.54) 5.6

(.22)

18 (.71)

POSITIONING GUIDE

*Euro type connector terminals (4, 5 and 6) provided only with 2-ch. option.

■CONNECTION DIAGRAM

BUS CONNECTOR

INTERNAL

POWER

*For dual redundant communication.

Note: Connect either wide or narrow span terminals for each channel.

The section enclosed by broken line is with 2-ch. option.

–

NARROW SPAN

WIDE SPAN

NARROW SPAN

WIDE SPAN

INPUT 1

–

INPUT 2

INTERNAL

BUS A

INTERNAL

BUS B*

• Wide span: -10 – +10 V DC, -5 – +5 V DC, 0 – 10 V DC,

0 – 5 V DC, 1 – 5 V DC

• Narrow span: -1 – +1 V DC, 0 – 1 V DC

WIRING INSTRUCTIONS

■EURO TYPE CONNECTOR TERMINAL

Applicable wire size: 0.2 to 2.5 mm2

Stripped length: 7 mm

R5-SV

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-6116 Rev.2 P. 3 / 3
