M2 Antenna Systems 902-5 YAGI Manuale utente

M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722

Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com

Rev.00

Model ........................................ 902-5

Frequency Range ...................... 900 To 930 MHz

Usable Range ............................ 880-940 MHz

*Gain ..........................................11dBi

Front to back ..............................

17 dB

Beamwidth ...............................H= 52° / E=44°

Feed Impedance. ....................... 50 Ohms

VSWR ........................................1.3:1 TYPICAL

Input Connector..........................“N” Female

Polarity .......................................VERT / HORZ

Power Handling..........................500 Watts

Boom Length / Dia .....................

1”

Stacking Distance ......................

28”

Mast Size....................................1 1/4” TO 2”

Wind area / Survival ...................(.1) SQ FT./ 100 MPH

Weight / Ship Wt. .......................

1 LB

M2 Antenna Systems, Inc.

Model No: 902-5 YAGI

FEATURES:

The 902-5 Wireless internet antenna, has been designed to give you optimum performance for the smallest

package size. The new 5/16” element design decreases the effects of rain and light snow deterioration often seen

in similar antennas.

The heart of the 902-5, the folded dipole, provides a virtual flat match for over 30 MHz. The gain has been designed to roll

-off quickly above range limits to prevent receiver overload from high power services above 930 MHz. The heavy duty

boom and 5/16” elements, give the ISP service confidence for superior performance and longevity.

The 902-5 is a DC grounded antenna designed to work with many radios including the Wave Rider. The 3003 and 3004

Wave Rider radios have internal DC circuit protection built in.

SPECIFICATIONS:

*Subtract 2.14 from dBi for dBd

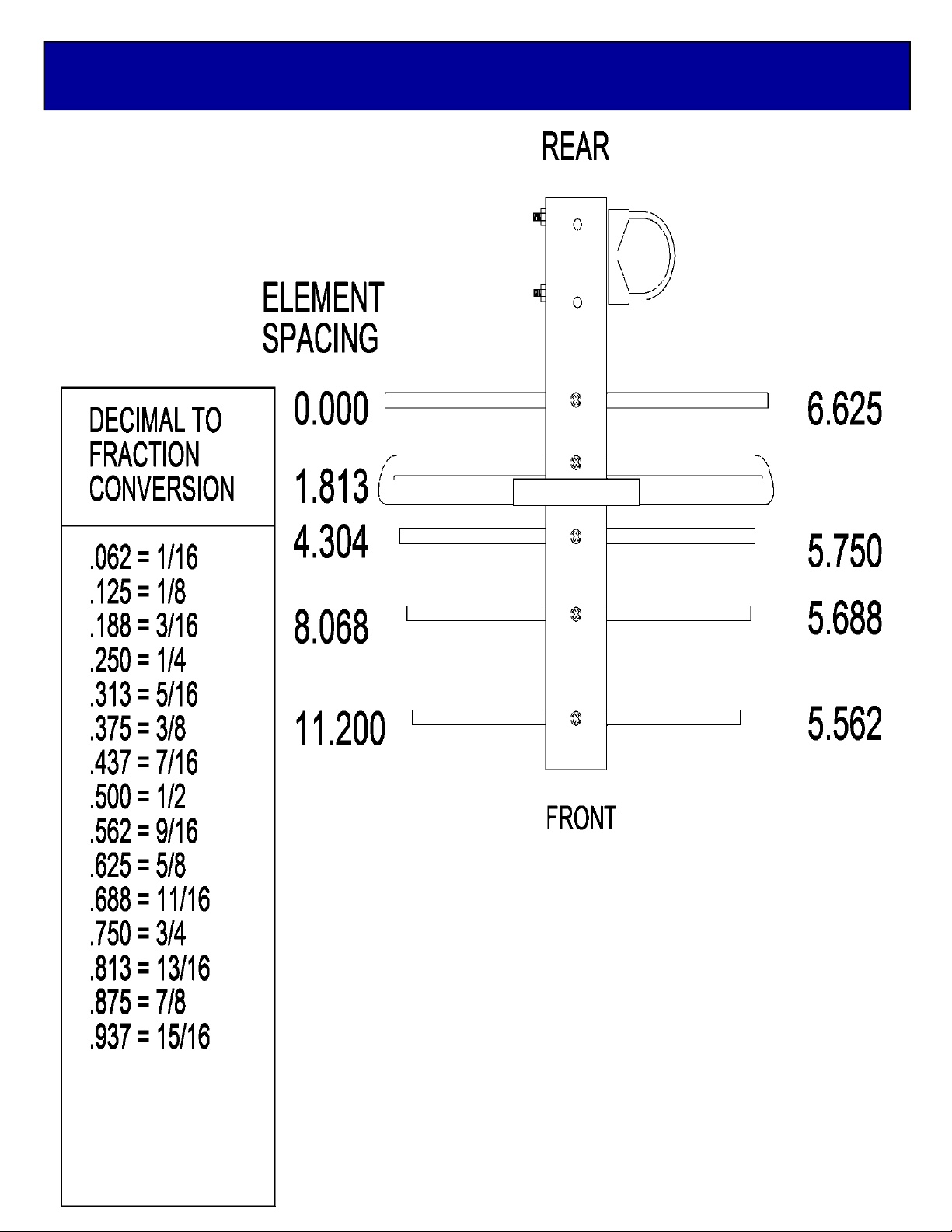

902-5 DIMENSION SHEET

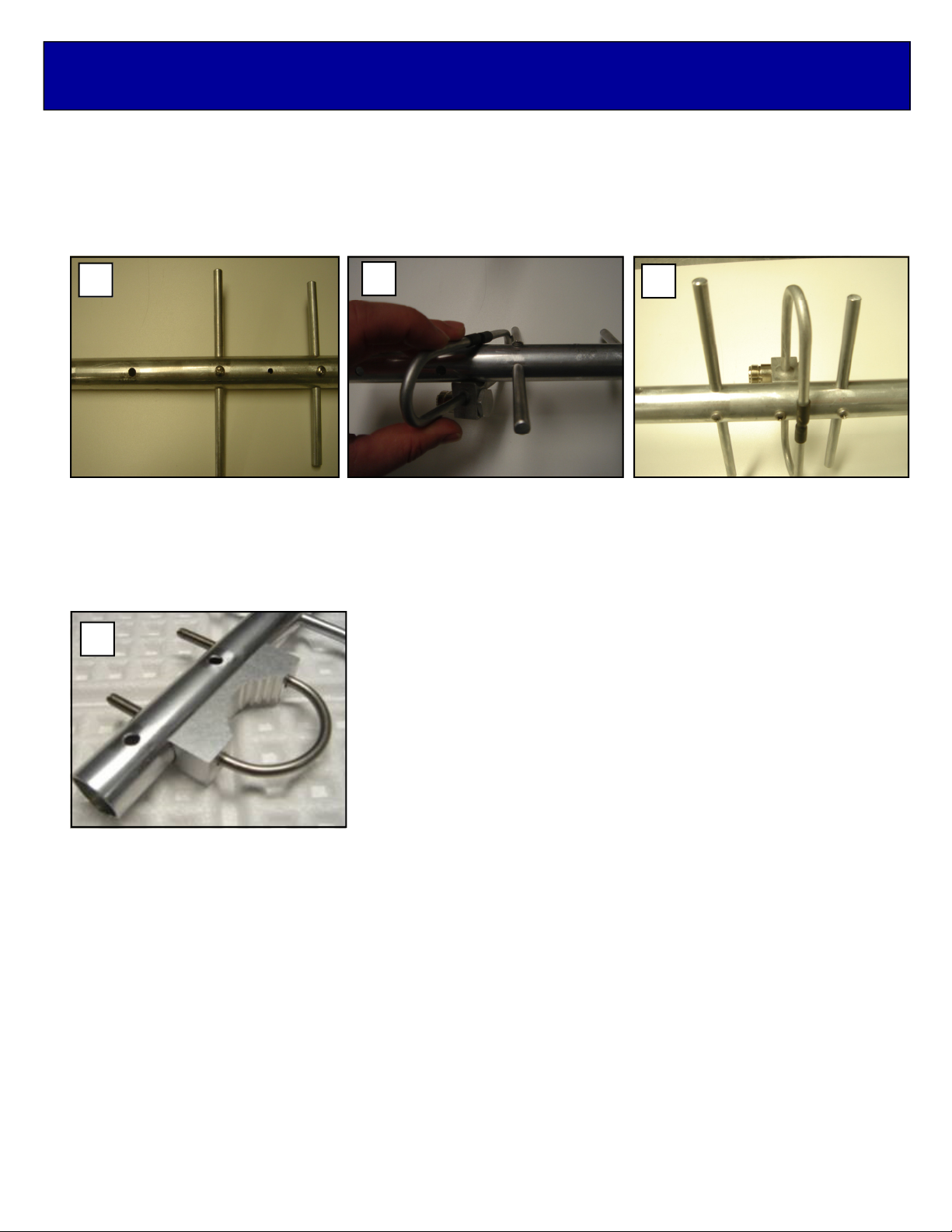

GETTING STARTED

Tools handy for assembly process: Phillips head screwdriver, 11/32” spin-tite or socket, 7/16” end

wrench or socket. The elements of the antenna are pre-assembled from the factory.

Step 1:

The assembly will be started at the

rear of the boom section.

1 2 3

Step 2:

Attach the folded dipole to the rear

boom section by sliding the unit back

and forth until it is in place.

Step 3:

It may be necessary to remove the first

element to slide the dipole in place.

Attach the dipole with an 8-32 x 1 1/4”

screw.

Step 5:

Attach the mounting U-bolt and Cradle

in the correct polarity holes. Use the

two 1/4-20 hex nuts and lock washers.

It is highly recommended to use a

lubricant like WD-40 on the threads

of the U-bolt. Stainless material will

seize if not lubricated.

902-5 ASSEMBLY MANUAL

DESCRIPTION......................................... QTY

BOOM, 1.0” X .063 X 17.9375” ALUM .............1

ELEMENTS, 5/16” (INSTALLED).....................4

FOLDED DIPOLE ASSEMBLY ........................1

U-BOLT, 2”, SS & UNI-SADDLE ...................1

ASSEMBLY MANUAL ......................................1

IN HARDWARE BAGS:

NUT, 1/4-20, SS ...............................................2

LOCKWASHER, 1/4” SPLIT RING SS ............2

SCREW, 8-32 X 1-1/4”, SS ..............................1

M2ANTENNA SYSTEMS, INC.

4402 N. SELLAND AVE.

FRESNO, CA 93722

(559) 432-8873 FAX: 432-3059

www.m2inc.com Email: [email protected]

902-5 PARTS & HARDWARE
