MACDEV PRIME XTS Manuale utente
www.macdevpaintball.com
(c) Copyright 2019 Mac Developments Pty Ltd (MacDev).
MacDev - Proudly Australian
The Prime paintball marker is covered by the following granted patents as well as internaonal pending patents:
U.S. Patent Nos. 5,228,427; 5,755,213; 5,957,119; 6,260,821; 6,349,711; 6,494,195; 6,644,295; 6,644,296; 6,823,857;
6,694,963; 6,810,871; 7,017,497; 7,044,119.
PRIME™XTS
Owners Manual
TM
PRIME
Prime XTS Owners Manual
V1.10
Copyright Mac Developments Pty. Ltd. 2019
All rights reserved
No part of this document may be copied or reproduced in any form or by any means without the prior wrien
consent of Mac Developments Pty. Ltd.
Noce is hereby given that this manual is part of the arcle owned in whole by Mac Developments Pty. Ltd., known
as indicated in this manual and drawings. All rights of manufacture and reproducon of such arcles or any part
thereof are reserved by Mac Developments Pty Ltd. Neither said arcle nor any part thereof may be manufactured or
reproduced without the wrien authorizaon from Mac Developments Pty. Ltd. All proprietary rights and informaon
are the sole property of Mac Developments Pty. Ltd.
MacDev, Prime, Conquest, Gladiator, MatchSck, Cyborg, Shi and Drone are all trademarks of Mac Developments
Pty Ltd.
Statement of Liability
Mac Developments Pty. Ltd. makes no warranes with respect to this documentaon and disclaims any implied
warranes of merchantability or tness for a parcular purpose. The informaon in this document is subject to
change without noce. Mac Developments Pty. Ltd. assumes no responsibility for its resale or safe handling. Mac
Developments Pty. Ltd. assumes no responsibility for physical injury or property damage resulng from its use.
MacDev Warranty
MacDev oers a 12 month limited warranty period on your MacDev manufactured electro-pneumac
marker. The MacDev electro-pneumac marker is warranted to be free from all manufacturing and
producon defects for a period of 12 months from the date of original purchase. If requested by MacDev,
an original proof of purchase must be provided. Warranty excepons include, but are not limited to,
accidental damage, misadventure, reasonable wear and tear and consumable components such as
O-rings, detents, baeries and eyes. Warranty work must be undertaken by an authorized MacDev tech
centre or at a MacDev sanconed tech support booth.
For assistance with your warranty, please visit www.macdevpaintball.com/warranty or contact customer
service on our website (www.macdevpaintball.com)
Warning!
This is not a toy. Misuse may cause serious injury or death. Eye protecon designed specically
for paintball must be worn by user and persons within range. Recommend 18 years or older
to purchase. Persons under 18 must have adult supervision. Do not use muzzle velocies
over 300fps. Do not use within 5m of target. READ OWNER’S MANUAL BEFORE USING. 2
CONTENTS
Know your Prime (Page 5)
All users should read this secon to learn the parts of your Prime and their names.
Quick Setup (page 7)
Learn how to set your marker up for use the rst me.
Assemble your barrel
Install and air system
Fit your loader
Turning on your marker
Understanding the OLED
Adjusng your velocity
Adjusng your trigger
Advanced Setup(Page 12)
Essenal reading on how to use your marker.
Tourney Lock
Entering program mode
Finding and changing sengs
Sengs in detail
Using the USB connector
Changing the front grip angle
Maintenance (Page 16)
Maintaining your purchase is essenal to long term product sasfacon.
Basic cleaning
Maintaining the drivetrain
Maintaining the inline regulator
Troubleshoong (Page 19)
Solving common dicules.
Common problems and soluons
Technical assistance
Specicaons (Page 22)
4

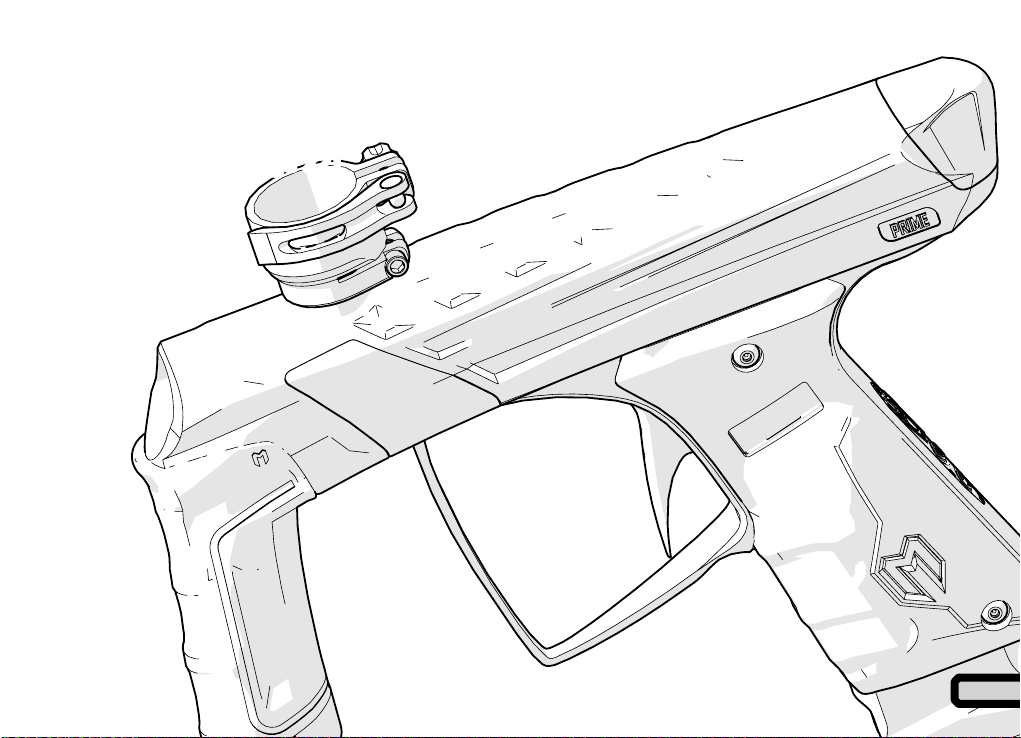

KNOW YOUR Prime® XTS
2
1
3
4
5
7
8
10
6
11
9
Congratulaons on your purchase of a new MacDev Prime XTS. Your marker uses a highly ecient spool valve
drive for a at, consistent and accurate shot. The drive is powered by a high precision, low power solenoid valve,
manufactured in house by MacDev. The enre system is controlled by a new generaon, robust microprocessor
running a proprietary operang system.
The latest features have been added around this powerful base core to bring you a marker with unrivalled usability,
quality and reliability.
Please take the me to learn the parts of your Prime XTS, it will help you when reading this manual.
Numbered basic parts as shown in the gure on the le:
1. Shi 3 barrel
2. Feed clamp lever (used to ax your loader)
3. Drive cover (pull up and back to remove)
4. Velocity regulator adjustment (an clockwise to increase velocity)
5. Tool-less eye covers
6. OLED display used to view gun status/sengs
7. Trigger with screw adjustments
8. Membrane pad with power and programming buons
9. Venng ASA, screw your air system in here
10. Venng ASA on/o lever (used to turn the air on or o)
11. Front grip assembly
Please note, the features and included accessories are subject to change, and may vary from those show in this manual.
6
QUICK SETUP
Assemble your barrel
Your marker comes with a Shi 3 barrel system. Screw the two halves together, before screwing the barrel into
your marker. The barrel and back are reverse threaded.
1 2
Your marker is shipped with two inserts. Select the
best match to your paint. More Shi 3 inserts are
available from MacDev if you require more insert
sizes.
Install an air system
Your marker can accept any standard screw in air system. A
pressure of 450psi is preferred, however 300-800psi is acceptable.
1. Open the lever
2. Screw n an air system
3. Close the lever to engage the air.
WHEN SCREWING YOUR
AIR SYSTEM INTO THE ASA,
THE THREADS SHOULD BE
LOOSE. IF AT ANY POINT
THEY BECOME TIGHT, DO
NOT FORCE THE THREADS,
THIS MAY CAUSE DAMAGE
TO YOUR AIR SYSTEM OR
YOUR MARKER!
1
2
3
8
