MacroAir Technologies AirStar Manuale utente

AIRSTAR

Table Of Contents

1. Cautions And Safety

2. Package Contents

3. Tools Needed

4. Fan Clearance / Placement

5. I-beam Mounting

6. Glulam Mounting

7. Spanning Mount / Mount Assembly

8. Extention Assembly

9. Blades/ Blade Retainers

10. Blade Retainer Assembly

11. Wiring guide/ Cat5 B

Caution and Safety

pg 1.

READ AND FOLLOW THIS MAUAL BEFROE OPERATING THE FAN.

Read these safety practices before installing, operating or servicing the fan. failure to follow these

safety practices could result in death or serious injury.

Be certain to follow the instructions in this manual. If you do not understand the instructions please

call our Technical department for help.

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH

- Read and understand this manual before installing or operating. Installation, adjustment, reapair,

maintenance must be performed by qualied personel.

- The user is responcable for compliance with all international and national electrical code

requirements with respect to grounding of all equipment.

- Many of the part of this unit operat at line voltage. DO NOT TOUCH.

-Install all covers before applying power or starting and stopping the unit.

DAMAGED EQUIPMENT

Do not operate or install any fans or fan Accesory that appears to be damaged.

Failure to folow these instruction can result in death, serious injury, or equipment damage.

MAINTENANCE AND SERVICE:

If the fan does not operate properly useing the procedures in this manual, BE CERTAIN TO

REMOVE ALL POWER TO THE UNIT and contact our technical department for futher assistance.

Keep all body clear of moving part at all times.

All electrical troubleshooting and repair must be done by a qualied technician and meet all

applicable codes.

Package Contents

Power Unit

Image of Hardware and Mount

Remote pg 2.

1. Socket set and ractchet (deep and short wall)

2. 3/8 allen key

3. Magnetic level

4. Phillips and Flat Head Screw driver

5. Network crimping tool (if standard connection will not work.)

6. Torque Wrench (Not Shown)

Tools Required

pg 3

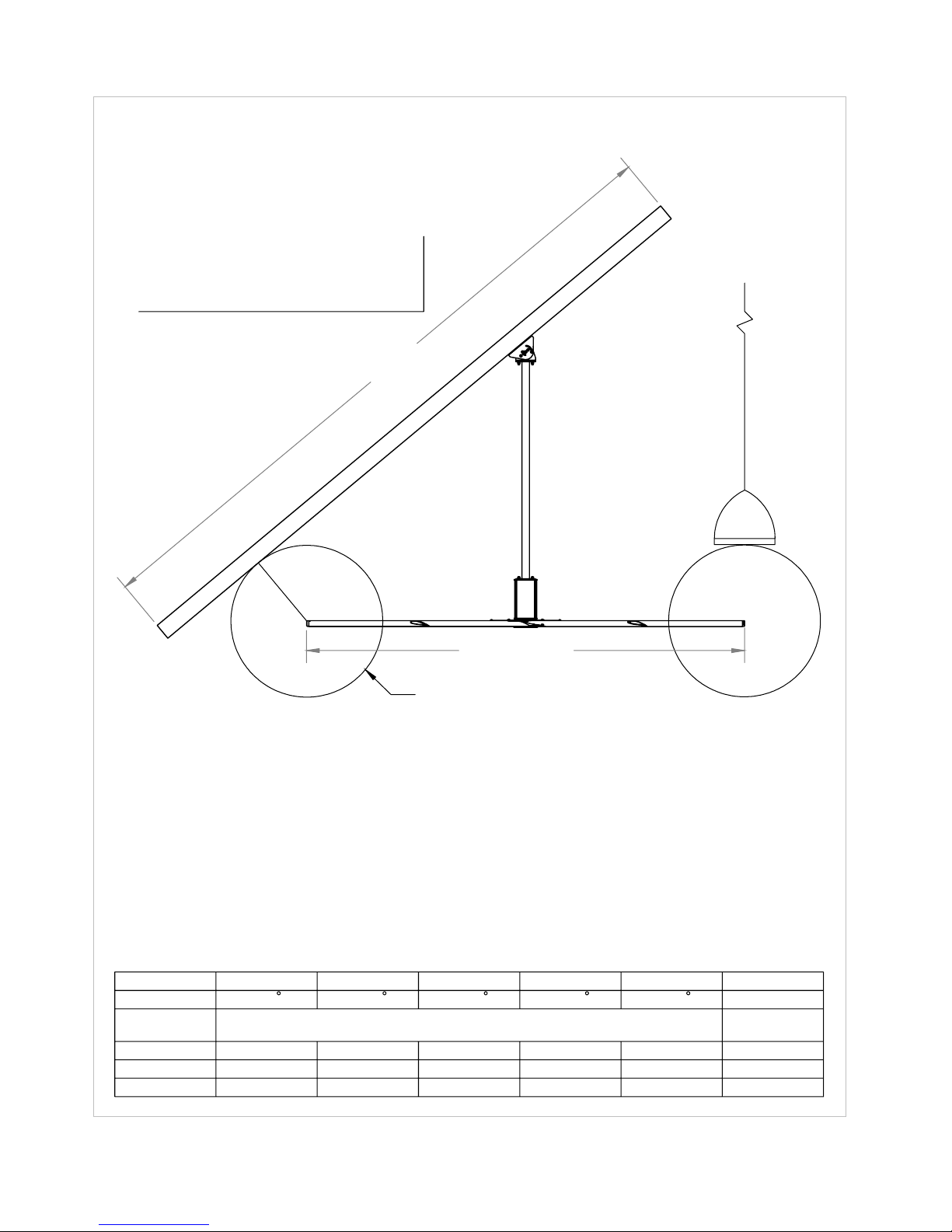

Roof Slope=

Rise/Run

Fan Diameter

Run=12"

Rise=?"

NO OBSTRUCTIONS IN THIS AREA

(15% OF FAN DIAMETER)

Total fan height

approximately19.5"

The extension lengths below are minimum recomendations only, based soley on roof

pitch and fan diameter. Other consideration must be evaluated when determining

extension requirements, such as placement of lights, sprinklers systems, HVAV systems

and so on. In addition, OSHA requirements state that fan blade must be a minimum of 10

feet (3.05 Meters) above the floor. Contact our sales department for assistance with fan

placment and extension selection.

Fan Clearance And Extension Guide

Slope

2/12 4/12 6/12 8/12

10/12

Roof Anlgle

9.5 18.4 26.6 33.7 39.8

Fan

Diameter

Recomended Length

Clearance

Zone Radius

1 ft 1 ft 2 ft 3 ft 4 ft

14.5"

1 ft

2 ft 3 ft 4 ft 5 ft

18"

2 ft

3 ft 4 ft 5 ft 6 ft

32.5"

pg 4

I-beam Mounting

I-Beam Assembly

Exploded View

For installations with I-beams use MacroAir I-beam

Kit (PN 60-50106-00). To properlly install mount be

sure to use hang mount along slope of the roof.

For ease of installation the Unistrut for our I-beam mount can be installed in two differant

congurations. Refer to images above for examples.

pg 5

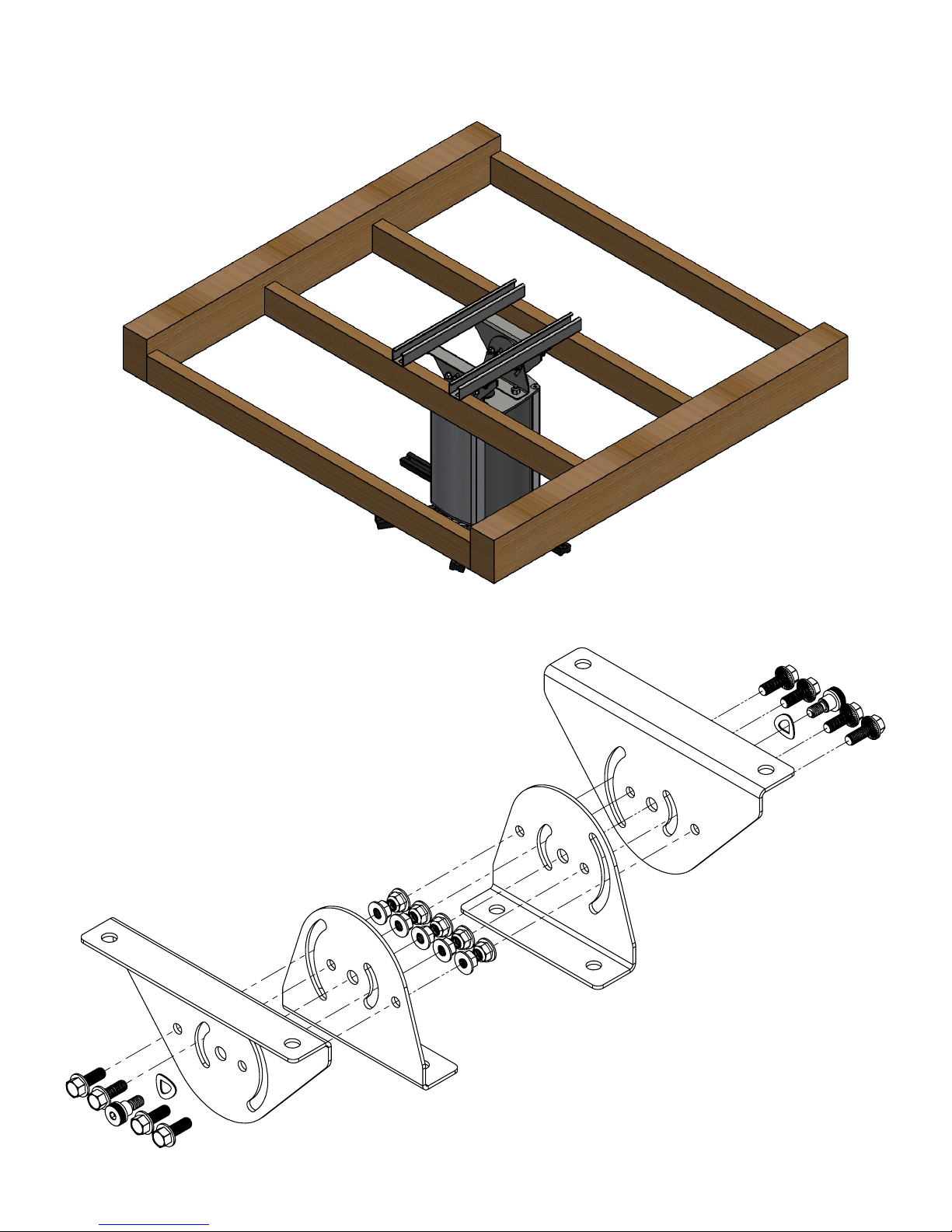

Glulam Mounting

Glulam Assembly

Exploded View

Glulam Installation utilizes unistrut in conjunction with our Glulam bracket for installations

containing glulam beams.

Installation on Glulam beams will use MacroAir

Glulam Mounting Kit (PN 60-50108-00).

Installing the mount alonge the slope of the roof

will allow the proper leveling of the fan.

pg 6

Model of spanning mount

Loosely install the mount hardware prior to

installing fan. Once the fan is installed and level,

tighten mount hardware down.

Spanning Mount also utilizes

Unistrut for spanning mount

installations.

Power Unit Mount Exploded View

pg 7
