Mahlkonig K30 TWIN Guida all'installazione

MAHLKÖNIG GmbH & Co. KG

Quick Menu K30 TWIN

Twin Espresso Grinder

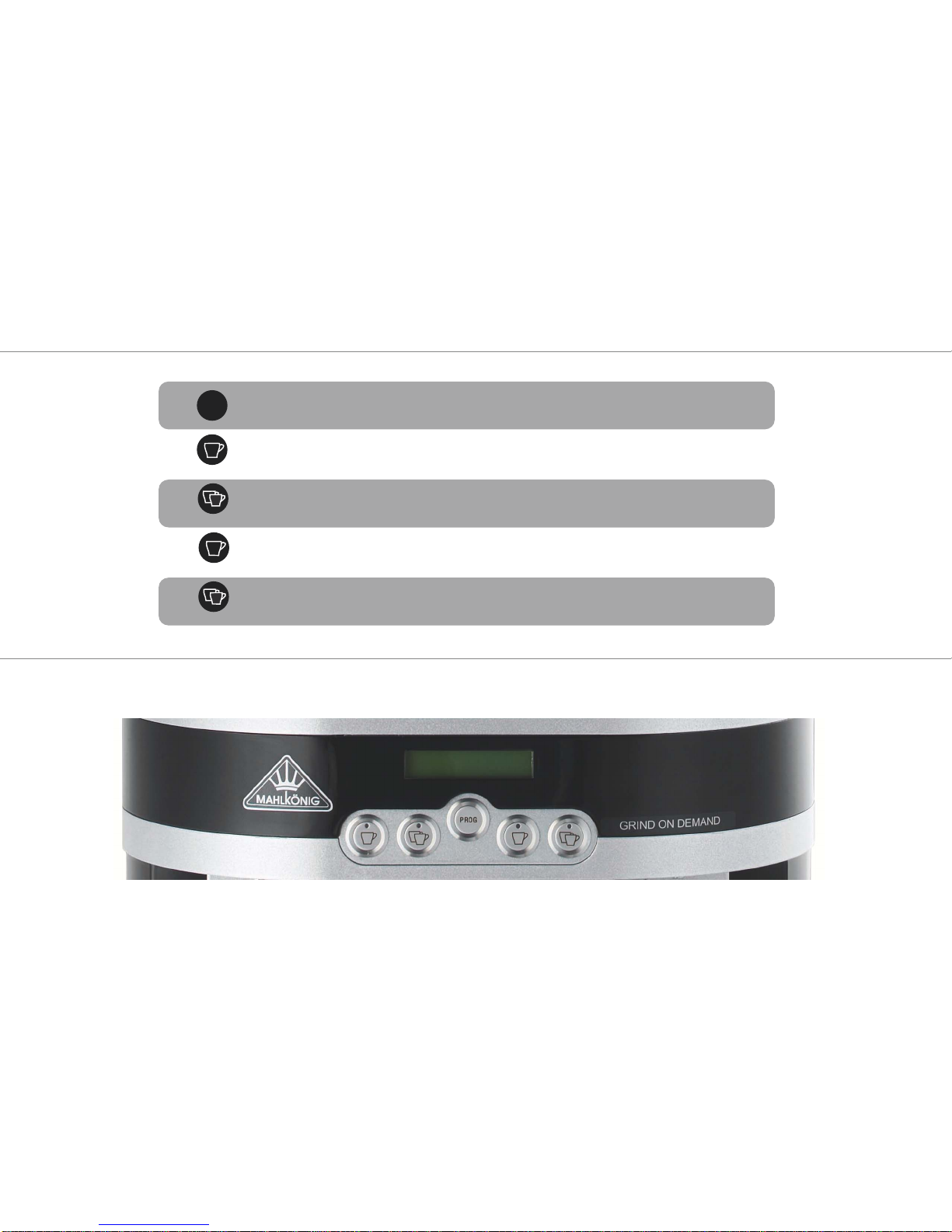

Quick Manual K30 Twin

Twin Espresso Grinder Basic Functions of the Buttons

PROG.

Enter (go into a lower software menu level) P5

right

go foreward in menu P8

left

decrease values in menu ( - button) P6

left

increase values in menu ( + button) P7

right

go back in menu P9

Display

Main Menu Sub Menu

PROG.

press

PROG.

press

MAHLKOENIG

GRINDER READY 1) PROGRAM

DOSE GRINDER N° 1

DOSE N° 1 2.000s

(left grinder - single shot)

GRINDER N° 1

DOSE N° 2 4.000s

(left grinder - double shot)

GRINDER N° 2

DOSE N° 1 2.000s

(right grinder - single shot)

GRINDER N° 2

DOS N° 2 4.000s

(right grinder - double shot)

right

press

right

press

right

press

right

press

PROG.

press

time blinking

PROG.

press

save

left

Sec.

PROG.

press

time blinking

PROG.

press

save

left

Sec.

PROG.

press

time blinking

PROG.

press

save

left

Sec.

PROG.

press

time blinking

PROG.

press

save

left

Sec.

PROG.

press

2) DOSE COUNTER GR1: SHOTS1

0000002

(left grinder - 2 single shots)

GR1: SHOTS2

0000120

(left grinder - 120 double shots)

GR2: SHOTS1

0002123

(right grinder - 2123 single shots)

GR2: SHOTS2

0000020

(right grinder - 20 double shots)

right

press

right

press

right

press

right

press

PROG.

press

3) ALARM / RECORDS NO RECORDS

right

press

or ALARM RECORDS e.g.

GRINDER 1

BLOCKED GRINDER 1

FAN TOO SLOW

right

press

right

press

Quick Manual K30 TWIN

Twin Espresso Grinder Menu

right

press

right

press

counter volumes represent examples

Main Menu Sub Menu

PROG.

press

4) LANGUAGE, REL

SW, SERIAL N° 4-1) LANGUAGE

ENGLISH 4-2) SW RELEASE

0.07 4-3) SERIAL N°

1234

right

press

right

press

right

press

PROG.

press

PROG.

press

SAVE

left

CHANGE LANGUAGE

LANGUAGE BLINKING

PROG.

press

5) RESET RESET

GRINDER N° 1 RESET

GRINDER N° 2 RESET

ALARM RECORDS RESET

CLEANING COUNTER

RESETTING

GRINDER N° 1 RESETTING

GRINDER N° 2 RESETTING

ALARM RECORDS RESETTING

CLEANING COUNTER

right

press

right

press

right

press

right

press

PROG.

press

PROG.

press

PROG.

press

PROG.

press

set dose counter

of left grinder back to 0 set dose counter

of right grinder back to 0 delete all

alarm records set cleaning counter

back to 0

Quick Manual K30 TWIN

Twin Espresso Grinder Menu

right

press

right

press

Main Menu Sub Menu

PROG.

press

6) SETUP 6-1) CLEANING AL.

6-1) CLEANING AL.

NO YES

6-2) CLEANING AL.

1000 6-3) SERIAL N°

1234

right

press

right

press

right

press

only changable

in factory with super pin

PROG.

press

PROG.

press

NUMBER blinking

PROG.

press

SAVE

left

PROG.

press

SAVE

left

YES

Quick Manual K30 TWIN

Twin Espresso Grinder Menu

right

press

Main Menu Sub Menu

PROG.

press

7) TEST 7-1) INPUT, DIP

SWITCH, FAN 7-2) TRIAK, RELAY

CURRNET 7-3) BUTTONS 7-4) DISPLAY

SIC SW1 SW2 MC1

OFF OFF OFF OFF

F1 (HZ) F2 (HZ)

ON 120 OFF 0

GR1=OFF RL=ON

I = 4.89A

right

press

right

press

right

press

right

press

PROG.

press

PROG.

press

PROG.

press

PROG.

press

PROG.

press

PROG.

press

7-5) POWER

SUPPLY 7-6) RS232

INTERFACE

right

press

right

press

rightright

KEYB=

(checking the function of the

buttons with numbers) LCD

(testing all display dots)

LED

(testing all LED’s)

SIC: Lid safety switch

SW1: switch left grinder

SW2: switch right grinder

MC1: 230V / 115V

ON: Contact closed

activates / deactivates

the triak of the grinder

press

left

press

right

LCD

press

right

press

right

BUZZ

(testing the alarm)

press

right

activates / deactivates

the relayof the grinder

press

left

press

right

F1: FAN 1

(HZ): Frequency of F1

F2: FAN 2

(HZ): Frequency of F2

press

right

V-SUPPLY = 27.3V testing the RS 232

Interface

right

for grinder 1

for grinder 2

for P5

press

for P6

left

press

for P8

right

press

for P7

left

press

for P9

right

END

Quick Manual K30 TWIN

Twin Espresso Grinder Menu

right

press

Main Menu Sub Menu

PROG.

press

8) CHANGE

PASSWORD PASSWORD

XXXXXX

right

press

right

press

the first X blinking

SAVE

left

for next number

and

for saving in the end

PROG.

press

9) CLEANING COUNT.

RESET

MAHLKOENIG

GRINDER READY

9-1) CLEANING AT

1000

right

press

PROG.

press

NUMBER blinking

PROG.

press

SAVE

left

9-2) RESET

RESETTING

CLEANING COUNTER

right

press

PROG.

press

END MENU

Quick Manual K30 TWIN

Twin Espresso Grinder Menu

right

press

right

press
