MAJORITY Kite Manuale utente

Majority Kite

Pocket DAB / DAB+ / FM Radio

CB1-DAB-BLK

User Guide

Contents

Watch video tutorials and register

your product for a FREE 3-year

warranty atwww.majorityradios.co.uk

Controls and Functions................................1

What’s in the Box? ....................................2

Instruction Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Basic Operation.............................................3

DAB Radio, Prune, Dynamic Range Compression,

Manual Tuning and Set up Preset for DAB Radio .............4

FM Radio and Set up Preset for FM Radio ....................8

Station Information for DAB and FM Radio ..................11

Other Functions .....................................13

Technical Specication ...............................16

Warranty ............................................16

Important Safety Information ........................17

Controls and Functions

1. Mode DAB/FM

2. Previous

3. Volume –

4. Volume +

5. Info

6. Next

7. Ok/Conrm/

Preset

8. Lock

9. On/O

10. Earphone jack

11. Battery

Compartment

12. Display Screen

1 5

2 6

3 7

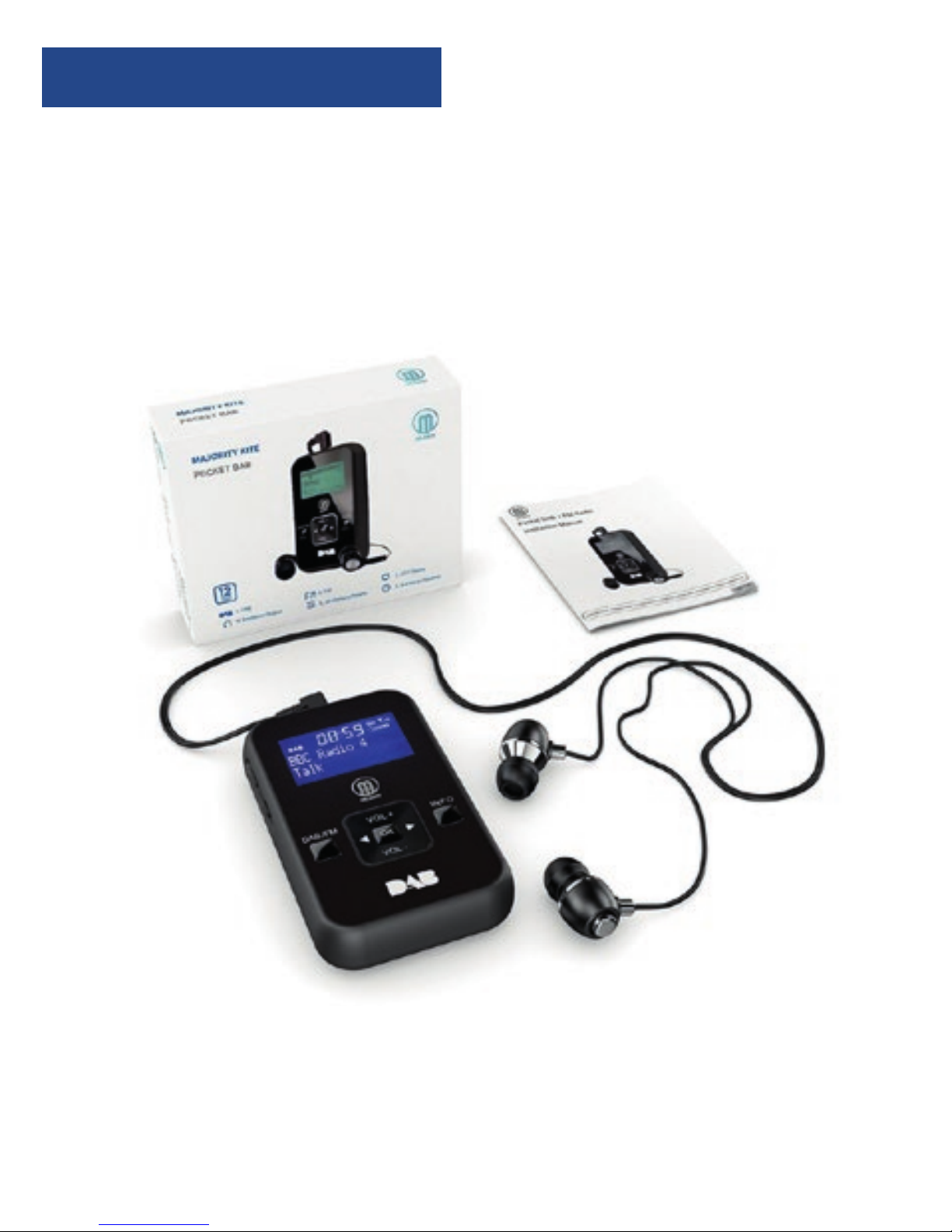

What's in the Box?

●Majority Kite Pocket DAB DAB+ /FM Radio

●Earphones

●User Guide

Instructions Guide

Please note all (Ref.) refer to the Controls and Functions

mapping guide on Page 1.

Basic Operation

This portable radio is powered by 3 AAA batteries (not supplied).

See Power Source Page 15.

Turn on the power supply by switching the ‘ON/OFF’button (Ref.9)

on the side of the system to the ‘ON’ position.“Welcome to Digital

Radio” will show on the display.

Then the display will show “Searching” and can take a few minutes

to scan for stations. Once scanning has competed the display will

show the time and station information.

Press the ‘Mode DAB/FM’button (Ref.1) to switch to FM or again to

switch back to DAB.

Ensure that the earphones are correctly inserted into the earphone

jack (Ref.10) on the top of the system, as they also act as the antenna

of your radio. Without them, no DAB/FM signal will be received.

To lock your pocket radio

To avoid accidently changing stations if the radio is in your pocket,

press and hold the ‘Lock’ button (Ref.8) for a few seconds. A lock

sign will appear on the top left of the display screen to show that

you have successfully locked the radio. To unlock the radio , press

and hold the ‘Lock’ button (Ref.8) for a few seconds and the locked

sign will disappear from the display screen.

Instructions Guide

DAB / DAB+ Radio

Press the ‘Mode DAB/FM’button (Ref.1). On rst use, DAB Radio will

automatically start scanning all stations and save them.

To scan (if the unit hasn’t automatically done so, or shows no

signal) press and hold the ‘Info’ button (Ref.5) and when the display

shows“FULL SCAN”, press the ‘Ok’ button (Ref.7).

The unit will start scanning up the frequency band and store all

stations that have a good signal. Please note: if you are not in a

good DAB signal area then you will not get a strong signal, if any.

The radio will automatically save all those stations that have a

strong signal. After searching has nished it will automatically play

the rst station stored.

To select any of the stations that have been stored, use the ‘Next’

(Ref.6) and ‘Previous’ (Ref.2) buttons to navigate through the

stations. To listen to a chosen station press the ‘Ok’ button (Ref.7).

The radio will display station information when you press the ‘Info’

button (Ref.5). Press multiple times to view all information

available (See page 11).

When you turn the radio on again after switching it o, it will

automatically tune to the same station (DAB or FM) that was last

selected.

Instructions Guide

Prune

To remove stations which are listed but have become unavailable:

Find the station you would like to remove.

Press and hold the ‘Info’ button (Ref.5). Use the ‘Next’ (Ref.6) and

‘Previous’ (Ref.2) buttons to navigate through the choices.

Choose ‘Prune’, press the ‘Ok’button (Ref.7) to conrm.

Use the ‘Next’ (Ref.6) and ‘Previous’ (Ref.2) buttons to choose‘Yes/No’.

Press the ‘Ok’ button (Ref.7) to conrm. The unavailable station will

now be deleted if you chose 'Yes'.

Dynamic Range Compression (DRC)

This function enables you to reduce the dierence between the

maximum and minimum levels in audio volume.

Press and hold the ‘Info’ button (Ref.5), and use the ‘Next’ (Ref.6)

and ‘Previous’ (Ref.2) buttons to navigate through the choices.

Choose ‘DRC’, press the ‘Ok’ button (Ref.7) to conrm.

Then use the ‘Next’ (Ref.6) and ‘Previous’ (Ref.2) buttons to choose

between DRC “o”, “high” or “low”.

Once you have chosen press the ‘Ok’ button (Ref.7) to conrm.

Instructions Guide

Manual Tuning

As well as an auto tune function, you can manually tune the

receiver. This can help you when aligning your aerial or when

adding stations that were missed while auto tuning.

Press and hold the ‘Info’ button (Ref.5), use the ‘Next’ (Ref.6) and

‘Previous’ (Ref.2) buttons to navigate through the choices.

Choose “Manual Tune”, and press the ‘Ok’ button (Ref.7) to conrm.

Then use the ‘Next’ (Ref.6) and ‘Previous’ (Ref.2) buttons to cycle

through the DAB+ channels, which are from 5A to 13F.

Once you have chosen press the ‘Ok’ button (Ref.7) to conrm.

How to preset a radio station

You can store a station using the ‘Preset’ button (Ref.7) and save

up to 10 stations.

First, tune the station you want to store. Then press and hold the

‘Ok’ button (Ref.7), “Preset Recall’’ will show on the display.

Use the ‘Previous’ (Ref.2) or ‘Next’ (Ref.6) buttons until “Preset Store”

is displayed. Press the ‘Ok’ button (Ref.7) to conrm. “Preset Store

Empty ‘1’’’will show on the display.

Press the ‘Previous’ (Ref.2) or ‘Next’ (Ref.6) buttons to change

the “1” to the number you want to store the station as.

Press the ‘Ok’ button (Ref.7) to save.

The display will then show “Preset (1) stored”.

Instructions Guide

How to play a preset radio station

Once you have stored all your selected stations, press and hold the

‘Ok’button (Ref.7). Use‘Previous’or “Next‘ to scroll through your

options and select “Preset Recall” by pressing the ‘Ok’ button (Ref.7).

Use the ‘Previous’ (Ref.2) or ‘Next’ (Ref.6) buttons to scroll through

your preset stations, up to 10.

Press the ‘Ok’ button (Ref.7) to select your choice.

Watch video tutorials and register

your product for a FREE 3-year

warranty atwww.majorityradios.co.uk

Instructions Guide

FM Radio

Press the ‘Mode DAB/FM’button (Ref.1).

The rst time you do this FM frequency “87.5 MHz”will be

displayed on the screen.

To auto scan, press and hold the ‘Previous’ button (Ref.2) and then

release. This will scan down the stations. To scan up the stations

press and hold the ‘Next’ button (Ref.6).

After searching has nished the unit will automatically play the rst

station stored with a good signal.

The radio will display station information when you press the ‘Info’

button (Ref.5). Press multiple times to view all information

available (See page 12).

How to tune a specic frequency manually

To listen to a specic frequency, you can search quickly by pressing

and holding the ‘Next’button (Ref.6) to search up and the ‘Previous’

button (Ref.2) to search down the bandwidth. Searching will stop

when you press the button again. To search slowly, press the ‘Next’

(Ref.6) and ‘Previous’ (Ref.2) buttons multiple times rather than

holding.

Watch video tutorials and register

your product for a FREE 3-year

warranty atwww.majorityradios.co.uk
