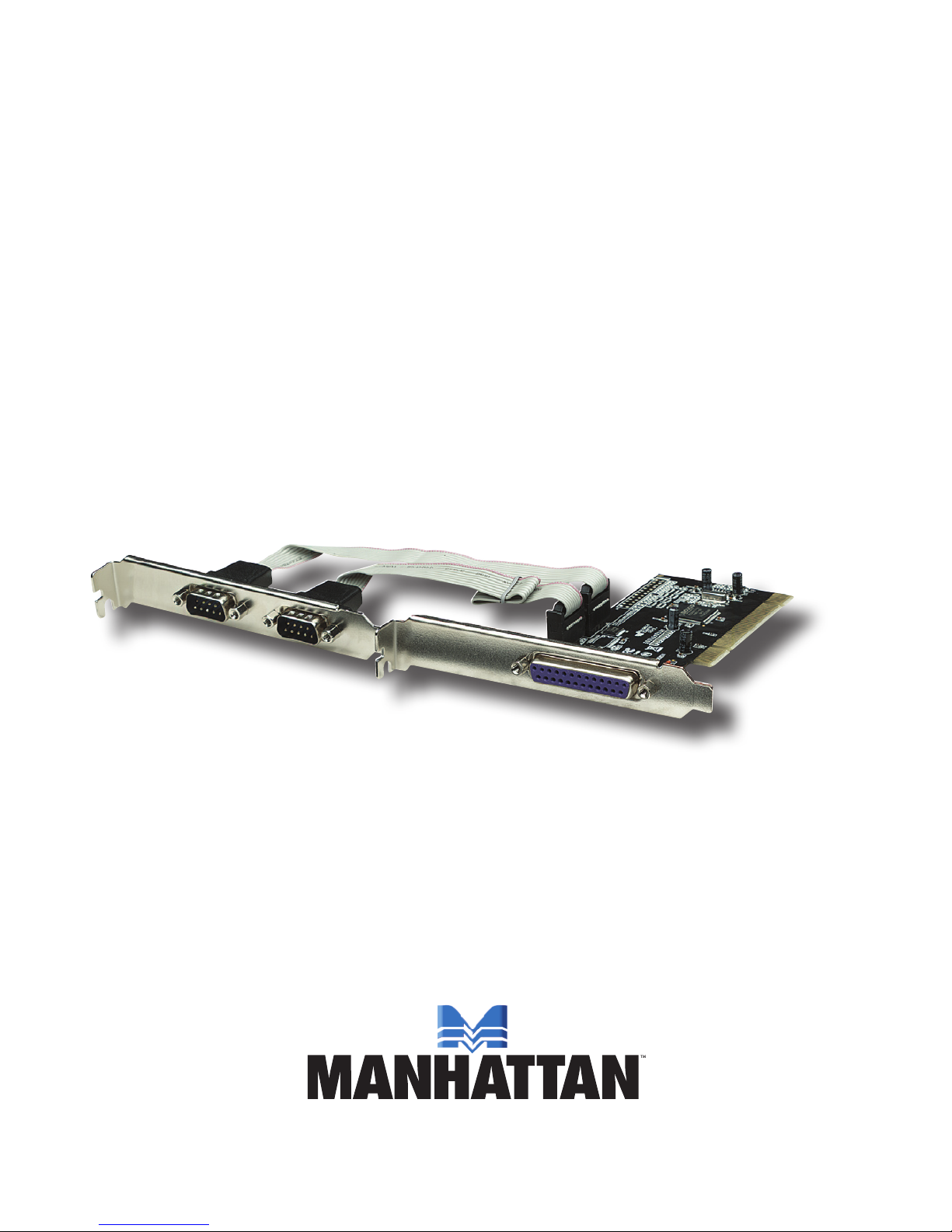

Manhattan 158251 Manuale utente

SERIAL/

PARALLEL

COMBO

PCI CARD

USER

MANUAL

Model 158251

MAN-158251-UM-0409-02

INTRODUCTION

Thank you for purchasing this MANHATTAN

Serial/Parallel Combo

PCI Card, Model 158251.

Compatible with most RS-232 peripherals, this card with two external

serial DB9 ports is an ideal solution for attaching two serial devices —

modems, barcode scanners, printers and more — and a parallel DB25

port through a single PCI card and two open rear expansion slots. Its

two high-speed 16C550 UART serial DB9 Com ports fully support PCI

IRQ sharing even if accessed simultaneously to help save valuable

resources for other expansion cards. The DB25 port with Enhanced

Parallel Port (EPP), Standard Parallel Port (SPP) and Enhanced

Capability Port (ECP) help support the faster transfer of large amounts

of data.

The easy-to-follow instructions in this manual help make installation of

the card quick and simple, so you’ll also soon be enjoying the benets

of these additional features:

• Maximum 115.2 kbps throughput on each serial port

• Up to 1.5 MBps parallel throughput

• Universal bus power design for 5 V and 3.3 V

• Fully supports PCI IRQ sharing

• Automatically selects IRQ and IO address

• Lifetime Warranty

NOTE: To ensure proper operation, make sure that you complete the

driver installation before proceeding with the hardware installation.

System Requirements

• Windows 2000/XP/Server 2003/Vista 32/64-bit

• 2 available punch-out expansion slots and 1 PCI slot

Package Contents

• Serial/Parallel Combo PCI Card with expansion plate

• User manual and driver CD

DRIVER INSTALLATION

I M PO RTANT: Make sure that you’ve completed the driver installation

before proceeding with the hardware installation.

Windows 2000 / XP / Server 2003

1. Insert the included driver CD in the PC’s CD-ROM drive.

2. On the desktop, click “Start,” then click “Run.”

3. Enter “D:\PCI_IO\MCS9865\XP\PCISetup.exe,” then click “OK.”

4. Click “Install” to install the drivers.

5. Click “Exit” to complete the driver installation.

6. Shut down the PC.

7. Place the PCI card into PCI slot (see Hardware Installation below),

then power on the system.

8. Once the system boots, Windows will automatically start installing the

driver software.

Windows XP-x64 / Server 2003-x64

1. Insert the included driver CD in the PC’s CD-ROM drive.

2. Enter “D:\PCI_IO\MCS9865\XP64\PCISetup.exe,” then click “OK.”

3. Click “Install” to install the drivers.

4. Click “Exit” to complete the driver installation.

5. Shut down the PC.

6. Place the PCI card into PCI slot (see Hardware Installation below),

then power on the system.

7. Once the system boots, Windows will automatically start installing the

driver software.

Windows Vista

1. Insert the included driver CD in the PC’s CD-ROM drive.

2. Enter “D:\PCI_IO\MCS9865\Vista32\PCISetup.exe,” then click “OK.”

3. Click “Install” to install the drivers.

4. Click “Exit” to complete the driver installation.

5. Shut down the PC.

6. Place the PCI card into PCI slot (see Hardware Installation below),

then power on the system.

7. Once the system boots, Windows will automatically start installing the

driver software.

Windows Vista-x64

1. Insert the included driver CD in the PC’s CD-ROM drive.

2. Enter “D:\PCI_IO\MCS9865\Vista64\PCISetup.exe,” then click “OK.”

3. Click “Install” to install the drivers.

4. Click “Exit” to complete the driver installation.

5. Shut down the PC.

6. Place the PCI card into PCI slot (see Hardware Installation below),

then power on the system.

7. Once the system boots, Windows will automatically start installing the

driver software.

Verify Windows Driver Installation

1. From the Control Panel, go to System Properties and click “Device

Manager.”

2. Find the “Ports (COM & LPT)” listing and conrm that two “High-Speed

PCI Serial Port” items are displayed, plus one “PCI ECP Parallel

Port” item.

HARDWARE INSTALLATION

I M PO RTANT: Make sure that you’ve completed the driver installation

before proceeding with the hardware installation.

1. Turn off your computer.

2. Unplug the power cord and remove your computer’s cover.

3. Remove the slot bracket from an available PCI slot.

4. To install the card, carefully align the card’s bus connector with the

selected PCI slot on the motherboard. Push the board down rmly.

5. Replace the slot bracket’s holding screw to secure the card.

6. Replace the computer cover and reconnect the power cord.

SPECIFICATIONS

Standards and Certications

• CE

• FCC

• RS-232c

• PCI 2.3

• WEEE

General

• 2 serial DB9 male connections; maximum 115.2 kbps throughput on

each port (256 byte FIFO)

• 1 parallel DB25 female connection; maximum 1.5 MBps throughput

(256 byte FIFO)

• MosChip 9865 chipset

• Requires (2) available punch-out expansion and (1) PCI slots

• Windows 2000/XP/Server 2003/Vista 32/64-bit compatible

Bus

• PCI 2.3 32-bit, 33 MHz

• Supports 32-bit PCI slot

• 5 / 3.3 V bus power

Physical

• Dimensions:

- Controller card: 124 x 122 x 23 mm (4.9 x 4.8 x 0.9 in.)

- Serial expansion plate, including cable: 181 x 122 x 23 mm

(7.1 x 4.8 x 0.9 in.)

• Weight: 96.3 g (3.4 oz.)

All products mentioned are trademarks or registered trademarks of their respective owners.

www.manhattan-products.com

MANHATTAN®offers a complete line

of PC Components, Peripherals, Cables and Accessories.

Ask your local computer dealer for more information

or visit us online at
