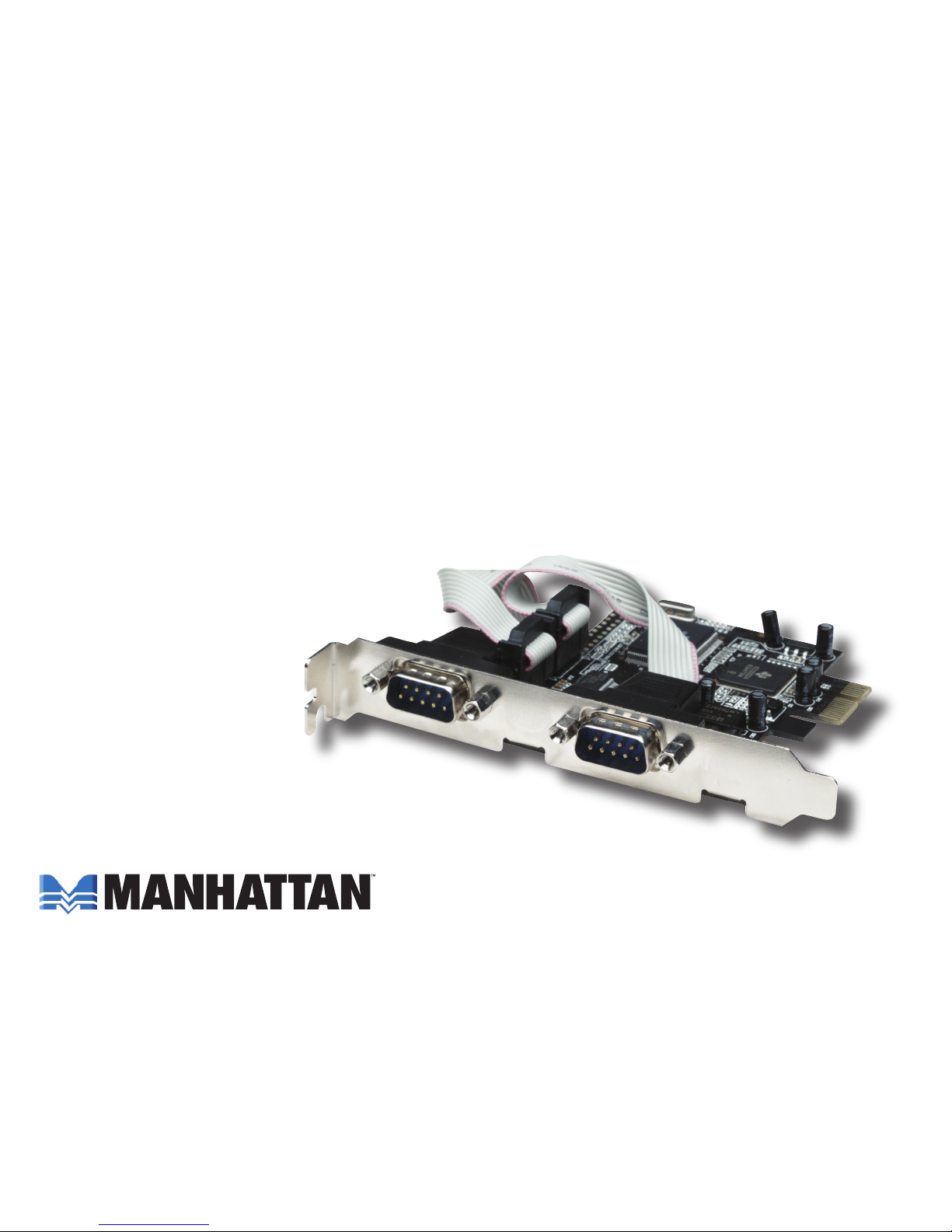

Manhattan 160452 Manuale utente

MAN-160452-UM-1106-04

Serial PCi

exPreSS Card

USer MaNUal

MODEL 160452

Thank you for purchasing the MANHATTAN®Serial PCI Express Card, Model 160452.

Compliant with PCI Express 1.0a speciﬁcations, this card can be conﬁgured to achieve baud

rates of up to 115,200 bps and takes advantage of PCI Express data transfer speeds of up to

2.5 Gbps.

hardware iNStallatioN

1. Turn off the power to the computer system.

2. Unplug the power cord and remove your computer’s cover.

3. Remove the slot bracket from an available PCIe slot.

4. To install the card, carefully align the card’s bus connector with the selected PCIe slot on the

motherboard. Push the board down ﬁrmly.

5. Connect the system power source to the board’s power connector.

6. Replace the slot bracket’s holding screw to secure the card.

7. Replace the computer cover and reconnect the power cord.

driver iNStallatioN

NOTE: Make sure the board is installed before proceeding with driver installation.

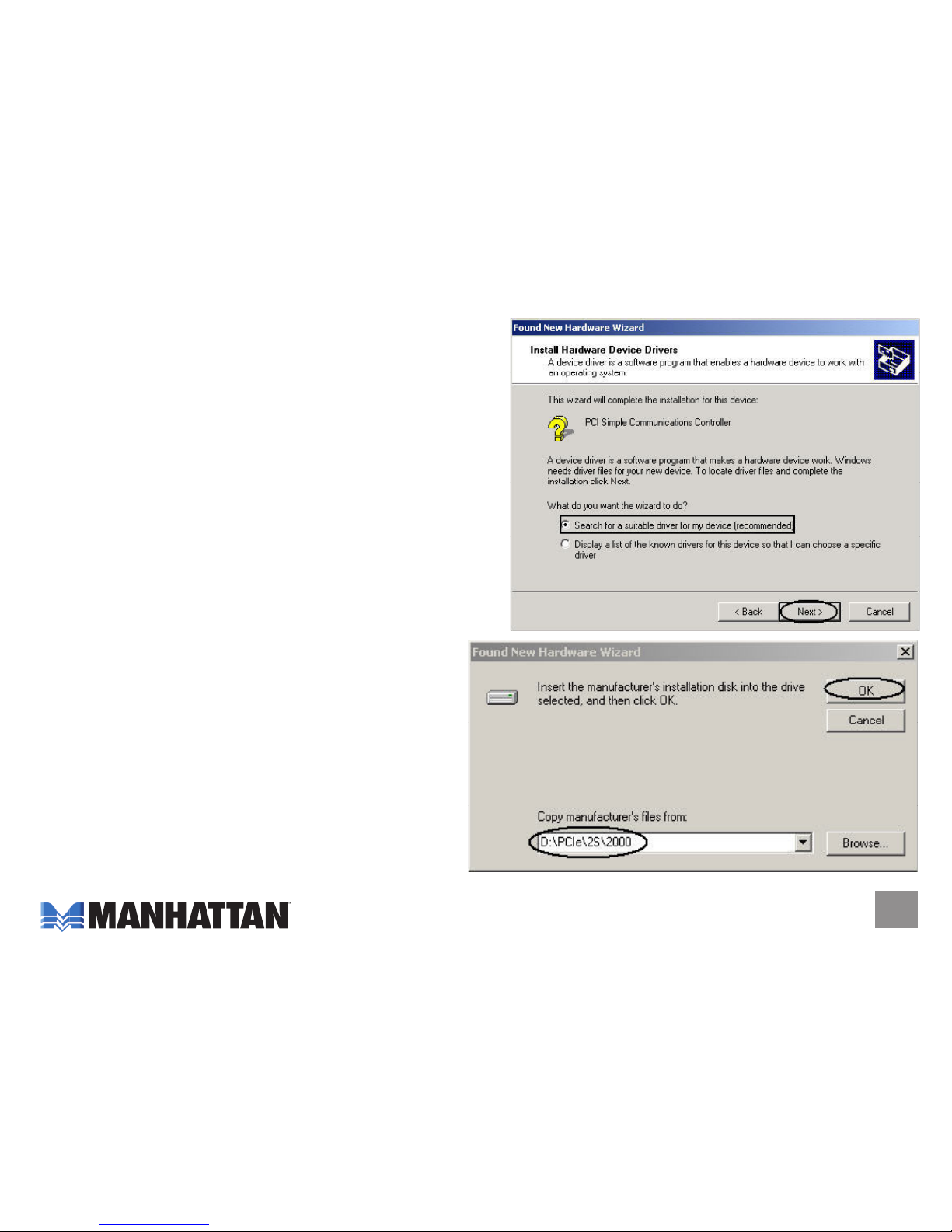

For Windows 2000

1. On the Found New Hardware Wizard screen,

click "Next."

2. Select "Search for a suitable driver for my

device (recommended)," and click "Next."

3. Check "Specify a location," uncheck the other

boxes, then click "Next."

4. Insert the driver CD, enter "D:\PCIe\2S\2000"

in the "Copy manufacturer’s ﬁles from" ﬁeld,

then click "OK." (If needed, change "D:" to

match your CD-ROM drive designation.)

5. Click "Next," then "Finish."

6. Restart Windows to complete the

installation.

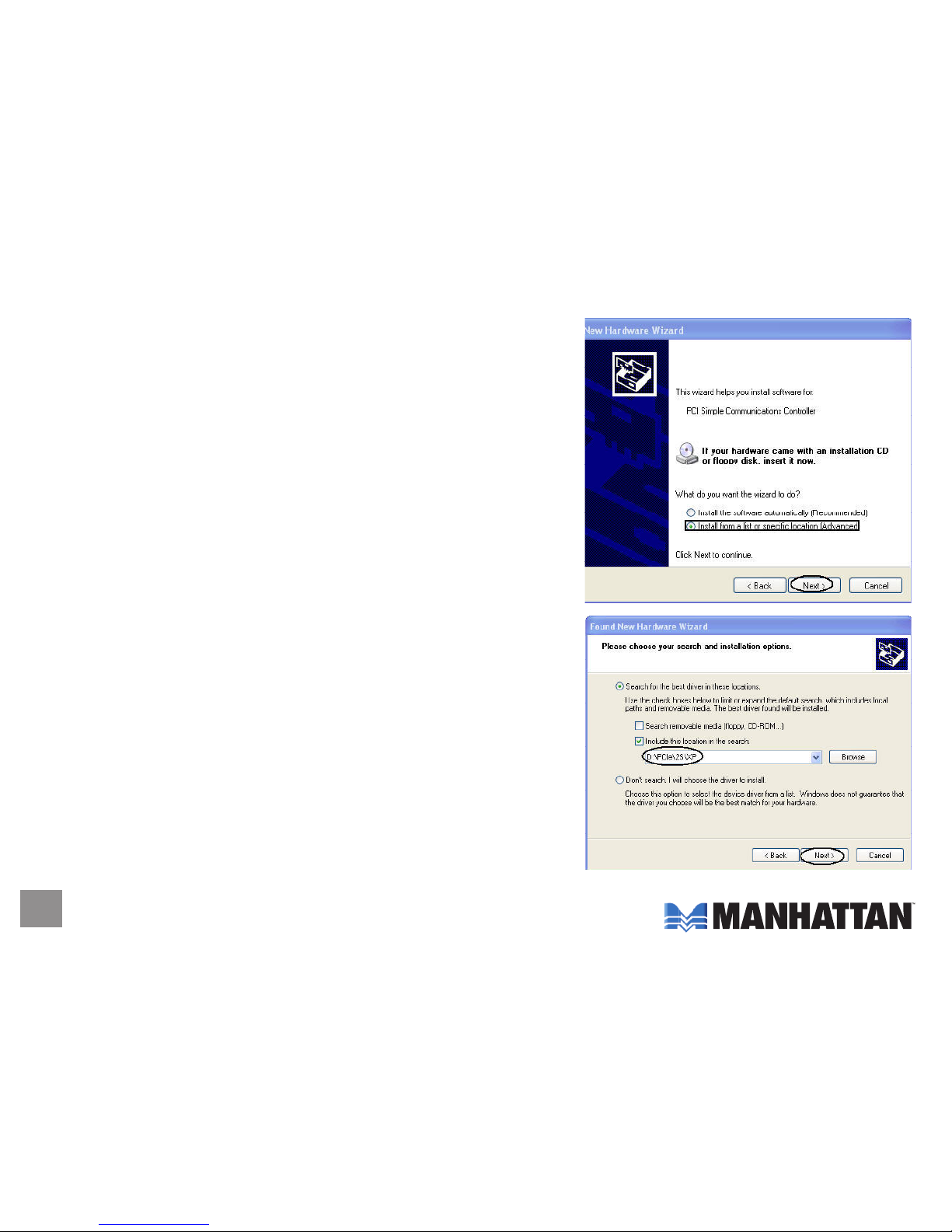

For Windows XP

1. On the Found New Hardware Wizard screen, select

"Install from a list or speciﬁc location (Advanced)," then

click "Next."

2. Insert the driver CD, check "Include this location in the

search" and enter "D:\PCIe\2S\XP" in the blank ﬁeld,

uncheck the other box, then click "OK." (If needed,

change "D:" to match your CD-ROM drive

designation.)

3. If the Hardware Installation window pops up, click

"Continue Anyway," then click "Finish." The driver has

been thoroughly tested for stability and compatibility.

4. Repeat steps 1-3 one more time.

5. Restart Windows to complete the installation.

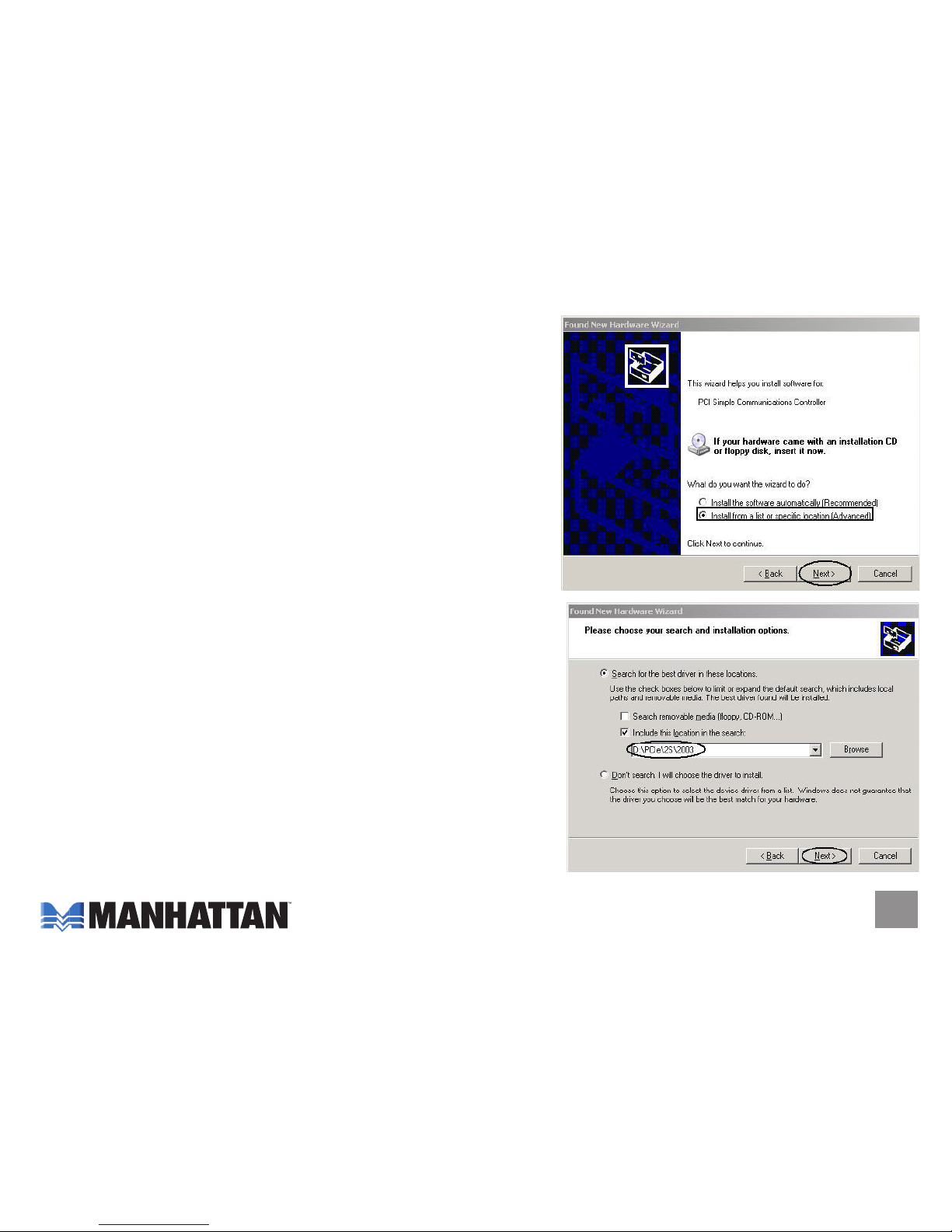

For Windows Server 2003

1. On the Found New Hardware Wizard screen,

select "Install from a list or speciﬁc location

(Advanced)," then click "Next."

2. Insert the driver CD, check "Include this location in

the search" and enter "D:\PCIe\2S\2003" in the

blank ﬁeld, uncheck the other box, then click "OK."

(If needed, change "D:" to match your CD-ROM

drive designation.)

3. If the Hardware Installation window pops up, click

"Continue Anyway," then click "Finish." The driver has

been thoroughly tested for stability and compatibility.

4. Repeat steps 1-3 one more time.

5. Restart Windows to complete the installation.

Verifying Windows 2000/XP/Server 2003 Installation

1. Right click on "My Computer," then click "Manage."

Click on "Device Manager."

2. Click on "+" (plus sign) in front of "Ports (COM & LPT)."

Two "NetMos PCI Serial Port ..." options should be

displayed.

3. Double-click on "Multifunction adapters." "NetMos 9835

PCI Multi-I/O Controller" should be displayed.

Changing the COM Port Address

Some serial devices need a speciﬁc COM port in order to work. If your device works properly,

don’t change this setting. Otherwise, follow these steps for Windows 2000/XP/Server 2003.

1. From the Device Manager window, double-click "Ports (COM & LPT)," then double-click the

"NetMos PCI Serial Port" you want to change.

2. Click on the Settings tab and click "Advanced."

3. Click the down arrow that is next to the "COM Port Number" box; select a COM port that is

not in use, then click "OK."

4. Click "OK," then close Device Manager to save the changes. Follow steps 1-4 again to

change the second serial port, if needed.

SPeCifiCatioNS

Port Speciﬁcations

• Two DB9 male ports

• Programmable baud rate of up to 115,200 bps

• MosChip serial controller

• Single 3.3 V operation

• Compliant to PCI Express 1.0a speciﬁcations

• 16-byte transmit/receive FIFO

• Even, odd, no parity or force parity options

• 5-, 6-, 7- and 8-bit characters selection

• Compatible with 16C550

• Legacy PCI addressing support

Bus Speciﬁcations

• PCI Express x1

• Texas Instruments chipset

• Bus speed: 2.5 Gbps

• Fully compliant to PCI Express

speciﬁcations 1.0a

System Requirements

• Windows 2000/XP/Server 2003/Vista

• PCI Express-enabled system with an

available PCI Express slot

• CD-ROM drive

Package Contents

• Serial PCI Express Card, 2 Ports, x1 Lane

• User manual and CD driver

www.manhattan-products.com

Are you completely satisﬁed with this product?

Please contact your MANHATTAN®dealer with comments or questions.

All products mentioned are trademarks or registered trademarks of their respective owners.
