K00333/K00334 TRAY SLIDE KIT 1/2/3 DOOR

InstallationInstructions

TOP VIEWS OF CABINET SHOWING TRAY SLIDE PILASTER POSITIONS

K00333 PARTS LIST

Item Qty. Part No. Description

1 4 3203343 Wire Shelf Pilaster

2 16 6022201 Tray Slide

3 4 6022301 Tray Slide Pilaster

K00334 PARTS LIST

Item Qty. Part No. Description

1 4 3203343 Wire Shelf Pilaster

2 16 6022201 Tray Slide

3 1 6022191 Tray Slide Pilaster - 2 Dr.

4 3 6022301 Tray Slide Pilaster

5 47” 9202503 Tape, Extruded

READ INSTRUCTIONS COMPLETELY BEFORE INSTALLATION

1. Remove all wire shelves from door opening. Remove existing pilasters by removing the thumbscrews at the top and

lifting up and off the mounting studs.

2. (Use steps 2 and 3, when installing on bottom half.) Use top slotted holes on tray slide pilaster, as shown in Fig. 3.

Press in and down to lock into place.

Manitowoc Ice, Inc.

2110 South 26 Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA 8010553

Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879 Sheet 1 of 2

Web Site - www.manitowocice.com Rev.04/01/99

1 Dr. 2 Dr.

3 Dr.

Thumbscrew

3. Install your precut wire shelf pilasters to the top half of your cabinet above the tray slide pilaster. Note:when

installing your wire shelf pilaster above the tray slide pilaster on the 2-door, the top of the pilaster closest to the drain

tube must be cut off to an overall length of 17.625” for clearance. The thumbscrews should be used to lock the shelf

pilasters in place at the top of the cabinet.

4. (Use steps 4 and 5, when installing on top half.) Install your precut wire shelf pilasters to the bottom half of the

cabinet first.

5. Install your tray slide pilasters using the bottom slotted holes on the pilaster, as shown in Fig. 4. Press in and down

to lock into place. Use the thumbscrews to lock into place.

6. When installing a full cabinet door of tray slides, always start with the bottom and work up, making sure the top and

bottom pilasters are flush where they meet.

7. Hang tray slides on tray slide pilaster with tap openings facing down (see Fig. 1). Insert shelf clips at desired levels.

There should be no less than a minimum of 9” between the top wire rack or tray slide and evaporator drain pan.

NOTE: The 2-door kit is K00334. When installing this kit, the notched pilaster goes around the drain tube on the top

back wall. The foam tape should be installed between the tray slide pilaster (on the pilaster) and the back wall of the

cabinet (see Fig. 2).

8010553

Sheet 2 of 2

Rev. 04/01/99

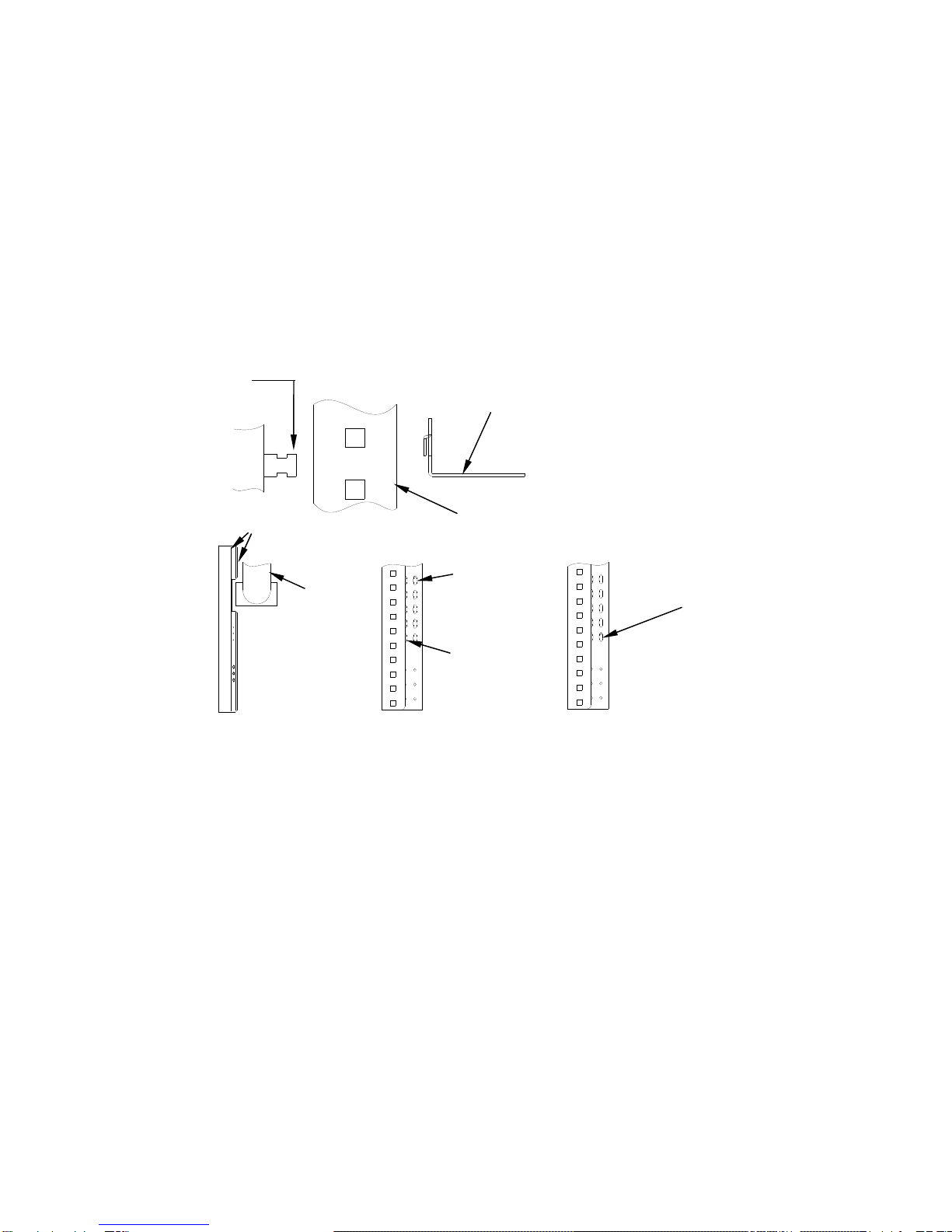

Mounting Stud

Cabinet

Fig. 1

Tray Slide

Tray Slide Pilaster

Foam Tape

Drain

Tube

Mounting Stud

Bottom Half Mounting Stud

Top Half

Inside Set of

Slots are used

for Left/Right

Front Corner

Location

Fig. 2 Fig. 3

Bottom Half Fig. 4

Top Half
