Manitowoc Grove GMK6300L Manuale utente

Operating Manual

Part 1 – Driving

3 302 597 en

05.04.2017

xx.xx.xxxx

3 112 xxx en Operating Manual GMK6300L

Important note

Any type of duplication or excerpt from

this document, even in electronic form,

is not subject to the revision service of

Manitowoc Crane Group Germany GmbH.

Manitowoc Crane Group Germany GmbH

Industriegelände West

D-26389 Wilhelmshaven, Germany

Phone: [+49] (0)44 21 294-0

Fax: +[49] (0) 44 21 294-301

The passing on or duplication of this document as well as the utilisation and disclosure of its contents is prohibited unless

expressly permitted. Infringement will incur liability for compensation. All rights pertaining to registration of patent or utility

model are reserved. The original language of this document is German.

Correction sheet GMK6300L/6300L-1 3 302 803 en 1

27.08.2018

Contrary to the information specified in the operating manual,

there are corrected hoist rope reevings on the main boom for the

GMK6300L/GMK6300L-1 truck crane.

Only reeve the hoist rope as described/illustrated in this correction sheet.

It is important that you still observe all notes and safety instructions

regarding rigging work on the main boom in the operating manual

supplied.

With 9 head

sheaves

9 sheave hook block

Correction sheet

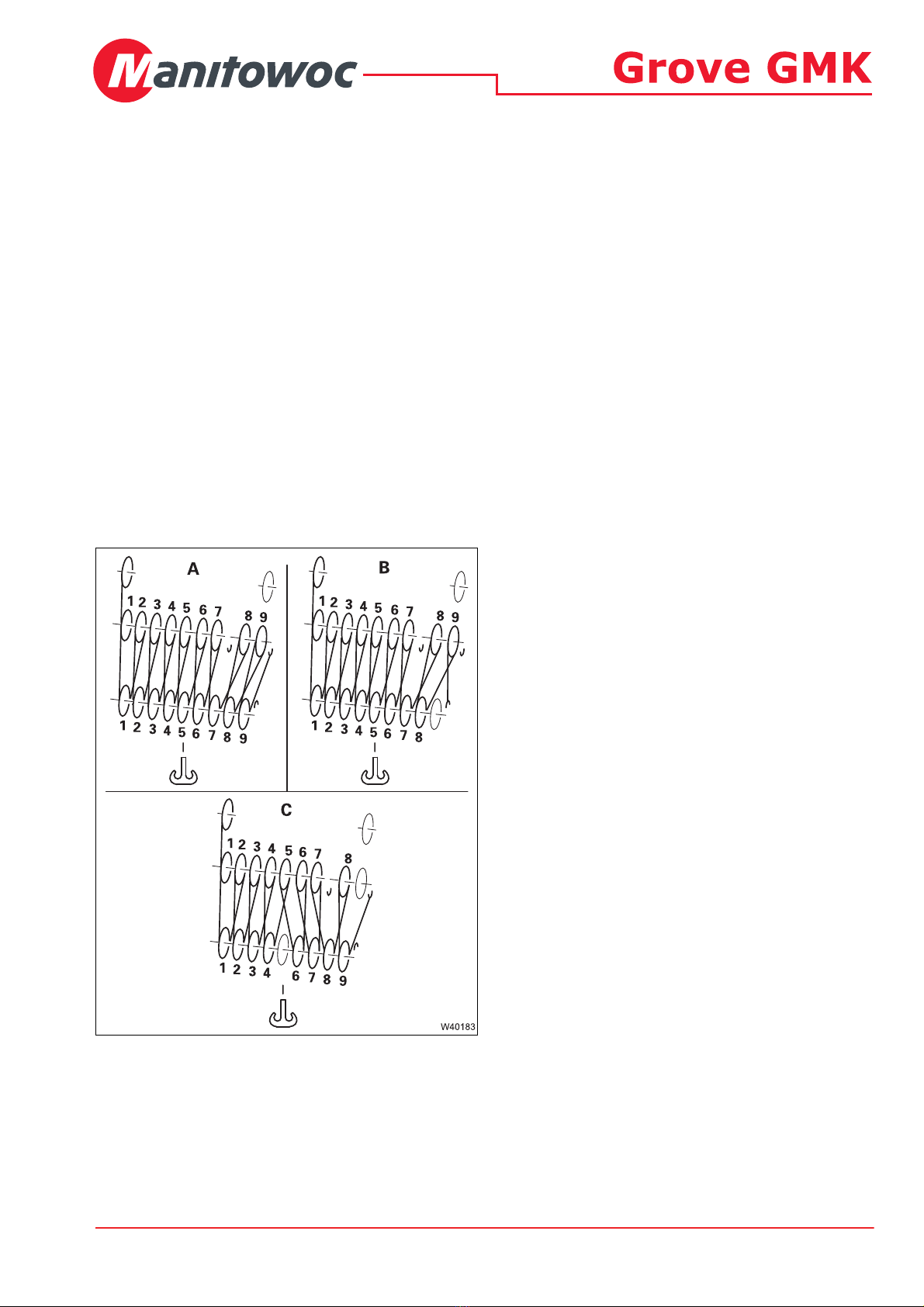

Possible reeving methods on the main boom

Reeving

A18x

B17x

C16x

27.08.2018

2 3 302 803 en Correction sheet GMK6300L/6300L-1

7 sheave hook block

Reeving

A15x

B14x

C13x

D12x

Correction sheet GMK6300L/6300L-1 3 302 803 en 3

27.08.2018

5 sheave hook block

Reeving

A11x

B10x

C9x

D8x

E7x

F6x

27.08.2018

4 3 302 803 en Correction sheet GMK6300L/6300L-1

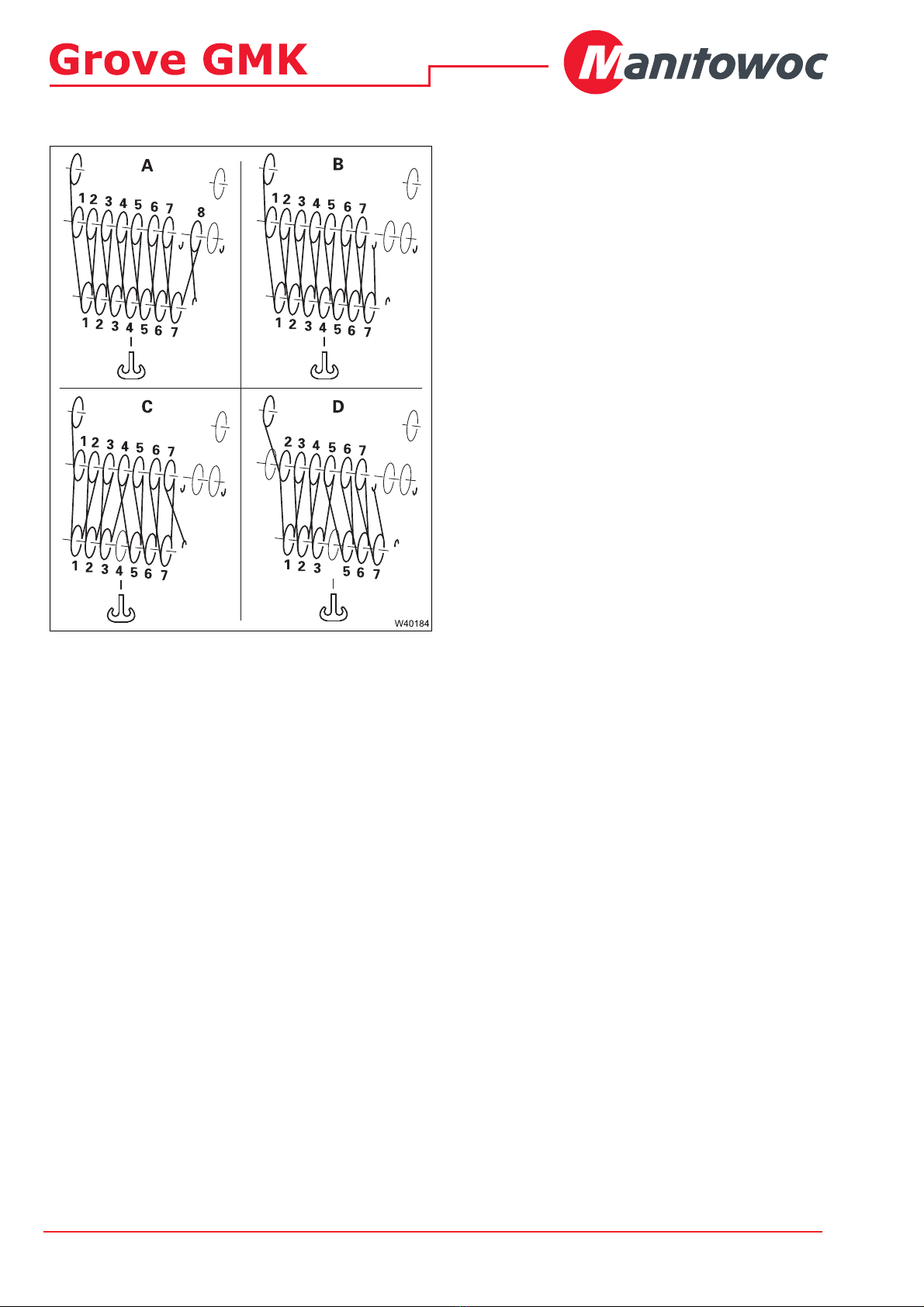

3 sheave hook block

1 sheave hook block

Reeving

A7x

B6x

C5x

D4x

Reeving

A3x

B2x

C1x

Correction sheet GMK6300L/6300L-1 3 302 803 en 5

27.08.2018

Hook tackle

With 10 head

sheaves

9 sheave hook block

Reeving

A1x

Reeving

A19x

B18x

C17x

D16x

27.08.2018

6 3 302 803 en Correction sheet GMK6300L/6300L-1

7 sheave hook block

Reeving

A15x

B14x

C13x

D12x

Correction sheet GMK6300L/6300L-1 3 302 803 en 7

27.08.2018

5 sheave hook block

Reeving

A11x

B10x

C9x

D8x

E7x

F6x

27.08.2018

8 3 302 803 en Correction sheet GMK6300L/6300L-1

3 sheave hook block

1 sheave hook block

Reeving

A7x

B6x

C5x

D4x

Reeving

A3x
