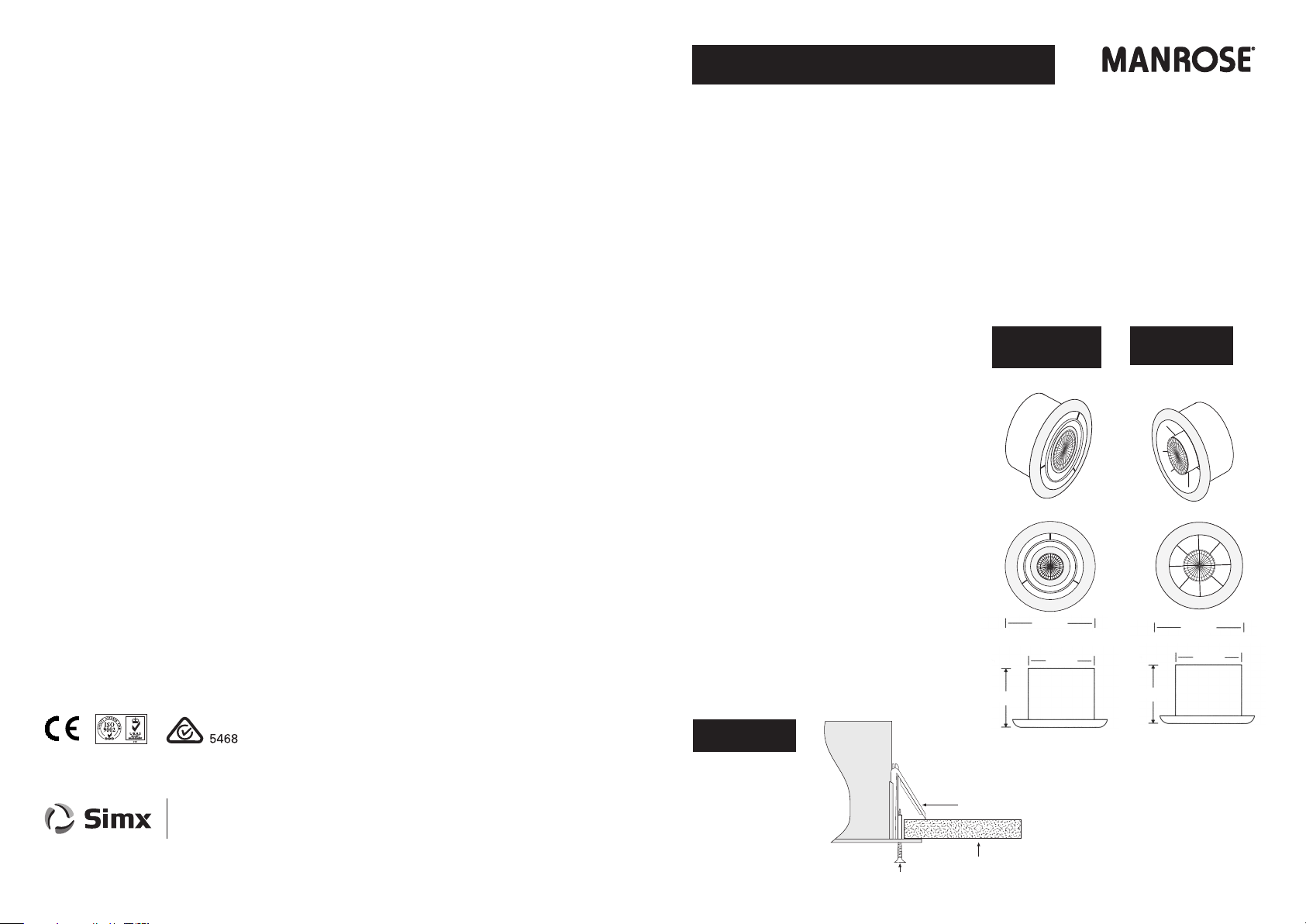

Installation Instructions
1. The Extract-a-Lite is suitable for any 125mm in line extractor system including Passive Stack Ventilation
systems (see overleaf for installation example).
Important: The Halogen model Extract-a-Lite must not work independently of the fan.
2. Cut a 140mm-diameter hole in ceiling, affix the chassis using the 4 holes. (Always ensure the hole is
cut between ceiling rafters). Use the fixing clips to secure the fan to the wall or ceiling. (See diagram 1).
3. Connect the duct to the spigot of the chassis.
4. For the LED models: Connect a suitable driver to the Extract-a-Lite and to a suitable power
supply, ideally to the switched live of the extractor fan installed. Recommended driver: FAN5342.
Replacement lamp: LHT0221
For the Halogen models: Connect a suitable transformer to the Extract-a-Lite and to a suitable
power supply, ideally to the switched live of the extractor fan installed. Recommended transformer:
FAN2101. Recommended lamp: FAN0431
5. Place the ceiling cover onto the chassis by locating onto the 3 lugs, and twisting clockwise.
6. Never connect mains direct to the lamps.
7. The transformer/driver must be suitable for 230V AC input.
CAUTION: Disconnect the power supply, and be sure that the lamp has fully cooled before removing
or replacing.
IMPORTANT
• Isolate the mains supply before making any electrical connections. This system should be
installed by a qualified electrician.
• When fitting through an external wall, an external grille must be fitted at all times.
• Fan should only be installed by fixed wiring, a flexible cord should not be used.
• The appliance is not intended for use by young children or infirm persons without supervision.
• Young children should be supervised to ensure that they do not play with the appliance.
• Precautions must be taken to avoid the back-flow of gases into the room from the open flue
of gas or other open-fire appliances when mounted in outside windows or walls.
Diagram 2
TYPICAL INSTALLATION
Internal
Extract-a-Lite
The Shower Fan
screwed to the joist
External Grille
Flexible duct
